BDS 4.5 Inch Lift Kit for 2001-2010 Chevy Silverado or GMC Sierra 2500HD/3500 SRW 4WD

Key Features

• High-clearance 1/4-inch thick laser-cut crossmembers paired with a bolt-together front skid plate system for a rigid subframe and added protection
• CNC-machined ductile cast iron steering knuckles that maintain ESC system compliance and correct steering geometry at ride height
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Rear lift block that retains factory ride quality and load capacity

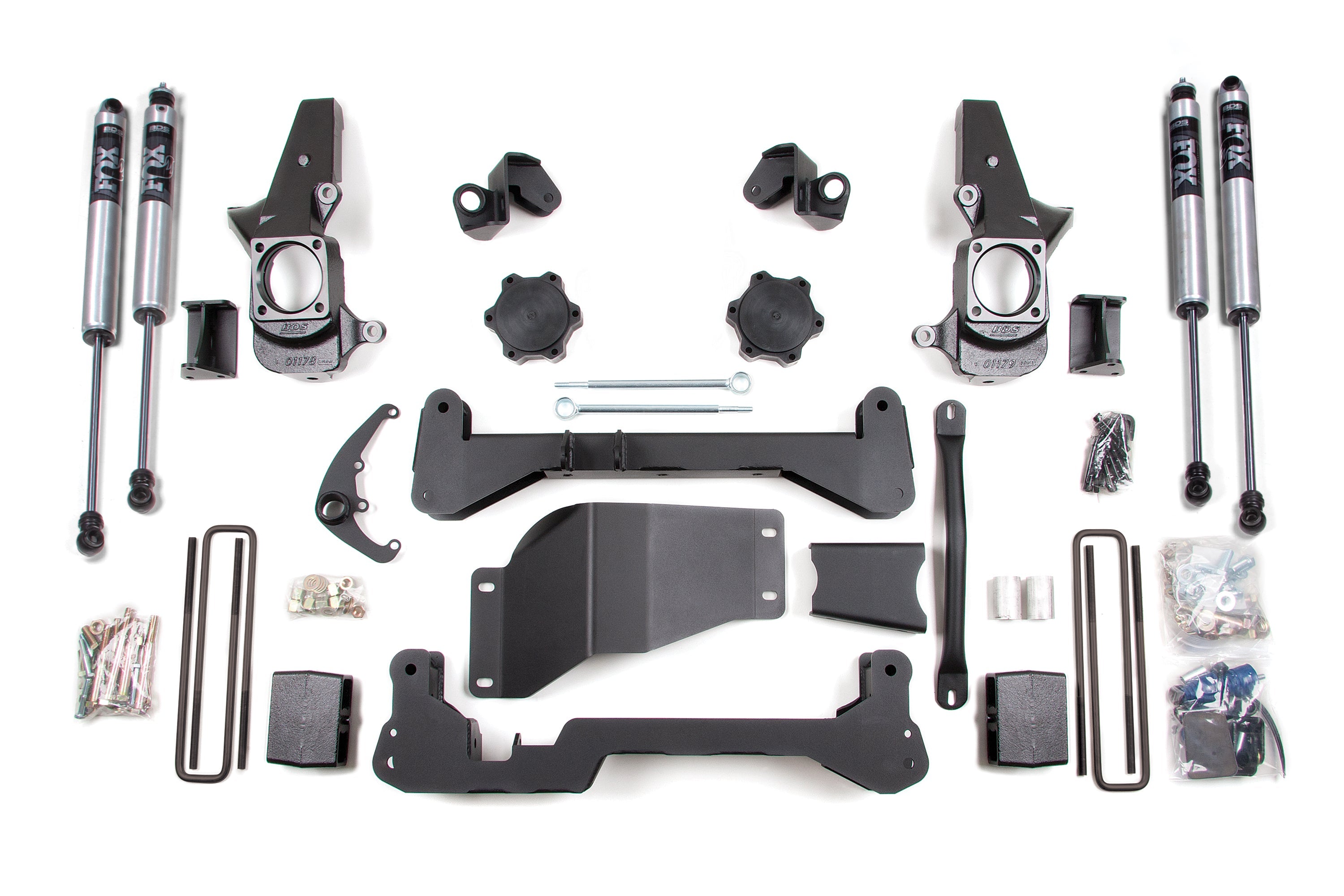

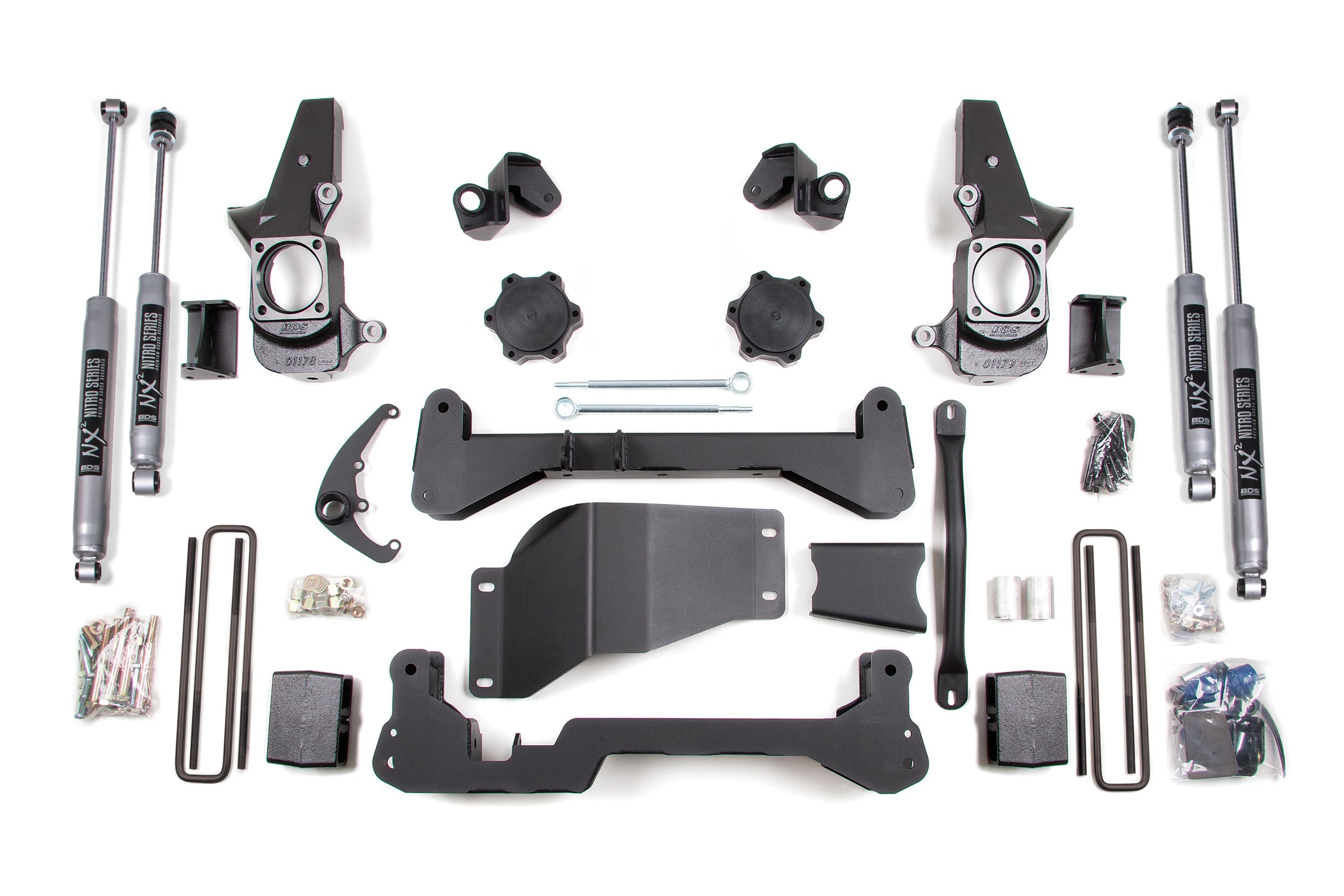

• Choice of NX2 Nitro or FOX 2.0 Performance Series gas shocks
• Factory Protection Plus drivetrain warranty included
• Clearance for up to 33" tires

Shock Options

NX2 Nitro Series: Nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends for added strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

FOX 2.0 Performance Series: 2-inch Impact extruded aluminum body with internal floating piston (IFP) monotube design, CNC-machined 6061-T6 aluminum mounting ends, a 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a long-lasting clear anodized finish.

Track Width Options

This system is available with two knuckle designs. The standard knuckle widens track width without affecting turning radius. The narrow track knuckle reduces total track width change by about 1.5" overall but slightly increases the turning radius.

Recommended Tires & Wheels

Trimming may be required:

• 33 x 12.5 with 17 x 9 and 5.5 in. backspace
• 33 x 12.5 with 18 x 9 and 5.5 in. backspace
• 33 x 12.5 with 20 x 9 and 5.75 in. backspace

Fitment

• 2001-2006 Chevrolet Silverado 1500 HD / 2500 HD & GMC Sierra 1500 HD / 2500 HD
• 2007-2010 Chevrolet Silverado 2500 HD / 3500 HD & GMC Sierra 2500 HD / 3500 HD
• 2002-2006 Chevrolet Avalanche 2500
• 2001-2010 Chevrolet Suburban 2500 & GMC Yukon XL 2500

Important Notes

• Torsion bar tool required to load/unload the torsion bars
• Some welding is required
• Requires frame bracket modification and differential mount modification
• Traction bars will not fit standard cab/short box models and are designed for vehicles with 4" to 8" of lift
• 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming
• Gas models require exhaust modification
• Narrow track knuckle will slightly increase the turning radius
• For a tail-high stance, use #119157 add-a-leaf with the block kit
• Not recommended for Suburban / Yukon models with AutoTrac Transfer Case
• Does NOT work with rear Autoride-equipped SUVs
• Does not fit dual rear wheel trucks
