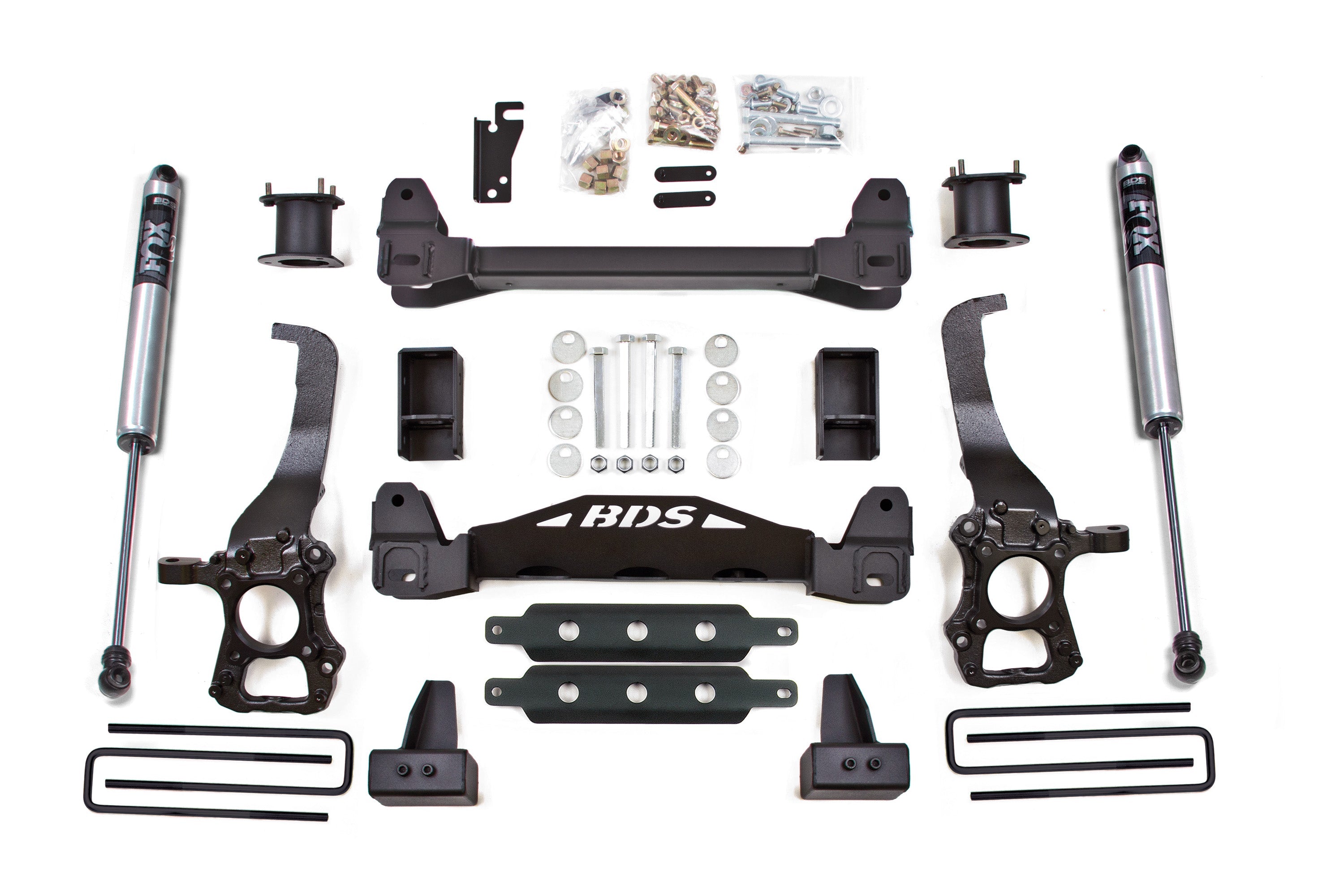

BDS 4 Inch Lift Kit for 2009-2013 Ford F150 2WD

Key Features

• High-clearance 1/4-inch thick laser-cut crossmembers that bolt together with the front skid plate to create a rigid subframe, improving strength and off-road capability
• Heavy-duty CNC-machined ductile cast iron steering knuckles that correct steering geometry at the new ride height and maintain ESC system compatibility
• Top-mounted strut spacers that provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear cast steel lift blocks and longer u-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum on- and off-road performance

Rear Shock Options

NX2 Nitro Series: Nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

FOX 2.0 Performance Series: 2-inch impact extruded aluminum body with an internal floating piston (IFP) monotube design, CNC-machined 6061-T6 aluminum mounting ends, a 5/8-inch hard chrome-plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Recommended Tires & Wheels

Trimming may be required.

• 35 x 12.5 with 18 x 9 wheels and 5-inch backspacing
• 35 x 12.5 with 20 x 9 wheels and 5.5-inch backspacing

Fitment

This kit fits the following 2WD (RWD) Ford F-150 models:

Important Notes

• 18-inch or larger diameter wheels required. Stock 17-inch and 18-inch wheels cannot be reinstalled. Stock 20-inch wheels can be used with up to 305/60-20 tires.
• E-brake bracket required for factory power steps (123018).
• For a level to tail-low appearance, use #023415 with Kit #599H. Block kits replace the factory 1-1/4-inch block.
• Early 2009 models may require brake assembly modification.
• Will not fit HD models (7-lug).
• Vehicles equipped with a 2-piece rear driveshaft may require carrier bearing drop kit #122406.
• This kit is FMVSS No. 126 compliant.
