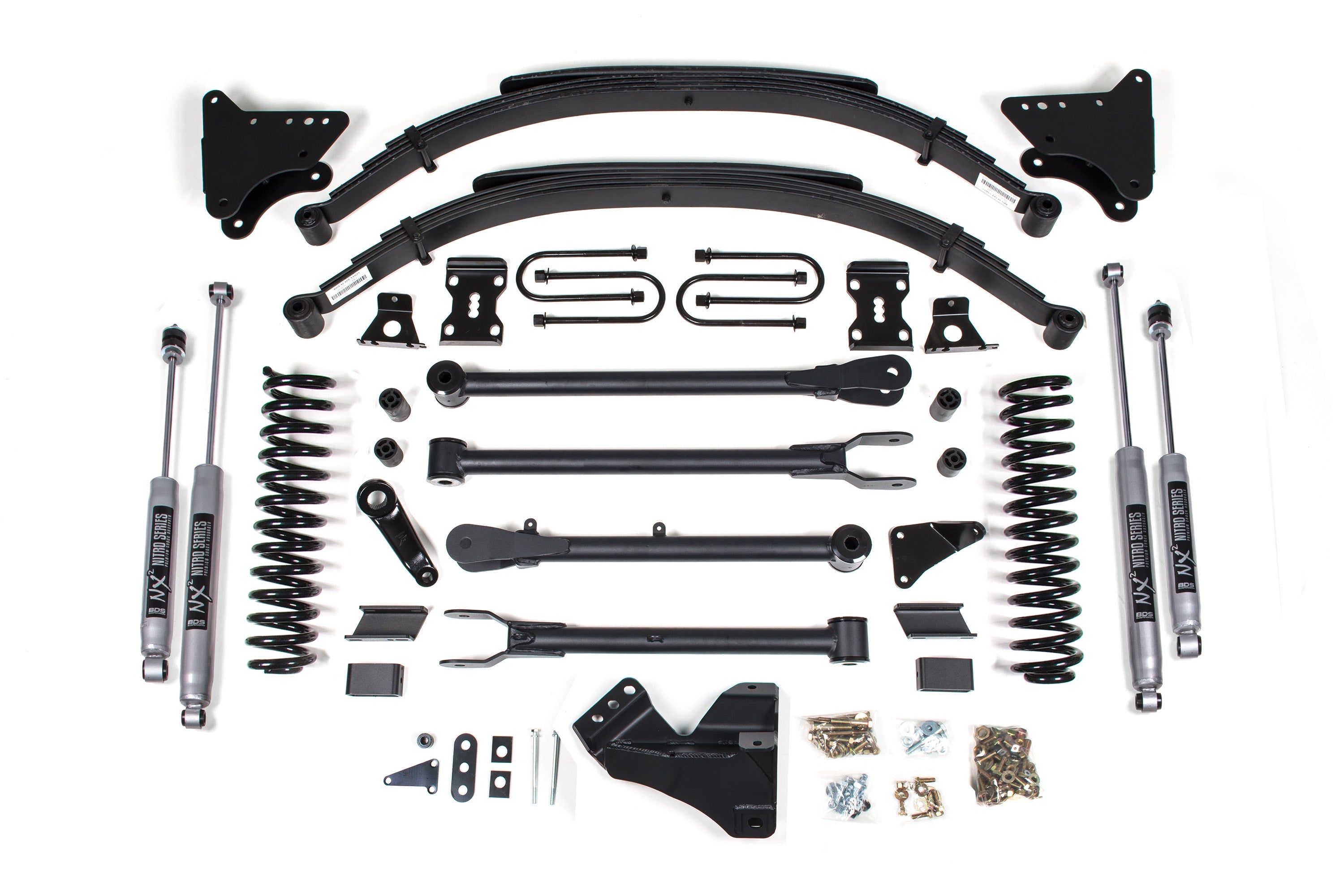

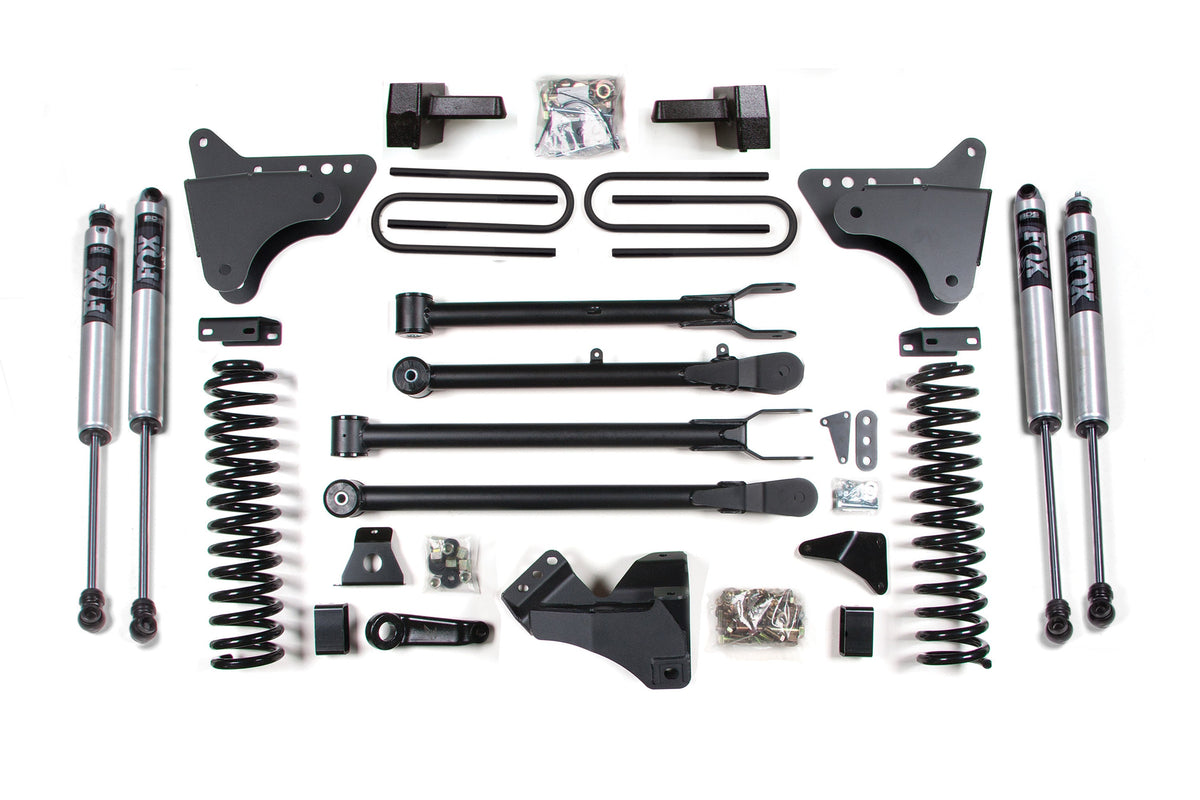

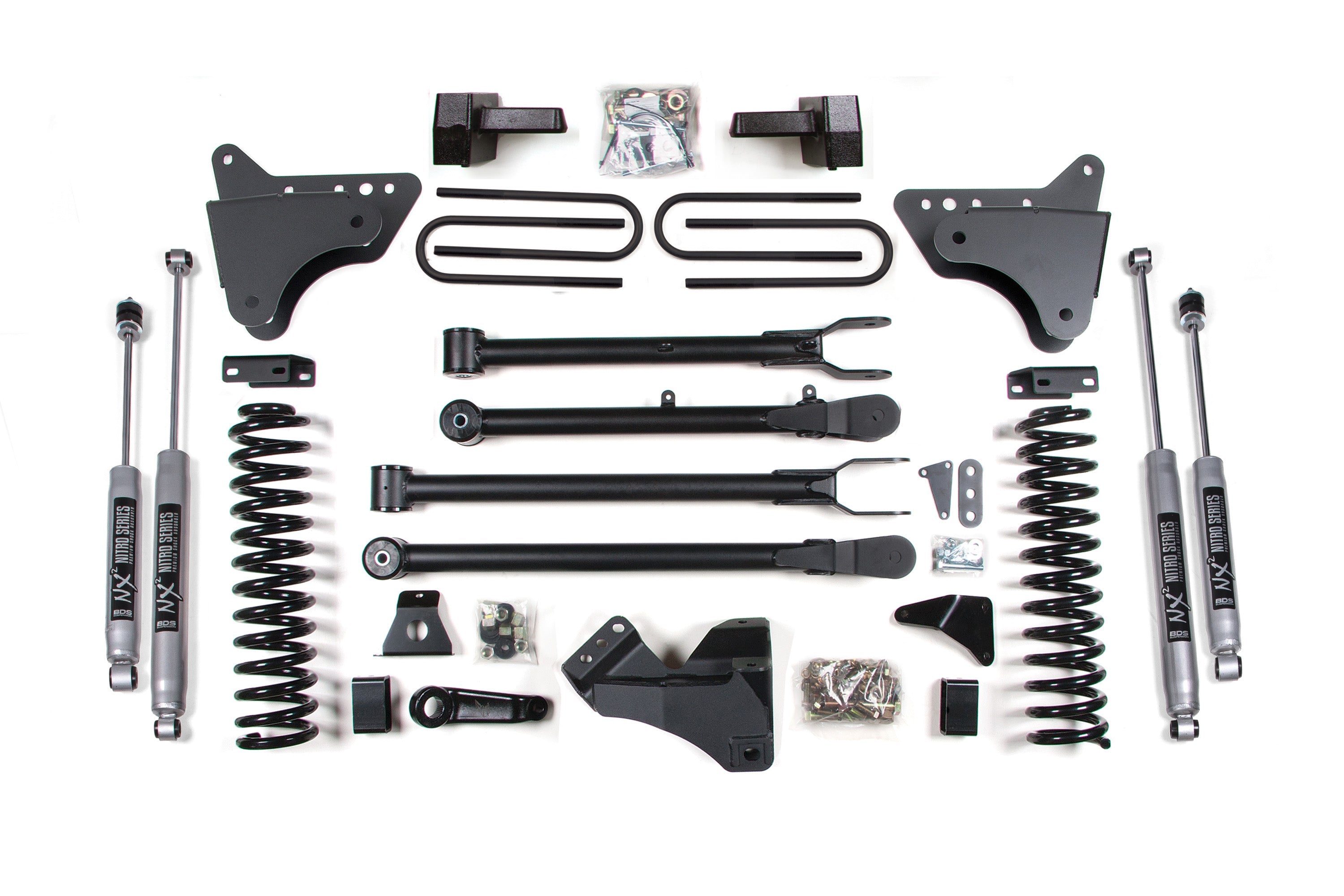

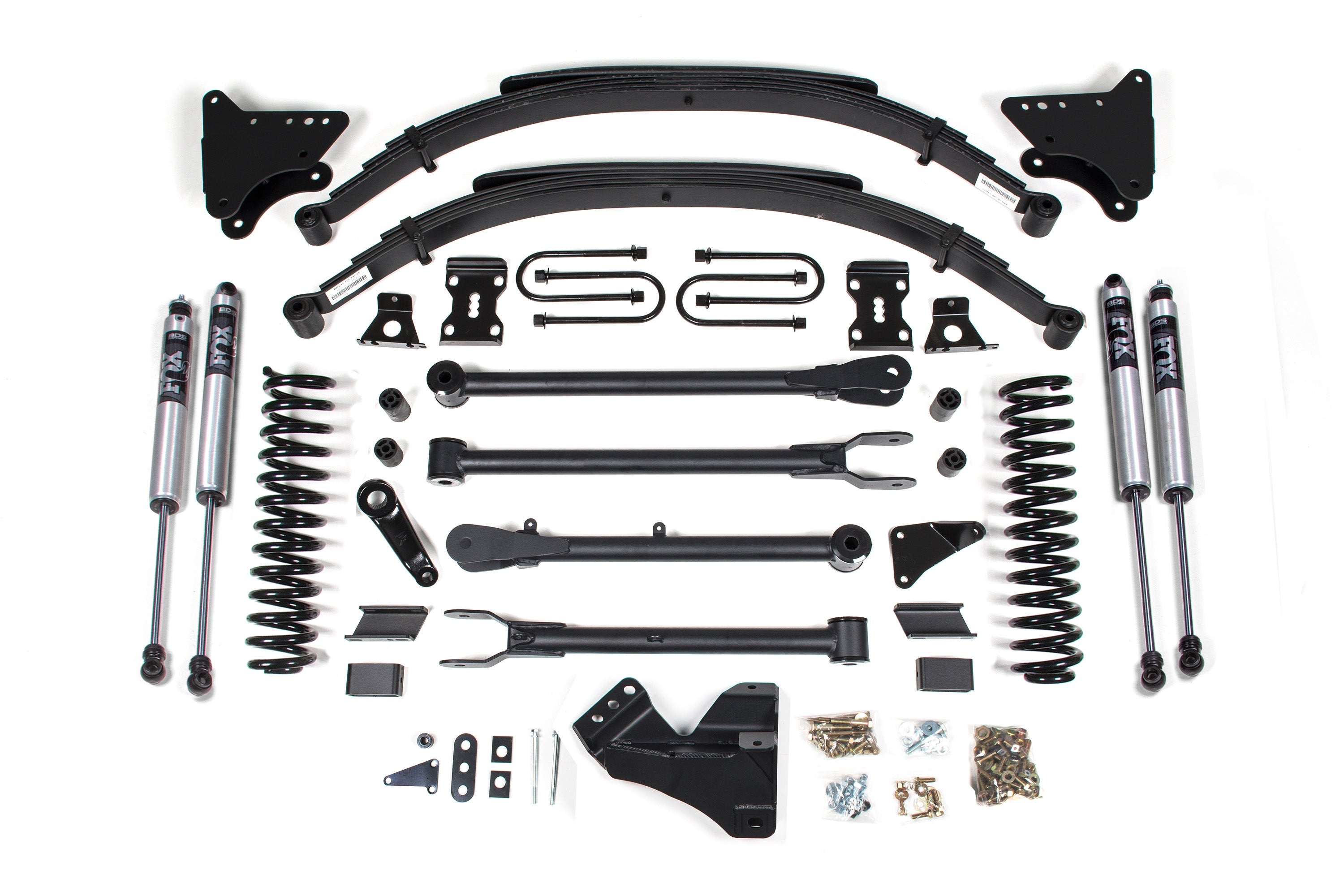

BDS 4 Inch Lift Kit w/ 4-Link for 2008-2010 Ford F250/F350 Super Duty 4WD Diesel

Key Features

• 100% bolt-on installation — no cutting or welding required for a straightforward upgrade.
• 4-Link conversion — replaces factory stamped steel radius arms with HD upper and lower control arms on ¼-inch steel brackets, correcting axle positioning and limiting caster change throughout wheel travel.
• Pro-Ride dual-rate coil springs — full-length, diesel-specific springs that deliver correct lift height and a smooth, predictable ride across varied terrain.
• Steering correction — forged drop pitman arm and heavy-duty track bar drop bracket keep steering angles in phase through suspension travel and recenter the front axle.
• Fabricated steel rear blocks — provide a level front-to-rear stance and correct pinion angles.
• Shock options — standard NX2 Nitro shocks with vehicle-specific valving, or upgrade to FOX 2.0 Performance Series for maximum on- and off-road control.

Shock Specifications

NX2 Nitro Series: Nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

FOX 2.0 Performance Series: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC-machined 6061-T6 aluminum mounting ends, a 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a clear anodized finish.

Rear Lift Options

Block Kit: Steel blocks designed to provide correct pinion angles. Identify whether your truck has top-mounted overload springs before ordering.

Leaf Springs: Eliminate the need for a lift block, reduce axle wrap for a more controlled feel, use a multi-leaf progressive design for a smooth ride, and maintain factory payload ratings.

Recommended Tires & Wheels

Trimming may be required.

• 35 x 12.5 with 17 x 9, 4.5 in. backspace
• 35 x 12.5 with 18 x 9, 4.5 in. backspace
• 35 x 12.5 with 20 x 9, 4.5 in. backspace

Fitment

• 2008-2010 Ford F-250 Super Duty, all submodels, 4WD, Diesel
• 2008-2010 Ford F-350 Super Duty, all submodels, 4WD, Diesel

Important Notes

• These trucks were built with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf, separate from the pack, set above the main leaf. Identify which you have before ordering.
• If your vehicle is equipped with a carrier bearing, order part 123402 from the accessories section.
• Removal of the factory block is required.
• Front exhaust modification may be required to clear the front driveshaft on gas models.
• U-bolts will not fit dually models.
• The dropped pitman arm will not fit 10-lug widetrack F350 models.
