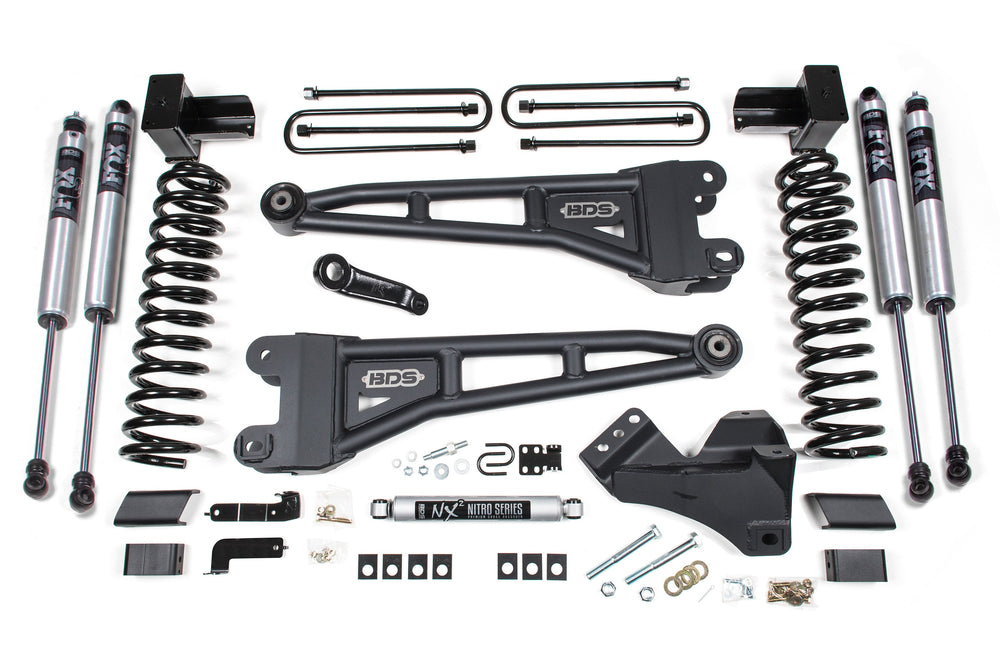

BDS 4 Inch Lift Kit w/ Radius Arm for 2020-2022 Ford F350 Super Duty DRW 4WD Diesel

Key Features

• Easy, 100% bolt-on installation — installs into factory mounting locations for a straightforward setup.
• Pro-Ride dual-rate coil springs — full-length, diesel-specific springs deliver correct lift height and a remarkable ride across any terrain.
• HD tubular steel radius arms — replace the factory stamped steel arms, mount into the factory location, and offer caster adjustment across a range of lift heights. OE-style rubber bushings at the frame mount keep operation smooth, quiet, and service-free while maximizing ground clearance.
• Steering correction — forged drop pitman arm minimizes steering angle, paired with a heavy-duty track bar drop bracket to keep components in phase through suspension travel and recenter the front axle.
• Fabricated steel rear blocks — provide a level stance front to rear.
• Application-tuned shocks — standard NX2 Nitro shocks with vehicle-specific valving for better control, or upgrade to FOX 2.0 Performance Series for maximum on- and off-road performance.

Shock Options

NX2 Nitro Series: Nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

FOX 2.0 Performance Series: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC-machined 6061-T6 aluminum mounting ends, a 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a long-lasting clear anodized finish.

FOX 2.5 Performance Elite Series: Increased off-road capability with easy adjustment for terrain, load, and speed. Features a 2.5-inch impact extruded aluminum body, a 7/8-inch hard chrome plated heat-treated alloy steel shaft, an external reservoir that separates shock oil from high-pressure nitrogen, a standard Dual Speed Compression (DSC) Adjuster, and a fully serviceable design backed by a 1-year manufacturer's warranty.

Recommended Tires & Wheels

Trimming may be required. 37 x 12.5 with 17 x 9 and 5 in. backspace; 37 x 12.5 with 18 x 9 and 5 in. backspace; or 37 x 12.5 with 20 x 9 and 5 in. backspace.

Fitment

This kit fits the following applications (4WD diesel unless noted):

• 2020 Ford F-350 Super Duty — King Ranch, Lariat, Platinum, XL, XLT (4WD Diesel); Limited (All drive types, all fuel)
• 2021 Ford F-350 Super Duty — King Ranch, Lariat, Platinum, XL, XLT (4WD Diesel); Limited (All drive types, all fuel)
• 2022 Ford F-350 Super Duty — King Ranch, Lariat, Platinum, XL, XLT (4WD Diesel); Limited (All drive types, all fuel)

Important Notes

• Removal of the factory leaf spring block is required. Net rear lift will vary depending on the height of the factory block but will result in a level stance.
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
• A torque wrench capable of 405 ft-lbs is required for installation.
• 37 x 12.50 tires may require minor trimming.
