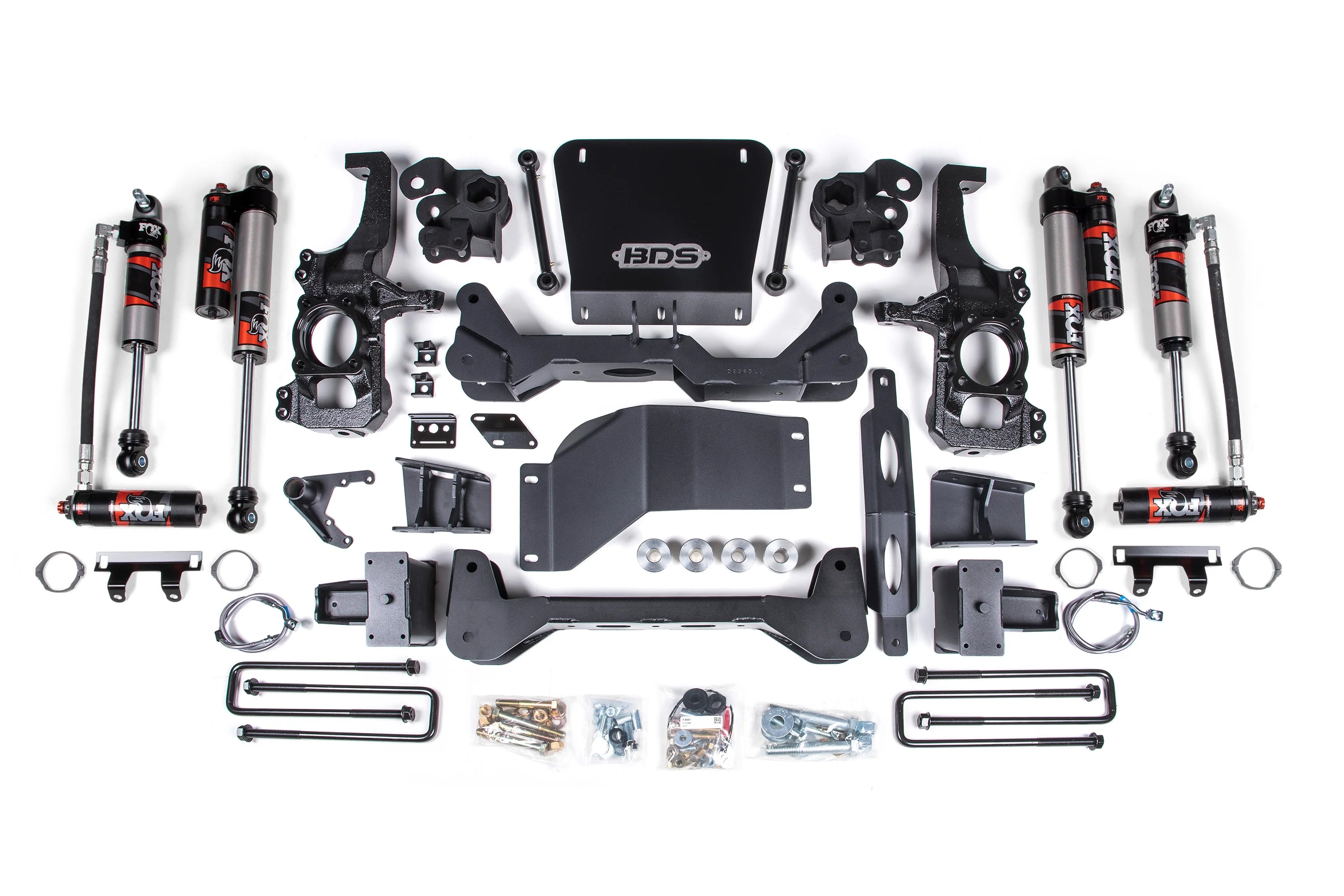

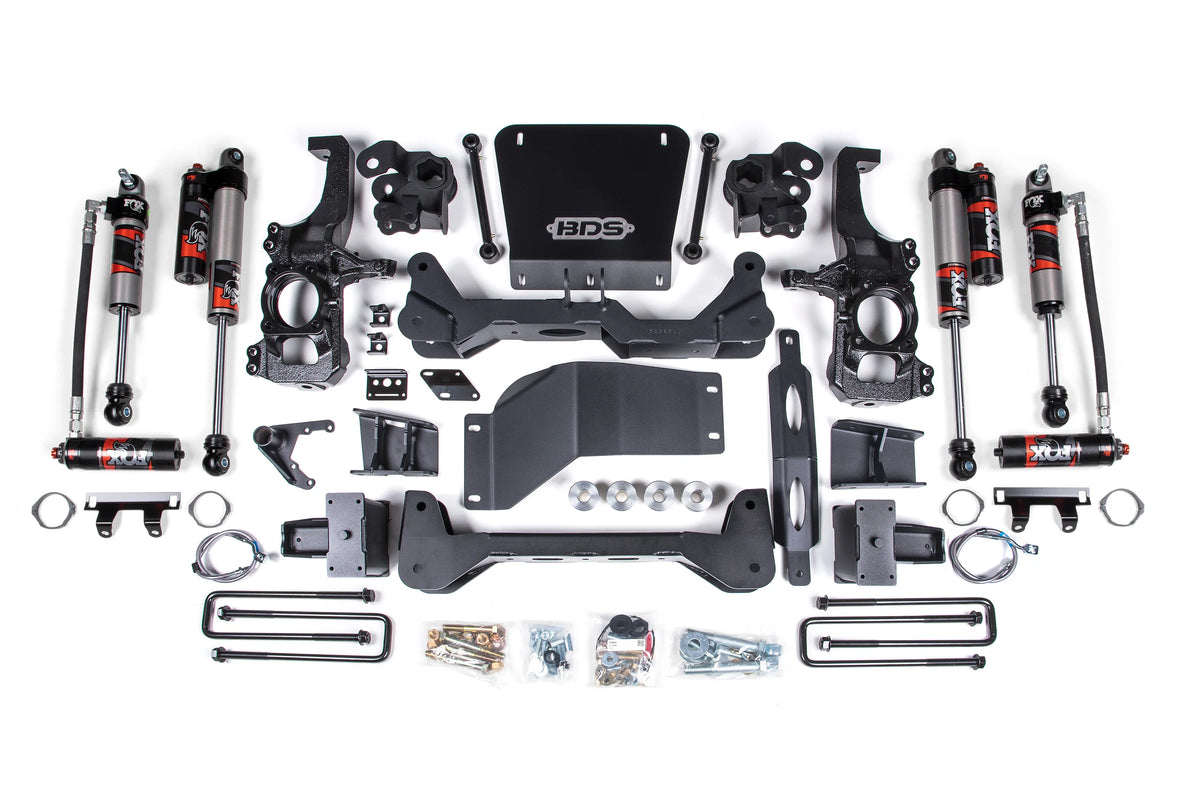

BDS 6.5 Inch Lift Kit with FOX Performance Elite for 2020-2026 Chevy Silverado or GMC Sierra 2500HD/3500HD 4WD

Key Features

• High Clearance design with no torsion bar drop for maximum ground clearance
• Robust CNC-machined ductile iron steering knuckles that maintain ESC system compliance and correct steering geometry
• HD skid plate system for improved off-road protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• High-arched 1/4-inch thick steel crossmembers for strength and clearance
• Rear replacement lift blocks and u-bolts that retain factory ride quality and load capacity
• Brake line and ABS line relocation brackets that allow use of factory brake lines
• Stainless steel front brake lines, sway bar drops, and all necessary hardware included
• Choice of NX2 Nitro or FOX 2.0 Performance Series shocks, with optional FOX 2.5 Performance Elite upgrade
• FOX 2.5 Performance Elite shocks feature a remote reservoir and DSC adjuster with 10 low-speed and 12 high-speed compression settings
• Clearance for up to 38-inch tires
• Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

Trimming may be required.

• 38 x 13.5 with 20 x 9 and 6.18 in. backspace
• 37 x 12.5 with 20 x 9 and 4.5 in. backspace

Fitment

• 2020-2023 Chevrolet Silverado 2500 HD & 3500 HD (all submodels)
• 2020-2023 GMC Sierra 2500 HD & 3500 HD (all submodels)
• 2024 Chevrolet Silverado 2500 HD & 3500 HD (Custom, High Country, LT, LTZ, WT)
• 2024 GMC Sierra 2500 HD (AT4, Denali, Denali Ultimate, Pro, SLE, SLT) & 3500 HD 4WD
• 2025-2026 Chevrolet Silverado 2500 HD & 3500 HD (Custom, High Country, LT, LTZ, WT) — Front and Rear 6.5"
• 2025-2026 GMC Sierra 2500 HD (AT4, Denali, Denali Ultimate, Pro, SLE, SLT) & 3500 HD 4WD — Front and Rear 6.5"

This kit is designed for 4WD models. Will NOT fit AT4X or ZR2 models, as the lower control arm profile is different. For DRW models, use the "with overload" rear lift option. To determine your correct rear lift option, check whether your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.

Important Notes & Installation Requirements

• Requires frame bracket modification.
• A torsion bar tool is required to load and unload the torsion bars.
• Models with two-piece rear driveshafts will require a carrier bearing drop kit.
• Factory 17-18" wheels cannot be reinstalled due to tie rod end interference. Stock 20" wheels can be reinstalled with up to a 35x12.50 tire.
• Vehicles frequently used in 4WD on the highway could experience a minor front driveline vibration. If this occurs, BDS recommends replacing the front driveshaft with a dual Cardan style driveshaft.
• Do not install this suspension system with any type of torsion bar lift keys to achieve more than the tested 6.5" lift height.
• Some minor trimming will be required with certain wheel/tire combinations. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks and typically involves the bottom edge of the inner fender shrouds and/or the lower corner of the front bumper valance. Deeper backspacing and shorter/narrower tires reduce or eliminate trimming. Additional trimming tips are included in the instruction sheet.
