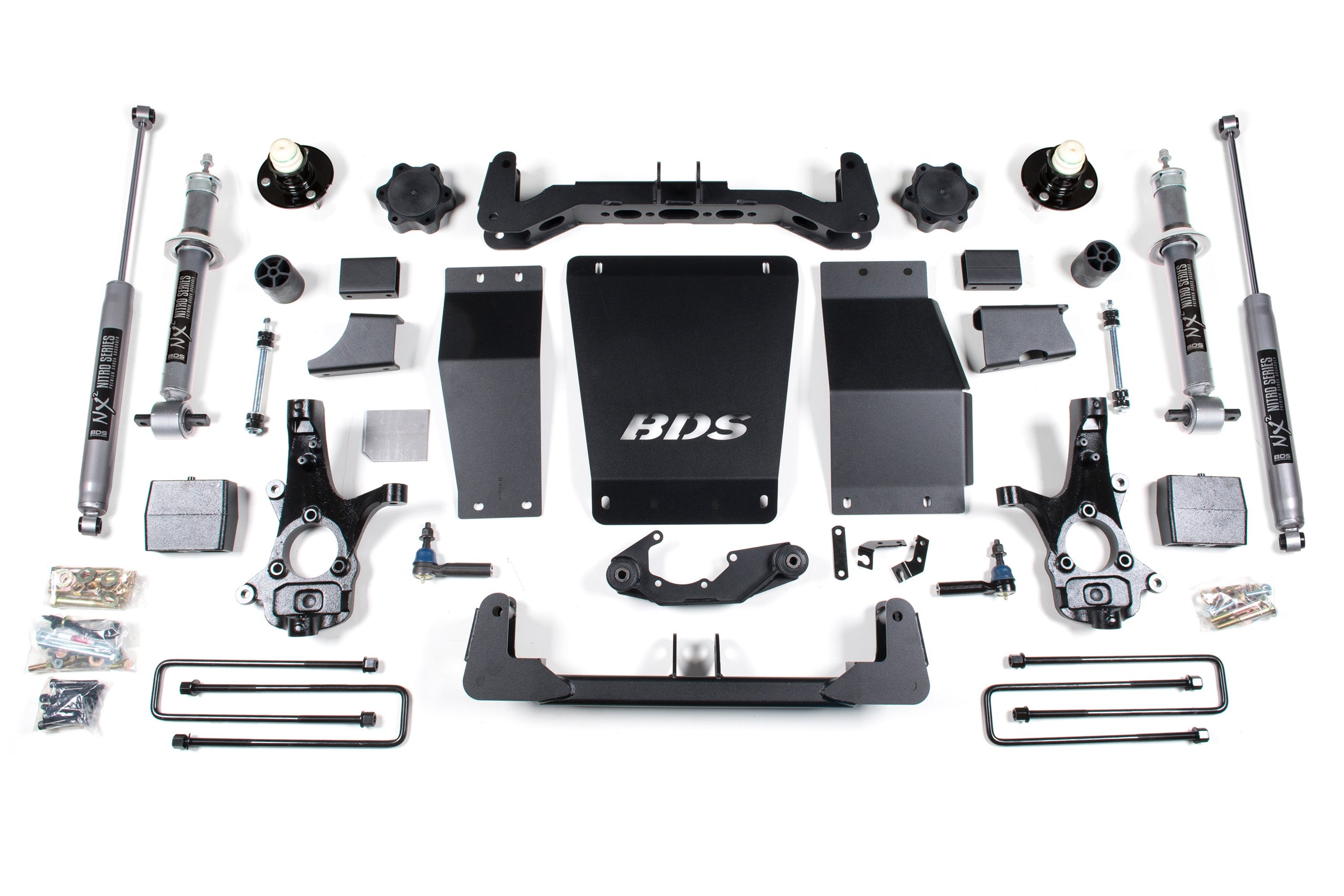

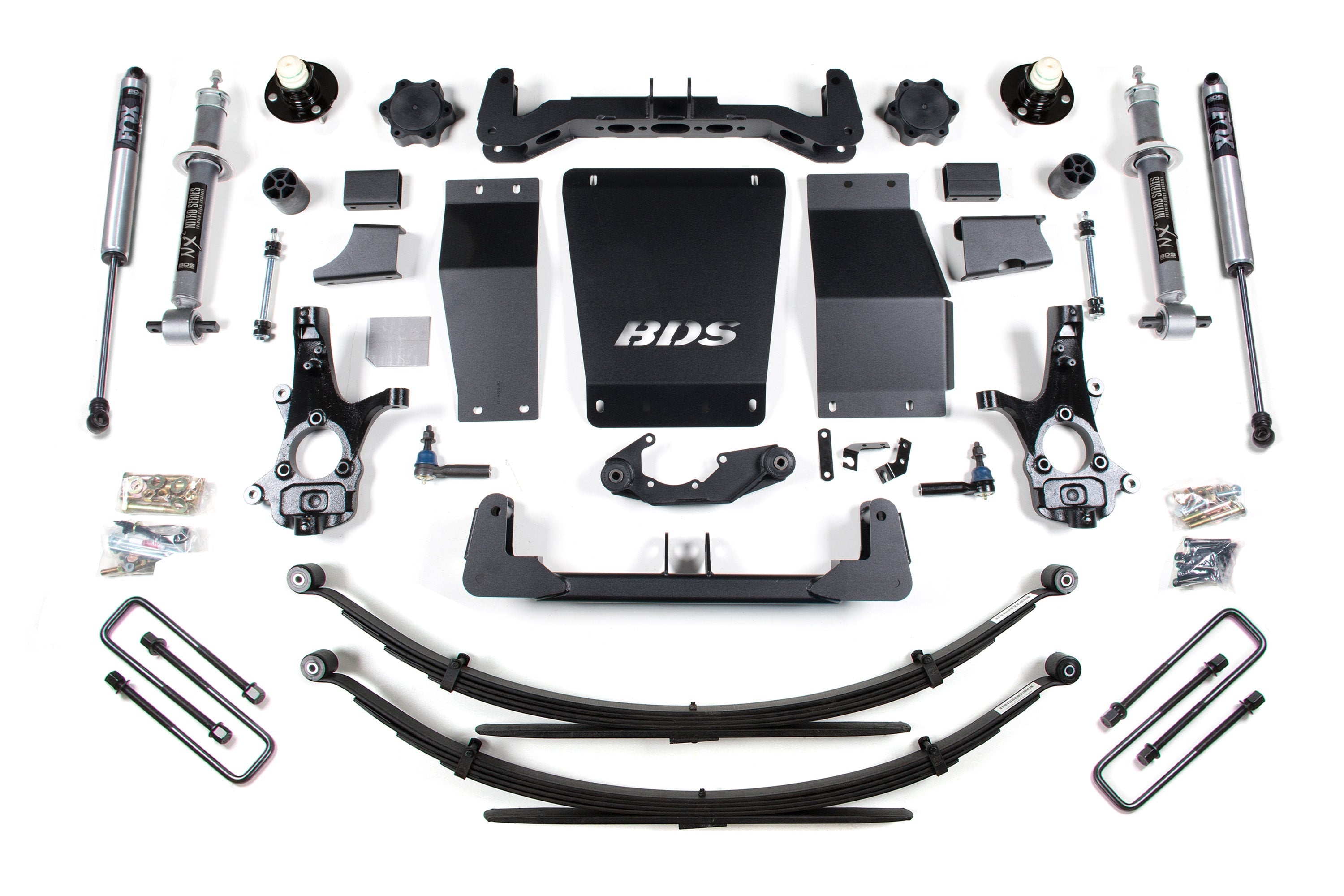

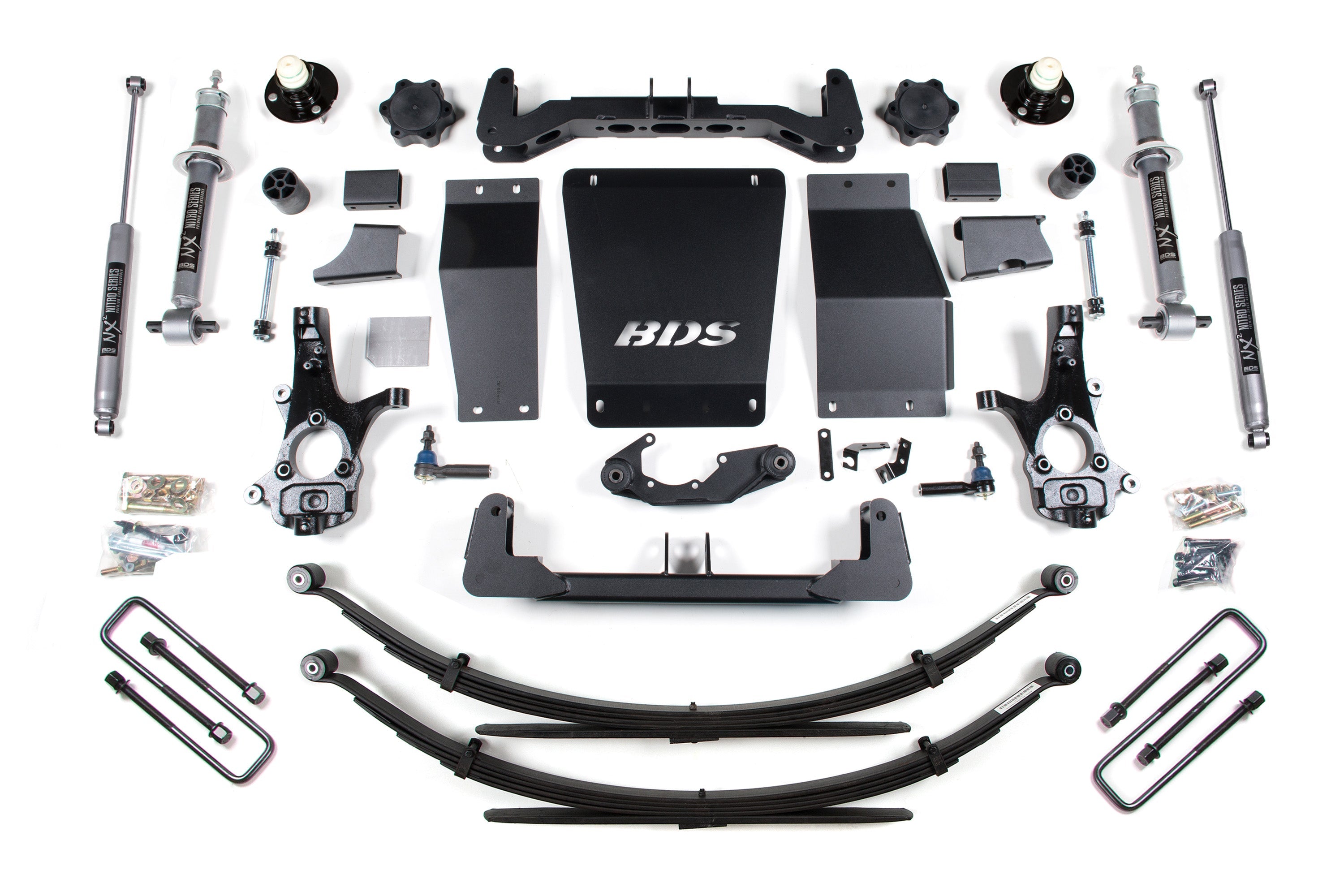

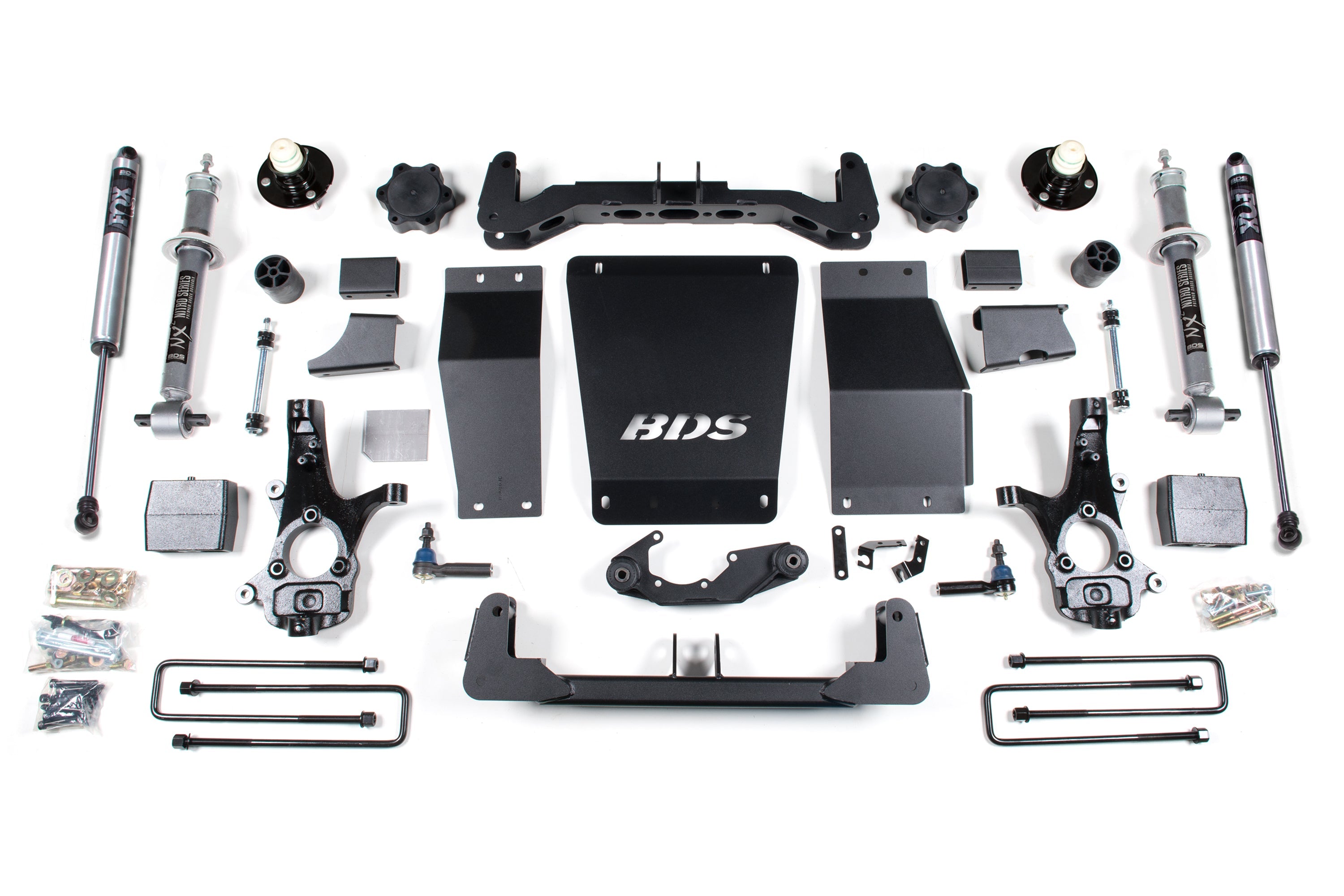

BDS 6 Inch Lift Kit for 2014-2018 Chevy Silverado or GMC Sierra 1500 4WD

Key Features

• High clearance crossmembers: Heavy-duty 1/4-inch thick laser-cut steel crossmembers maximize ground clearance and pair with a bolt-together front skid plate system to form a rigid subframe with added protection.
• Heavy duty steering knuckles: High-strength CNC-machined ductile cast iron knuckles correct steering geometry at the taller ride height, work with factory tie rod ends, and maintain ESC compatibility.
• Front suspension: Full-length replacement strut shocks, multipiece differential relocation brackets to secure the front axle and improve CV angles, HD skid plates, sway bar drops, bump stop extensions, brake line brackets, CV spacers, and supplied hardware.
• Rear lift options: Choose a 5" cast iron lift block (replaces the factory 1-1/4" block, nets 4" of rear lift, designed for correct pinion angles) or full Glide-Ride multi-leaf progressive leaf springs that eliminate the lift block, reduce axle wrap, and maintain factory payload ratings.
• Rear shock options: NX2 Nitro Series (nitrogen-charged twin-tube, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8" high-flow piston, self-lubricating seals, silver powder coat) or FOX 2.0 Performance Series (2" extruded aluminum body, IFP monotube design, CNC-machined 6061-T6 aluminum ends, 5/8" hard chrome-plated alloy steel shaft, application-specific valving, clear anodized finish).
• Includes: New rear u-bolts, brake line brackets, and complete supplied hardware.
• Factory Protection Plus drivetrain warranty included.

Recommended Tires & Wheels

Trimming may be required.

• 33 x 12.5 with 17 x 8 and 4.5 in. backspace
• 34 x 12.5 with 18 x 9 and 5 in. backspace
• 35 x 12.5 with 20 x 9 and 5.75 in. backspace

Fitment

Fits 4WD models only:

• 2014 Chevrolet Silverado 1500 (High Country, LT, LTZ, WT) & GMC Sierra 1500 (All)
• 2015 Chevrolet Silverado 1500 (All) & GMC Sierra 1500 (All)
• 2016 Chevrolet Silverado 1500 (Custom, High Country, LS, LT, LTZ, SSV, WT) & GMC Sierra 1500 (All)
• 2017 Chevrolet Silverado 1500 (All) & GMC Sierra 1500 (All)
• 2018 Chevrolet Silverado 1500 (All) & GMC Sierra 1500 (All)

Important Notes & Installation

Verify your control arm type before ordering. GM produced several knuckle/control arm configurations in these trucks. Cast Steel control arm models require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm models require the "Aluminum Control Arm" kit. Reference the help images when customizing your kit to confirm which factory control arms your truck has.

• Strut compressor required.
• Requires frame bracket modification.
• Requires differential modification to clear electric power steering.
• Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
• If choosing the 5" rear block option, add-a-leaf #111209 is recommended for a more level/tail-high stance on crew cab models.
• All-wheel-drive models require driveline modification.
• Will not fit MagneRide magnetic ride control equipped models.
