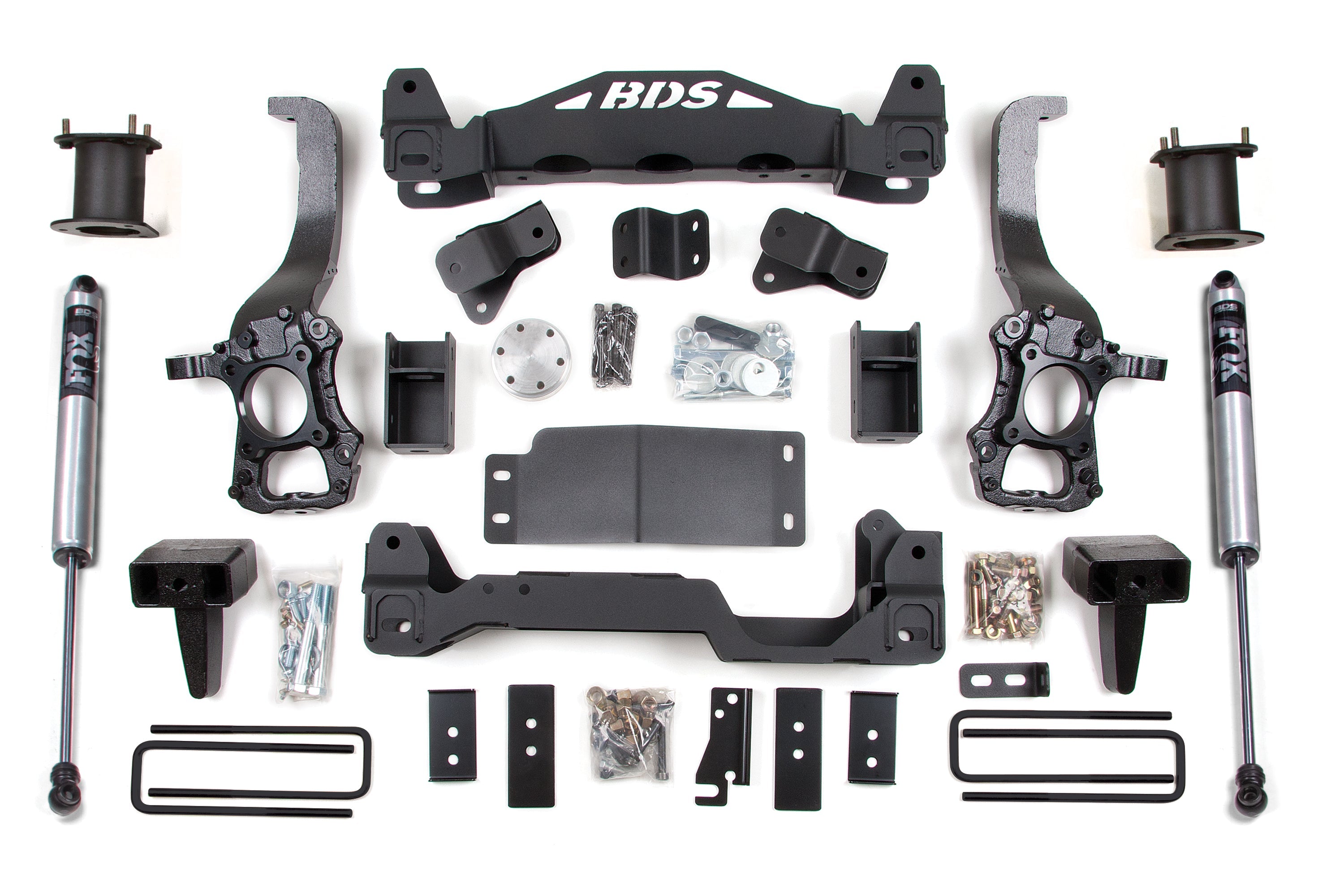

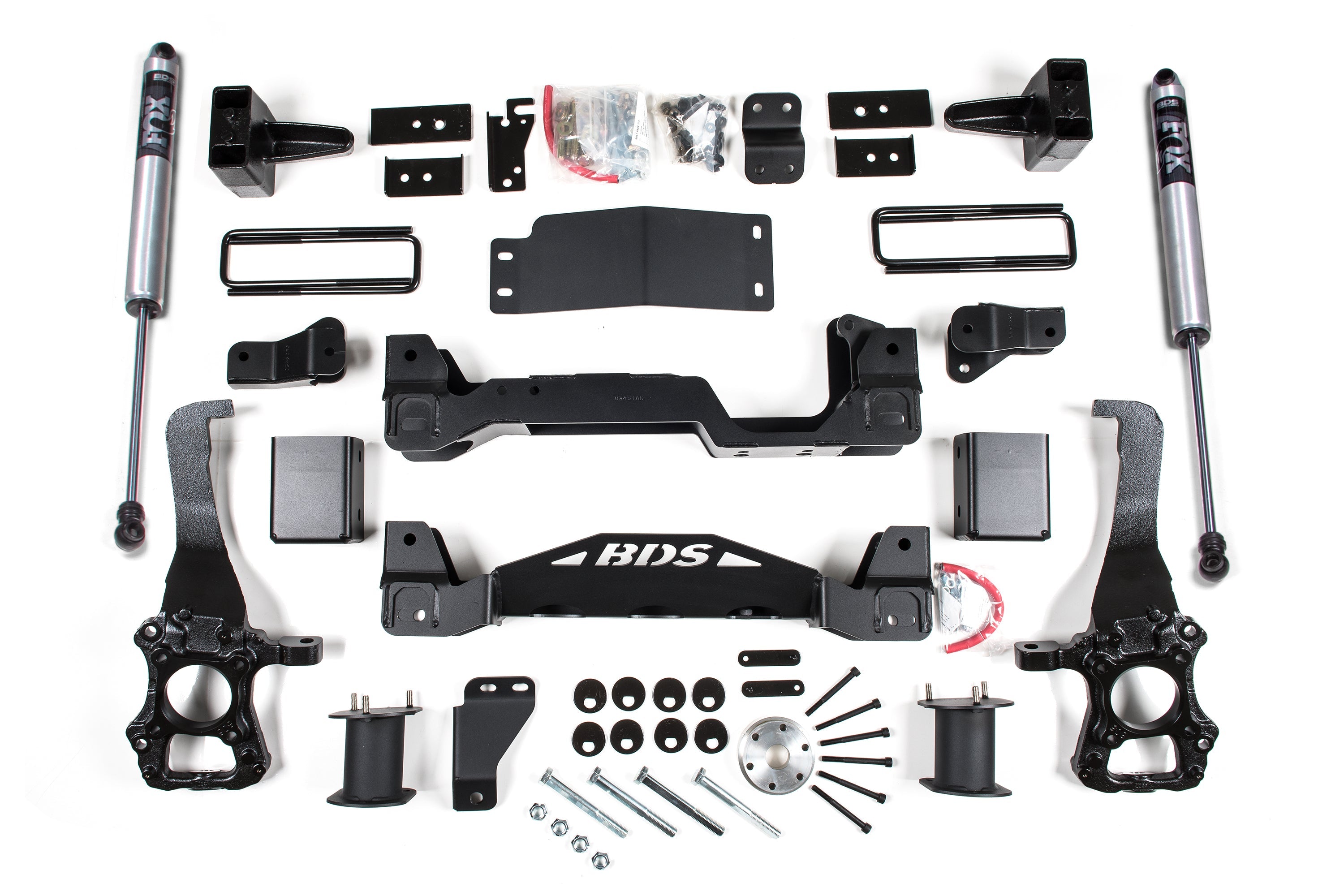

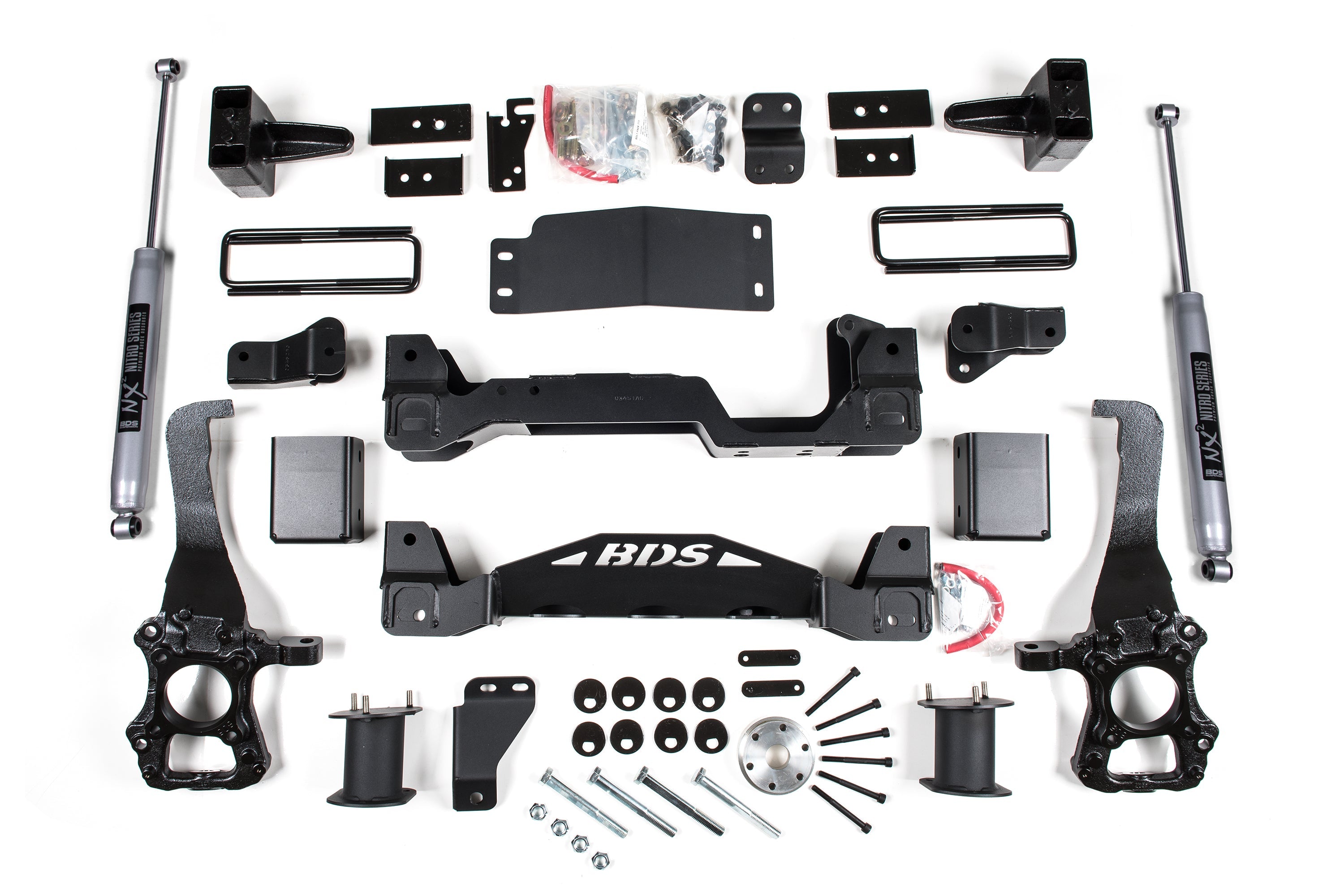

BDS 6 Inch Lift Kit for 2014 Ford F150 4WD

Key Features

• High-clearance 1/4-inch thick laser-cut crossmembers improve strength and off-road capability, paired with a bolt-together front skid plate system for a rigid subframe and added protection.
• Heavy-duty CNC-machined ductile cast iron steering knuckles correct steering geometry at the new ride height, working with replacement tie rod ends to maintain steering angles and ESC compatibility.
• Top-mounted strut spacers provide lift and install easily.
• Differential skid plate for improved off-road protection.
• Rear lift blocks and u-bolts to lift and level the stance.
• Standard NX2 Nitro shocks with vehicle-specific valving for better control.
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum on- and off-road performance.

Shock Options

NX2 Nitro Series: Nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

FOX 2.0 Performance Series: 2-inch Impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC-machined 6061-T6 aluminum mounting ends, a 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a clear anodized finish.

Rear Lift Options

• 5-Inch Block Kit: Level to tail-high appearance.
• 4-Inch Block Kit: Tail-low to level stance.

Recommended Tires & Wheels

Trimming may be required.

• 37 x 12.5 with 18 x 9 and 5 in. backspace
• 37 x 12.5 with 20 x 9 and 5.5 in. backspace

Fitment

• 2014 Ford F-150 FX4 (All drive types)
• 2014 Ford F-150 King Ranch 4WD
• 2014 Ford F-150 Lariat 4WD
• 2014 Ford F-150 Limited 4WD
• 2014 Ford F-150 Platinum 4WD
• 2014 Ford F-150 STX 4WD
• 2014 Ford F-150 XL 4WD
• 2014 Ford F-150 XLT 4WD

Important Notes

• Requires frame bracket modification and welding.
• 18" wheels with 5–5.5" total backspacing should be test fit prior to mounting the tire to ensure proper clearance to the BDS steering knuckle.
• 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tire.
• E-brake bracket required for factory power steps (123018). Block kits replace the factory 1-1/4" block.
• The 4" blocks net a level/tail-low stance. The 5" blocks net a level/tail-high stance.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406.
• Will not fit HD models (7 lug).
• This kit is FMVSS No. 126 compliant.
