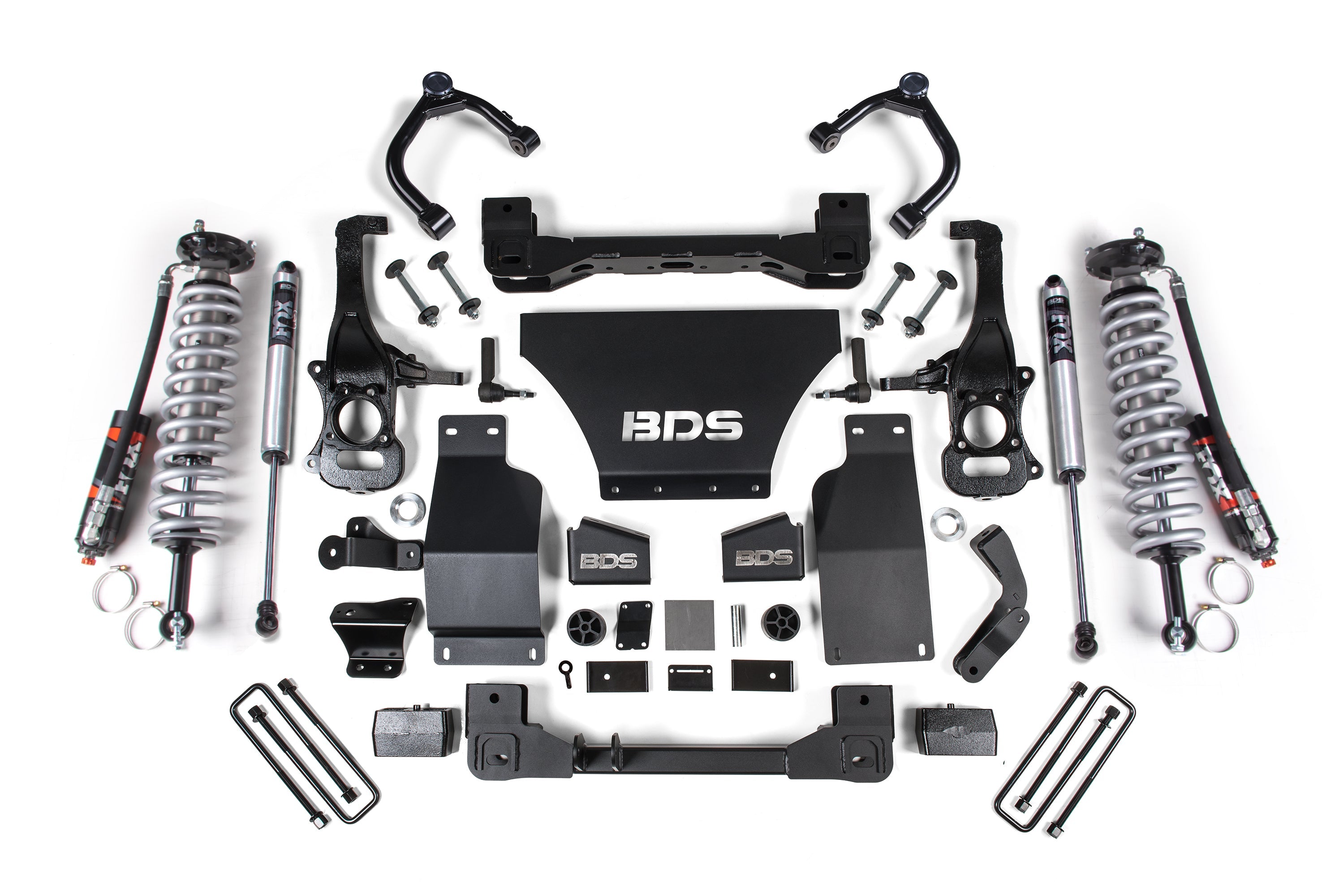

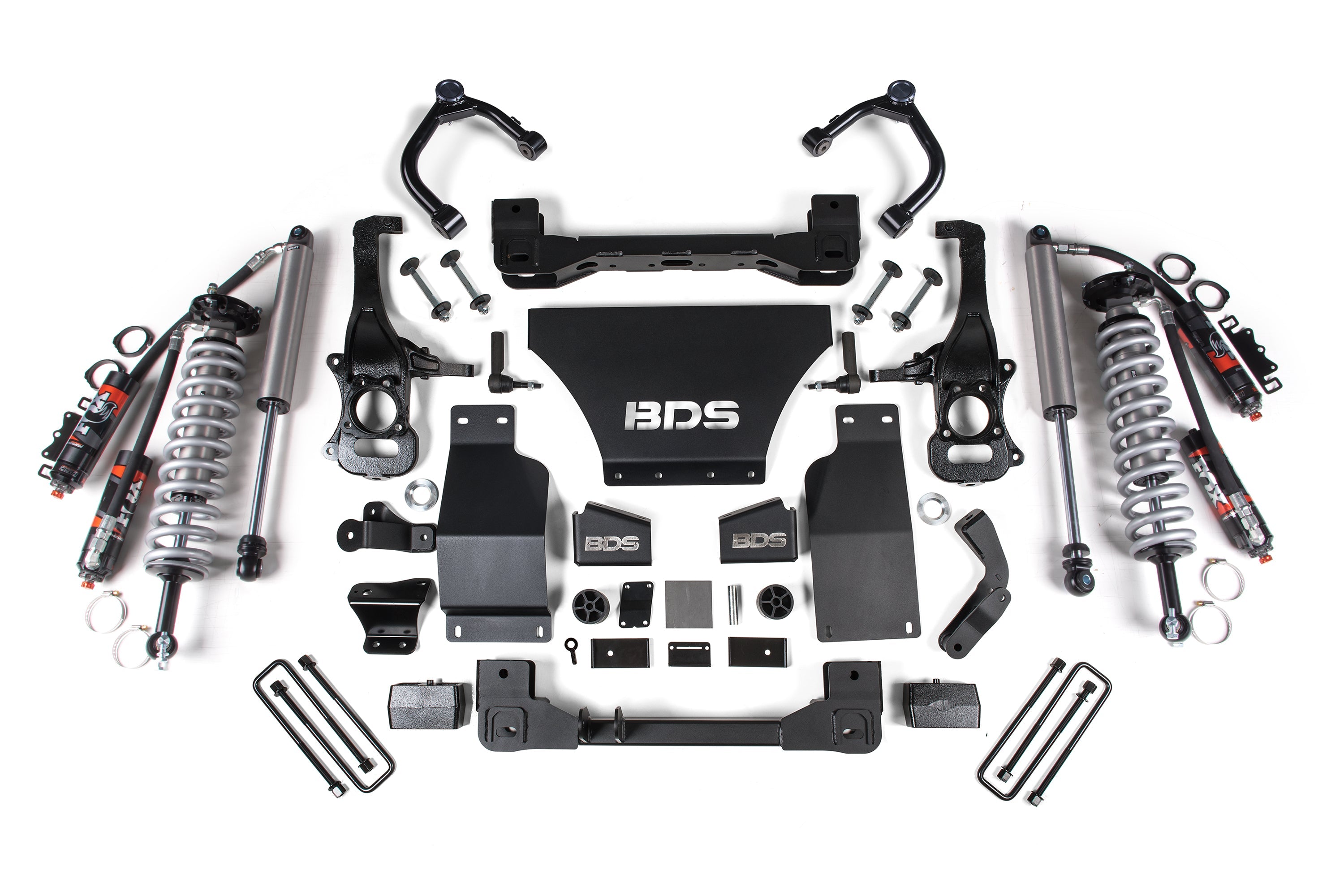

BDS 6 Inch Lift Kit with FOX 2.5 Performance Elite Coil-Over for 2019-2026 Chevy Silverado or GMC Sierra 1500 4WD Gas

Key Features

• FOX 2.5 Performance Elite Coil-Overs: Race-proven 2.5-inch shocks with remote reservoirs and a DSC adjuster offering 10 low-speed and 12 high-speed compression settings, so you can dial in performance for terrain, load, and speed.
• High-Clearance Crossmembers: Heavy-duty 1/4-inch thick laser-cut steel crossmembers maximize ground clearance and pair with a bolt-together front skid plate system for a rigid, protected subframe.
• HD Steering Knuckles: CNC-machined ductile iron knuckles correct steering geometry at the taller ride height and maintain ESC system compatibility with the included replacement tie rod ends.
• Durable Upper Control Arms: High-strength replacement upper control arms provide long-term durability and serviceability.
• Multipoint Differential Relocation: Secures the front axle and improves CV angles for reliable performance at full lift.
• Rear Lift Block & FOX 2.0 Shocks: Heavy-duty rear lift block retains ride quality and load capacity, paired with precision-tuned FOX 2.0 Performance Series shocks, new u-bolts, and brake line brackets.
• Factory Protection Plus Drivetrain Warranty Included.

Recommended Tire & Wheel Combinations

Trimming may be required.

• 35 x 12.5 with 17 x 9 and 4.5 in. backspace
• 35 x 12.5 with 20 x 9 and 6.25 in. backspace
• 37 x 12.5 with 20 x 9 and 6.25 in. backspace

Fitment

This kit is designed for 4WD Chevrolet Silverado 1500 and GMC Sierra 1500 trucks across the following model years (varies by submodel and fuel type):

• Chevrolet Silverado 1500 (4WD): 2019–2026 — Custom, LT, LTZ, RST, WT, SSV, High Country, and PPV submodels
• GMC Sierra 1500 (4WD): 2019–2026 — Base, Elevation, SLE, SLT, Pro, Denali, and Denali Ultimate submodels

Fitment varies by gas, flex, and diesel configuration. Confirm your exact year, submodel, and fuel type before ordering.

Important Notes & Installation

• Frame bracket modification is required for installation.
• Factory 17–18" wheels cannot be reinstalled due to tie rod end interference. Stock 20" wheels can be reinstalled.
• 17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle and tie rod.
• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the caliper. Test fitting can be done before the vehicle is lifted, in stock condition.
• Actual ride height on this coil-over kit is closer to 6.5" of lift.
• If equipped with a mono-leaf rear spring, use part #UBT4064 (Qty 4 required).
• 2.7L Turbo models must use the Diesel kit for proper skid plate fitment due to a clearance issue with the intercooler pipe.
• Will not fit models equipped with ARC (Adaptive Ride Control).

FOX 2.5 Performance Elite shocks carry a 1-year manufacturer's warranty and are fully serviceable for a lifetime of use.
