Description

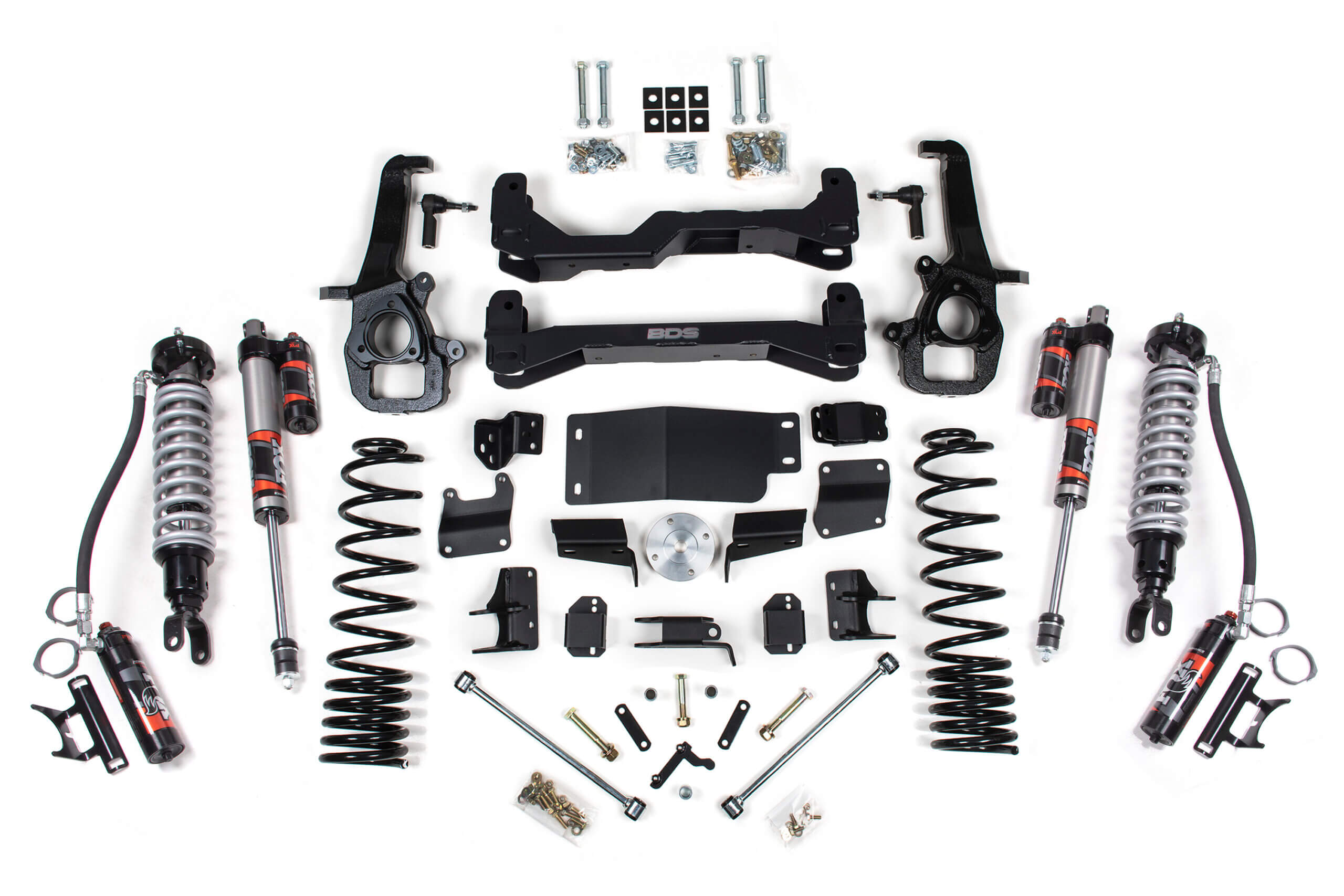

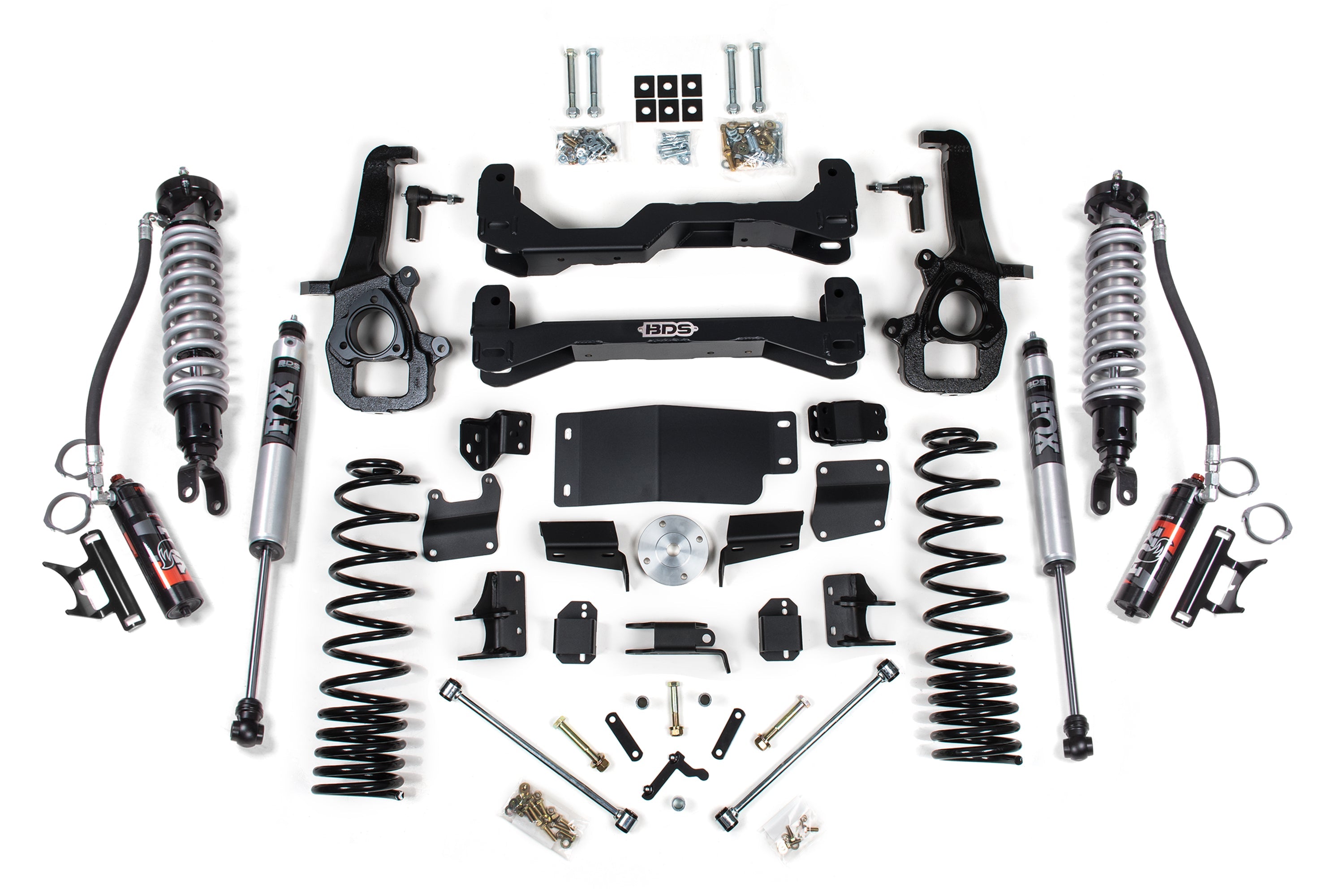

xUpgrade the suspension capability and off-road performance of your truck with the BDS Suspension 6 Inch Lift Kit featuring FOX 2.5 Performance Elite Coilovers for Ram 1500 4WD trucks (2019–2024). Engineered to deliver maximum ground clearance, improved suspension travel, and superior ride control, this premium system provides a complete bolt-on solution for serious off-road performance.
At the front of the suspension system, this kit utilizes FOX 2.5 Performance Elite coilover shocks with remote reservoirs and DSC adjusters, delivering exceptional damping performance both on and off the road. The adjustable dual-speed compression system allows drivers to fine tune suspension behavior with independent high-speed and low-speed compression control.
BDS incorporates high-clearance laser-cut steel crossmembers, differential relocation brackets, and heavy-duty skid plates to maintain proper driveline geometry while improving underbody protection. Steering geometry is corrected at the new ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends, maintaining proper ESC system compatibility and safe handling characteristics.
Additional front suspension components including sway bar drops, bump stop extensions, CV spacers, stainless steel brake lines, and precision hardware ensure the suspension operates properly at the increased ride height.
In the rear, the system features progressive rate Pro-Ride coil springs, upper control arm relocation brackets to correct pinion angle, a track bar relocation bracket to re-center the axle, sway bar links, and bump stop extensions. The rear suspension is finished with FOX Performance Series shocks, delivering improved ride comfort and off-road control.
With clearance for up to 37-inch tires, this BDS Suspension system delivers improved off-road capability, enhanced suspension travel, and an aggressive lifted stance while maintaining excellent on-road drivability.
Features
xKey Features
- 6-inch suspension lift kit for Ram 1500 4WD trucks
- FOX 2.5 Performance Elite coilover shocks with remote reservoirs
- DSC dual-speed compression adjusters for precise suspension tuning
- Heavy-duty high-clearance crossmember design improves ground clearance
- Multipoint differential relocation brackets improve CV angles
- CNC-machined steering knuckles maintain ESC system compatibility
- Heavy-duty skid plates provide additional off-road protection
- Progressive rate Pro-Ride rear coil springs
- Rear upper control arm relocation brackets correct pinion angle
- Track bar relocation bracket re-centers the rear axle
- FOX Performance Series rear shocks improve ride control
- Allows clearance for up to 37-inch tires
Fitment
xVehicle Fitment
| Year Range | Make | Model | Trim | Drivetrain |
|---|---|---|---|---|
| 2019–2024 | Ram | 1500 | All Trims | 4WD |
