BDS 6 Inch Lift Kit w/ 4-Link for 2011-2016 Ford F250/F350 Super Duty 4WD Diesel

Key Features

• Diesel-specific Pro-Ride coil springs: Full-length front coils deliver the correct lift height and a smooth, predictable ride across varied terrain.
• 4-link conversion: Replaces factory stamped-steel radius arms with HD upper and lower control arms mounted to high-strength ¼-inch steel brackets, optimizing suspension geometry for better handling, strength, and stability while limiting caster change throughout wheel travel.
• BDS Glide-Ride leaf springs: A multi-leaf progressive triple-stage design that maintains ride quality unloaded while engaging additional and overload leafs as loads increase, reducing axle wrap and adding suspension flexibility.
• Steering correction: Forged drop pitman arm and track bar relocation bracket maintain proper steering angles for improved handling.
• Level stance: Fabricated steel blocks provide a level front-to-rear stance.
• Complete kit: Includes sway bar relocation, brake line brackets, u-bolts, and all hardware needed for a bolt-on install.

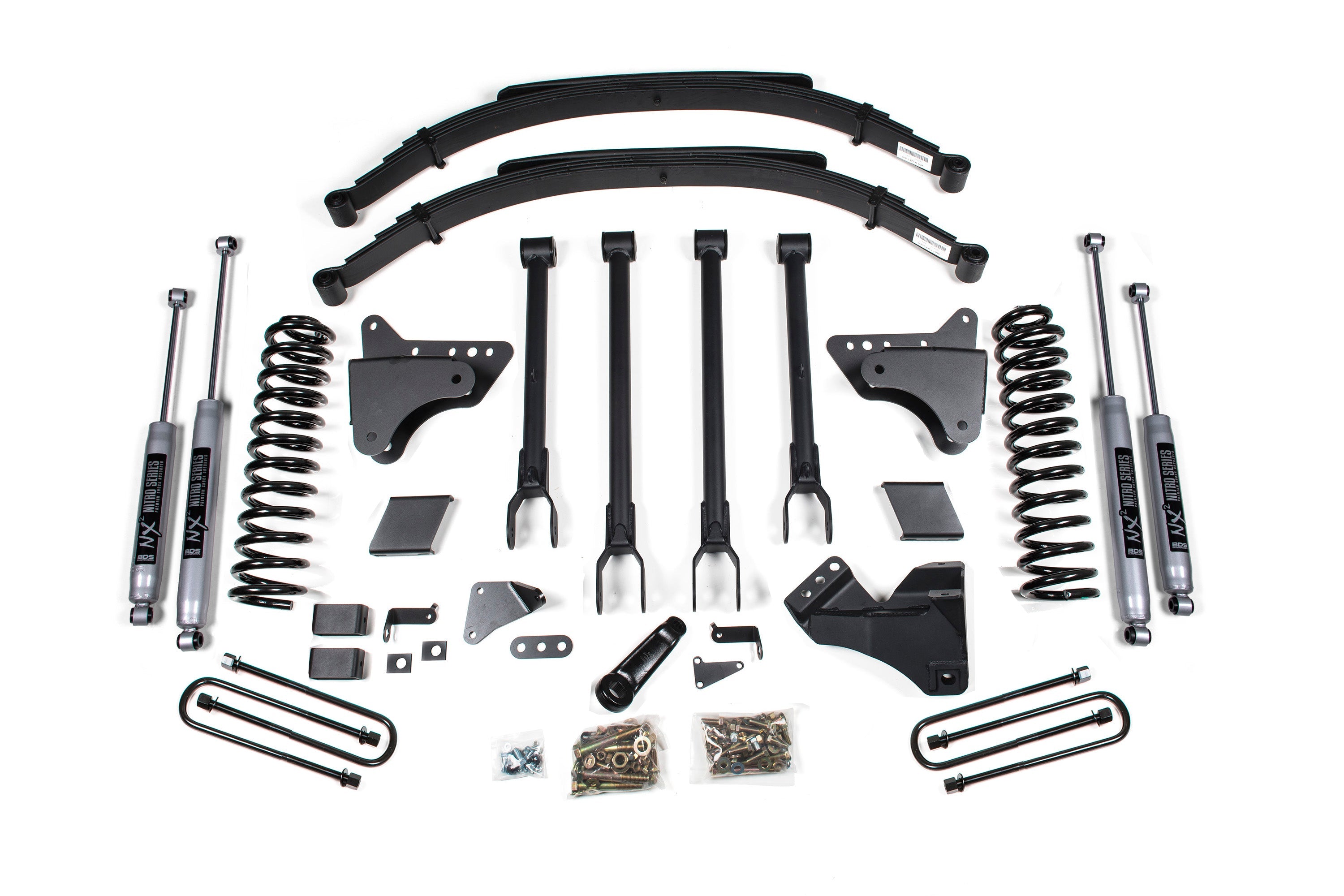

• Shock options: Standard NX2 Nitro shocks with vehicle-specific valving, or upgrade to FOX 2.0 Performance Series for maximum on- and off-road performance.

Shock Options

NX2 Nitro Series: Nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

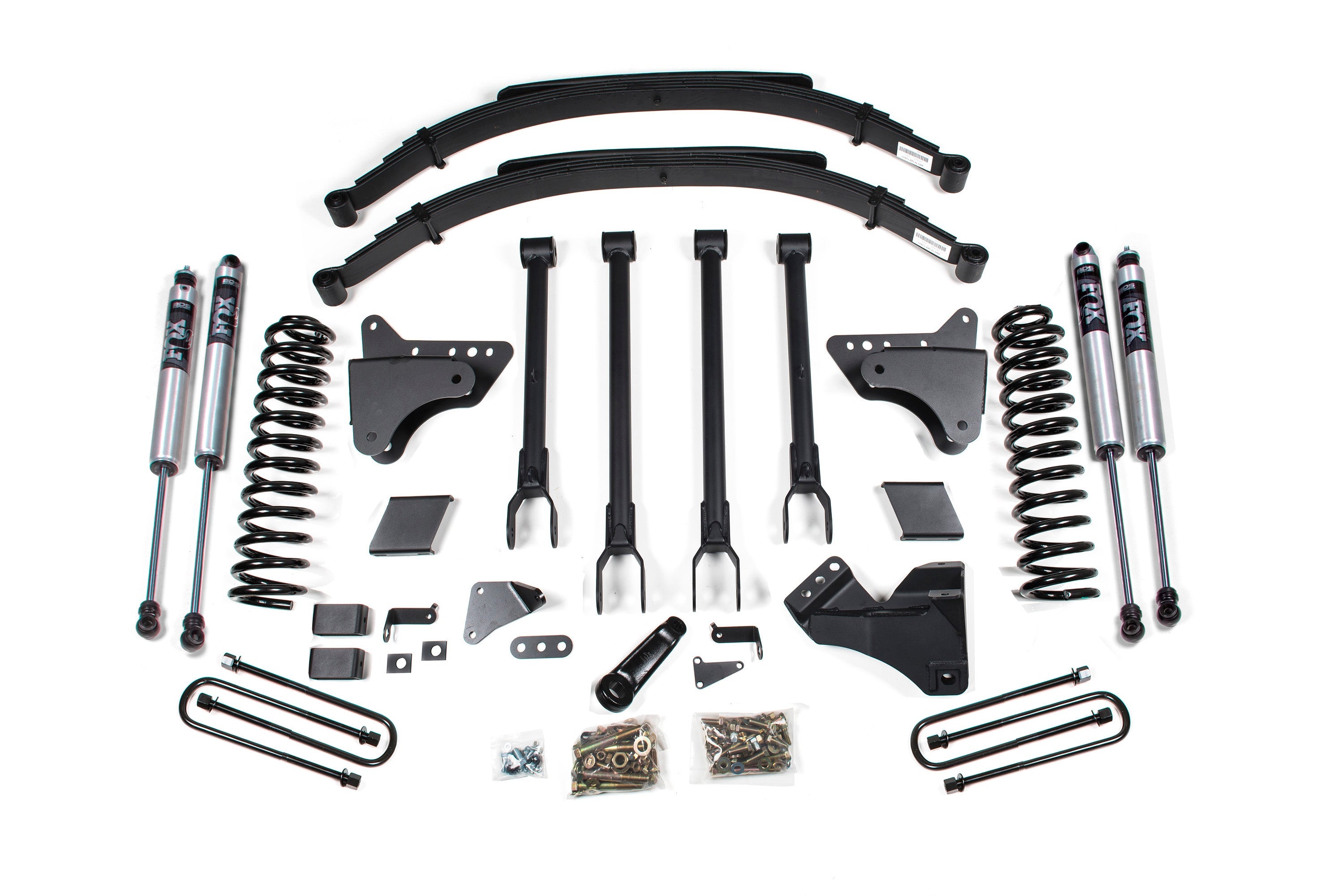

FOX 2.0 Performance Series: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC-machined 6061-T6 aluminum mounting ends, a 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a clear anodized finish.

Recommended Tires & Wheels

Trimming may be required.

• 37 x 12.5 with 17 x 9 and 4.5 in. backspace
• 37 x 12.5 with 18 x 9 and 4.5 in. backspace
• 37 x 12.5 with 20 x 9 and 4.5 in. backspace

Fitment

• 2011-2016 Ford F-250 Super Duty (All submodels) — 4WD, Diesel
• 2011-2016 Ford F-350 Super Duty (All submodels) — 4WD, Diesel

Important Notes

• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
• Although extremely rare, front driveline vibration may occur.
• If equipped with a rear sway bar, part #123009 is required.
• U-bolts will not work on dually models.
• This lift system retains the factory rear blocks along with the new BDS leaf springs to achieve a level stance. Choose the height of your factory lift blocks for proper u-bolt length.
