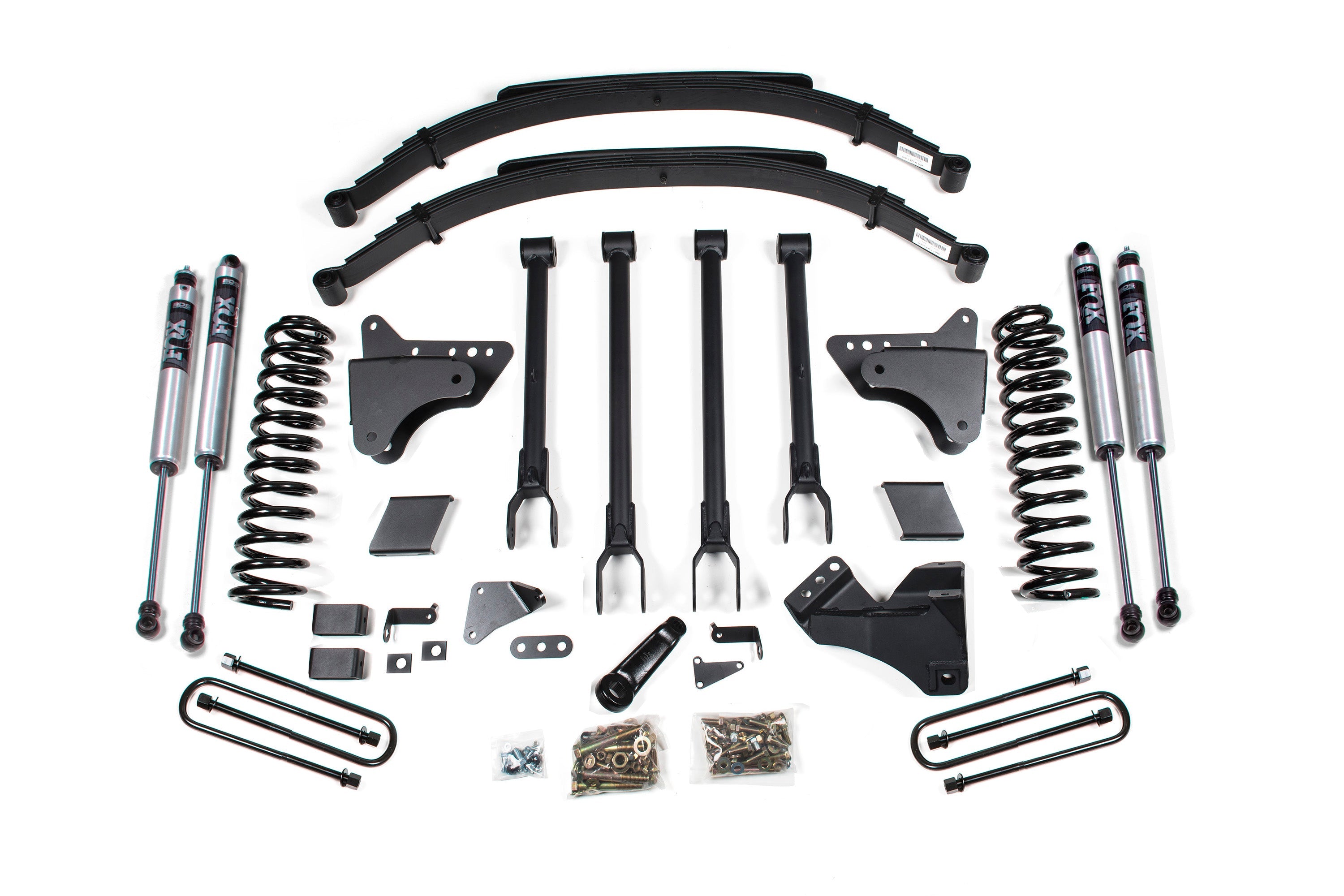

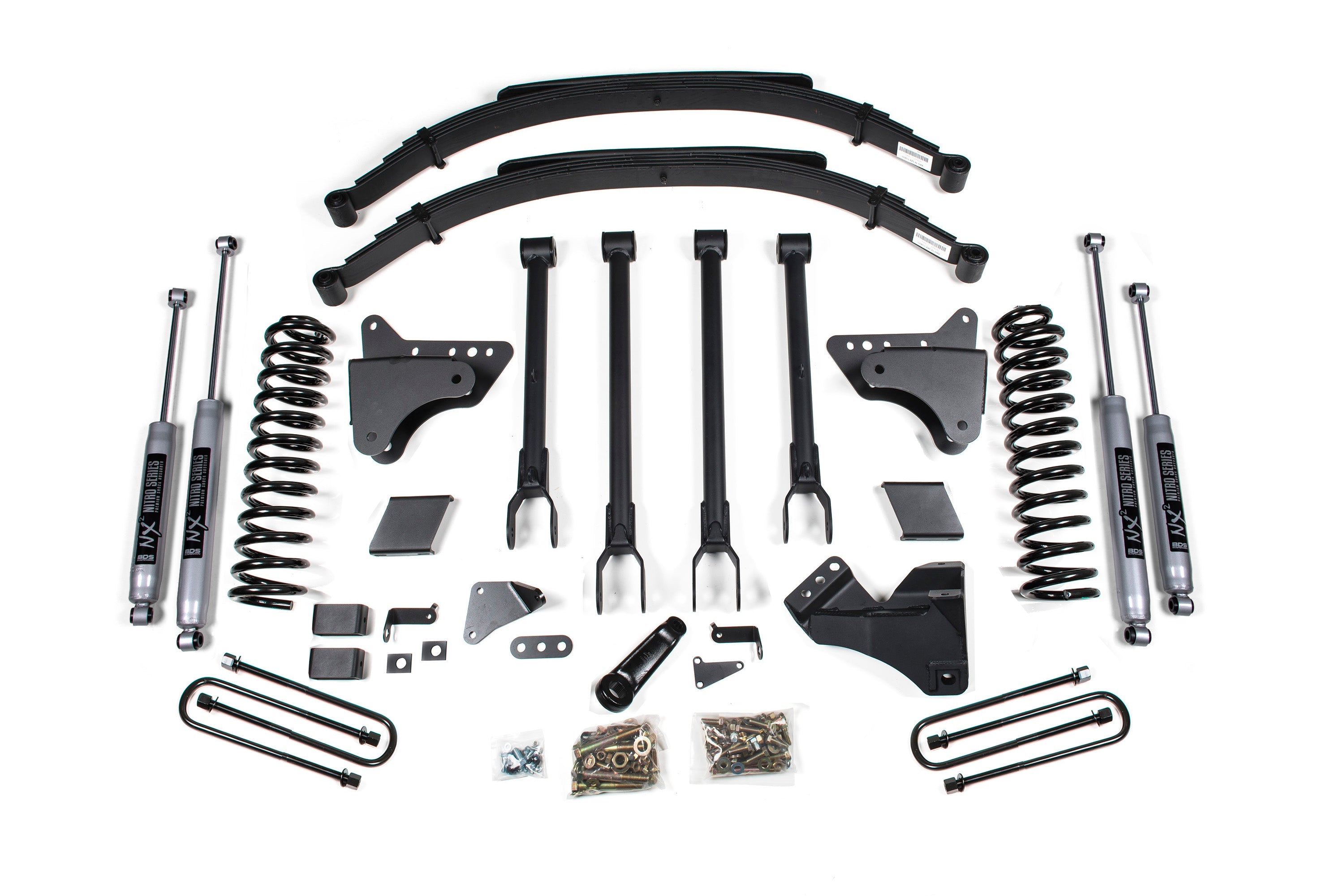

BDS 6 Inch Lift Kit w/ 4-Link for 2011-2016 Ford F250/F350 Super Duty 4WD Gas

Key Features

• 100% bolt-on installation – no cutting or welding required, making this a manageable upgrade for a well-equipped shop or experienced DIY builder.
• Gas-specific Pro-Ride coil springs – full-length, dual-rate front coils deliver the correct lift height and a smooth, predictable ride across varied terrain.
• BDS 4-link conversion – replaces the factory stamped steel radius arms with HD upper and lower control arms on high-strength ¼-inch steel brackets, optimizing suspension geometry, adding strength and stability, and limiting caster change throughout wheel travel.
• Glide-Ride leaf springs – a triple-stage progressive design where the primary three leafs handle everyday driving, secondary leafs engage under moderate load, and the bottom overload supports maximum hauling. Reduces axle wrap and improves suspension flexibility.
• Corrected steering – forged drop pitman arm and track bar relocation bracket maintain proper steering angles for improved handling at ride height.
• Fabricated steel blocks – provide a level front-to-rear stance.
• Shock options – standard NX2 Nitro shocks with vehicle-specific valving, or upgrade to FOX 2.0 Performance Series for maximum on- and off-road performance.

Shock Options

NX2 Nitro Series: Nitrogen-charged, twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

FOX 2.0 Performance Series: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC-machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Recommended Tires & Wheels

Trimming may be required.

• 37 x 12.5 with 17 x 9 and 4.5 in. backspace
• 37 x 12.5 with 18 x 9 and 4.5 in. backspace
• 37 x 12.5 with 20 x 9 and 4.5 in. backspace

Fitment

This kit fits the following 4WD, FLEX-fuel gas applications:

• 2011-2016 Ford F-250 Super Duty – XL, XLT, Lariat, King Ranch (4WD); Platinum (2013-2016, all drive types)
• 2011-2016 Ford F-350 Super Duty – all submodels (4WD)

Important Notes

• Front exhaust modification may be required to clear the front driveshaft (gas only).
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
• Although extremely rare, front driveline vibration may occur.
• If equipped with a rear sway bar, part #123009 is required.
• Included u-bolts will not work on dually models.
• This system retains the factory rear blocks alongside the new BDS leaf springs to achieve a level stance. Select the height of your factory lift blocks for proper u-bolt length.
