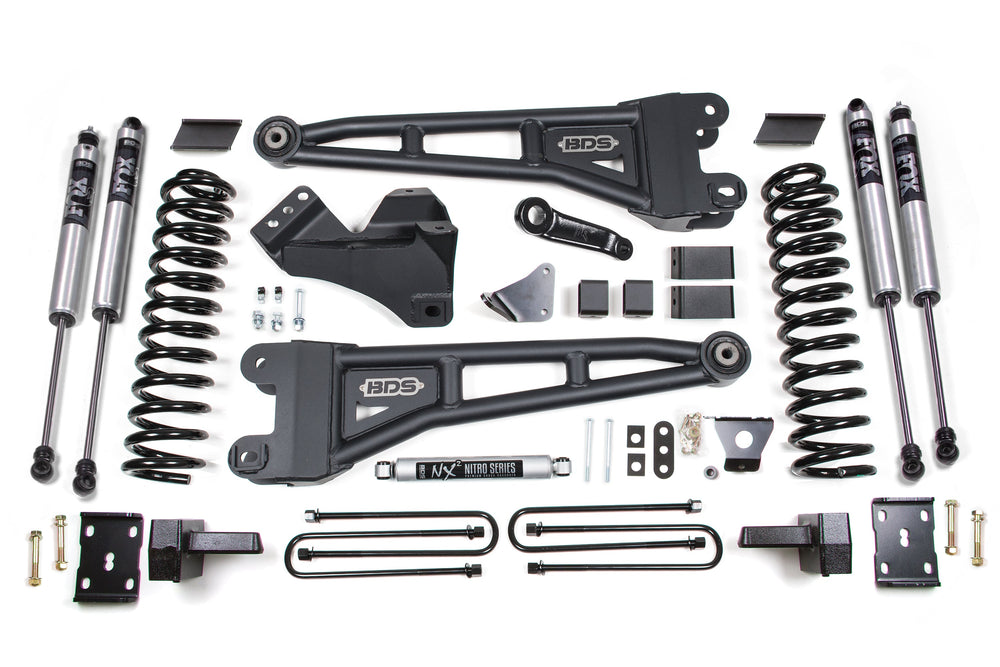

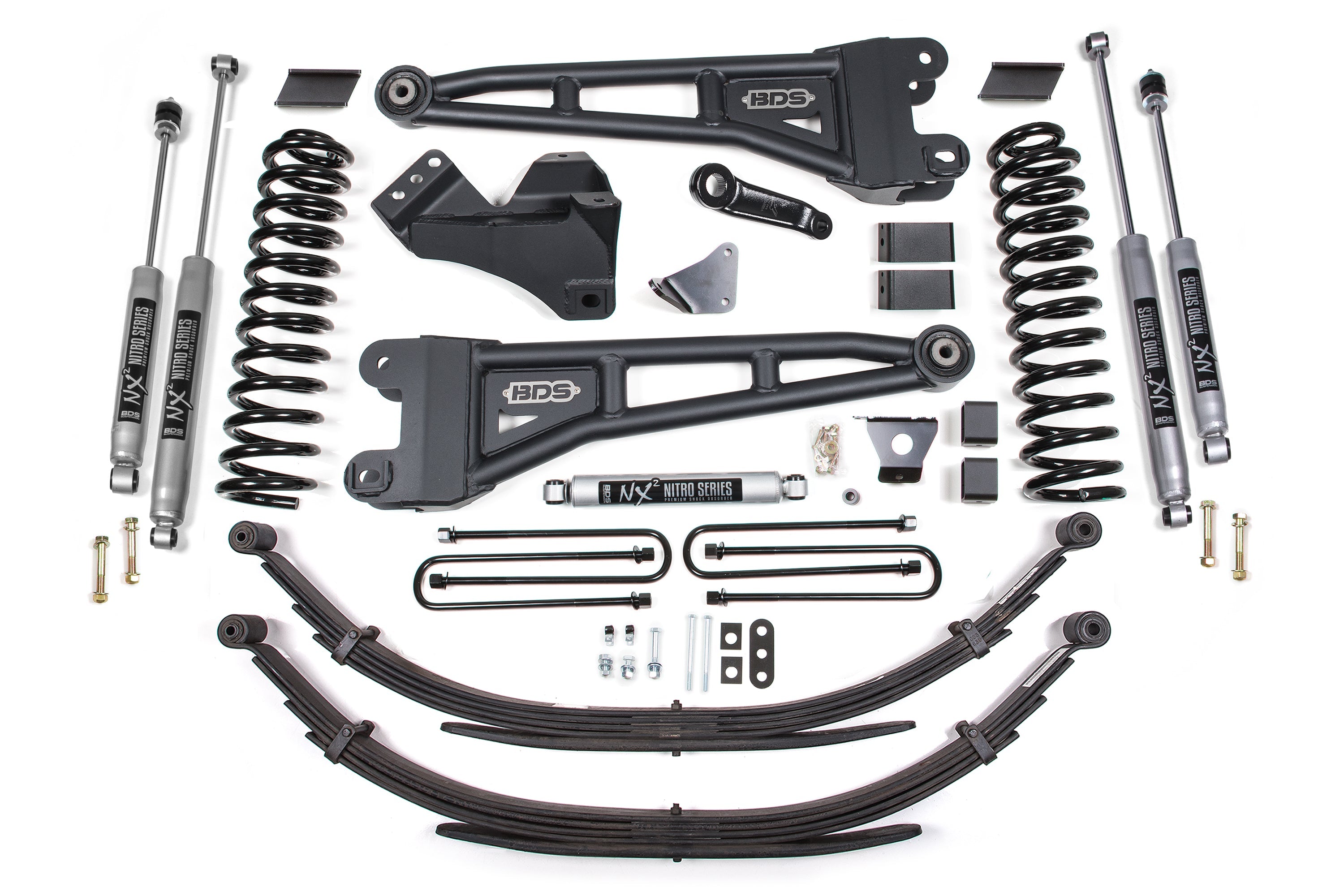

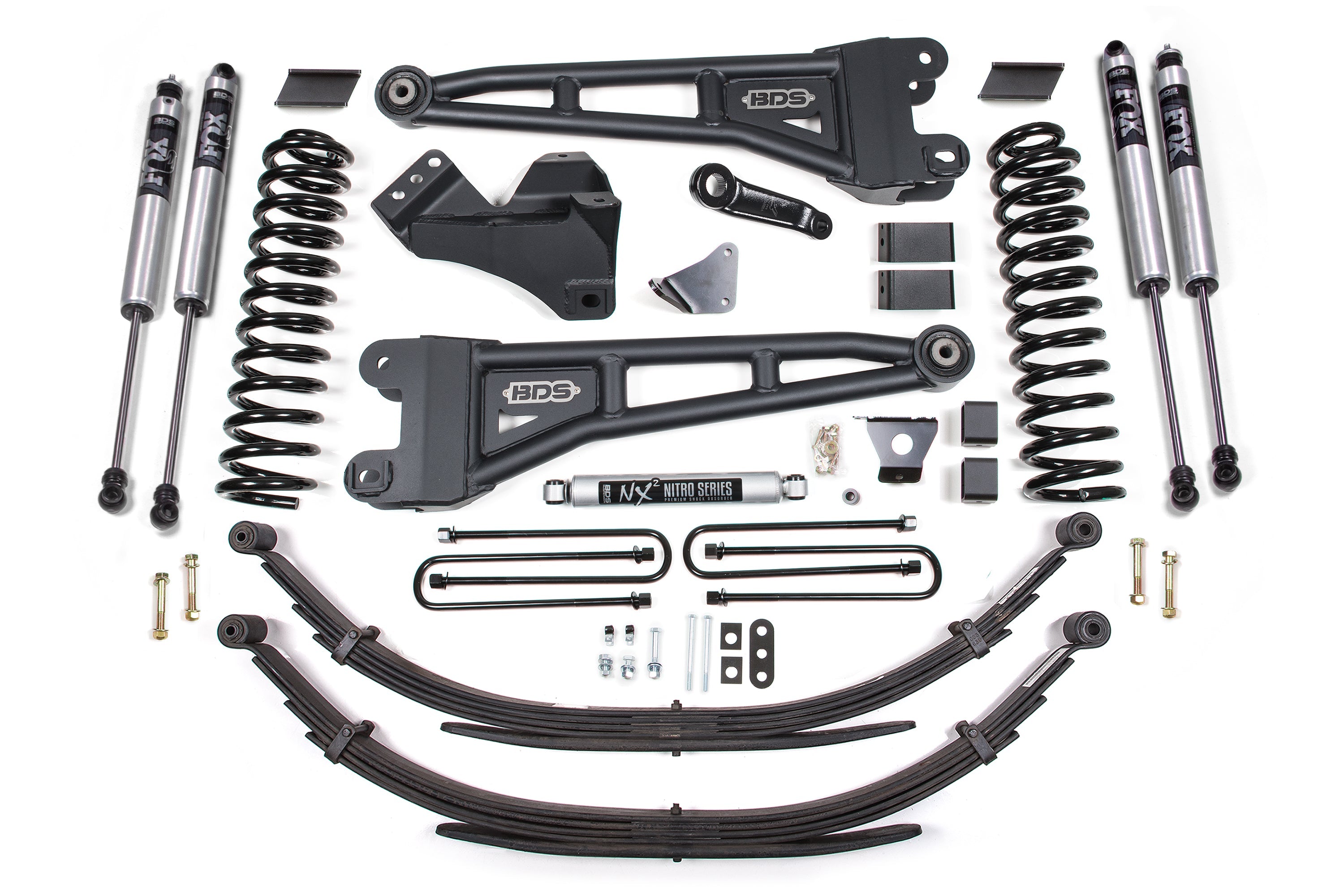

BDS 6 Inch Lift Kit w/ Radius Arm for 2008-2010 Ford F250/F350 Super Duty 4WD Diesel

Key Features

• Easy, 100% bolt-on installation that mounts into factory locations
• Pro-Ride dual-rate, diesel-specific coil springs deliver correct lift height and a smooth, predictable ride across varied terrain
• High-strength tubular steel radius arms correct caster, support a wide range of lift heights, and maximize ground clearance, with OE-style rubber frame bushings for quiet, service-free operation
• Track bar relocation bracket and forged drop pitman arm maintain proper steering angles for improved handling
• Fabricated steel rear blocks designed for correct pinion angles
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional FOX 2.0 Performance Series shocks for maximum on- and off-road performance

Rear Lift Options

Block Kit: High-strength steel blocks designed to provide correct pinion angles. You must determine whether your truck was built with or without top-mounted overload springs before ordering.

Leaf Springs: Eliminates the need for a lift block, reduces axle wrap for a more controlled and stable feel, and uses a multi-leaf progressive design for a smooth ride while maintaining factory payload weight ratings.

Shock Options

NX2 Nitro Series: Nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends, a 1-3/8" high-flow piston, self-lubricating seals, and a silver powder coat finish.

FOX 2.0 Performance Series: 2" impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC-machined 6061-T6 aluminum mounting ends, a 5/8" hard chrome-plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a long-lasting clear anodized finish.

Recommended Tires & Wheels

37 x 12.5 tires with 20 x 9 wheels and 4.5" backspace. Trimming may be required.

Fitment

• 2008-2010 Ford F-250 Super Duty, All Submodels, 4WD, Diesel
• 2008-2010 Ford F-350 Super Duty, All Submodels, 4WD, Diesel

Important Notes

• Removal of the factory block is required.
• Installing the rear block kit results in a "pre-runner" look with the rear sitting 2" lower than the front. To achieve a level stance, upgrade to the rear leaf spring option.
• These trucks were built with and without top-mounted overload springs on the rear leaf packs. A top-mounted overload is an extra leaf separate from the pack that sits above the main leaf. Identify which you have before ordering.
• If your vehicle is equipped with a carrier bearing, you must order part 123402 in the options section.
• Although extremely rare, front driveline vibration may occur.
• Front exhaust modification may be required to clear the front driveshaft on gas models.
• U-bolts will not fit dually models.
• The dropped pitman arm will not fit 10-lug wide track F-350 models.
