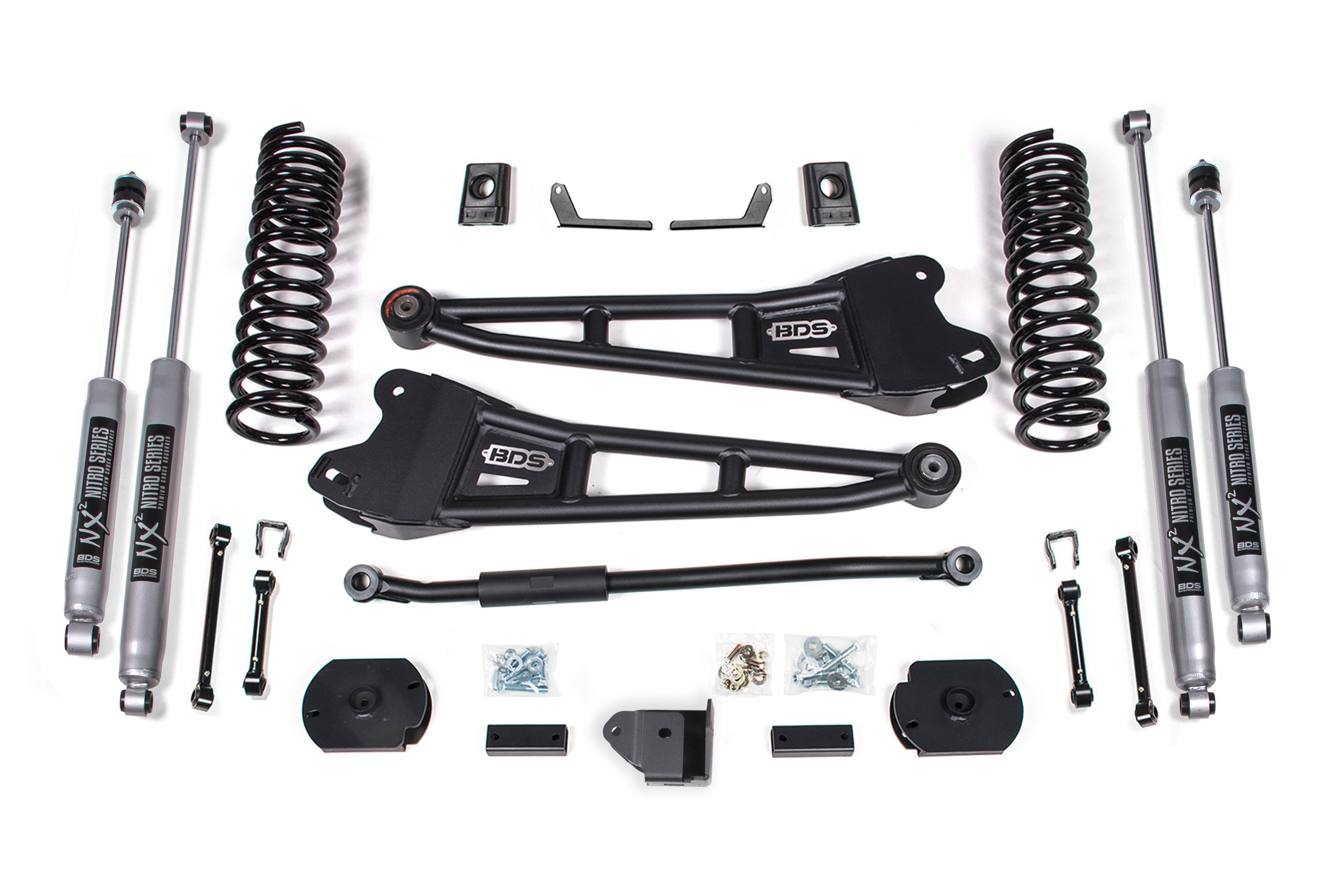

BDS 3 Inch Lift Kit for 2019-2024 Ram 2500 w/ Rear Air Ride 4WD Diesel

Key Features

• HD Tubular Radius Arms: High-strength tubular construction replaces the factory stamped steel arms, mounts to factory locations, and offers caster adjustment across a range of lift heights. OE-style rubber bushings at the frame mount keep operation smooth, quiet, and service-free.
• Pro-Ride Coil Springs: Full-length, diesel-specific, progressive-rate front coils made from high tensile steel deliver the correct lift height and a smooth, predictable ride. Properly sized wire diameter prevents premature coil bind.
• HD Adjustable Track Bar: 1-3/8 inch solid steel front track bar comes pre-assembled with bushings and bolts into factory mounting points to re-center the front axle and maintain proper steering geometry.
• Rear Geometry Correction: Fabricated coil spacer, track bar relocation bracket, bump stop extensions, and sway bar links keep the rear axle properly positioned and the air ride system working as intended.
• Shock Options: Choose BDS NX2 Nitro Series (nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8 inch high-flow piston, self-lubricating seals, silver powder coat finish) or FOX 2.0 Performance Series (2-inch impact extruded aluminum body, IFP monotube design, CNC-machined 6061-T6 aluminum ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish).
• Front sway bar correction maintains on-road handling performance after lift.

Recommended Tires & Wheels

Trimming may be required.

• 35x12.5 with 17x9, 5 in. backspace
• 35x12.5 with 18x9, 5 in. backspace
• 35x12.5 with 20x9, 5 in. backspace

Fitment

• 2019–2024 RAM 2500 Big Horn, 4WD Diesel
• 2019–2024 RAM 2500 Laramie, 4WD Diesel
• 2019–2020 RAM 2500 Laramie Limited, 4WD Diesel
• 2019–2021 RAM 2500 Laramie Longhorn, 4WD Diesel
• 2019–2024 RAM 2500 Limited, 4WD Diesel
• 2021–2024 RAM 2500 Limited Longhorn, 4WD Diesel
• 2019–2024 RAM 2500 Lone Star, 4WD Diesel
• 2019–2024 RAM 2500 Tradesman, 4WD Diesel
• 2023–2024 RAM 2500 Rebel, Diesel (All drive types)

Note: This kit is specifically engineered for diesel-powered RAM 2500 trucks equipped with factory rear air ride suspension. Gas models and non-air-ride configurations are not covered by this fitment.

Important Installation Note

When installing the rear air ride system in conjunction with a 4-Link or radius arm drop bracket system, use the provided air tank spacers included in this kit to maintain proper clearance to the brackets.

Shipping & Lead Times

Lift kits ship directly from BDS Suspension. Lead times can vary based on shock option selected and current manufacturer stock. Contact us prior to ordering if you need an estimated ship date or have questions about your specific build. Oversized freight shipping charges may apply.
