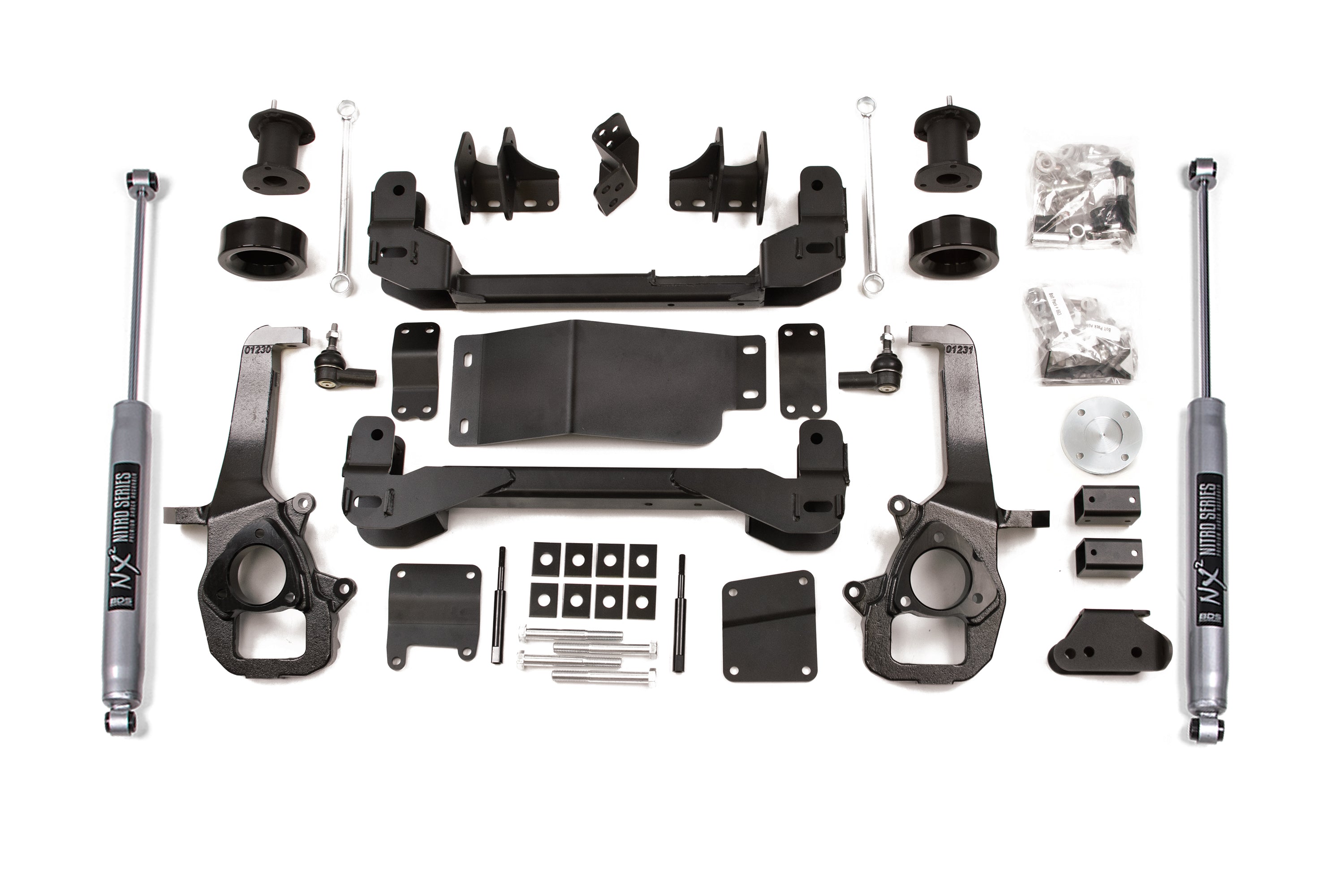

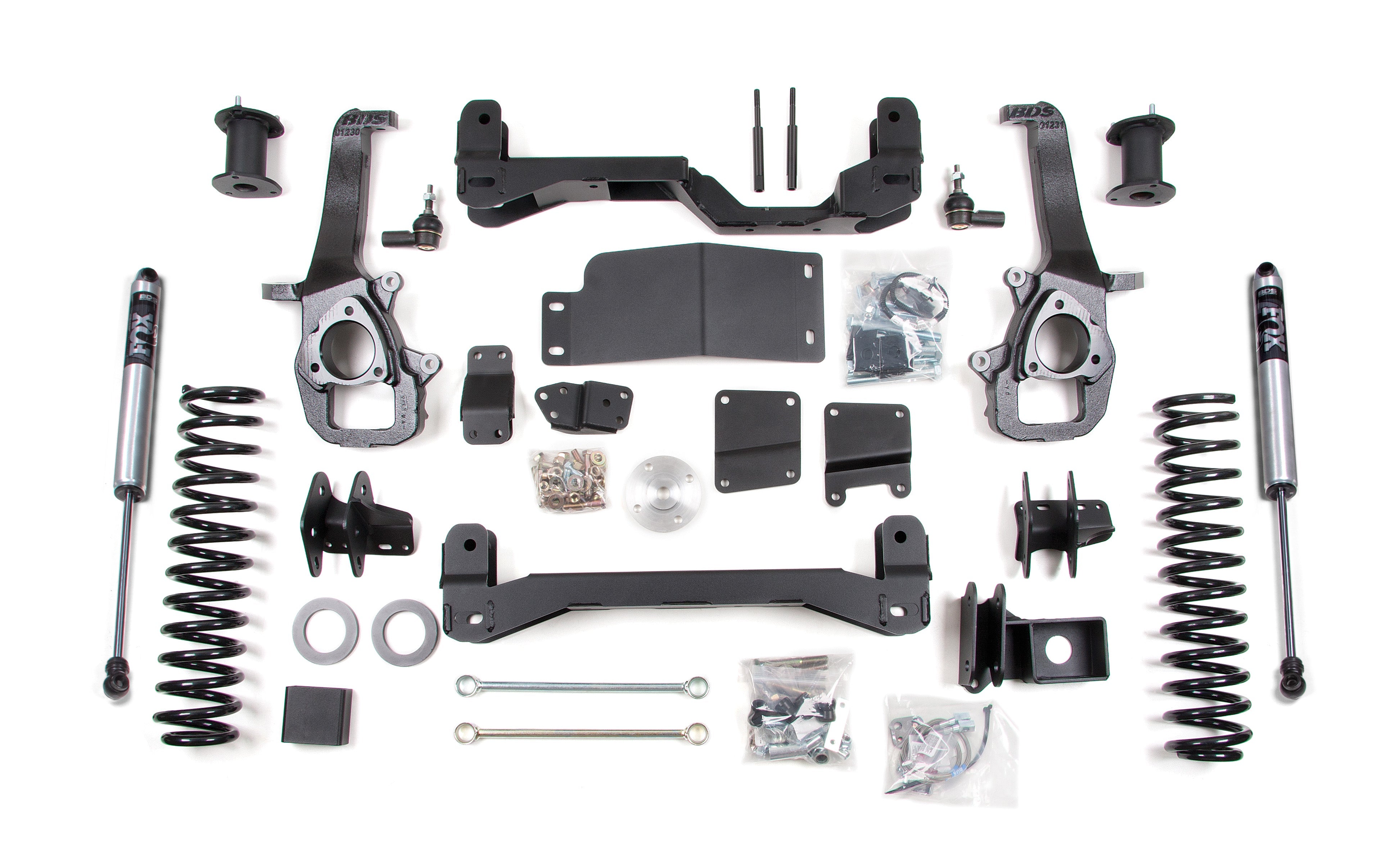

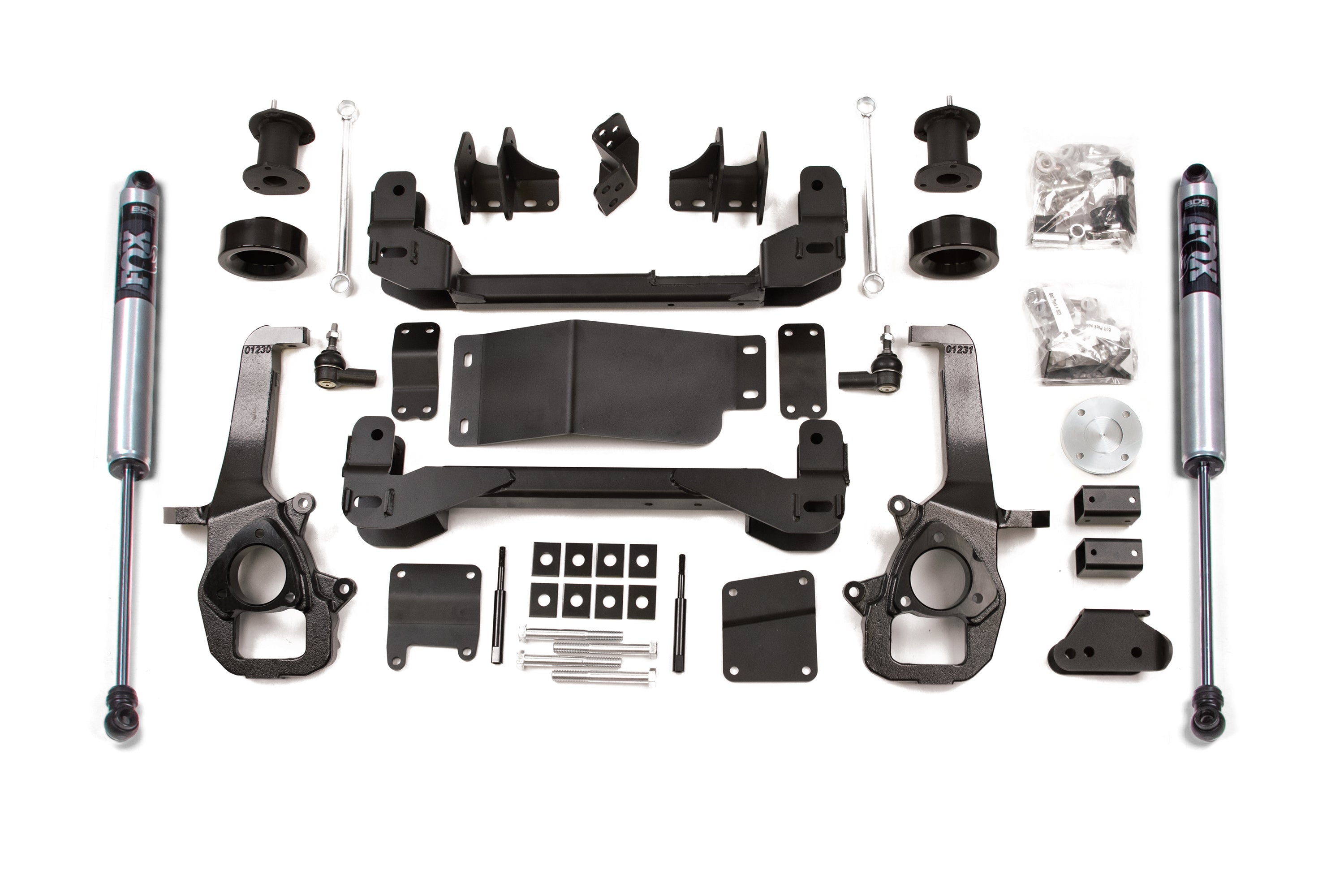

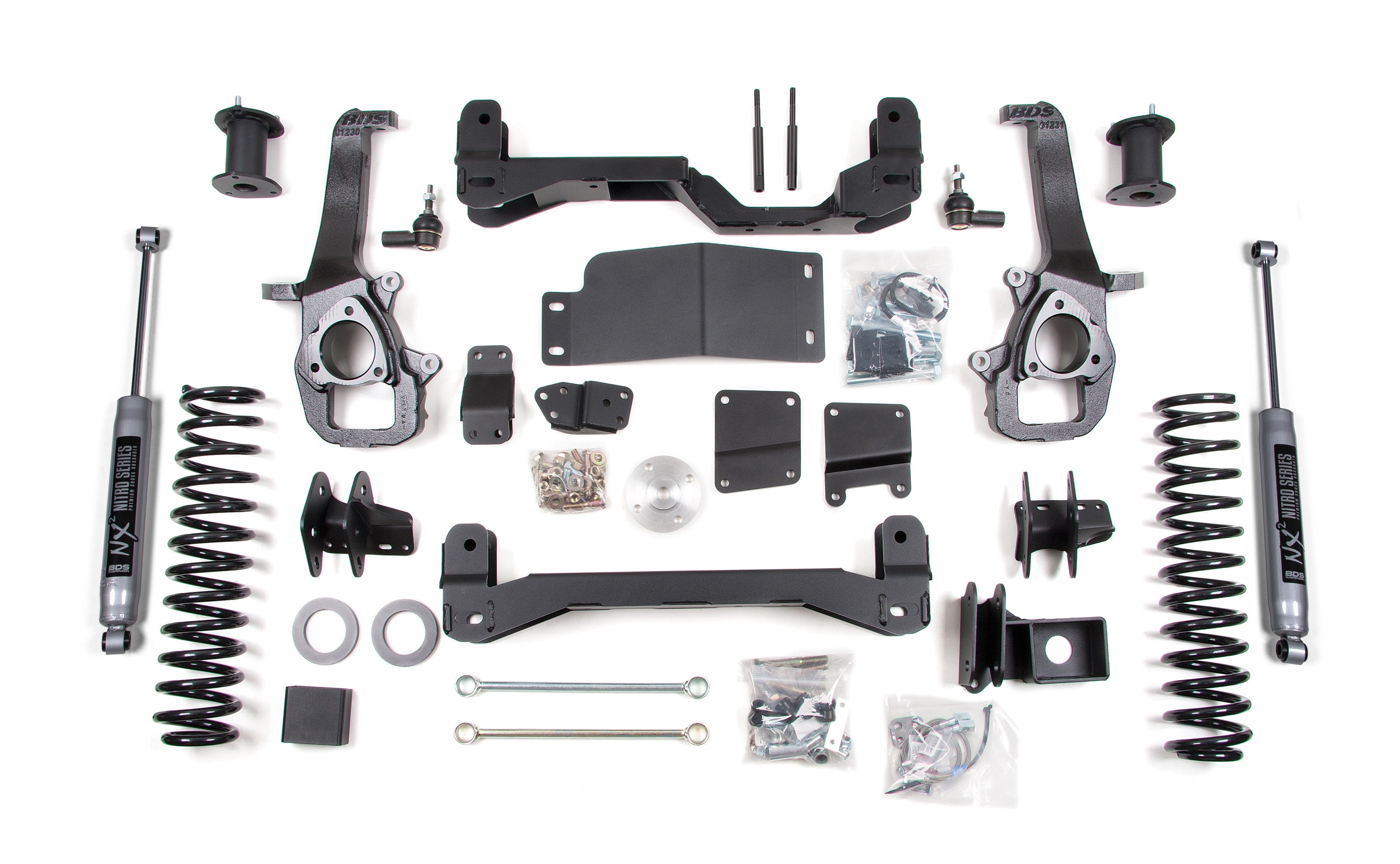

BDS 4 Inch Lift Kit for 2012 Dodge Ram 1500 4WD

Key Features

• High-clearance 1/4-inch thick laser-cut crossmembers maximize ground clearance and pair with a bolt-together front skid plate system for rigid subframe strength and added off-road protection
• CNC-machined ductile cast iron steering knuckles with replacement tie rod ends correct steering geometry at the new ride height and maintain ESC system compliance
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Choice of BDS NX2 nitrogen-charged twin-tube shocks with 10-stage velocity-sensitive valving, or FOX 2.0 Performance Series IFP monotube shocks with race-developed valving
• Rear lift options include 3" replacement progressive-rate coil springs (shot peened, powder coated) or 2" heavy-duty steel coil spacers with powder coat finish
• Includes stainless steel braided brake lines, CV spacers, sway bar drops, bump stop extensions, and all required hardware
• FMVSS No. 126 compliant
• Backed by BDS Factory Protection Plus drivetrain warranty

Fitment

• 2012 Ram 1500 4WD – Big Horn, Express, Laramie, Laramie Longhorn, Outdoorsman, SLT, Sport, ST, Tradesman (all fuel types)

Recommended Tires & Wheels

Trimming may be required.

• 35x12.5 with 17x9, 4.5" backspace
• 35x12.5 with 18x9, 5" backspace
• 35x12.5 with 20x9, 5" backspace

Important Notes

• These trucks vary from 1" to 3" tail high from the factory. Measure your vehicle before ordering to select the appropriate rear lift height for your desired stance. Kits 022209, 022309, and 022509 can be substituted to achieve the correct rear lift.
• The rack and pinion steering system is sensitive to out-of-round or out-of-balance tire/wheel combinations. Larger diameters and reduced backspacing can increase the likelihood of minor steering wheel shimmy.
• Not recommended for AWD models.
• Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be reinstalled with the factory tire.
