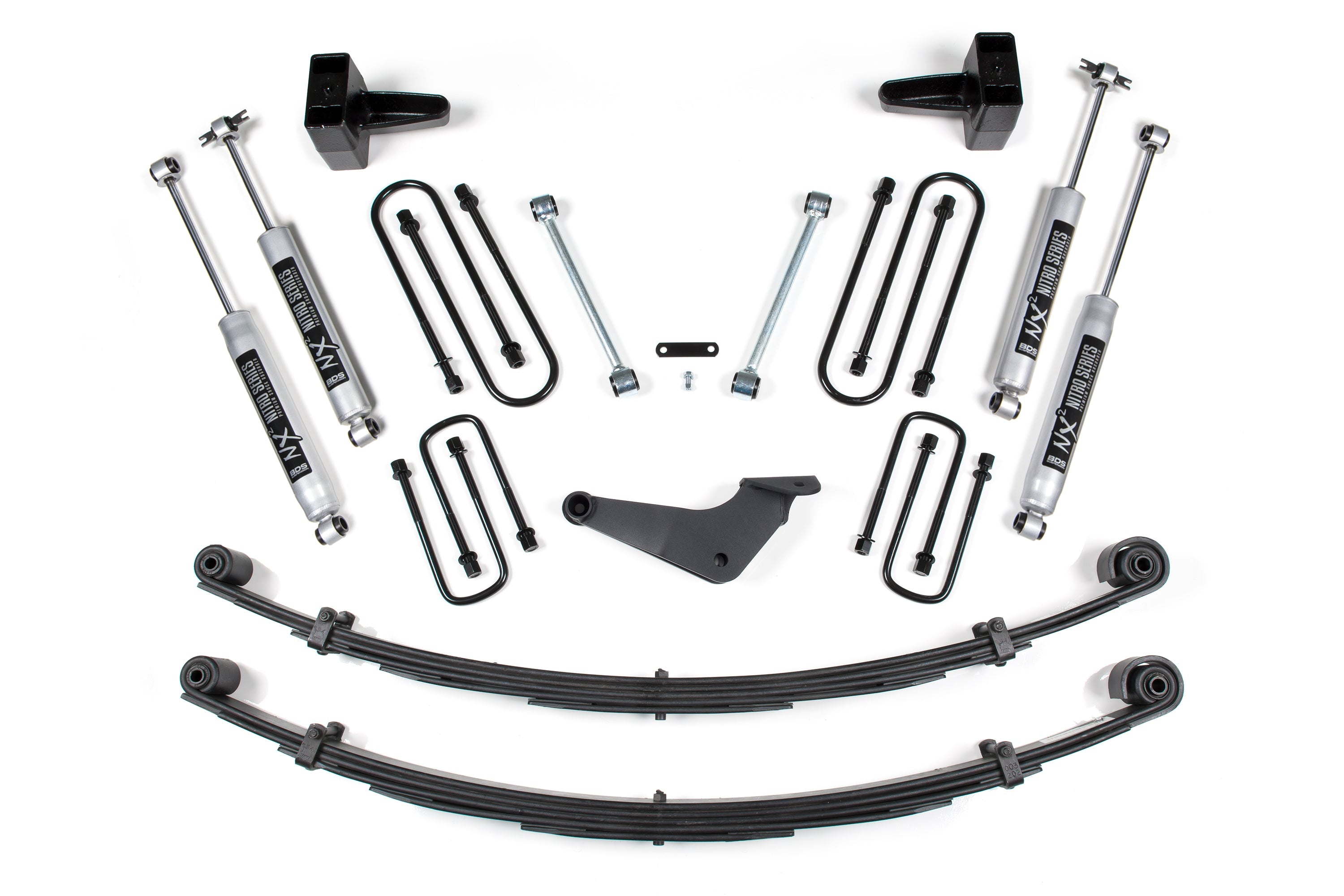

BDS 4 Inch Lift Kit for 2000-2005 Ford Excursion 4WD

Key Features

• 100% bolt-on installation — no cutting or permanent modification required.
• Glide-Ride leaf springs with an exclusive triple-stage, multi-leaf progressive rate design for a smooth ride under any load, with a built-in overload spring and full lift height.
• Heavy-duty 4-Link control arms for improved handling, stability, strength, and caster control through the wheel travel cycle.
• Pro-Ride dual rate coil springs deliver a controlled ride across mixed terrain.
• Track bar relocation bracket and pitman arm maintain proper steering angles after lift.
• Extended sway bar links for the new ride height.
• Rear lift options:
  • Cast iron lift blocks — tapered for correct pinion angle, with an offset steel pin and hole to restore axle position.

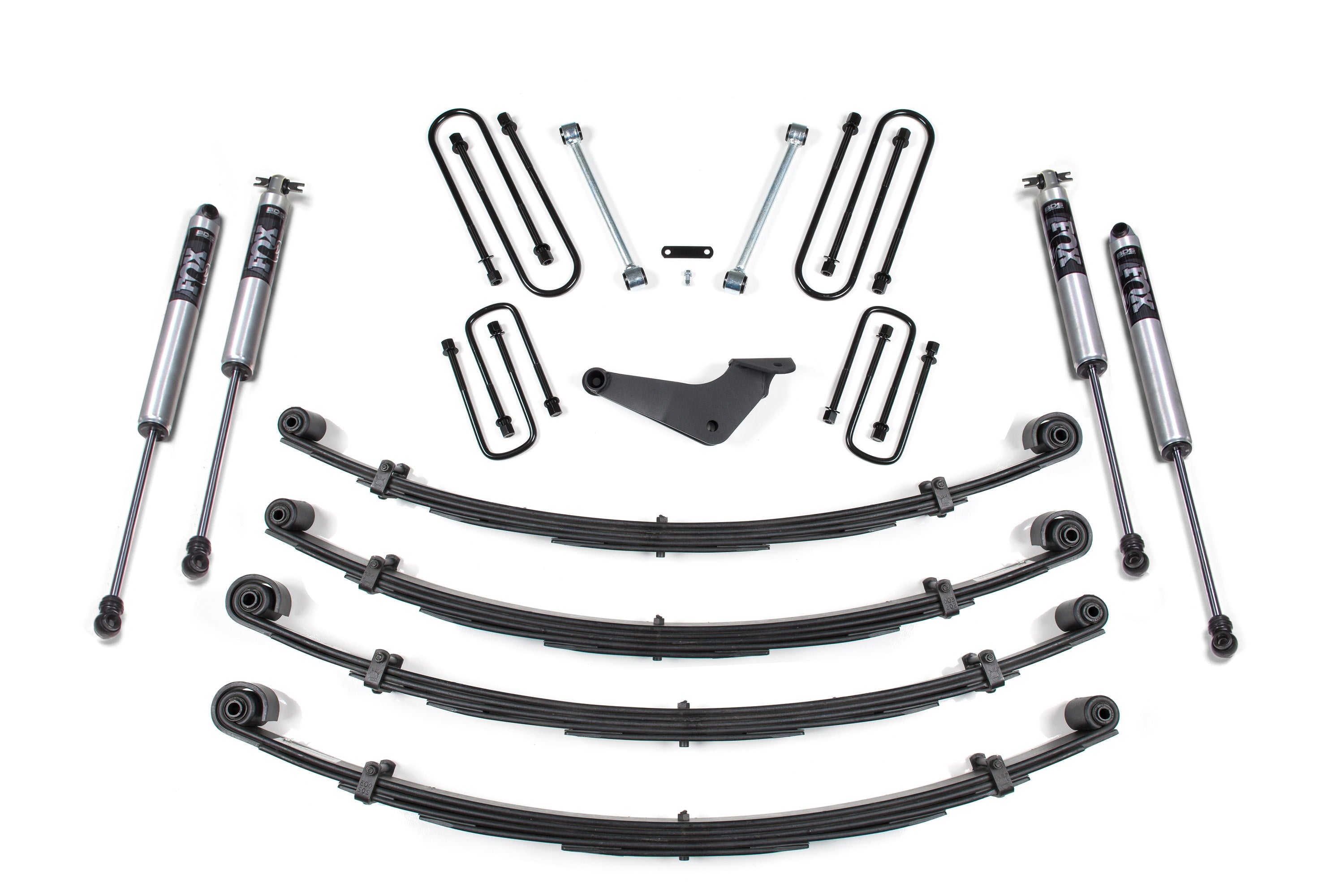

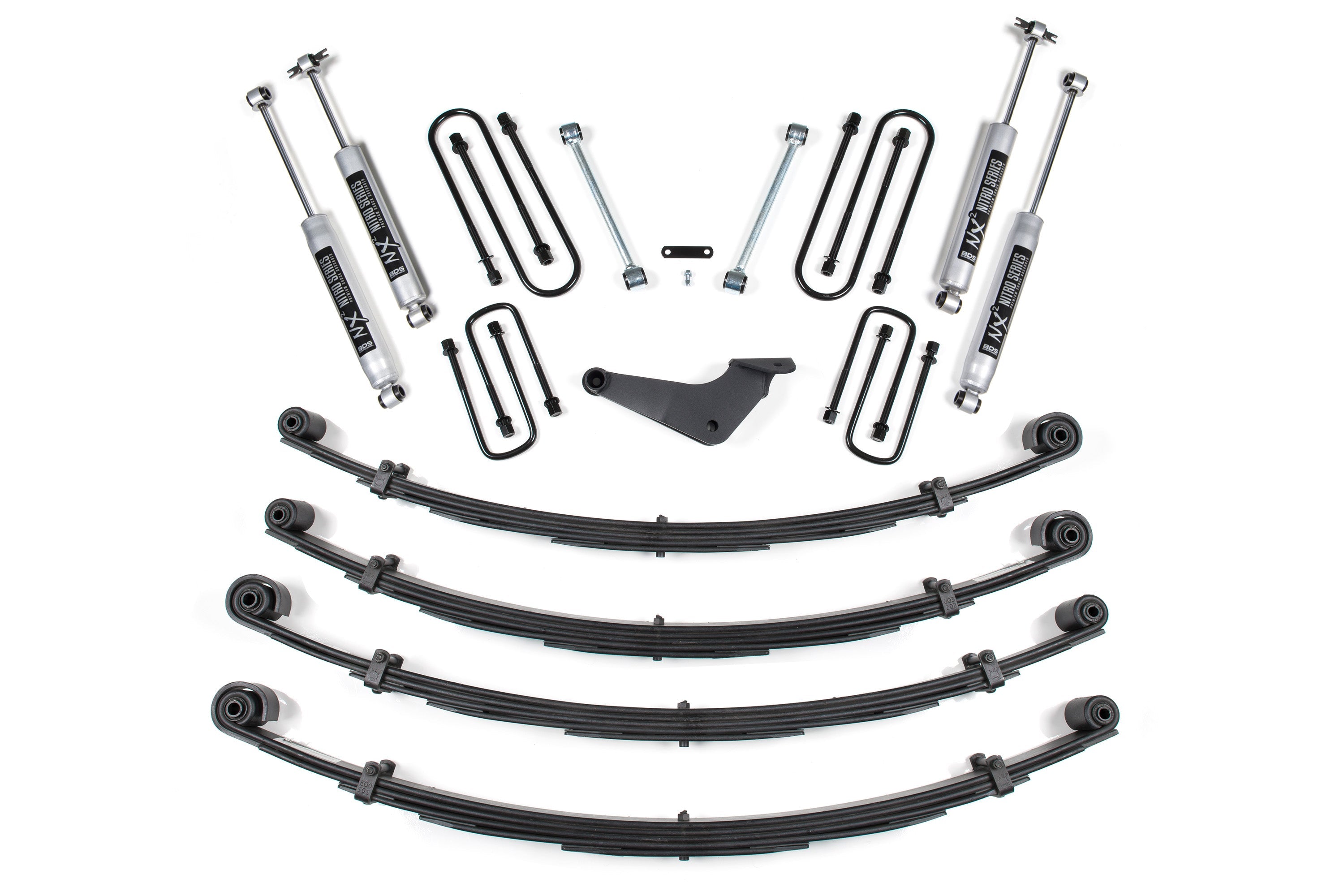

  • Rear leaf springs — eliminate the need for a lift block, reduce axle wrap, maintain factory payload ratings, and use a multi-leaf progressive design for a smoother ride.
• Shock options:
  • NX2 Nitro Series — nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, silver powder coat finish.

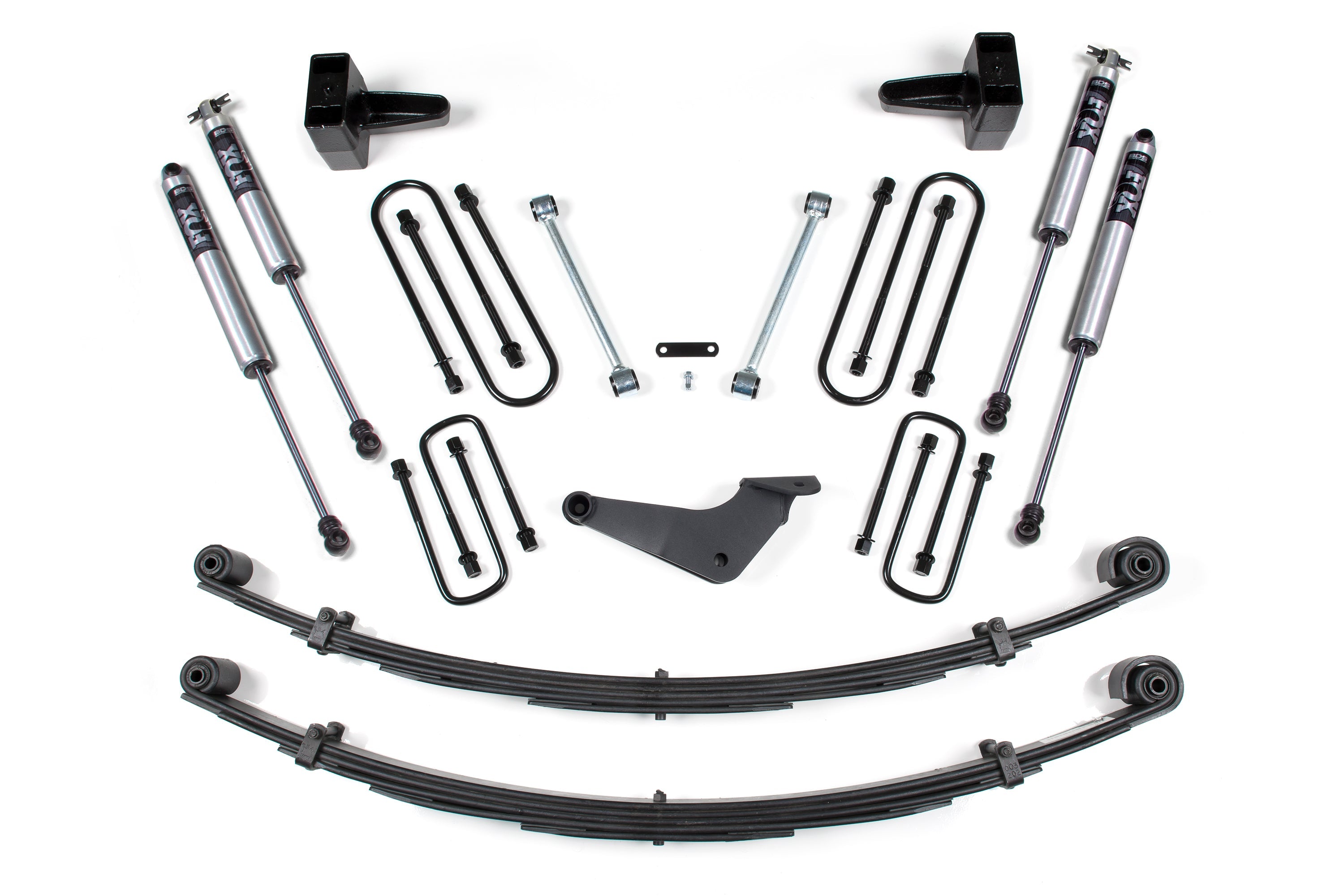

  • FOX 2.0 Performance Series — 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish.
• Recommended tire and wheel setup: 33 x 12.5 tires on 16 x 8 wheels with 4-inch backspace (trimming may be required).

Fitment

• 2000-2005 Ford Excursion — All Submodels, 4WD, All Fuel Types

Important Notes

• Models equipped with a rear CV-style driveshaft may experience driveline vibration.
• If your vehicle is equipped with a rear anti-sway bar, consider adding the rear sway bar links available in the accessories section.
• Trimming may be required to clear the recommended 33-inch tire setup.

Whether you're building a long-distance overland rig or upgrading your Excursion for weekend trail use, this BDS 4-inch kit provides the foundation for a capable, comfortable, and properly geometrically corrected suspension system.
