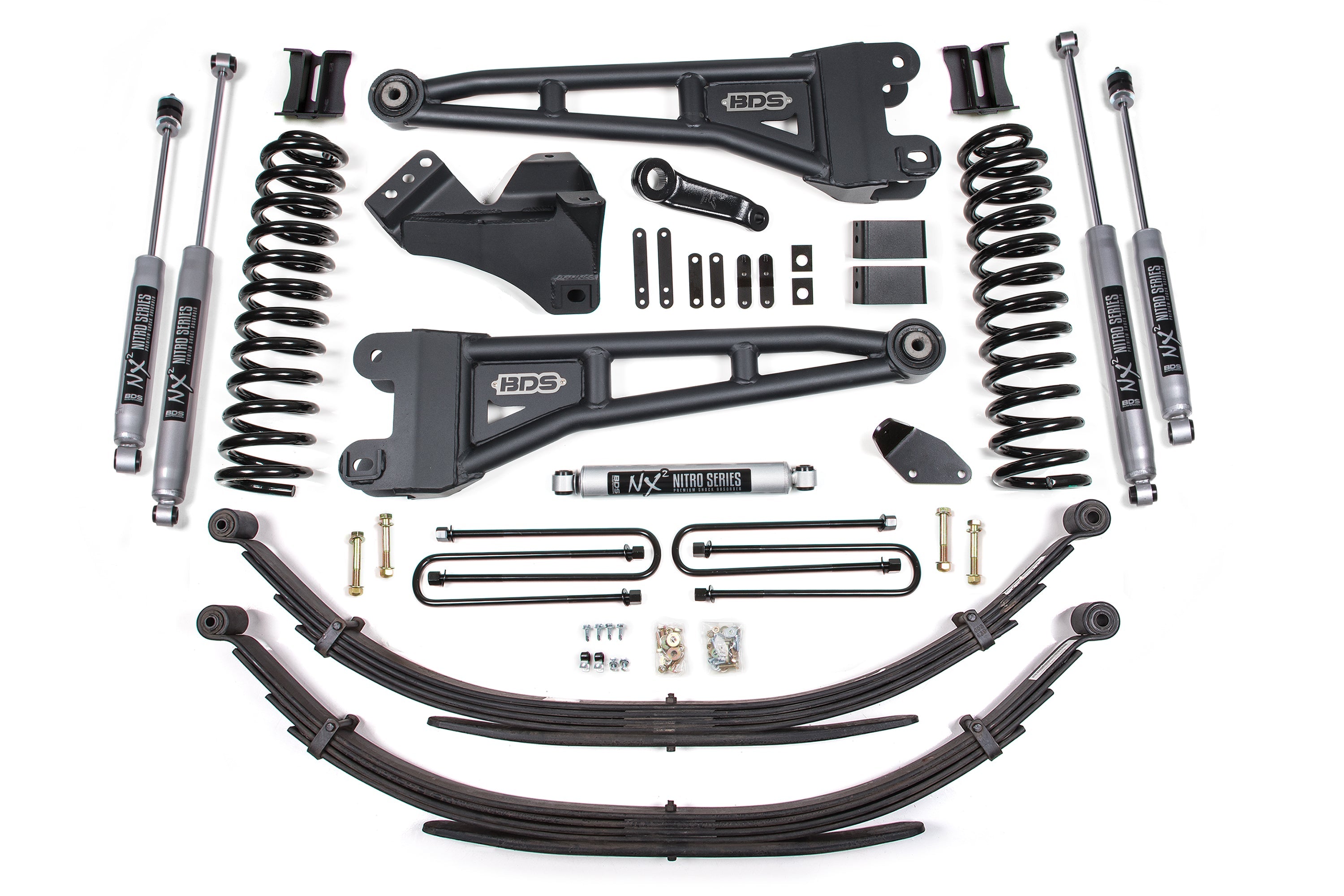

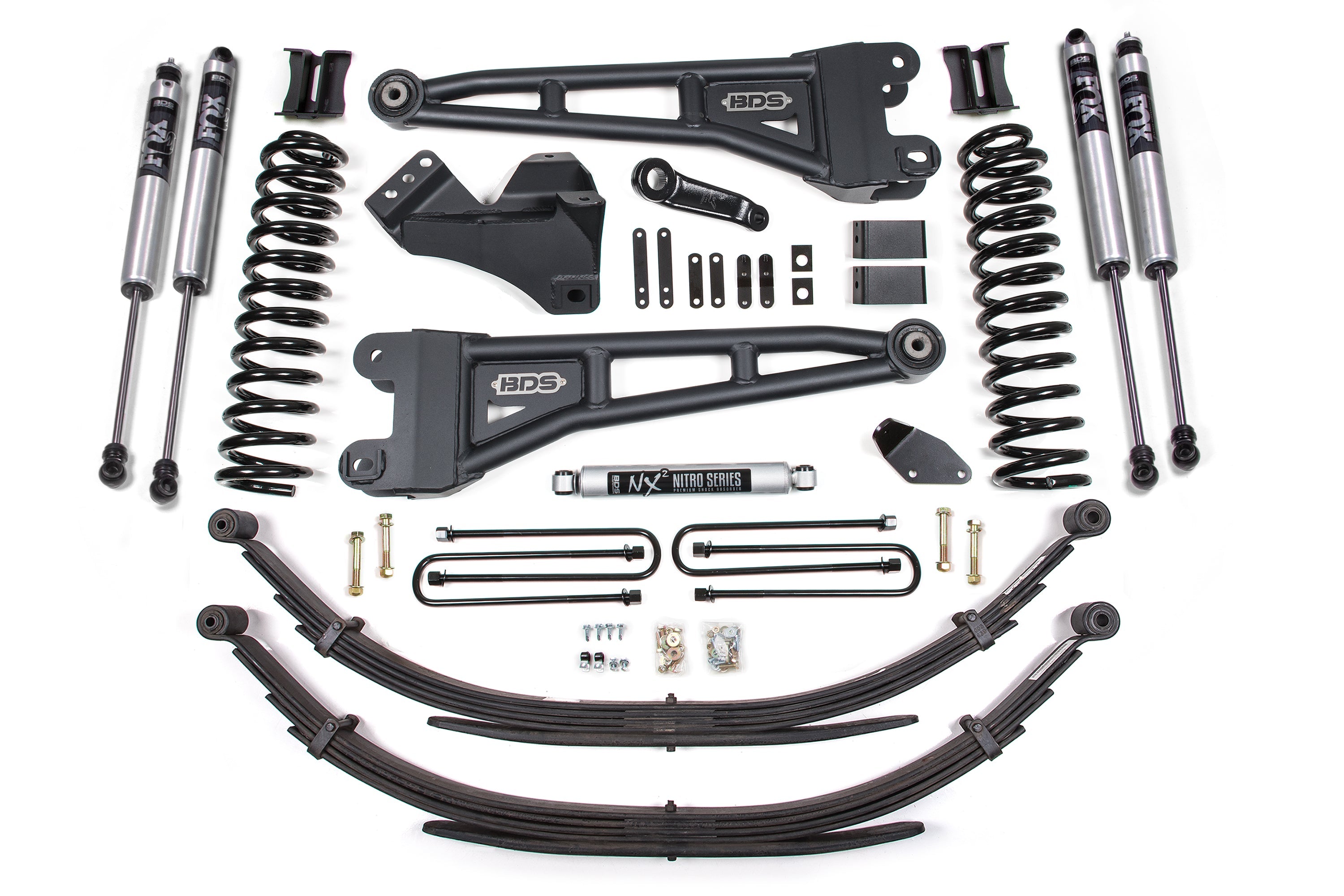

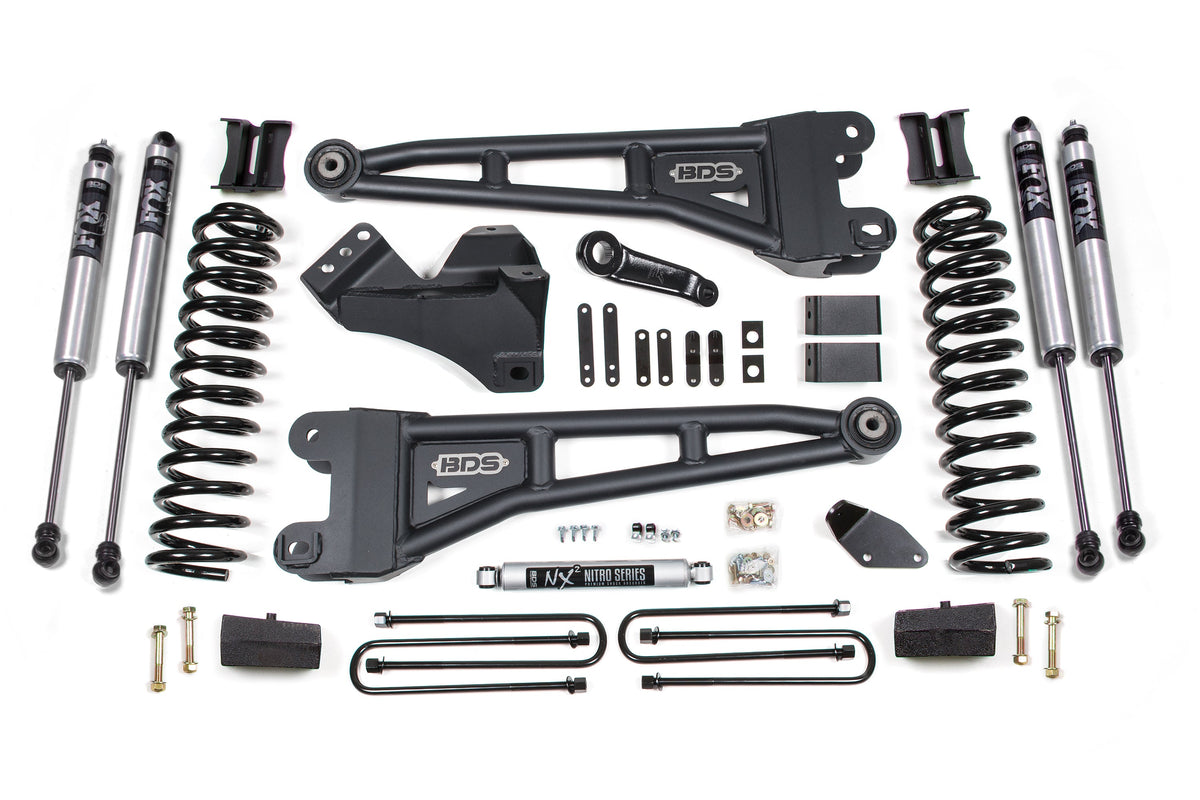

BDS 4 Inch Lift Kit w/ Radius Arm for 2005-2007 Ford F250/F350 Super Duty 4WD Gas

Key Features

• 100% bolt-on installation using factory mounting locations for a straightforward build at home or in the shop.
• HD tubular radius arms replace the factory stamped steel arms, correcting caster across a range of lift heights and using an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
• Gas-specific Pro-Ride dual rate coil springs deliver the correct lift height up front along with predictable, comfortable ride quality across varied terrain.
• Forged drop pitman arm and track bar relocation bracket work together to keep steering geometry in phase through suspension travel and recenter the front axle.
• Sway bar relocation and brake line brackets included to maintain proper component clearance after lift.
• Rear lift options: choose a high-strength fabricated steel lift block with u-bolt flip kit for maximum ground clearance, or upgrade to multi-leaf progressive replacement leaf springs that eliminate the block, reduce axle wrap, and maintain factory payload ratings.
• Shock options: standard NX2 Nitro Series (nitrogen-charged twin-tube, 10-stage velocity-sensitive valving, 1-3/8" high-flow piston, dual-welded ends, silver powder coat) or upgraded FOX 2.0 Performance Series (2" extruded aluminum IFP monotube body, 5/8" hard chrome heat-treated shaft, CNC machined 6061-T6 aluminum ends, application-specific valving, clear anodized finish).
• Tire and wheel clearance for 35x12.5 tires on 18x9 or 20x9 wheels with 4.5" backspacing (trimming may be required).

Why It Works for an Overland Build

The combination of tubular radius arms, tuned coil springs, and corrected steering geometry gives your Super Duty the travel, clearance, and on-road manners needed for long-distance overland travel. Whether you're loaded down with gear and headed deep into the backcountry or running daily on pavement, the kit delivers a controlled, planted ride without sacrificing payload or steering precision.

Fitment

• 2005 Ford F-250 Super Duty (ALL submodels) — 4WD, Gas
• 2005 Ford F-350 Super Duty (ALL submodels) — 4WD, Gas
• 2006-2007 Ford F-250 Super Duty (XL, XLT, Lariat, King Ranch) — 4WD, Gas
• 2006-2007 Ford F-350 Super Duty (XL, XLT, Lariat, King Ranch) — 4WD, Gas

Important Notes

• Overload spring check required: These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack, set above the main leaf. Identify which configuration your truck has before ordering.
• Carrier bearing equipped trucks: If your vehicle has a carrier bearing, you will also need to order part number 123402 from the accessories section.
• Tire fitment: Minor trimming may be required to clear 35-inch tires depending on wheel offset and backspacing.

If you have questions about fitment, configuration, or current lead times and shipping timelines, reach out before ordering and we'll help you get the right setup the first time.
