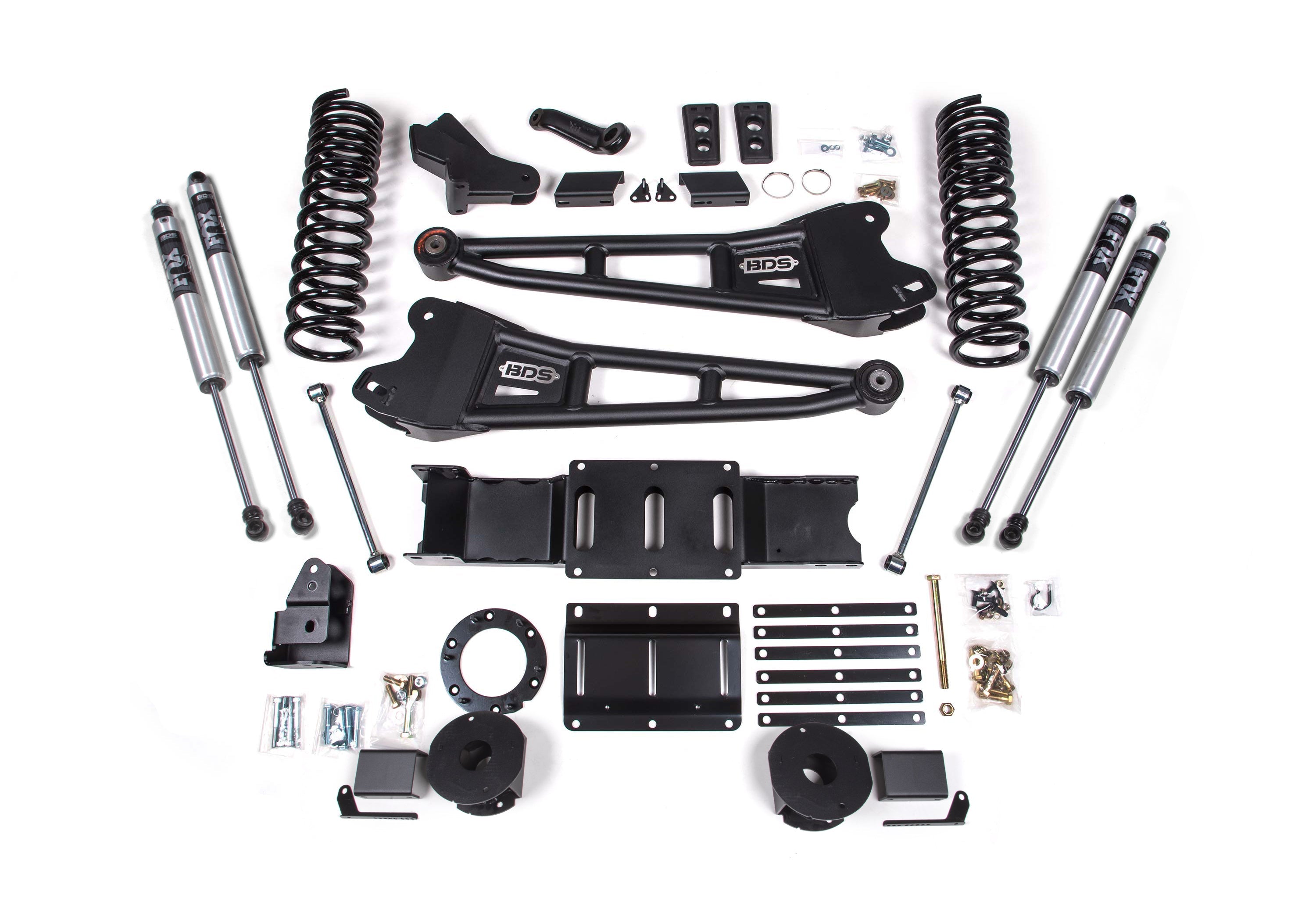

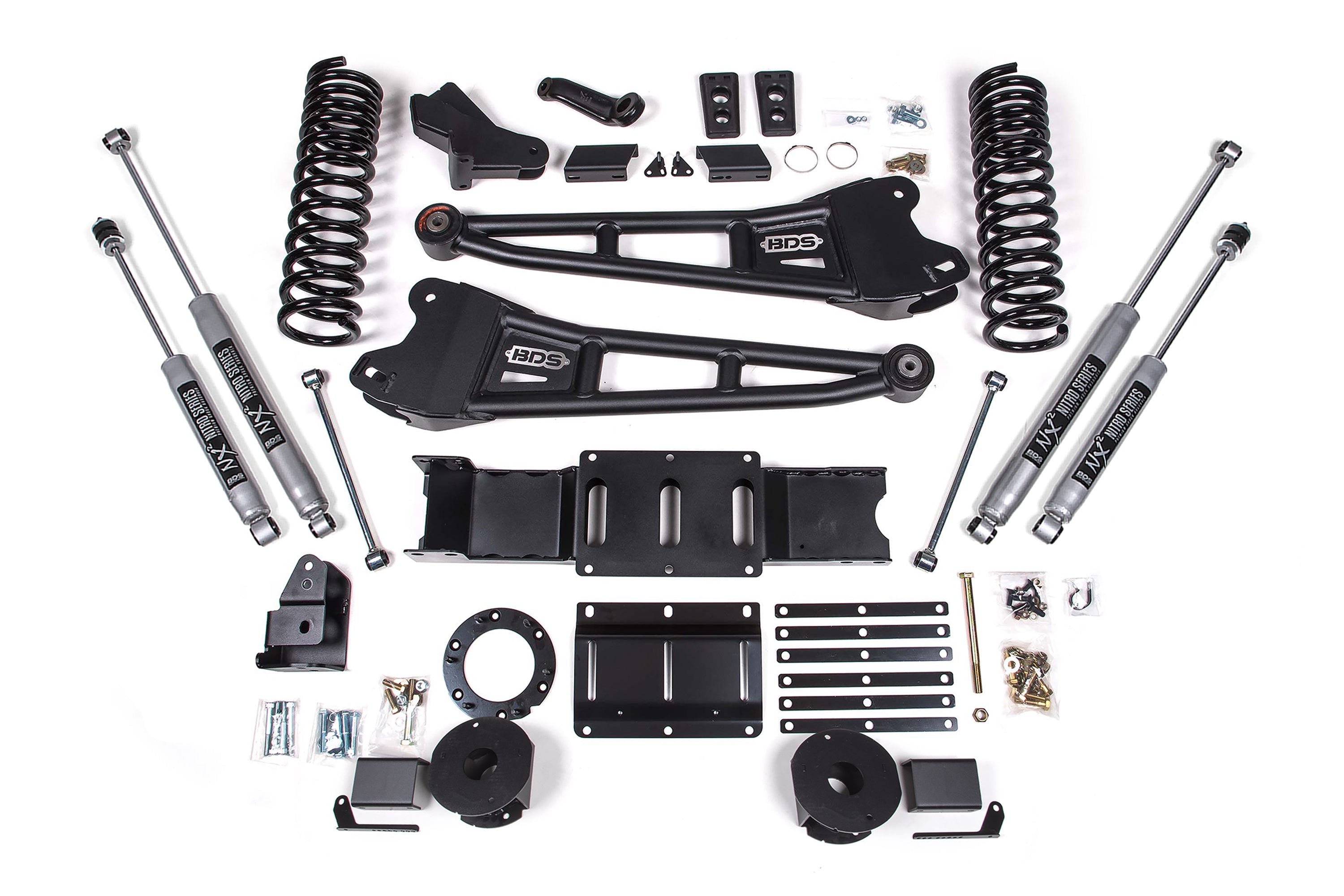

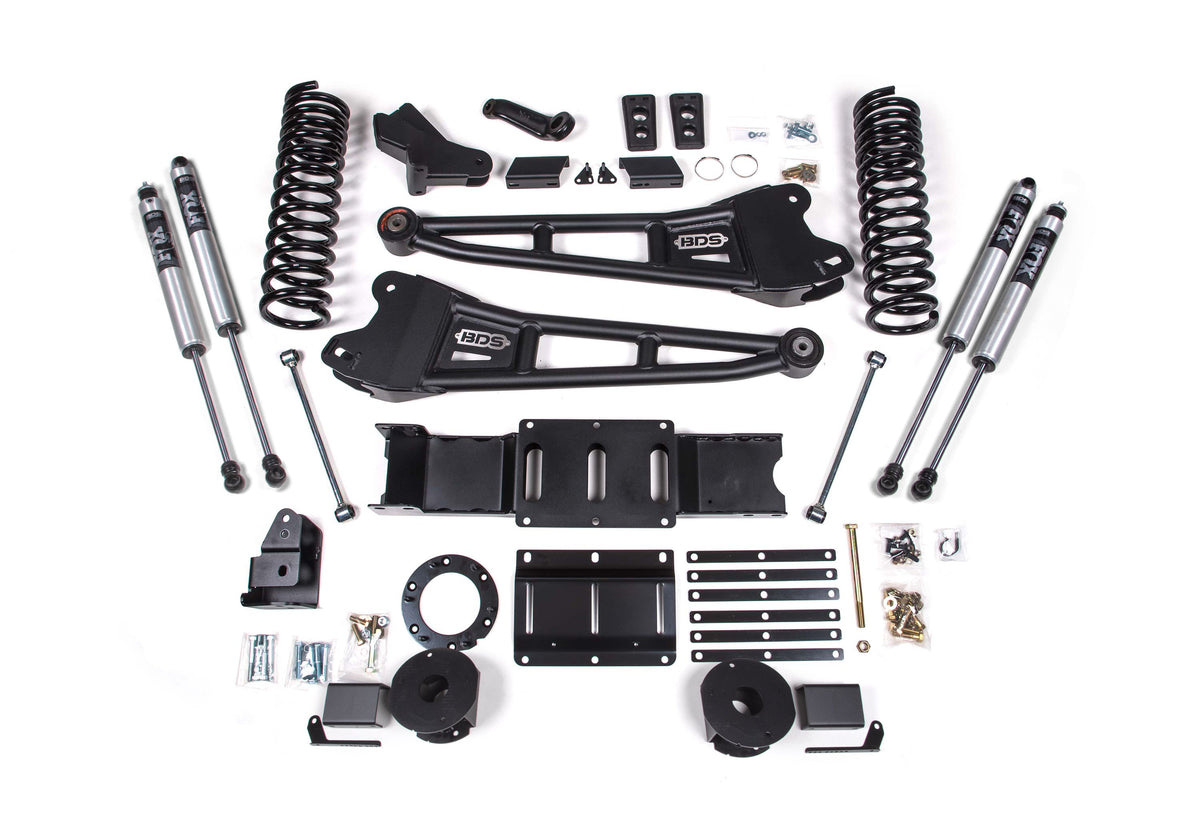

BDS 4 Inch Lift Kit w/ Radius Arm for 2019-2024 Ram 2500 w/ Rear Air Ride 4WD Diesel

Key Features

• HD Tubular Radius Arms – High-strength tubular construction replaces the factory stamped steel arms, mounts in the factory location, offers caster adjustment across a wide range of lift heights, and uses an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
• Pro-Ride Coil Springs – Full-length, diesel-specific, progressive-rate coils made from high tensile steel with properly sized wire diameter for maximum reliability, correct lift height, and predictable ride quality without premature coil bind.
• Steering Correction – Forged drop pitman arm minimizes steering angle and pairs with a heavy-duty track bar drop bracket to keep components in phase through suspension travel while recentering the front axle.
• Driveline Geometry Correction – HD transmission crossmember and transfer case indexing ring correct front driveline angles and allow continued use of the factory front driveshaft.
• Air Ride Compatible Rear – Heavy-duty air bag spacers, track bar relocation bracket, bump stop extensions, and sway bar links retain factory rear air ride function while delivering the full 4-inch lift.
• Front Sway Bar Correction – Maintains on-road handling performance after lift.
• Shock Options – Choose between BDS NX2 Nitro Series or FOX 2.0 Performance Series shocks.

Shock Options

NX2 Nitro Series: Nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

FOX 2.0 Performance Series: 2-inch impact-extruded aluminum body with internal floating piston (IFP) monotube design, CNC-machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a clear anodized finish.

Recommended Tires & Wheels

Trimming may be required.

• 35 x 12.5 with 20 x 9 wheels and 4.5 in. backspace
• 37 x 12.5 with 20 x 9 wheels and 5.625 in. backspace

Fitment

Fits OE-equipped rear air ride systems only. Not compatible with coil-spring rear suspension trucks.

• 2019–2024 Ram 2500 Big Horn – 4WD Diesel
• 2019–2024 Ram 2500 Laramie – 4WD Diesel
• 2019–2020 Ram 2500 Laramie Limited – 4WD Diesel
• 2019–2021 Ram 2500 Laramie Longhorn – 4WD Diesel
• 2019–2024 Ram 2500 Limited – 4WD Diesel
• 2021–2024 Ram 2500 Limited Longhorn – 4WD Diesel
• 2019–2024 Ram 2500 Lone Star – 4WD Diesel
• 2023–2024 Ram 2500 Rebel – Diesel
• 2019–2024 Ram 2500 Tradesman – 4WD Diesel

Important Notes

• This kit is designed for factory rear air ride equipped trucks only. Verify your truck's rear suspension before ordering.
• Trimming may be required depending on tire and wheel combination.
• Professional installation is recommended. Proper alignment is required after installation.
• Lead times may vary based on shock option selected and current manufacturer availability. Please contact us for current lead time and shipping estimates before placing your order if timing is critical to your build.
