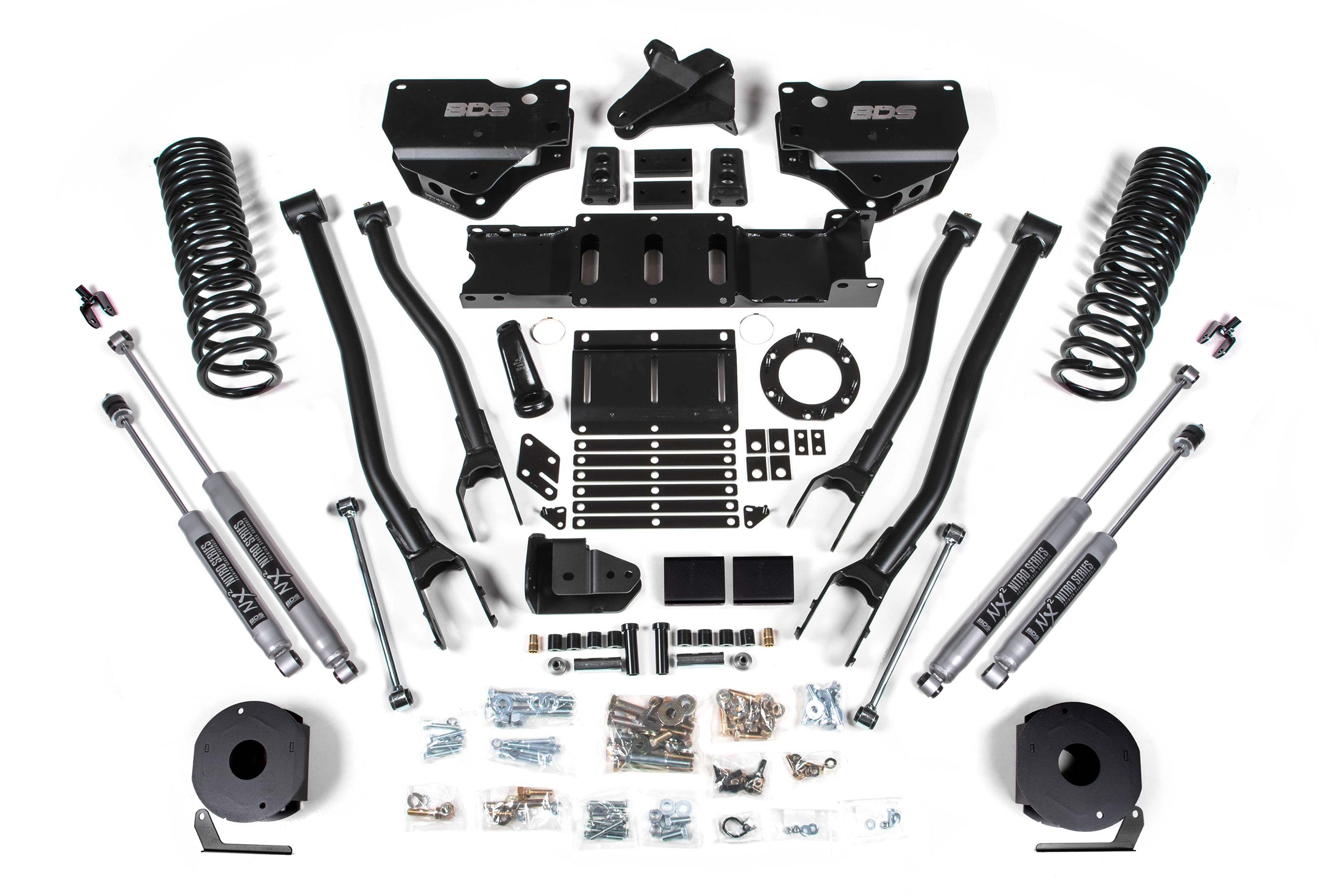

BDS 5.5 Inch Lift Kit w/ 4-Link for 2019-2024 Ram 2500 w/ Rear Air Ride 4WD Gas

Key Features

• HD Tubular Radius Arms: High-strength replacements for the factory stamped steel arms. Mount in the factory location, offer caster adjustment across a wide range of lift heights, and use an OE-style rubber bushing at the frame for quiet, service-free operation.
• Pro-Ride Coil Springs: Full-length, gas-specific, progressive rate springs made from high tensile steel with properly sized wire diameter for the correct lift height, a smooth ride, and maximum reliability without premature coil bind.
• Steering Correction: Forged drop pitman arm minimizes steering angle and pairs with a heavy-duty track bar drop bracket to keep the steering and axle in phase through suspension travel while recentering the front axle.
• Driveline Correction: HD transmission crossmember and transfer case indexing ring correct front driveline angles and allow continued use of the factory driveshafts.
• Front Sway Bar Correction: Maintains on-road handling performance after the lift is installed.
• Rear Setup for Air Ride: Heavy-duty air bag spacers, track bar relocation bracket, bump stop extensions, and sway bar links work with the factory rear air ride system.
• Shock Options:
  • NX2 Nitro Series: Nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, silver powder coat finish.

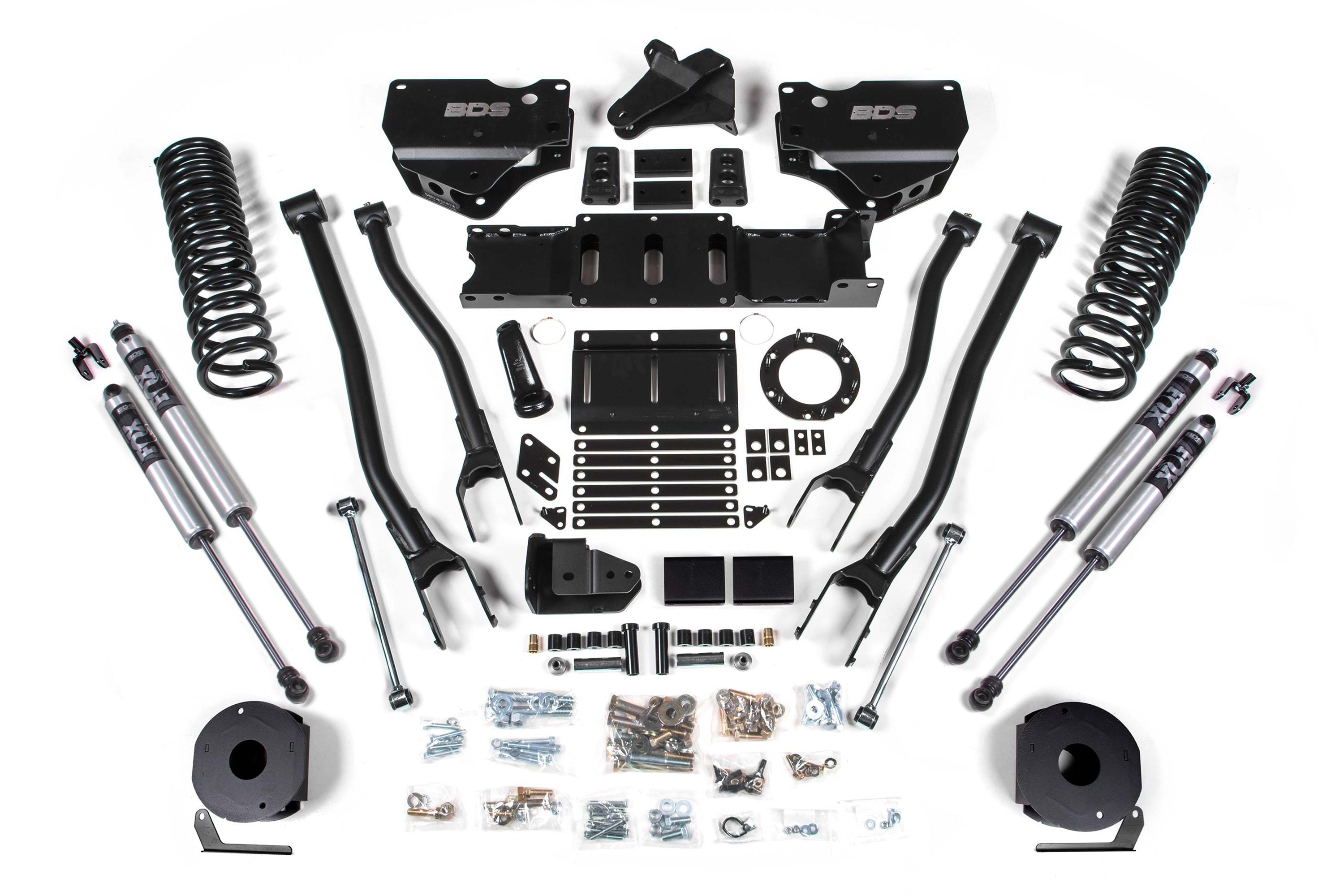

  • FOX 2.0 Performance Series: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish.

Recommended Tires & Wheels

Trimming may be required.

• 37 x 12.5 with 17 x 9 and 4.5 in. backspacing
• 37 x 13.5 with 20 x 9 and 5.625 in. backspacing

Fitment

• 2019 RAM 2500 (Gas, OE Air Ride): Big Horn, HD Limited, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, R/T, SLT, SLT HD, Sport, Tradesman
• 2020 RAM 2500 (Gas, OE Air Ride): Big Horn, HD Limited, HD Limited Rambox, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT HD, Tradesman
• 2021 RAM 2500 (Gas, OE Air Ride): Big Horn, HD Limited, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, SLT HD, Tradesman
• 2022 RAM 2500 (Gas, OE Air Ride): Big Horn, HD Limited, Laramie, Limited, Limited Longhorn, Lone Star, SLT HD, Tradesman
• 2023 RAM 2500 4WD (Gas, OE Air Ride): Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Tradesman
• 2024 RAM 2500 4WD (Gas, OE Air Ride): Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Tradesman

Important Notes

• Fits OE-equipped rear air ride systems only.
• Exhaust modification is required to clear the front driveshaft. The vehicle can be driven without the front driveshaft to an exhaust shop.
• Trucks equipped with a manual shift transfer case will require the Transfer Case Shifter Extension (BDS122422), sold separately.
• Some tire and wheel combinations may require trimming for full clearance.
