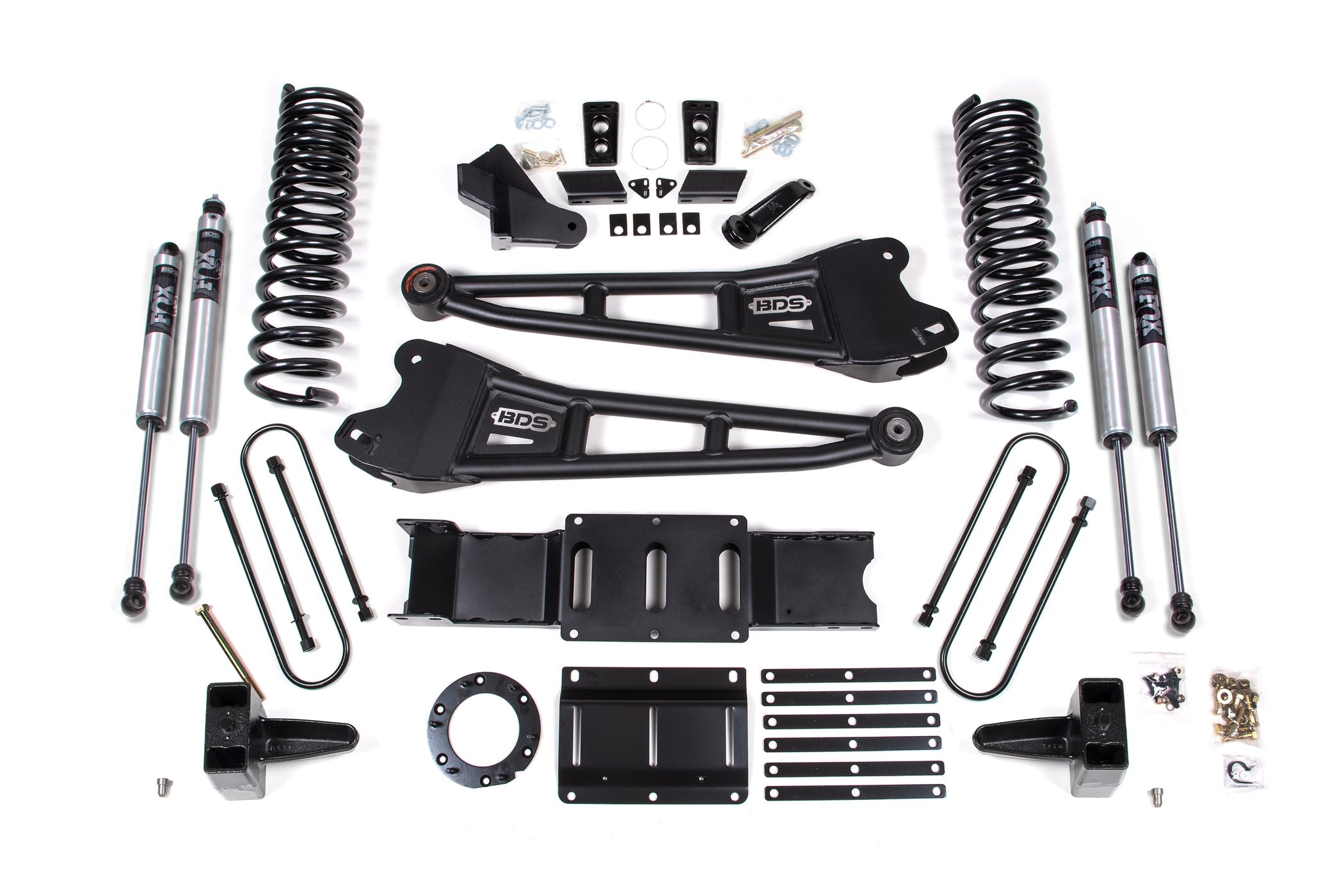

BDS 5.5 Inch Lift Kit w/ Radius Arm for 2019-2024 Ram 3500 4WD Gas

Key Features

• Heavy-duty tubular radius arms with OE-style rubber bushings for improved strength, handling, and caster control
• Full-length, gas-specific progressive rate Pro-Ride coil springs for smooth, predictable ride quality on any terrain
• Forged drop pitman arm and track bar relocation bracket to correct steering geometry and recenter the front axle
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and retain the factory driveshaft
• High-strength fabricated rear lift block with longer u-bolts
• Choice of shocks: BDS NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite Series with DSC adjuster
• Clearance for up to 37x12.5 tires on 20x9 wheels with 5.625-inch backspacing (trimming may be required)

Shock Options

BDS NX2 Nitro Series: Nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

FOX 2.0 Performance Series: 2-inch Impact extruded aluminum body with internal floating piston (IFP) monotube design, CNC-machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and clear anodized finish.

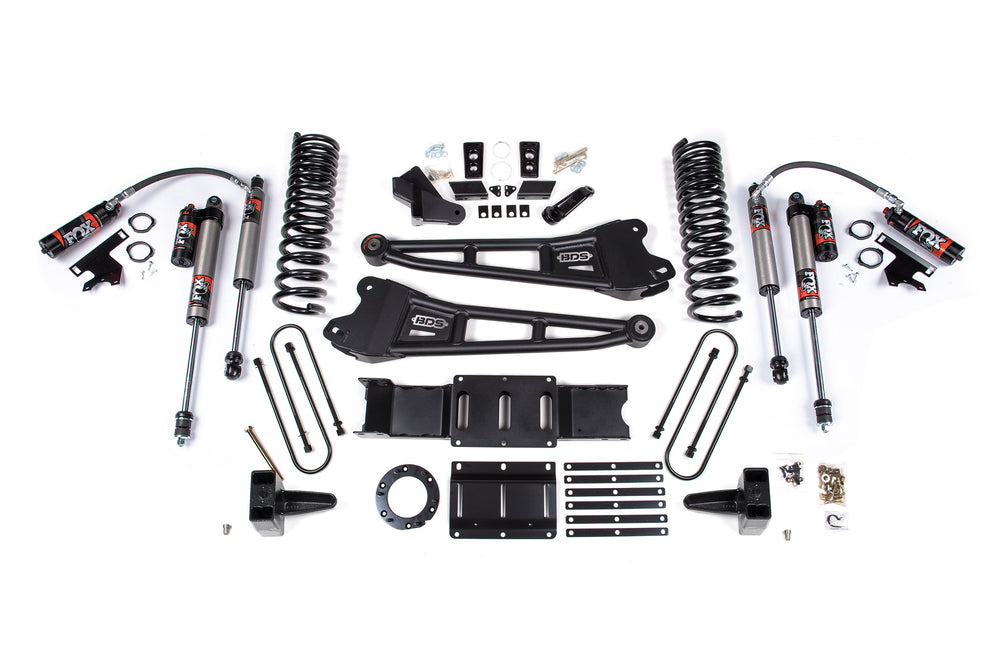

FOX 2.5 Performance Elite Series: 2.5-inch Impact extruded aluminum body with 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir design that separates shock oil from high-pressure nitrogen, standard DSC (Dual Speed Compression) Adjuster for tuning to terrain, load, and speed, fully serviceable construction, and a 1-year manufacturer's warranty.

Rear Lift Option

Select the correct rear box kit based on whether or not your RAM is equipped with the factory Rear Overload Leaf.

Fitment

• 2019-2023 RAM 3500 (All Submodels) - 4WD Gas
• 2024 RAM 3500 Big Horn - 4WD Gas
• 2024 RAM 3500 Laramie - 4WD Gas
• 2024 RAM 3500 Limited - 4WD Gas
• 2024 RAM 3500 Limited Longhorn - 4WD Gas
• 2024 RAM 3500 Tradesman - 4WD Gas

Important Notes

• Exhaust modification is required to clear the front driveshaft. The vehicle can be driven without the front driveshaft to an exhaust shop.
• Dually or Mega Cab models with Aisin Transmissions (8-bolt) require a DEF tank relocation bracket (part #122409), sold separately.
• Trucks equipped with a manual transfer case require BDS122422, sold separately.
• Tire trimming may be required depending on wheel and tire combination.

Please contact us for current lead times and shipping details before placing your order.
