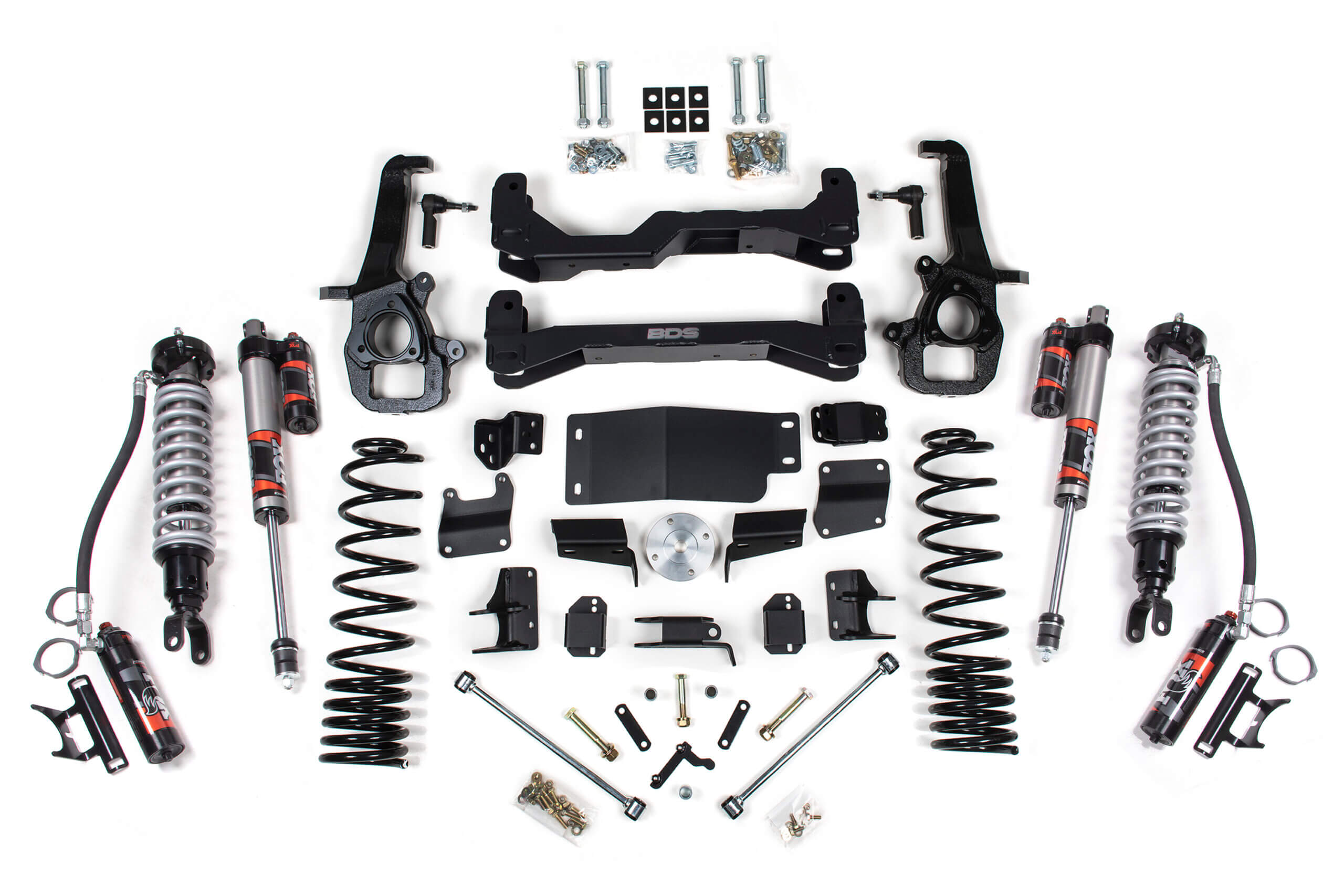

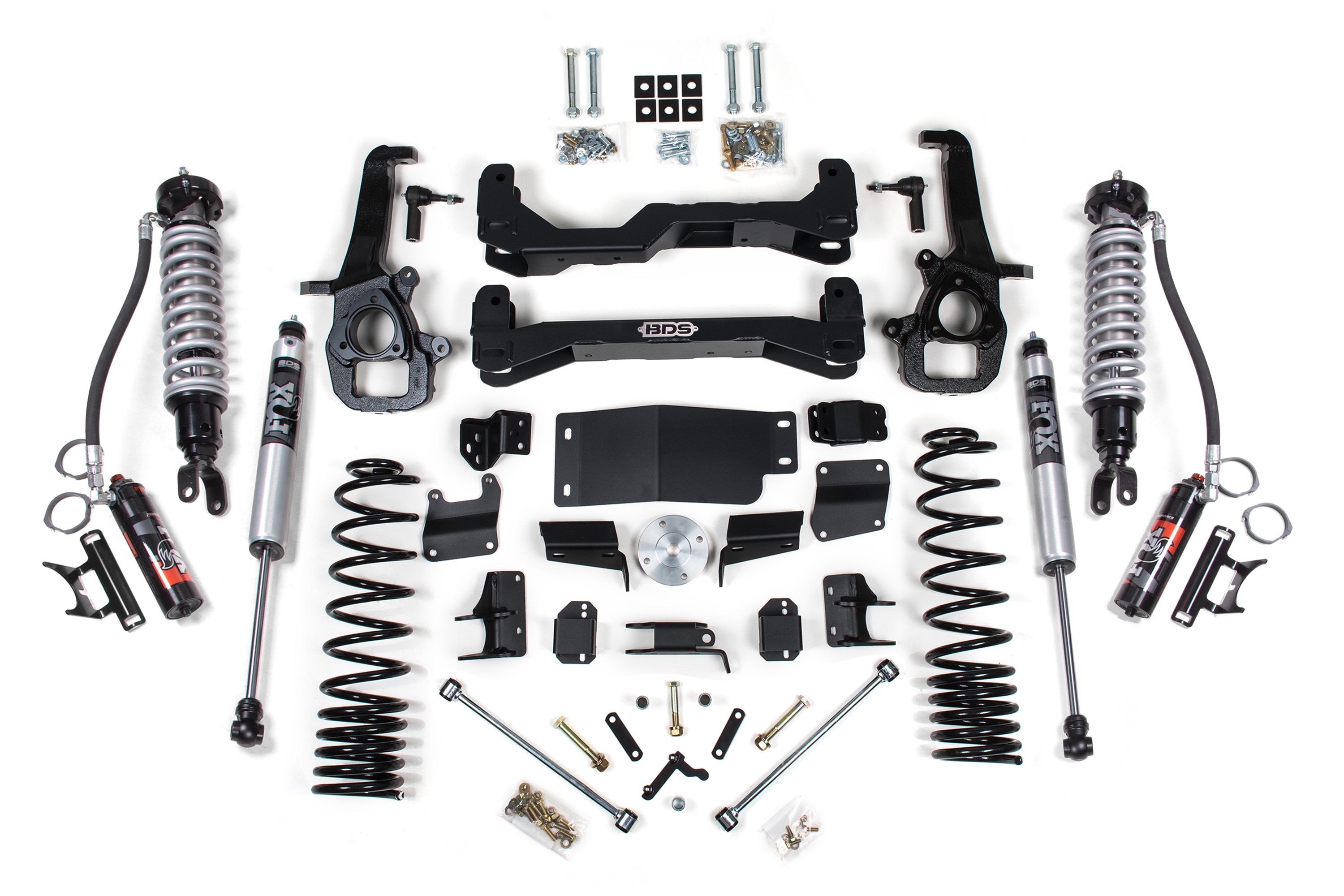

BDS 5 Inch Lift Kit with FOX 2.5 Performance Elite Coil-Over for 2019-2024 Ram 1500 Rebel 4WD

Key Features

• FOX 2.5 Performance Elite coil-over shocks designed for increased travel and rough-terrain capability
• DSC adjuster with 10 low-speed and 12 high-speed compression settings for precise tuning
• Remote reservoir with black anodized aluminum body for added fluid capacity and cooling
• High-clearance 1/4-inch thick laser-cut steel crossmembers for maximum ground clearance
• Bolt-together front skid plate system for a rigid subframe and added off-road protection
• CNC-machined ductile iron steering knuckles maintain ESC system compliance
• Multipiece differential relocation brackets secure the front axle and improve CV angles
• Progressive-rate Pro-Ride rear coil springs with FOX 2.0 IFP performance gas shocks
• Rear upper control arm and track bar relocation brackets correct geometry at lifted height
• Stainless steel braided brake lines, CV spacers, sway bar drops, and bump stop extensions included
• Backed by BDS Factory Protection Plus drivetrain warranty

Fitment

• 2019-2024 RAM 1500 Rebel (4WD only)
• Lift Height: 5" Front and Rear

Recommended Tires & Wheels

Trimming may be required.

• 37 x 12.5 with 20 x 9 wheels and 5 in. backspacing
• 37 x 12.5 with 18 x 9 wheels and 5 in. backspacing

Important Notes & Exclusions

• Fits 4WD models only
• RAMs with factory 22" wheels require the larger bore knuckles due to the larger wheel bearing assembly. Reference build code WPM or WPZ
• Will NOT fit models with adjustable "air ride" suspension
• Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20" wheels can be reinstalled with the factory tire size
• Will NOT work on diesel models
• Will NOT fit 2019-2022 RAM 1500 Classic models — refer to the 2018 kit listings
• Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for mounted cooling lines
• If using 18" wheels with maximum recommended backspacing, test fit wheels on the vehicle before mounting tires to ensure clearance
