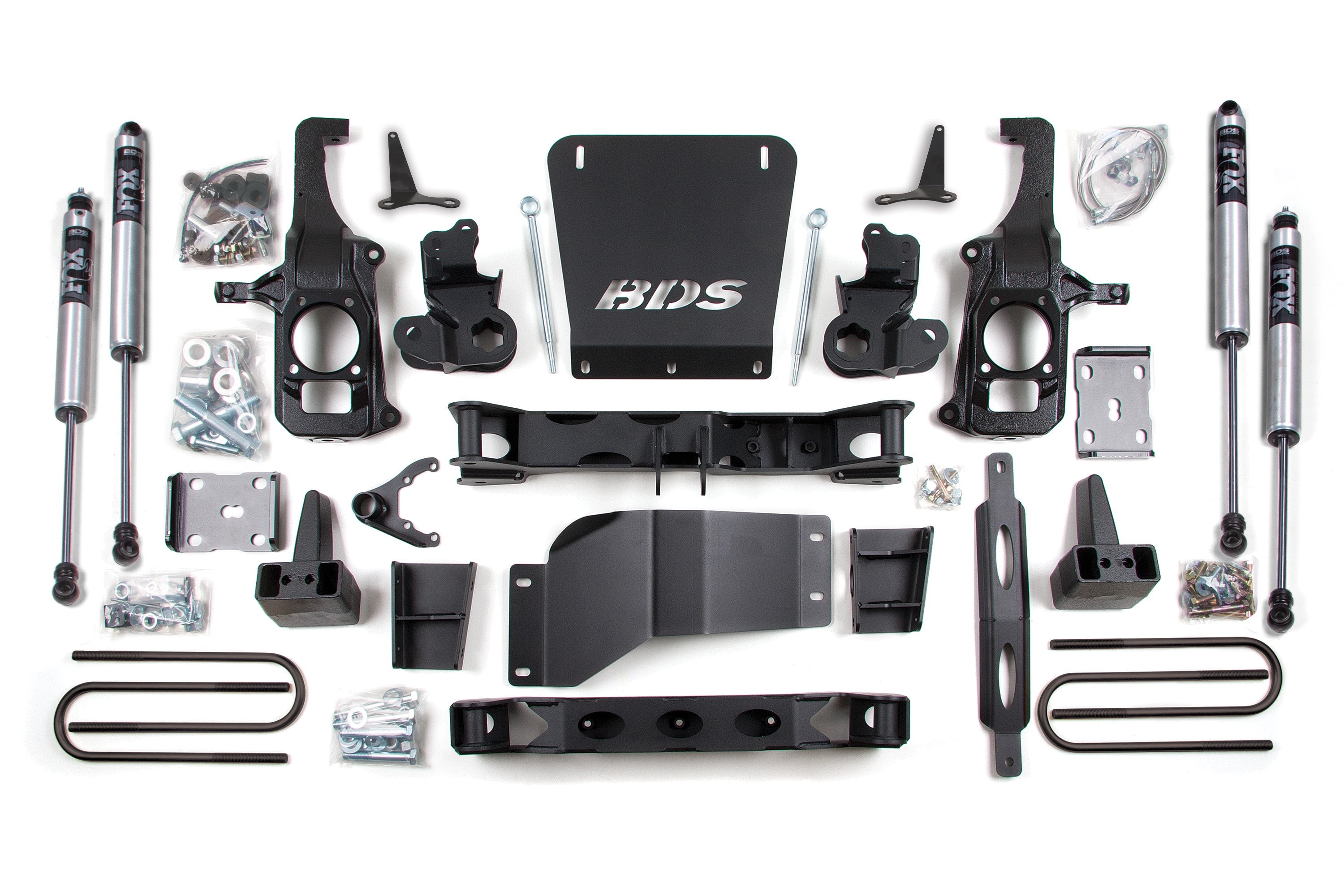

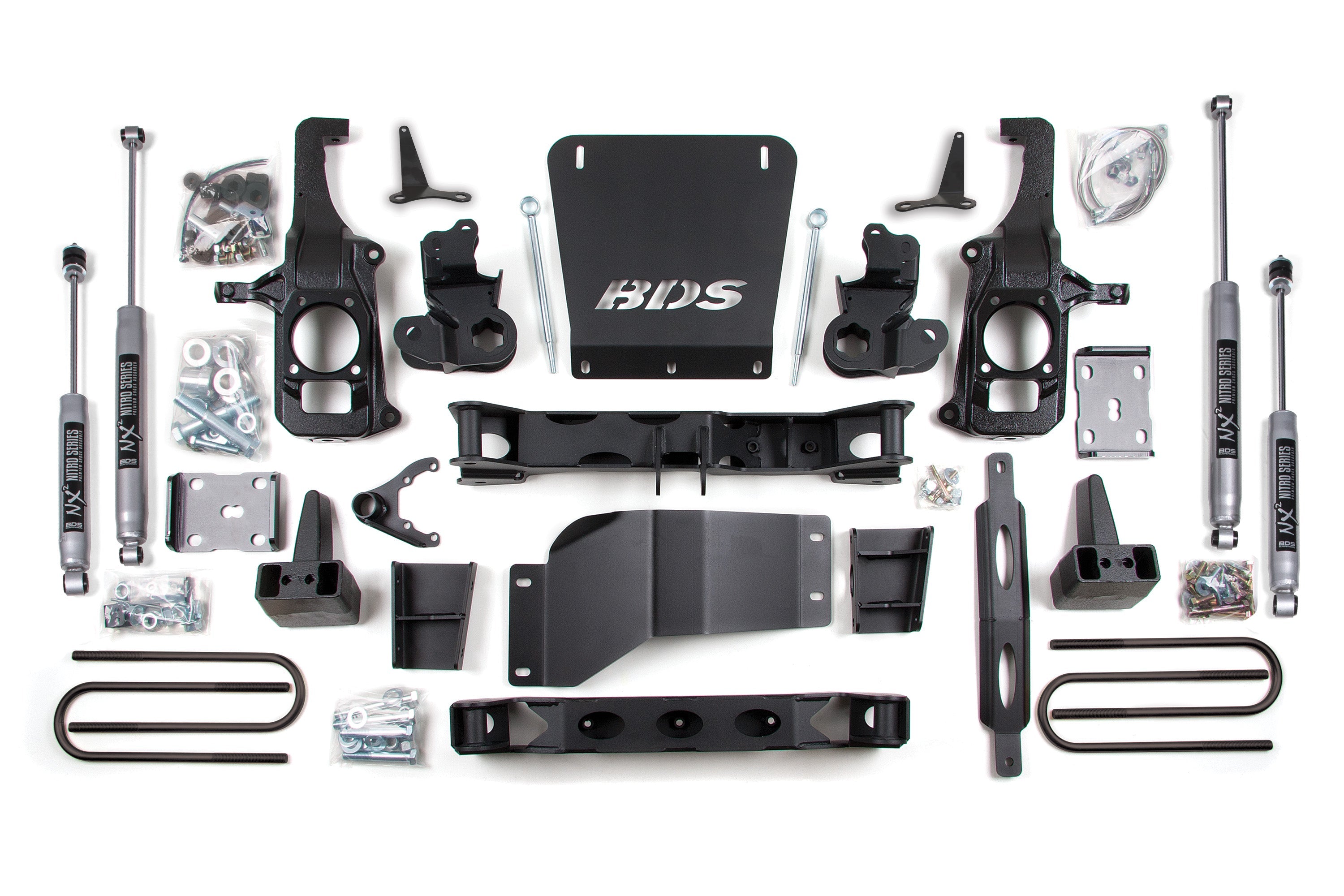

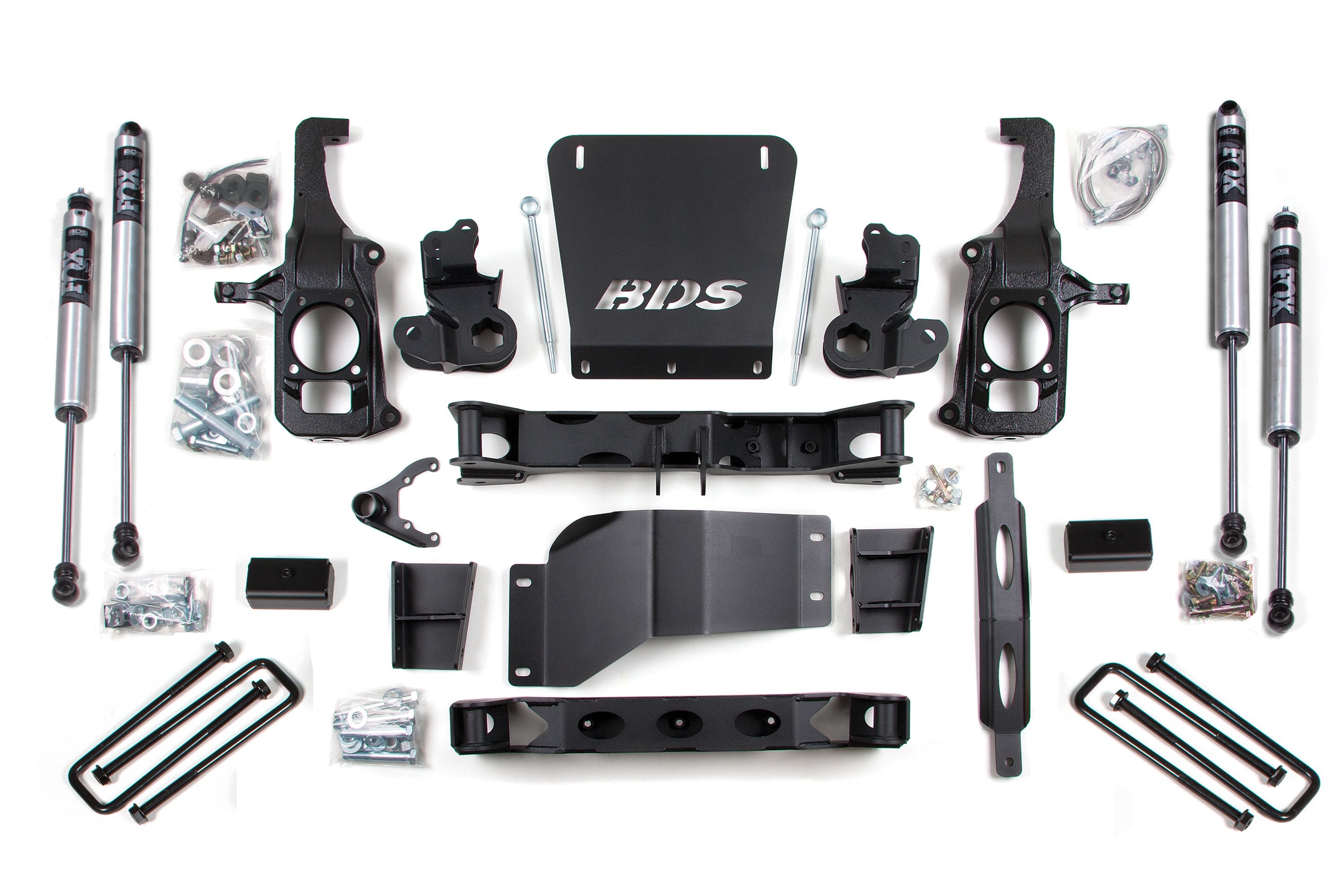

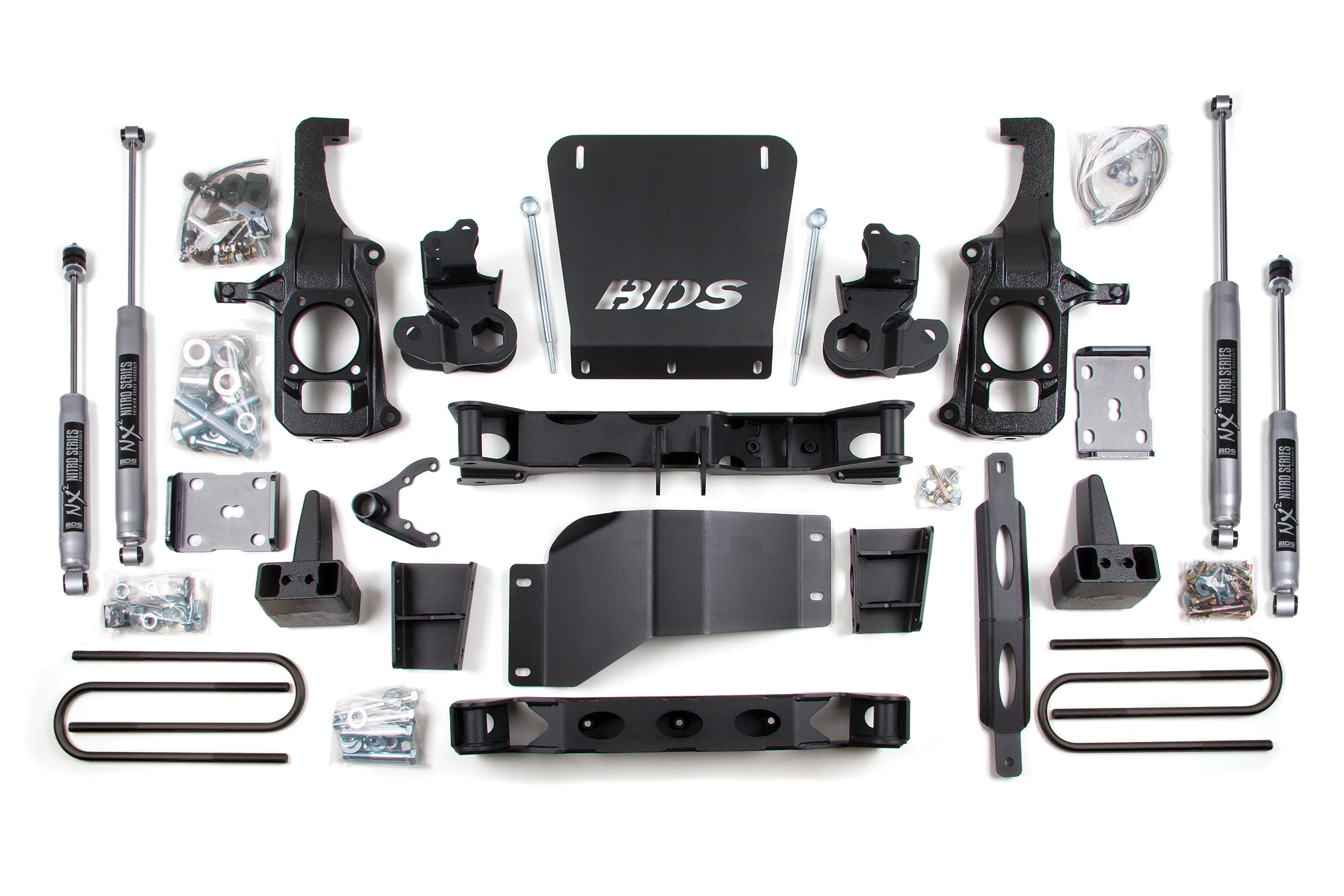

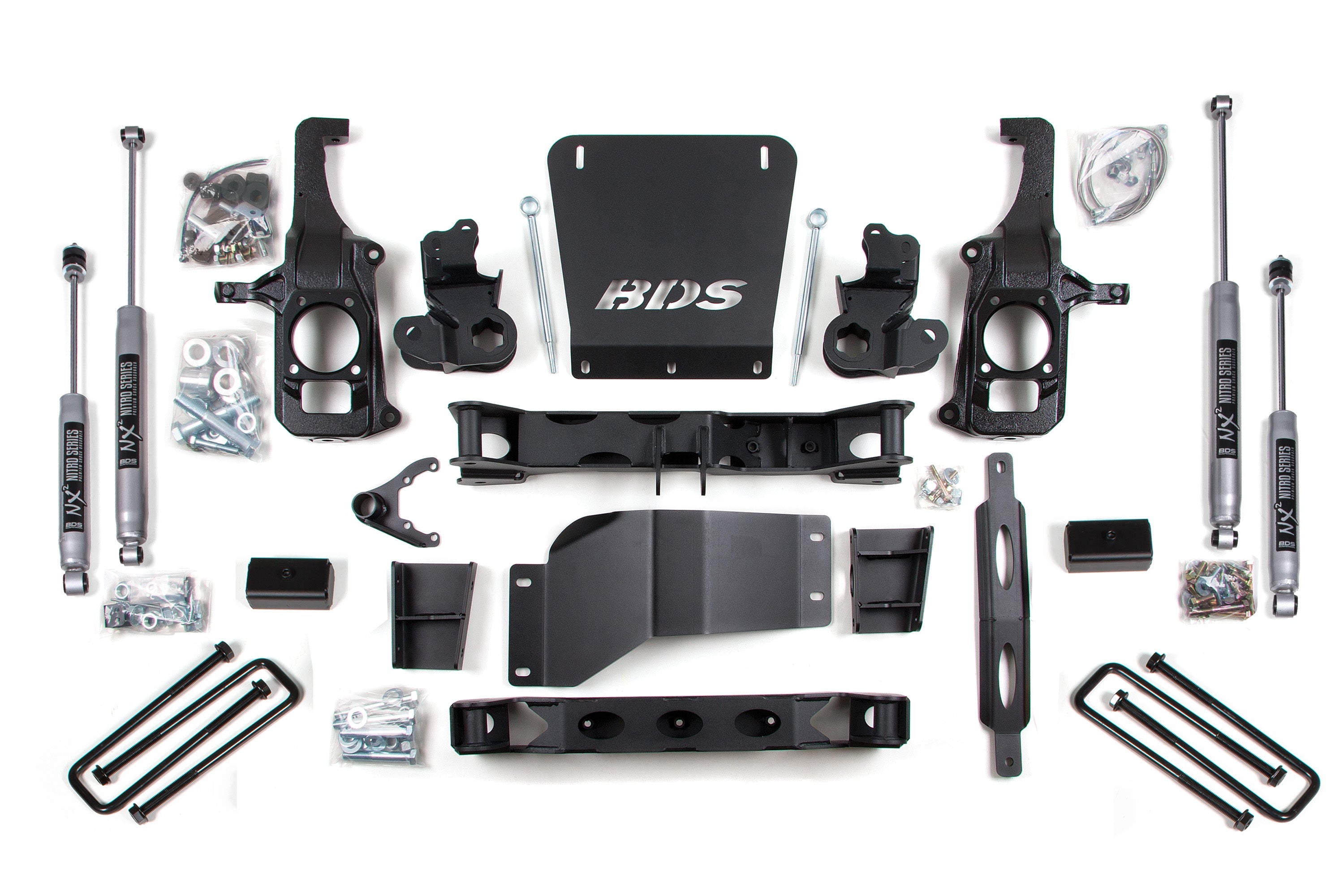

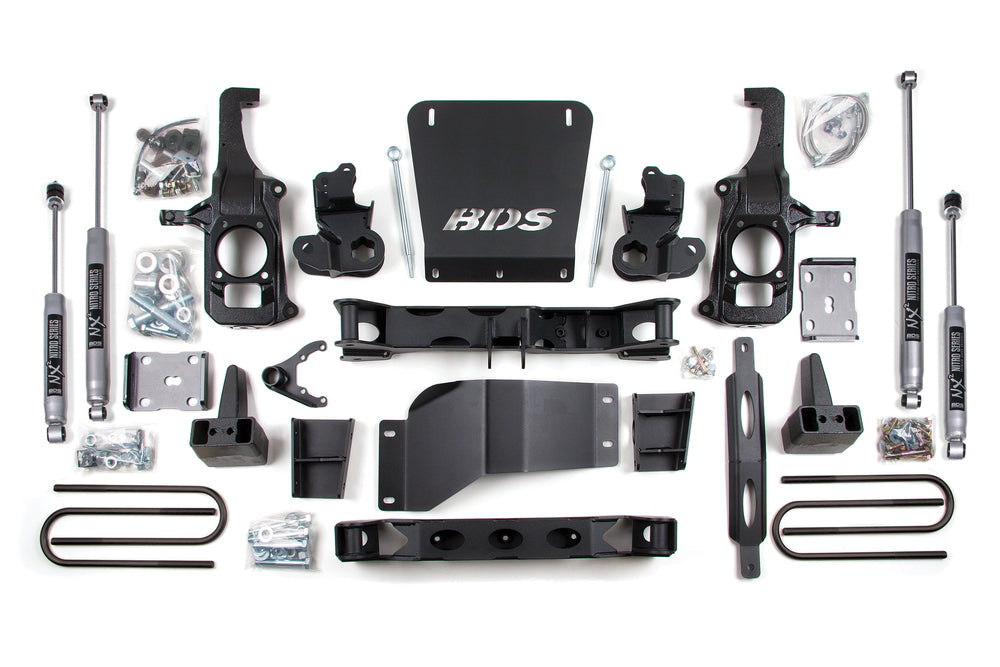

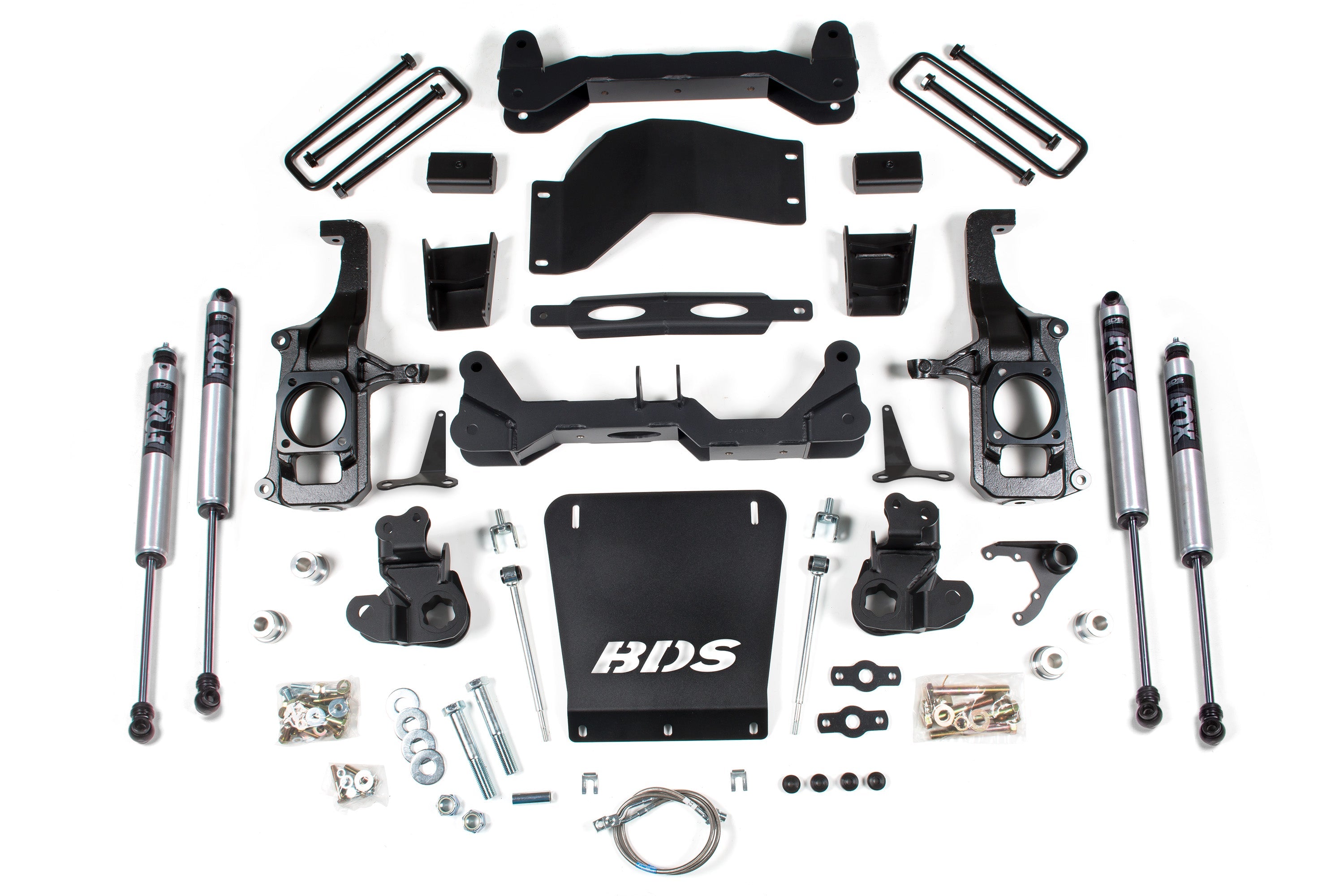

BDS 6.5 Inch Lift Kit fir 2011-2019 Chevy Silverado or GMC Sierra 2500HD/3500 2/4WD

Key Features

• 6.5-inch front lift with No Torsion Bar Drop design for maximum ground clearance
• 1/4-inch laser-cut high-clearance crossmembers paired with a bolt-together front skid plate system for trail protection
• CNC-machined ductile iron steering knuckles correct steering geometry and maintain ESC compliance
• Multi-piece differential relocation brackets secure the front axle and improve CV angles
• Choice of rear lift block to dial in stance: 3-inch (slightly tail-low), 4-inch (level front-to-rear), or 5-inch (level to slightly tail-high with integrated u-bolt flip kit)
• Heavy-duty u-bolt flip kit included for additional rear ground clearance
• Sway bar links, bump stop extensions, and stainless steel brake lines included
• Shock options: NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite with DSC adjustment and remote reservoirs
• Clears up to 37x12.50 tires (trimming may be required)
• Backed by BDS's Factory Protection Plus drivetrain warranty

Recommended Tire & Wheel Combinations

• 37x12.50 with 17x8 wheels and 4.625-inch backspacing
• 37x12.50 with 18x9 wheels and 4.625-inch backspacing
• 37x12.50 with 20x9 wheels and 6-inch backspacing

Fitment

• 2011-2019 Chevrolet Silverado 2500 HD & 3500 HD (4WD)
• 2011-2019 GMC Sierra 2500 HD & 3500 HD (4WD)
• Lift Height: 6.5" Front and Rear
• All cab and bed configurations, all fuel types

Installation Notes

This kit is a serious build and we recommend professional installation. A torsion bar tool is required to load and unload the torsion bars during the install. Plan on a full day or more in the shop, and confirm you have the wheel, tire, and clearance setup planned before beginning.

Important Notes & Exclusions

• 3-inch rear block kit is recommended for dually applications. The 5-inch rear block kit will not fit dually applications.
• Factory 17-inch and 18-inch wheels cannot be reinstalled.
• Factory 20x8.5-inch wheels with 6.18-inch backspacing may fit with a maximum 37x12.50 tire on certain sidewall profiles due to clearance with the steering knuckle and sway bar. A minimum 1/4-inch wheel spacer may be required depending on tire sidewall variation. Wider tires will cause clearance issues with the steering knuckle.
• Factory dually wheels cannot be reinstalled.
• Models equipped with a two-piece rear driveshaft may require BDS part #121612 (sold separately).
• If minor front driveline vibration occurs at highway speeds while in 4WD and the truck is regularly driven in that condition, a dual Cardan style front driveshaft replacement is recommended.
