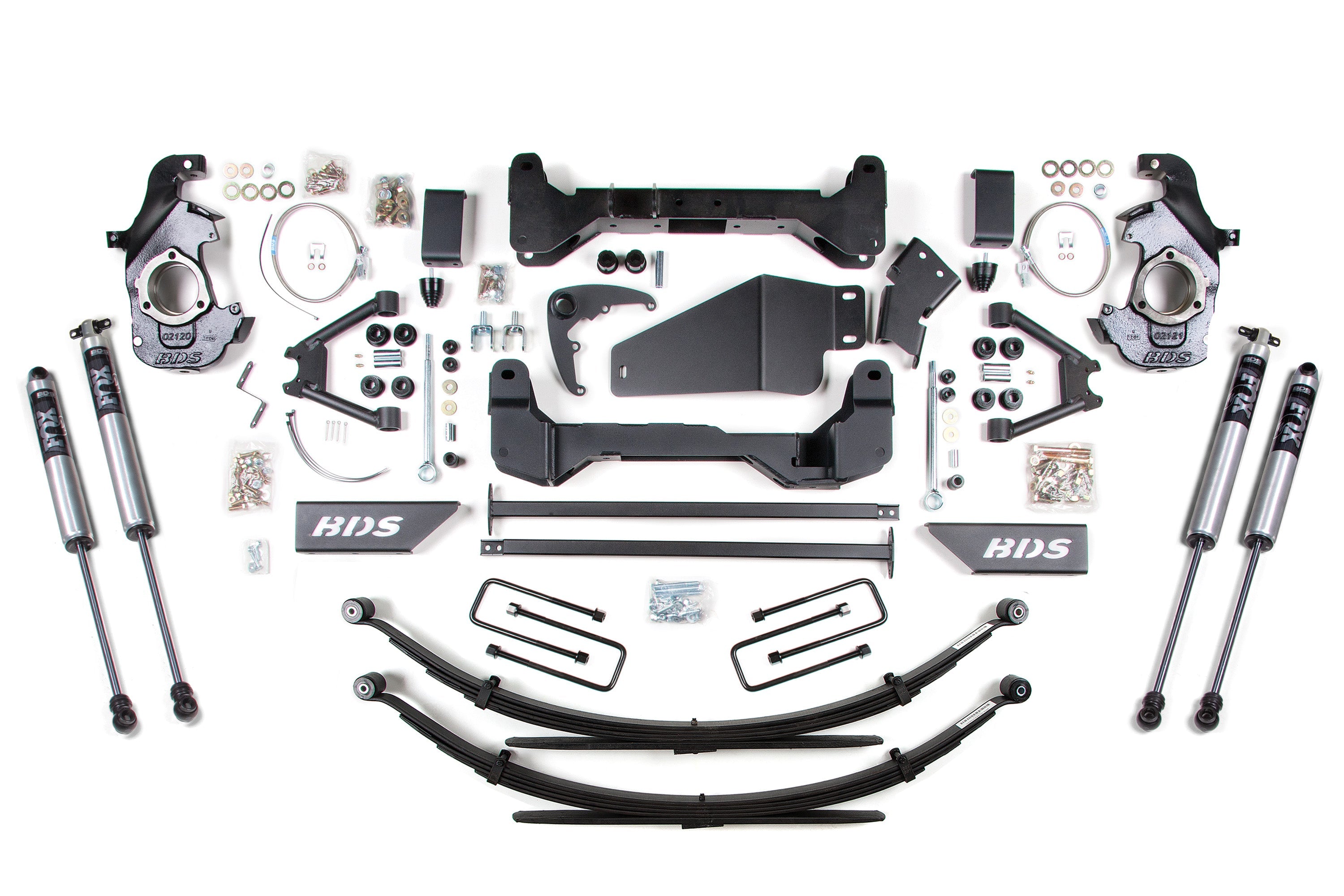

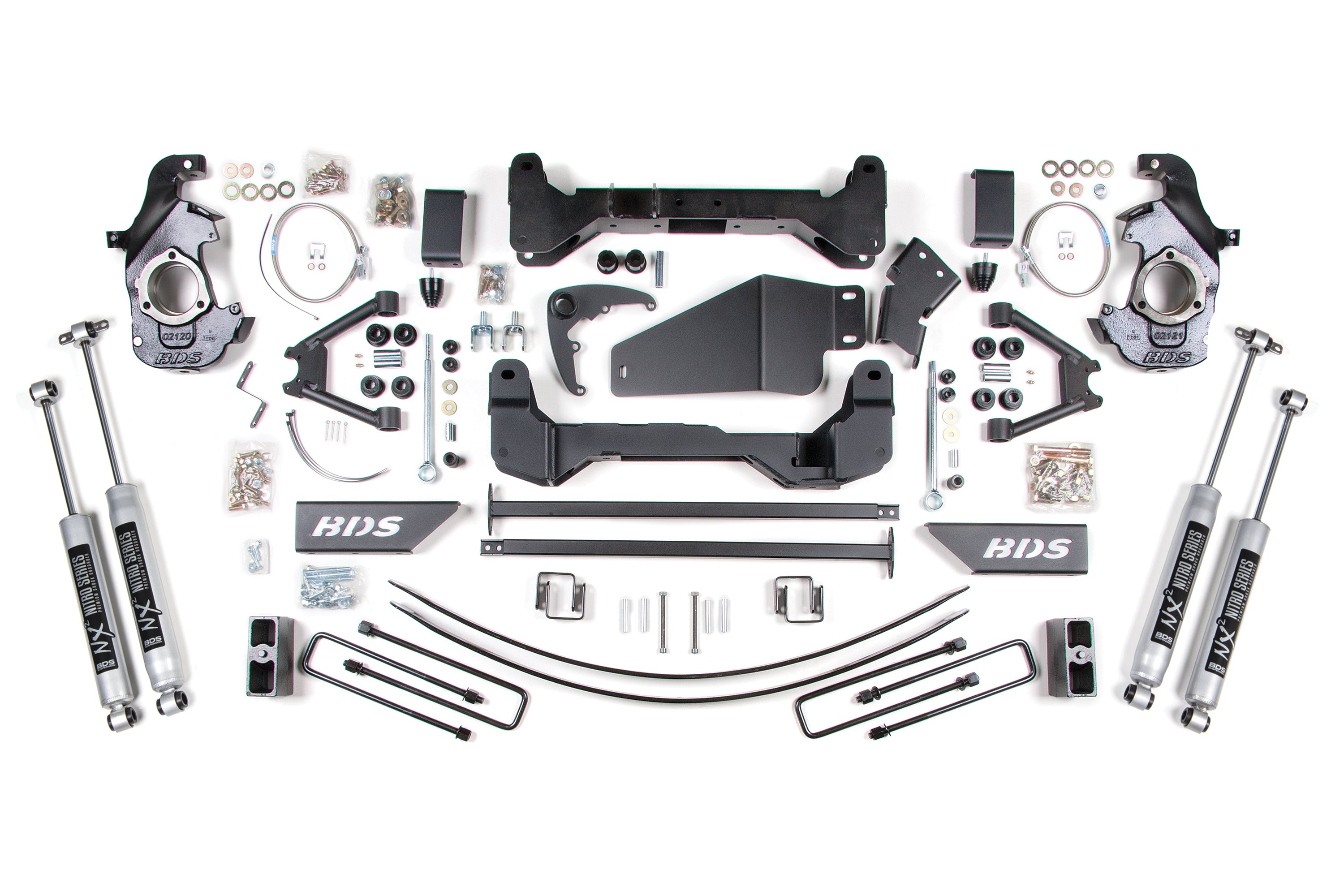

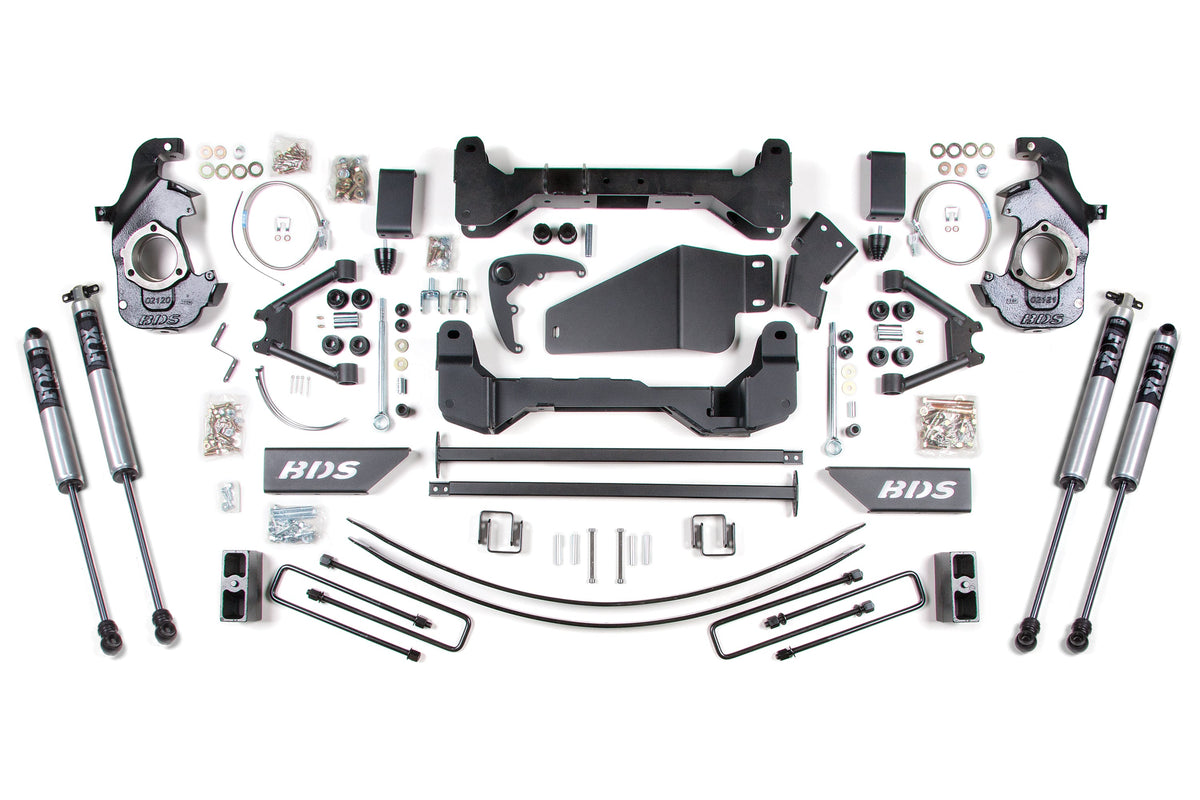

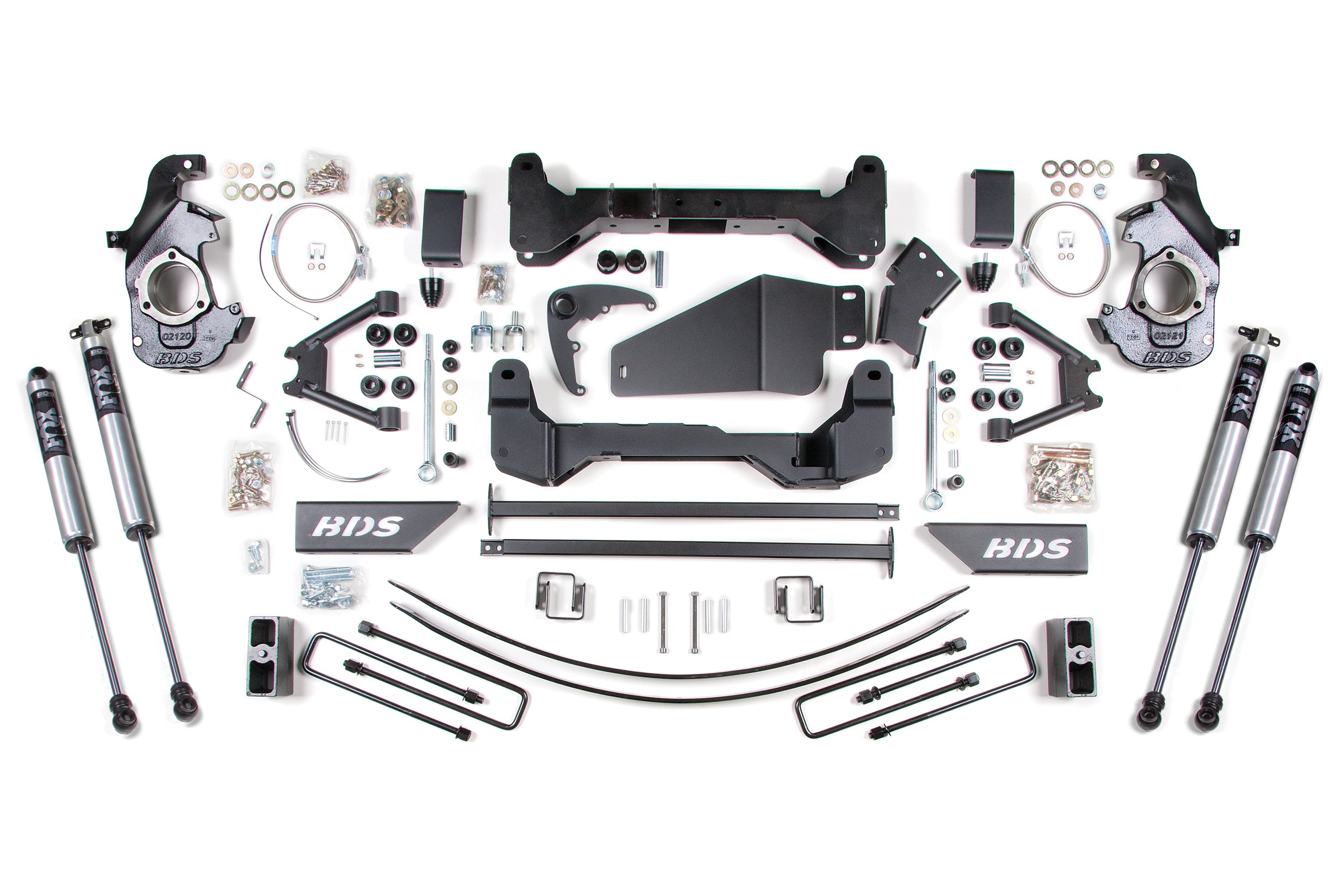

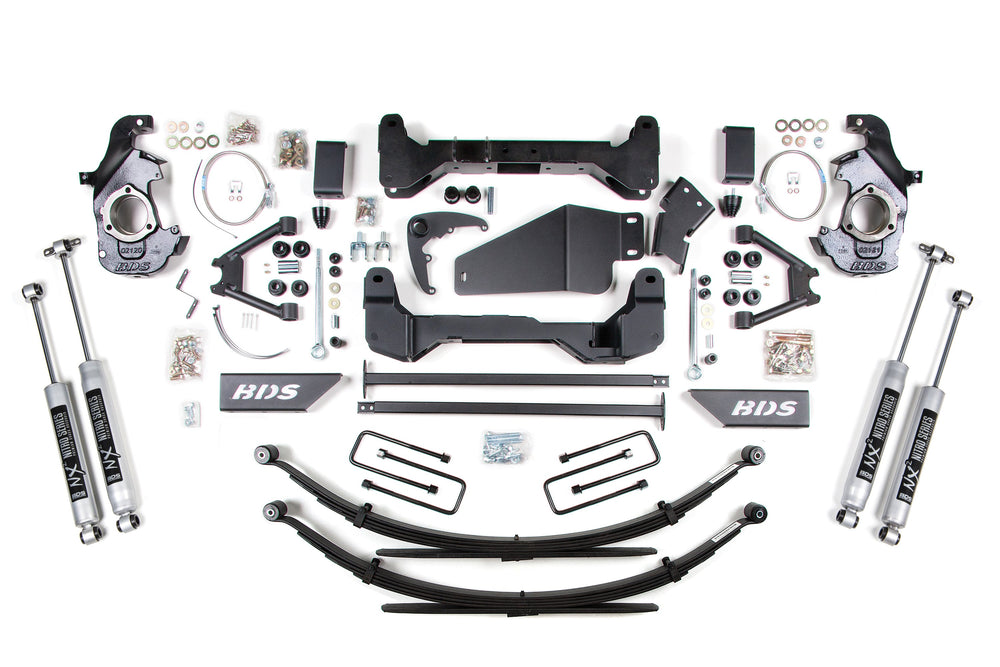

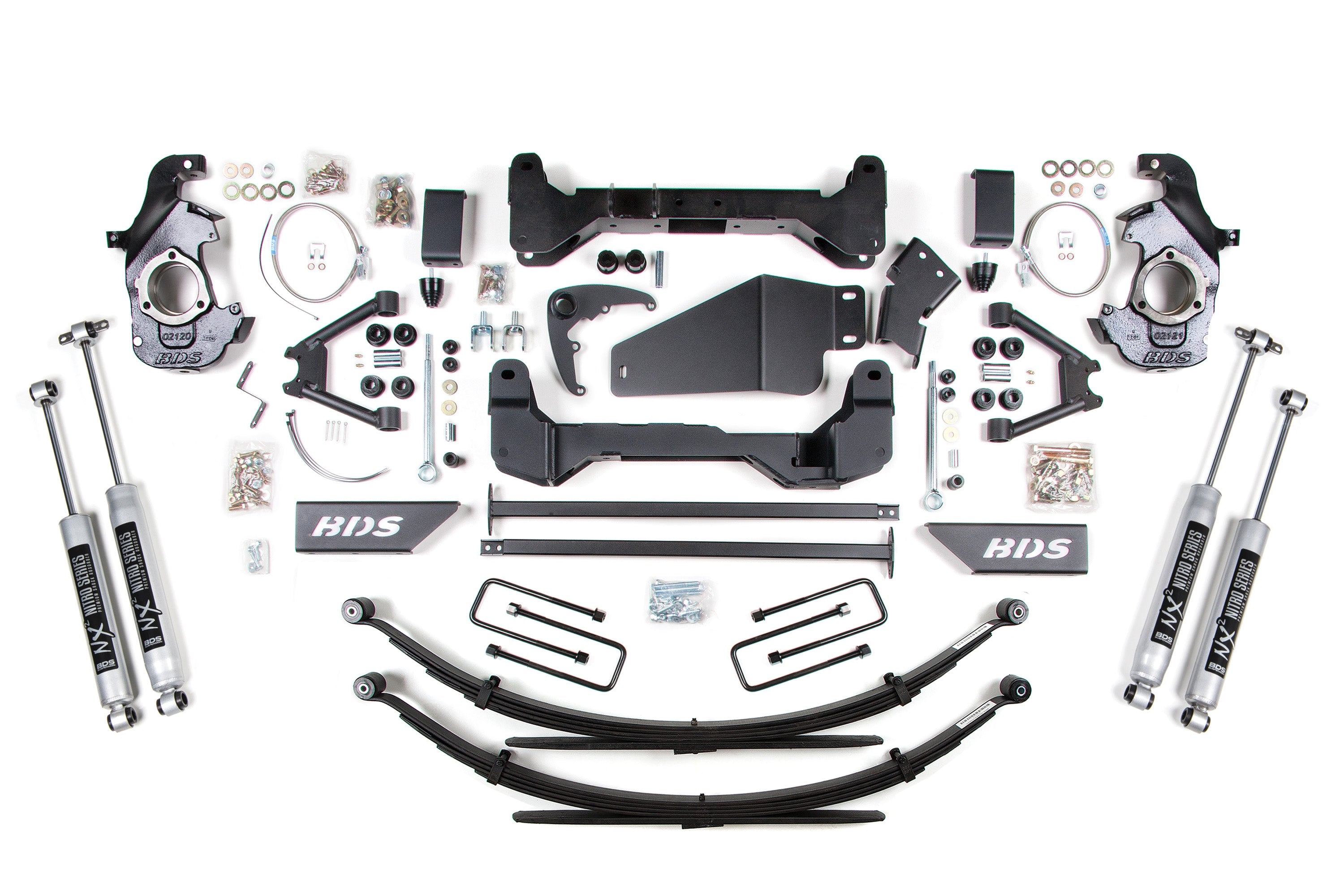

BDS 6 Inch Lift Kit for 1988-1998 Chevy/GMC 1500/2500 6 Lug 4WD

Key Features

• High-clearance 1/4-inch thick laser-cut steel crossmembers maximize ground clearance and pair with a bolt-together front skid plate system for a rigid, protected subframe
• CNC-machined ductile cast iron steering knuckles correct steering geometry at the new ride height and work with factory tie rod ends for proper function and ESC compatibility
• Heavy-duty replacement upper control arms for long-term durability and serviceability
• Multi-piece differential relocation brackets secure the front axle and improve CV angles
• Includes torsion bar drop brackets, sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all necessary hardware
• Rear lift options: 5-inch block kit with add-a-leaf (4.5 inches of lift, new center pins included) or full Glide-Ride multi-leaf progressive leaf springs that eliminate the lift block, reduce axle wrap, and maintain factory payload ratings
• New rear u-bolts included
• Shock options: NX2 Nitro Series (nitrogen-charged twin-tube, 10-stage velocity-sensitive valving, 1-3/8-inch high-flow piston, dual-welded ends, silver powder coat) or FOX 2.0 Performance Series (2-inch impact extruded aluminum body, IFP monotube design, 6061-T6 CNC-machined mounting ends, 5/8-inch hard chrome shaft, application-specific valving, clear anodized finish)
• Backed by BDS Factory Protection Plus drivetrain warranty

Recommended Tires & Wheels

Trimming may be required.

• 35 x 12.5 with 15 x 8 wheel, 3.625-inch backspace
• 35 x 12.5 with 17 x 8 wheel, 4.5-inch backspace
• 35 x 12.5 with 20 x 9 wheel, 5.25-inch backspace

Fitment

• 1988-1998 Chevrolet K1500 (All Submodels, All Drive Types, All Fuel Types) - Front and Rear, 6"
• 1988-1998 Chevrolet K2500 (All Submodels, All Drive Types, All Fuel Types) - Front and Rear, 6"
• 1988-1998 GMC K1500 (All Submodels, All Drive Types, All Fuel Types) - Front and Rear, 6"
• 1988-1998 GMC K2500 (All Submodels, All Drive Types, All Fuel Types) - Front and Rear, 6"

Fits 6-lug applications only.

Important Notes & Installation Requirements

• Requires exhaust modification
• Requires frame bracket modification and differential mount modification
• Special tool required to unload/load torsion bars: Kent Moore Tools Part #J-36202-A (not available through BDS)
• Not recommended for long box extended cab models due to crossmember interference
• Aftermarket wheels are required
• Will not work on some 1988-1995 vehicles equipped with spindle-mounted front ABS sensor
• Traction bars will not work on regular cab, short box models
• All models equipped with Auto-Trac may require a new front driveshaft. The Auto-Trac New Process 246 transfer case can be identified by the silver-dollar-sized plaque on the rear of the transfer case reading "NP246" and the dash-mounted Auto 4WD symbol. NP243 is not Auto-Trac.

Shipping & Lead Times

Lead times may vary depending on rear suspension and shock configuration selected. Please contact us prior to ordering if you need an estimated ship date for your specific build. Oversized freight charges may apply.
