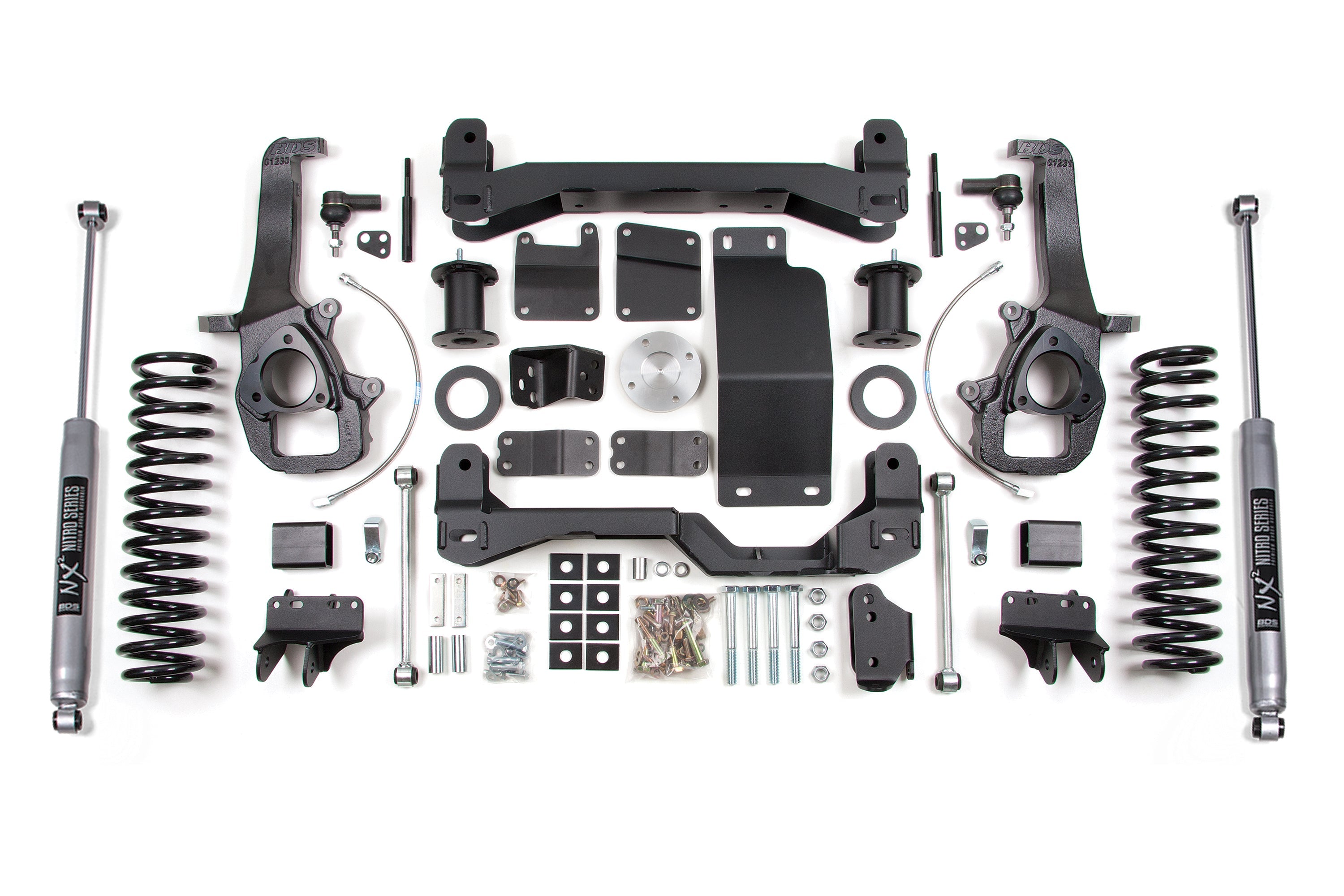

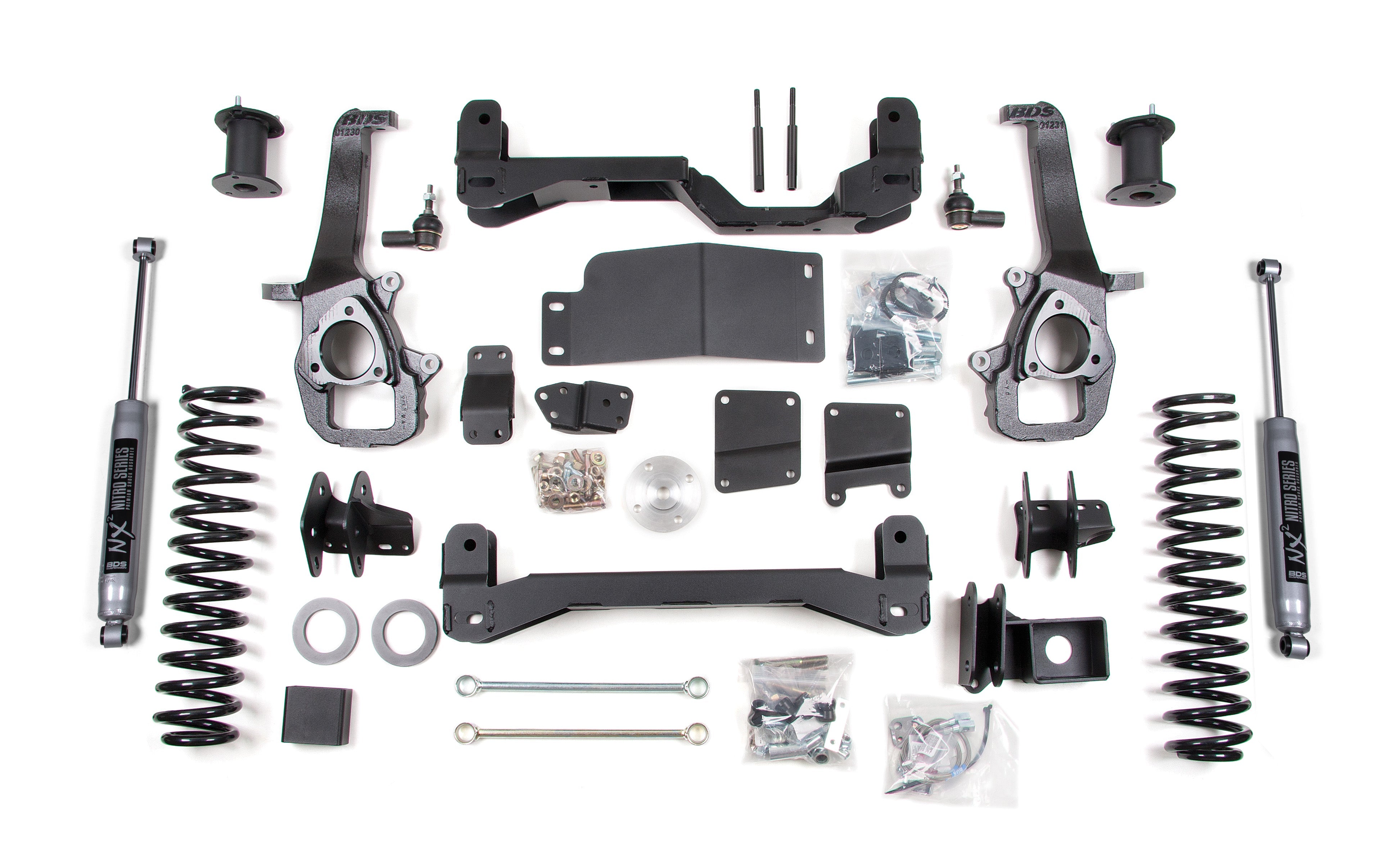

BDS 6 Inch Lift Kit for 2009-2011 Dodge Ram 1500 4WD

Key Features

• High-clearance 1/4-inch laser-cut crossmembers maximize ground clearance and trail protection
• Heavy-duty bolt-together skid plate system creates a rigid front subframe and shields critical components
• CNC-machined ductile iron steering knuckles with replacement tie rod ends maintain ESC compliance and proper steering geometry
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Top-mounted strut spacers, sway bar drops, bump stop extensions, stainless braided brake lines, CV spacers, and hardware included
• Rear progressive-rate Pro-Ride coil springs with upper control arm and track bar relocation brackets
• Choice of BDS NX2 nitro series or FOX 2.0 IFP performance series rear shocks
• Clearance for up to 37-inch tires (trimming may be required)
• FMVSS No. 126 compliant
• Factory Protection Plus drivetrain warranty included

Rear Shock Options

BDS NX2 Nitro Series: Nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, and silver powder coat finish.

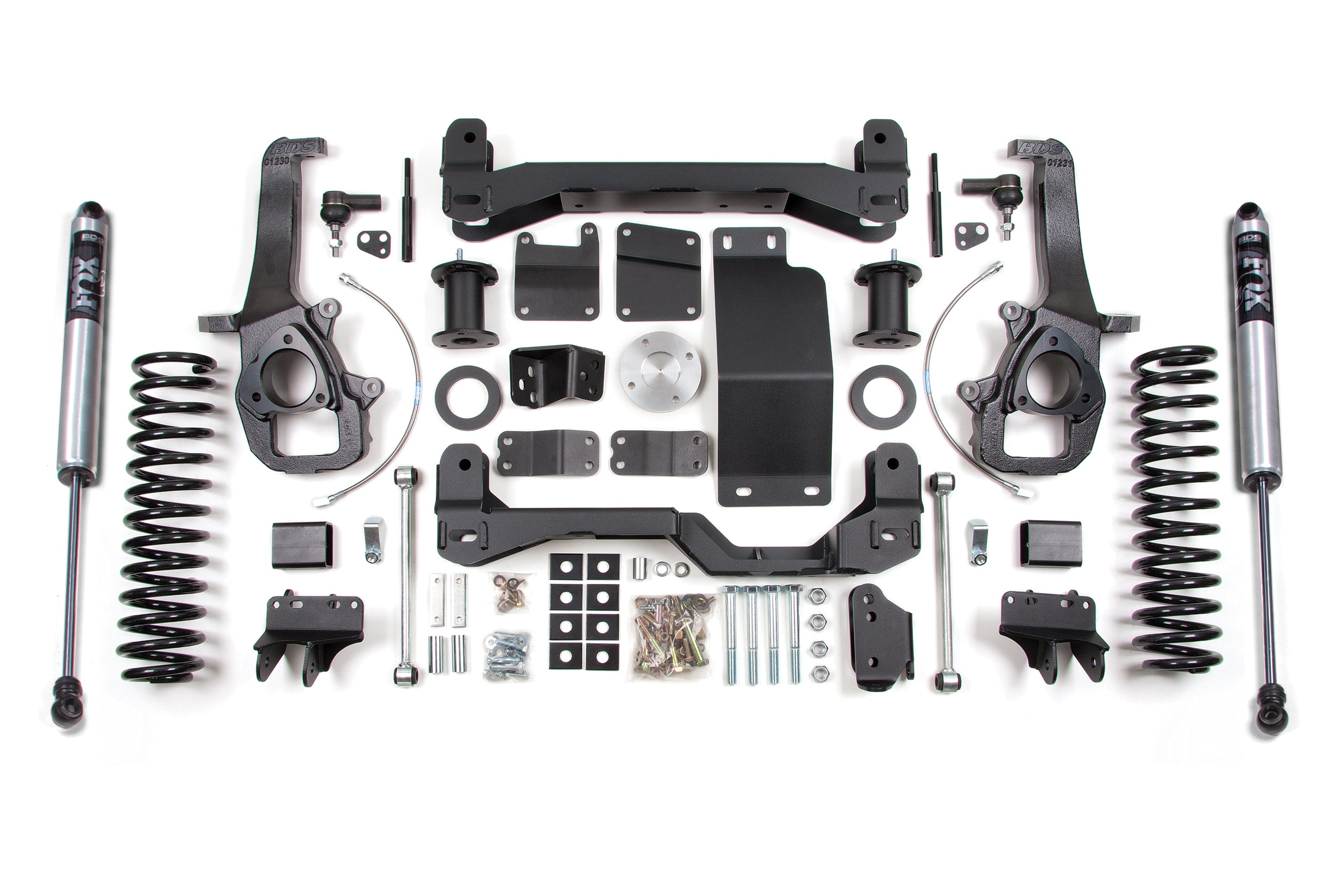

FOX 2.0 Performance Series: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC-machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston with application-specific valving, and clear anodized finish.

Rear Lift Sizing

These trucks sit 1 to 3 inches tail-high from the factory. Measure your truck before ordering to choose the correct rear spring height.

• 3-inch coil springs — use if your truck is 3 inches tail-high from the factory
• 5-inch coil springs — use if your truck is level to 1 inch tail-high from the factory

Recommended Tire & Wheel Combinations

Trimming may be required.

• 37 x 13.5 with 17 x 9, 4.5-inch backspacing
• 37 x 13.5 with 18 x 9, 5-inch backspacing
• 37 x 13.5 with 20 x 9, 5-inch backspacing

Fitment

• 2009 Dodge Ram 1500 Laramie, SLT, Sport, ST — 4WD
• 2009 Dodge Ram 1500 TRX4 — all drive types
• 2010 Dodge Ram 1500 Laramie, SLT, Sport, ST — 4WD
• 2010 Dodge Ram 1500 TRX4 — all drive types
• 2011 Ram 1500 (all submodels) — 4WD

Important Notes

• Part numbers 022209, 022309, and 022509 can be substituted to achieve the desired stance — measure your truck first.
• The Rack and Pinion steering system is highly sensitive to out-of-round or out-of-balance tire/wheel combinations. Larger diameters and reduced backspacing increase this sensitivity and can cause minor steering wheel shimmy.
• Not recommended for AWD models.
• Stock 17-inch and 18-inch wheels cannot be reinstalled. Stock 20-inch wheels can be reinstalled with factory tires.
• TRX models gain approximately 1 inch of additional lift with this kit, which is not recommended due to possible CV shaft vibration. For TRX trucks, consider the BDS 4-inch lift system for 5 inches of lift, or replace the TRX struts with standard struts to run this kit.
• Professional installation is recommended. Always perform a post-install alignment.

Shipping & Lead Times

Lead times vary based on shock selection and current BDS stock levels. Contact us before ordering if you need an estimated ship date for your build timeline. Oversized freight charges may apply at checkout.
