BDS 6-inch Lift Kit for 2014-2018 RAM 2500 with Rear Air Ride 4WD diesel

Key Features

• HD Tubular Radius Arms – High-strength tubular replacements for the factory stamped steel arms, offering caster adjustment for a wide range of lift heights and OE-style rubber bushings at the frame mount for smooth, quiet, service-free operation.
• Diesel-Specific Pro-Ride Coil Springs – Full-length, progressive rate coils made from high tensile steel with properly sized wire diameter for the correct lift height, predictable ride, and resistance to premature coil bind.
• Heavy-Duty Radius Arm Drop Brackets – Maintain proper suspension geometry at the new ride height.
• Forged Drop Pitman Arm & Track Bar Drop Bracket – Minimize steering angle and recenter the front axle to keep steering geometry in phase through suspension travel.
• Rear Air Ride Components – Heavy-duty air bag spacers, track bar relocation bracket, bump stop extensions, and new air ride leveling sensor brackets to maintain factory ride height performance and full air bag range of motion.
• Driveline Correction – HD transmission crossmember and transfer case indexing ring allow continued use of the factory front driveshaft.
• Sway Bar Correction – Front sway bar relocation and rear sway bar links preserve handling performance.
• Brake Line Brackets – Properly reposition brake lines for the new suspension travel.
• Shock Options – Choose between BDS NX2 Nitro or FOX 2.0 Performance Series shocks, tuned to match the kit.

Shock Options

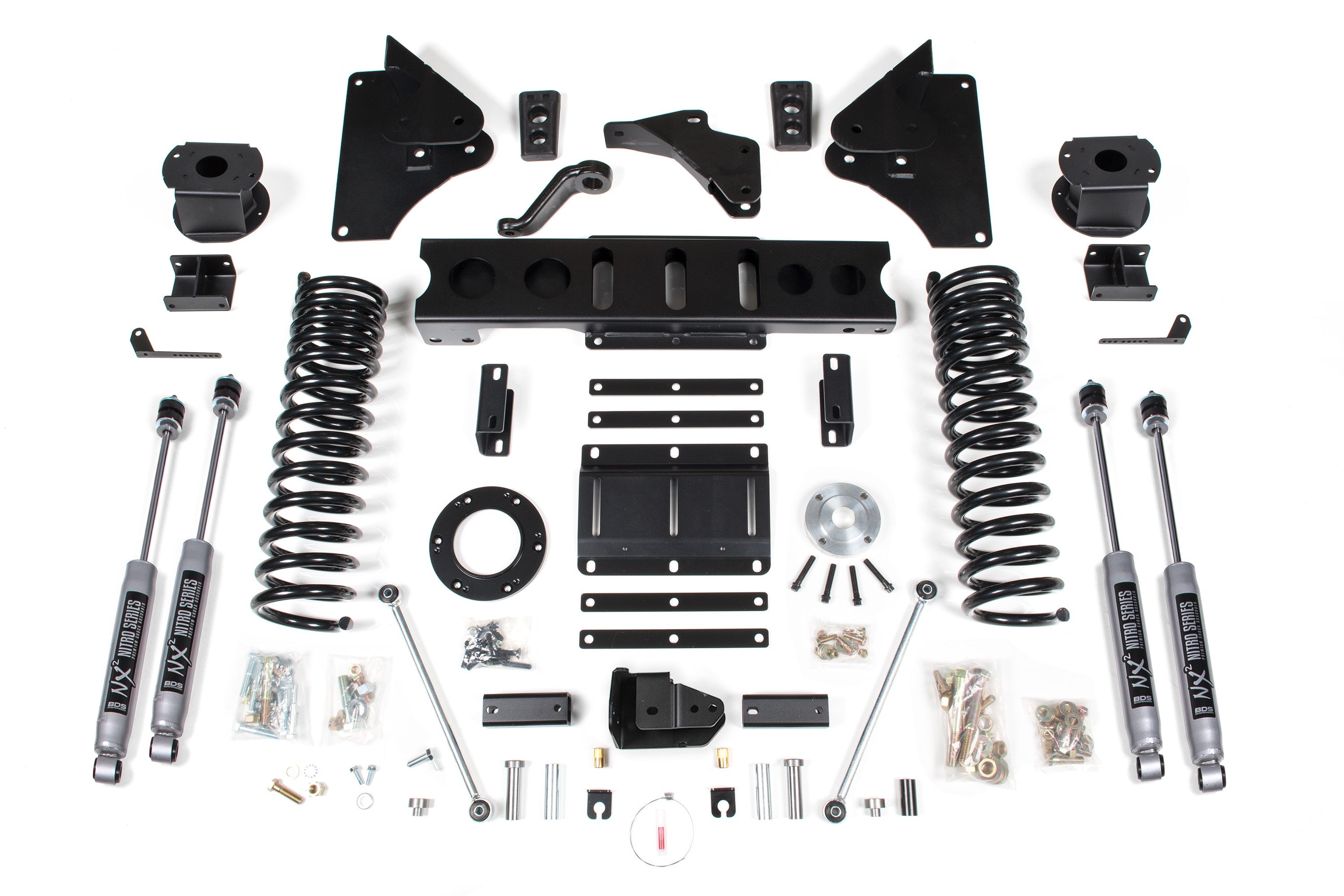

BDS NX2 Nitro Series: Nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8" high-flow piston, self-lubricating seals, and a silver powder coat finish.

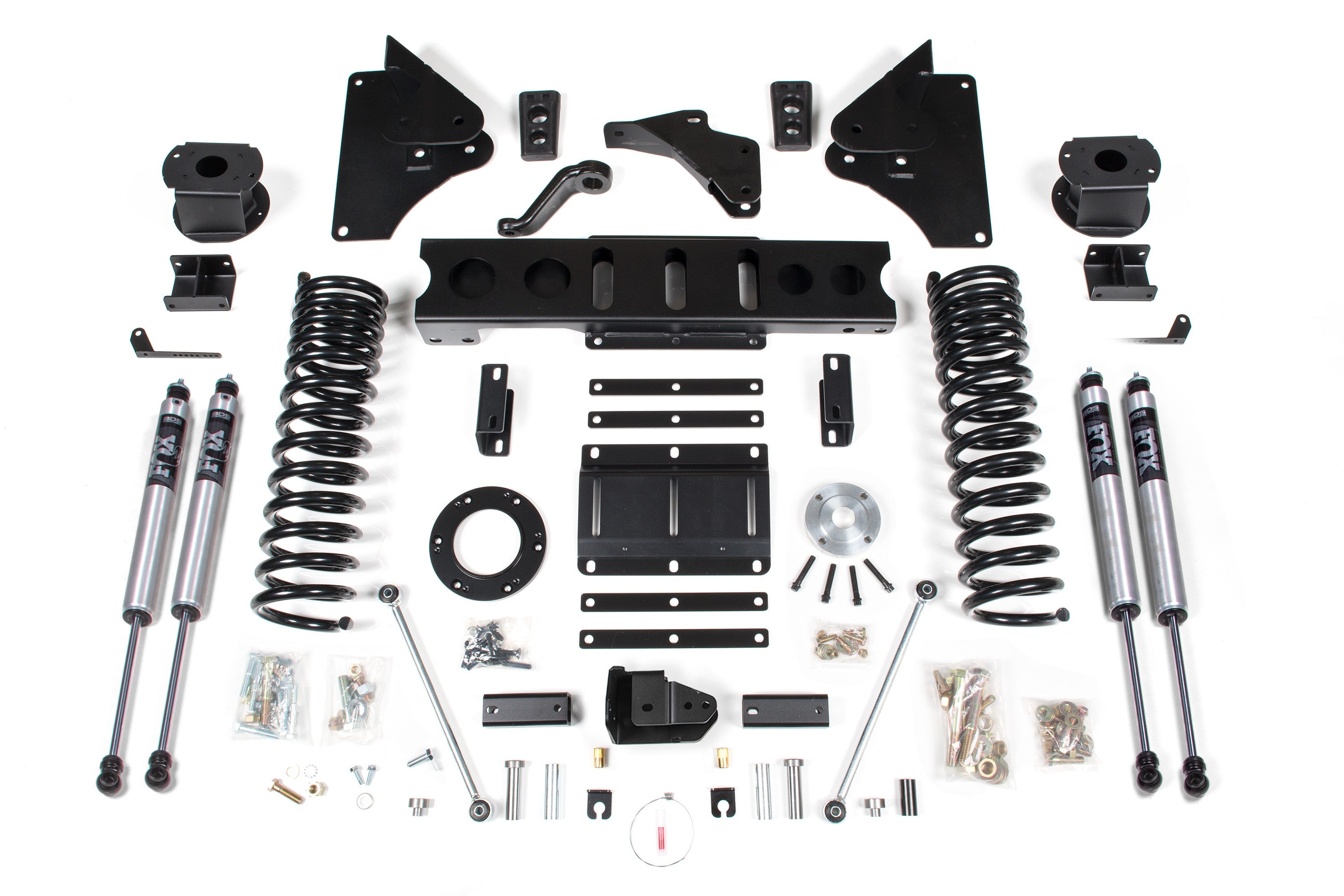

FOX 2.0 Performance Series: 2" impact extruded aluminum body with internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8" hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a clear anodized finish.

Recommended Tires & Wheels

Clearance for up to 37" tires (trimming may be required):

• 37x12.5 with 17x9, 4.5" backspacing
• 37x12.5 with 18x9, 5" backspacing
• 37x12.5 with 20x9, 5" backspacing

Fitment

Fits 2014-2018 RAM 2500 4WD Diesel models equipped with OE rear air ride suspension, including:

• Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, SLT, ST, Tradesman (4WD Diesel)
• Outdoorsman (All drive types, Diesel)
• Limited (2016-2018, 4WD Diesel)

Important Notes

• This kit is designed exclusively for trucks equipped with the factory OE rear air ride system. It is not compatible with standard coil-spring rear suspension models.
• Professional installation is recommended due to the complexity of the steering, driveline, and air ride components involved.
• Some trimming may be required to run the recommended 37" tire setups.
• Please confirm your exact submodel, drive type, and rear suspension configuration before ordering.
