This premium front wheel hub and bearing assembly fits 2000–2003 Ford F-150 4WD trucks and 2004 Ford F-150 Heritage 4WD trucks equipped with the corresponding 5-lug, 4-wheel ABS front hub configuration.
2000–2003 Ford F-150 4WD – 5-Lug
2004 Ford F-150 Heritage 4WD – 5-Lug
Fits the front driver or passenger side.
Designed for 4WD models with 5-lug wheels, 4-wheel ABS, and M14 wheel studs.
2000 F-150 models have multiple front hub configurations. AX515029 fits vehicles equipped with 4-wheel ABS, a 5-stud hub, and M14 wheel studs.
For 2000 models with a 5-stud hub and M12 wheel studs, a different hub assembly is required.
Does not fit 7-lug applications.
Does not fit RWD / 2WD models.
For 2004, this application is intended for the F-150 Heritage / previous-generation body style. The redesigned 2004 new-body F-150 uses a different front hub configuration.
Precision Tapered Roller Bearings – Engineered with premium high-performance grease for smooth operation, controlled preload, and long-term durability.
Integrated ABS Sensor – Includes the wheel-speed sensor and wiring harness required for the factory 4-wheel ABS system, providing accurate signal transmission while resisting heat, moisture, dirt, vibration, and road debris.

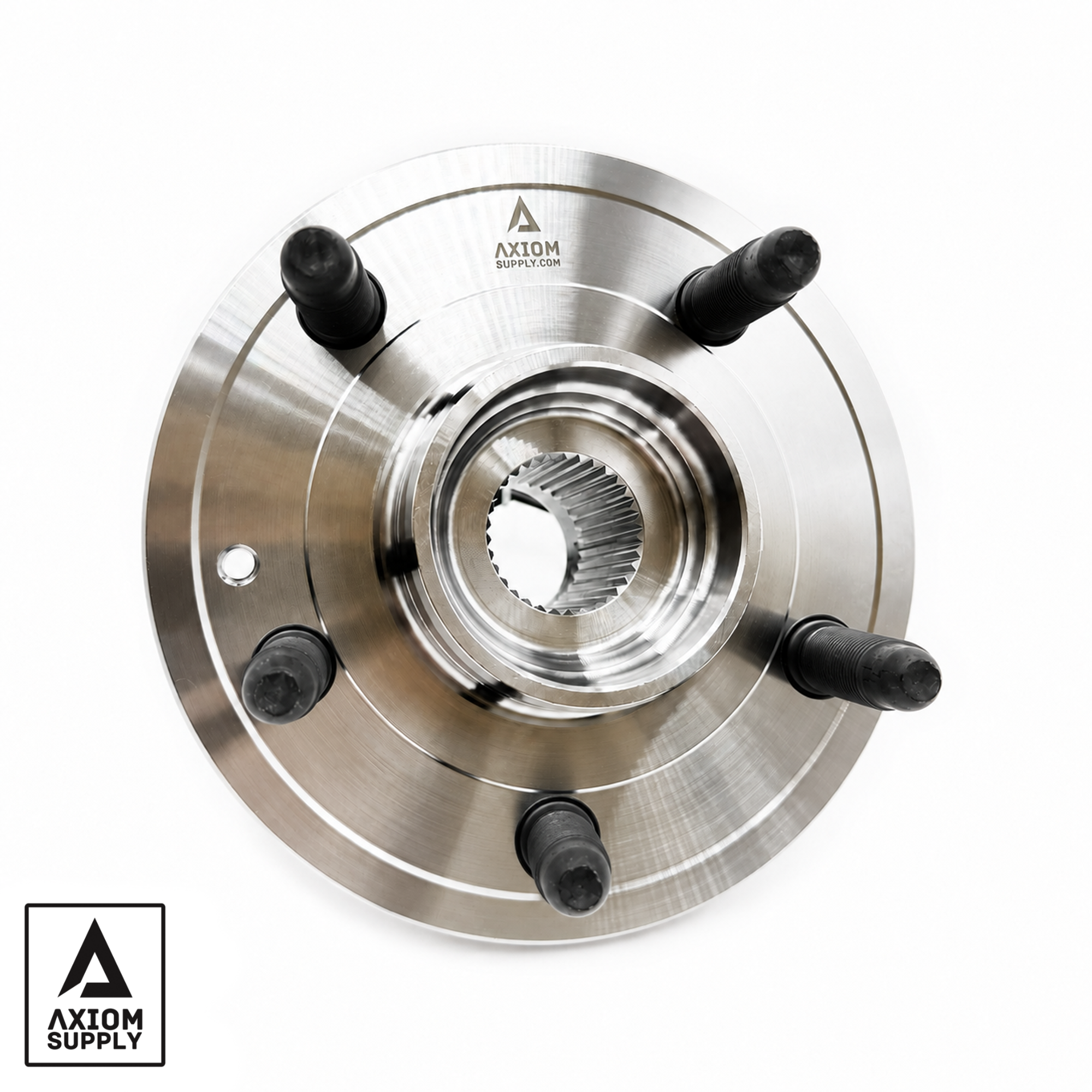

33-Spline Hub Design – Precision-machined internal splines provide proper engagement with the factory front CV axle on 4WD applications.
Heavy-Duty Hub Construction – Engineered to maintain proper bearing preload and minimize hub-face movement under braking, cornering, towing, oversized tire loads, and off-road use.
Premium Wheel Studs – Equipped with five factory-style M14×2.0 wheel studs for direct compatibility with the original wheel and lug nut configuration.
Direct Bolt-In Design – Complete hub and bearing assembly installs directly into the factory steering knuckle using the original three-bolt mounting design.
Configuration – 5×135 mm bolt pattern, five M14×2.0 wheel studs, 33 splines, 99.3 mm hub pilot, 86.7 mm wheel pilot, three-bolt triangular mounting flange, and integrated ABS sensor with wiring harness.
The Axiom Supply AX515029 Wheel Bearing & Hub Assembly is engineered for 2000–2003 Ford F-150 4WD and 2004 Ford F-150 Heritage 4WD trucks equipped with the corresponding 5-lug, 4-wheel ABS front hub configuration.
Developed with Axiom Supply's premium bearing and hub construction, this assembly is designed to maintain proper bearing preload and minimize hub-face deflection under load—helping provide tighter steering response, consistent braking performance, and dependable wheel-end durability.
The AX515029 features a precision-machined 33-spline center, integrated ABS wheel-speed sensor and wiring harness, heavy-duty tapered roller bearing construction, and the factory-style 5×135 mm wheel bolt pattern.
The 99.3 mm hub pilot and three-bolt triangular mounting flange are engineered to match the factory steering knuckle for straightforward installation.
Each assembly comes as a complete direct-fit bolt-in unit and can be installed on either the front driver or passenger side.
Whether your F-150 is a daily driver, work truck, tow vehicle, lifted truck, or spends its weekends off pavement, Axiom Supply bearing assemblies are built to deliver the strength, precision, and longevity serious truck owners expect.

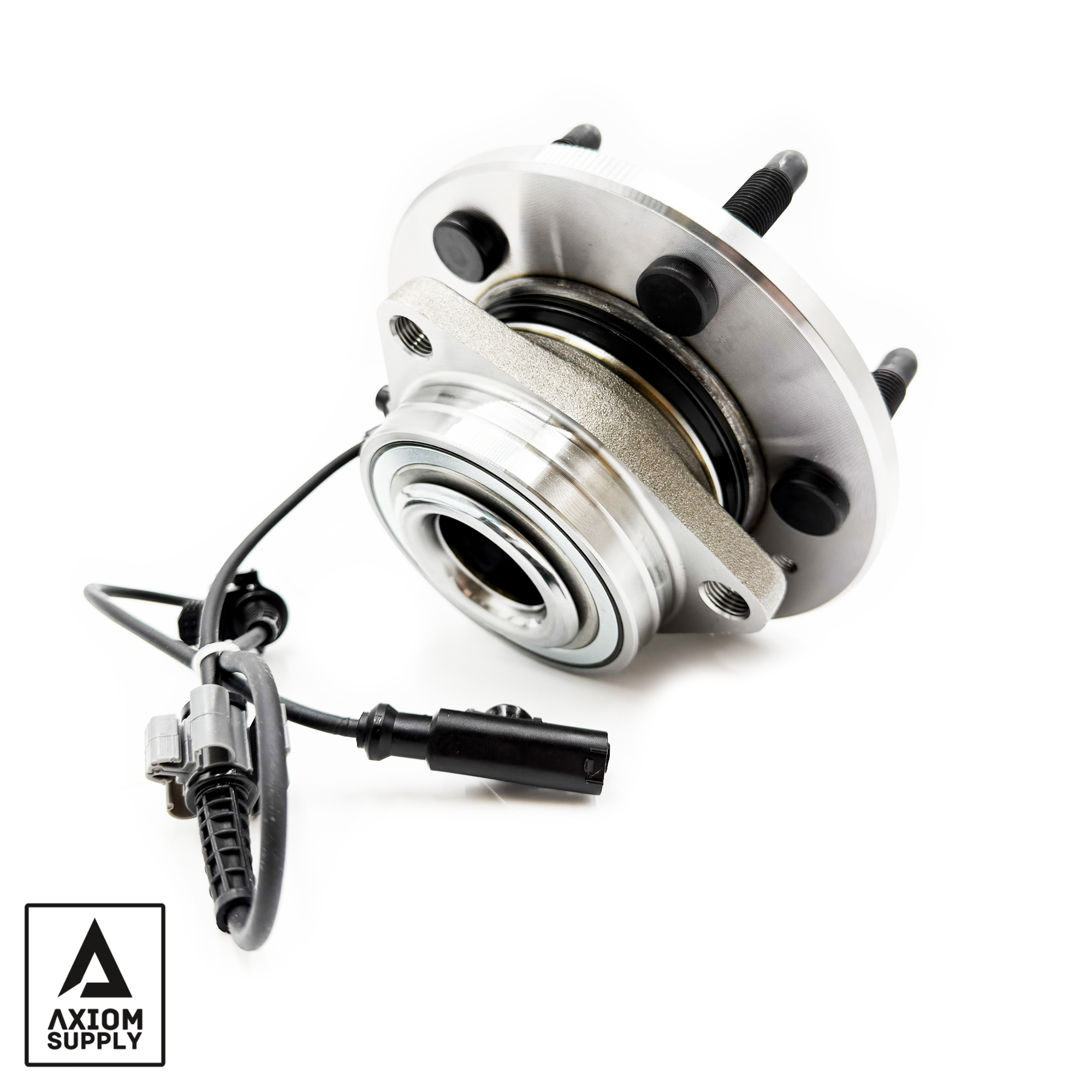

One Axiom Supply AX515029 Front Wheel Bearing & Hub Assembly with integrated ABS wheel-speed sensor and wiring harness and five factory-style M14×2.0 wheel studs.
Front Axle / CV Shaft Nut: 221 lb·ft (300 Nm)
Hub/Bearing-to-Knuckle Bolts:
2000: 130 lb·ft (176 Nm)
2001–2003 / 2004 Heritage: 148 lb·ft (201 Nm)
Front Brake Caliper Anchor / Bracket Bolts: approximately 85 lb·ft, depending on exact brake configuration
Wheel Lug Nuts – M14 Stud Applications: 150 lb·ft (203 Nm)
Always confirm torque specifications for the exact model year, drivetrain, brake package, wheel-stud configuration, and vehicle before installation.
Ford XL3Z-1104-AA, Ford XL3Z-1104-BC, Ford YL3Z-1104-AA, Ford 1L34-1104-AA, Ford 6L3Z-1104-A, Ford G2MZ-1104-U, Motorcraft HUB-24, MOOG 515029, Timken 515029, SKF BR930423, BCA WE61560, NTN WE61560, Mevotech H515029, Mevotech G515029, Centric 402.65012, Centric 402.65012E, Dorman 951-063, GMB 725-0074, FAG 101990, Raybestos 715029, DriveTech America NT515029, Axiom AX515029
Our wheel bearing assemblies are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.
Push it to the limit—we don’t care.
If the part lets you down, we will make it up to you!
