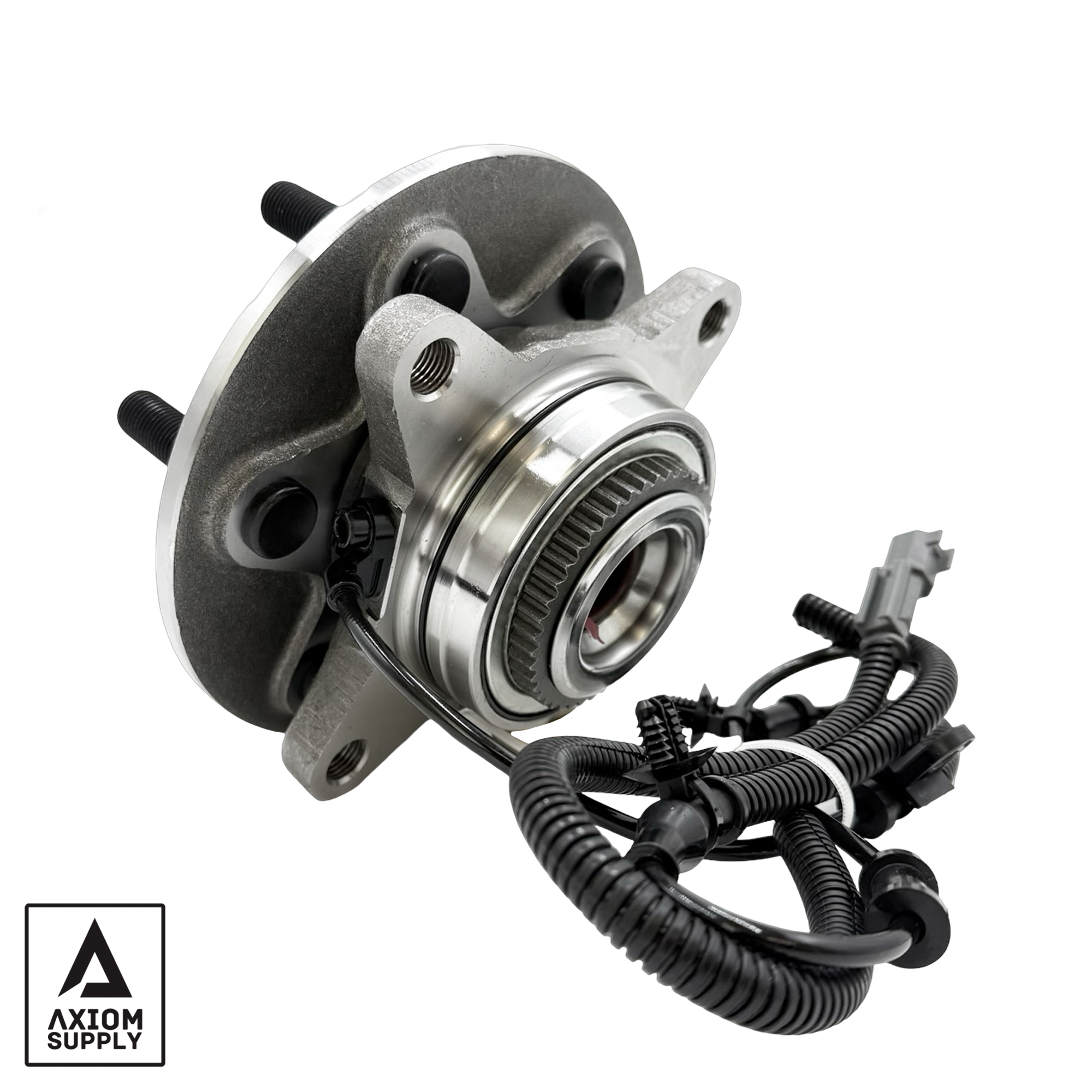

This premium front wheel hub and bearing assembly fits 2009–2010 Ford F-150 4WD trucks equipped with the corresponding 6-lug front hub configuration.
2009–2010 Ford F-150 4WD – 6-Lug
Fits the front driver or passenger side.
Designed for 6-lug 4WD applications without the Heavy Duty Payload Package.
Does not fit 7-lug Heavy Duty Payload Package trucks.
Does not fit 2010 SVT Raptor. Raptor applications use the corresponding AX515112-style hub assembly.
For 2009–2010 F-150 RWD / 2WD models with the 6-lug hub, use the corresponding AX515117-style hub assembly.
Compatible with the factory Integrated Wheel End (IWE) system; the IWE vacuum hub itself is not included with the wheel bearing assembly.
Precision Tapered Roller Bearings – Engineered with high-performance grease for smooth operation, controlled preload, and long-term durability.

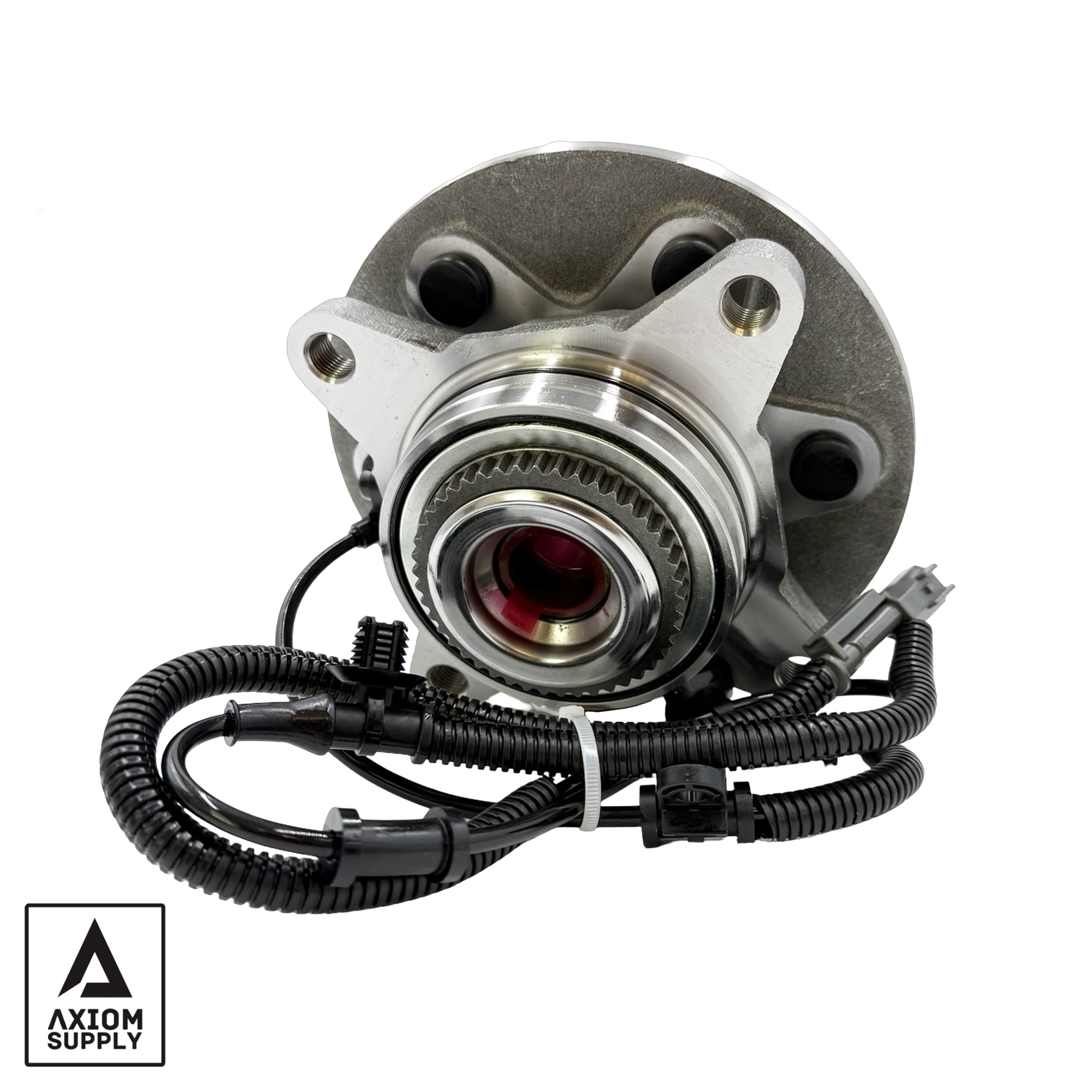

Integrated ABS Sensor – Includes the wheel-speed sensor and ABS wiring for accurate signal transmission while resisting heat, moisture, dirt, vibration, and road debris.
45-Spline Hub Design – Precision-machined internal splines provide proper engagement with the factory front halfshaft on 4WD applications.
Heavy-Duty Hub Construction – Engineered to maintain bearing preload and minimize hub-face movement under braking, cornering, towing, oversized tire loads, and off-road use.

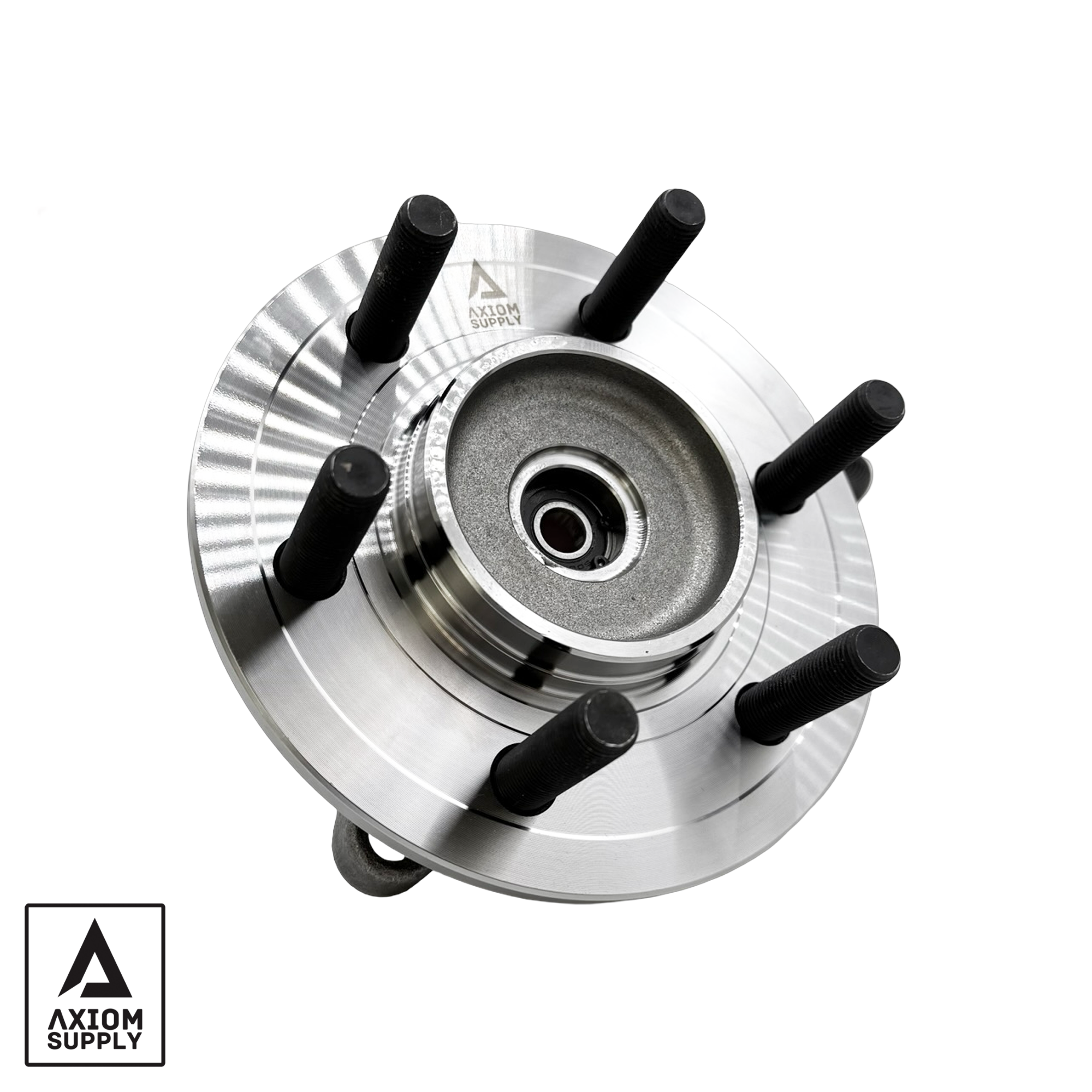

Premium Wheel Studs – Equipped with six factory-style M14×2.0 wheel studs for direct compatibility with the original wheel and lug nut configuration.
Direct Bolt-In Design – Complete hub and bearing assembly installs directly into the factory steering knuckle using the original four-bolt mounting design.
Configuration – 6×135 mm bolt pattern, six M14×2.0 wheel studs, 45 splines, 99.3 mm hub pilot, 86.8 mm wheel pilot, four-bolt mounting flange, and ABS sensor.
The Axiom Supply AX515119 Wheel Bearing & Hub Assembly is engineered for 2009–2010 Ford F-150 4WD trucks equipped with the corresponding 6-lug front hub configuration.
Developed with Axiom Supply's premium bearing and hub construction, this assembly is designed to maintain proper bearing preload and minimize hub-face deflection under load—helping provide tighter steering response, consistent braking performance, and dependable wheel-end durability.
The AX515119 features a precision-machined 45-spline center, ABS wheel-speed sensing system, heavy-duty bearing construction, and the factory-style 6×135 mm wheel bolt pattern used on these F-150 applications.
The 99.3 mm hub pilot and four-bolt mounting flange are engineered to match the factory steering knuckle for straightforward installation.
Each assembly comes as a complete direct-fit bolt-in unit and can be installed on either the front driver or passenger side.
Whether your F-150 is a daily driver, work truck, tow vehicle, lifted truck, or spends its weekends off pavement, Axiom Supply bearing assemblies are built to deliver the strength, precision, and longevity serious truck owners expect.
One Axiom Supply AX515119 Front Wheel Bearing & Hub Assembly with ABS wheel-speed sensor and six factory-style M14×2.0 wheel studs.
Front Halfshaft / Axle Nut: 20 lb·ft (27 Nm)
Hub/Bearing-to-Knuckle Bolts: 129 lb·ft (175 Nm)
Front Brake Caliper Anchor Plate Bolts: approximately 136–184 lb·ft depending on exact year and brake configuration. Ford service information shows different specifications across the 2009–2010 applications, so confirm the exact vehicle before installation.
Wheel Lug Nuts: 150 lb·ft (204 Nm)
Always confirm torque specifications for the exact year, engine, drivetrain, brake package, and vehicle configuration before installation.
Ford 9L3Z-1104-A, Ford 9L3Z-1104-D, Ford 9L34-2B6963-AB, Motorcraft HUB-146, MOOG 515119, Timken SP550214, SKF BR930759, BCA WE61038, NTN WE61038, Mevotech H515119, Mevotech G515119, Dorman 951-930, Centric 402.65029, GMB 725-3040, GSP 116119, Raybestos 715119, Axiom AX515119.
Our wheel bearing assemblies are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.
Push it to the limit—we don’t care.
If the part lets you down, we will make it up to you!
