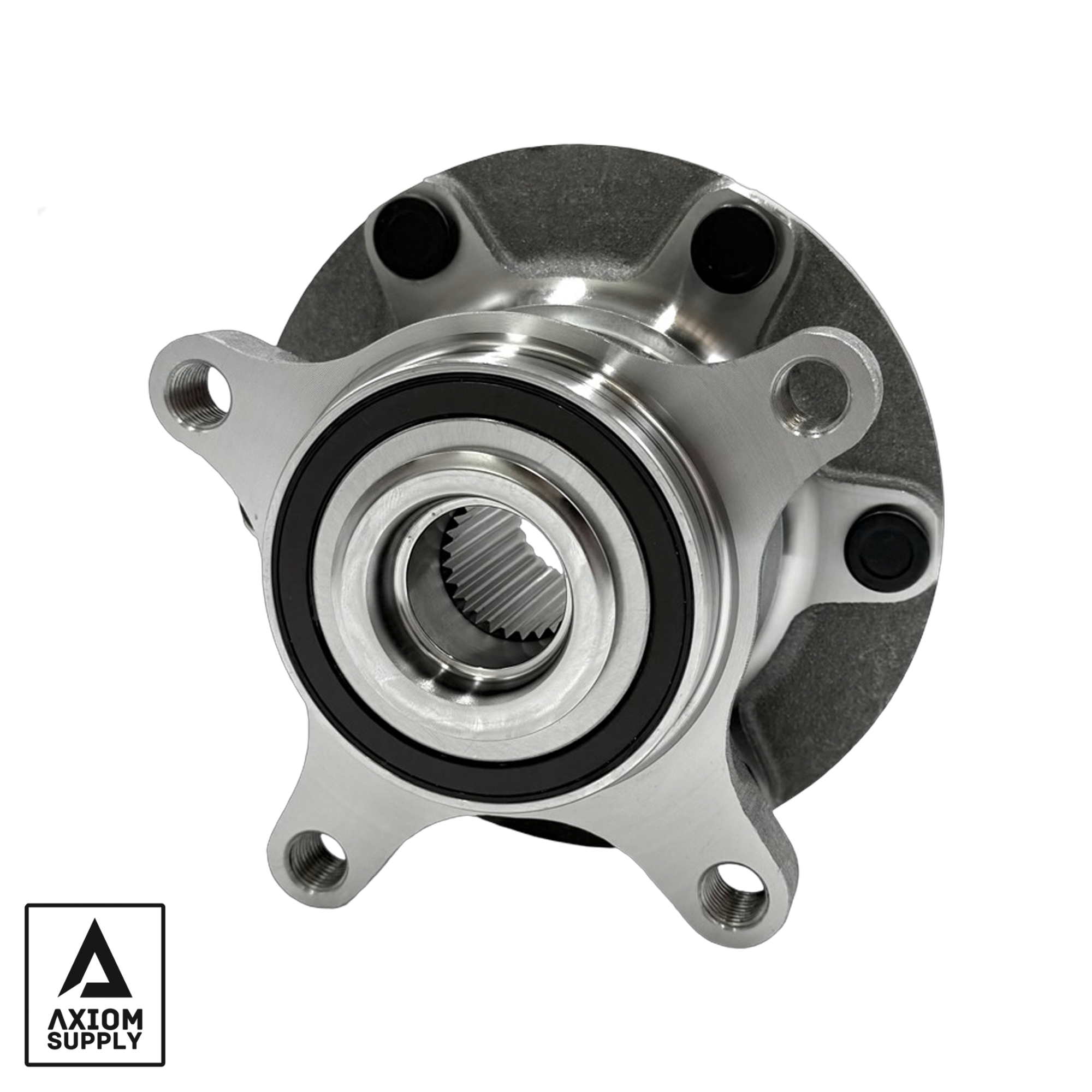

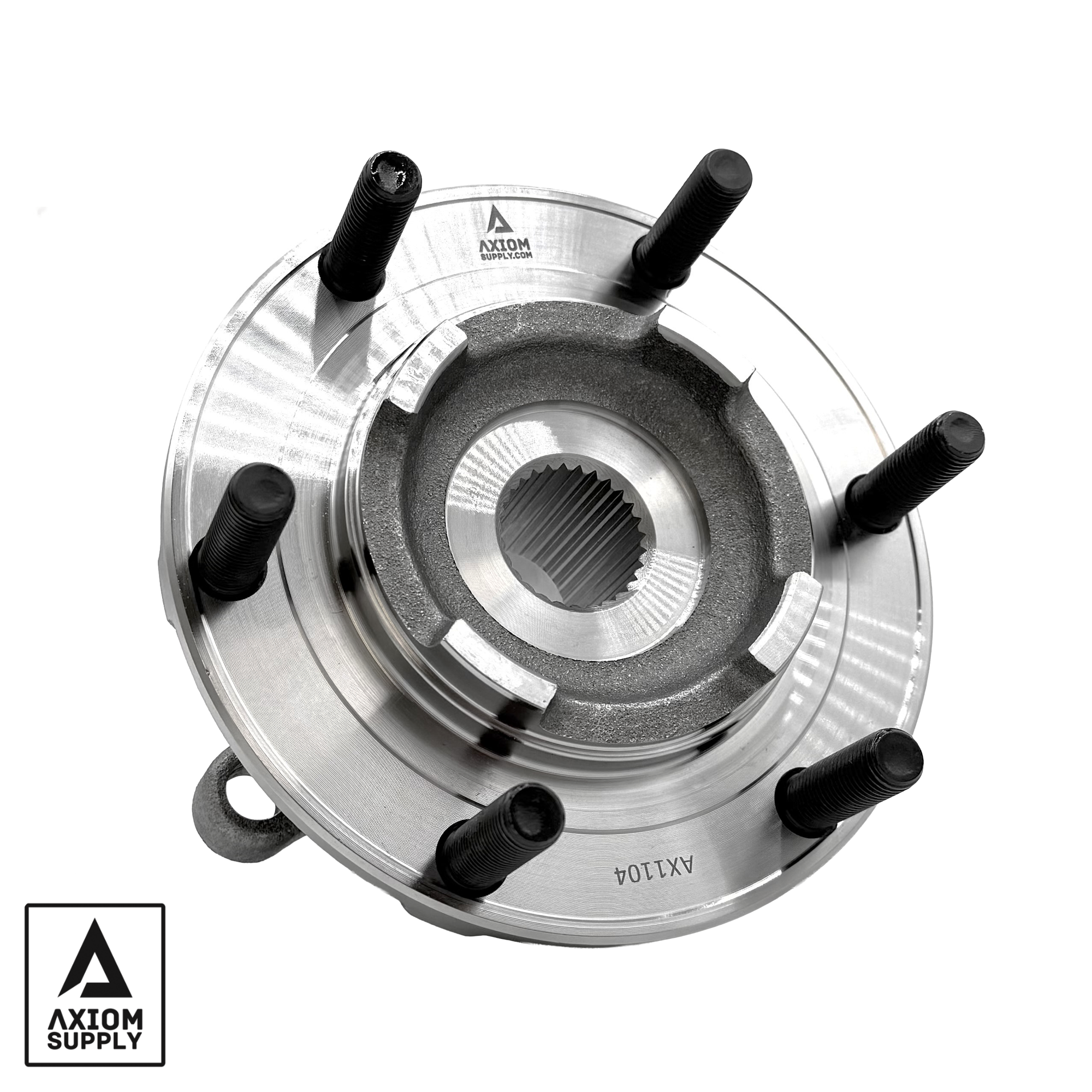

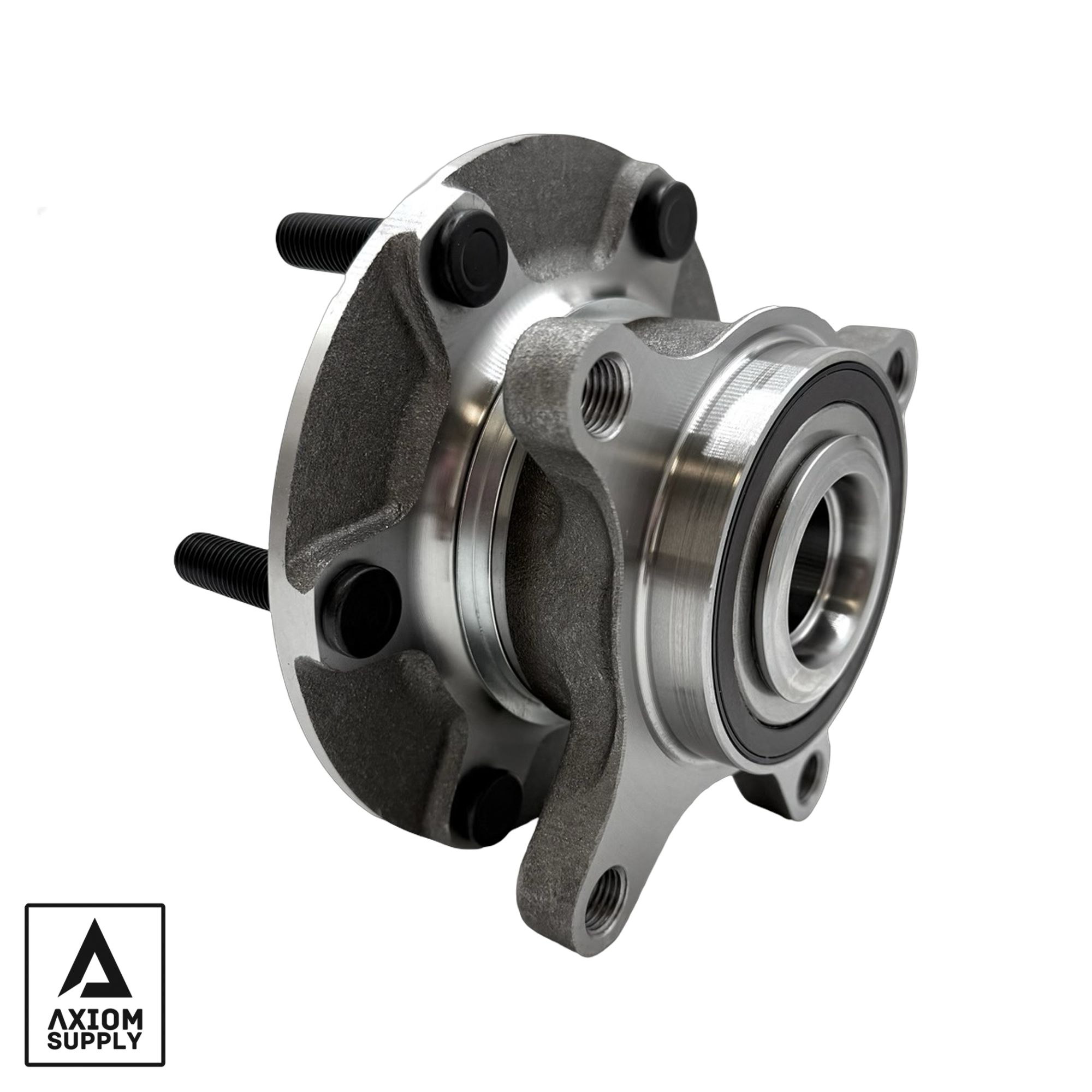

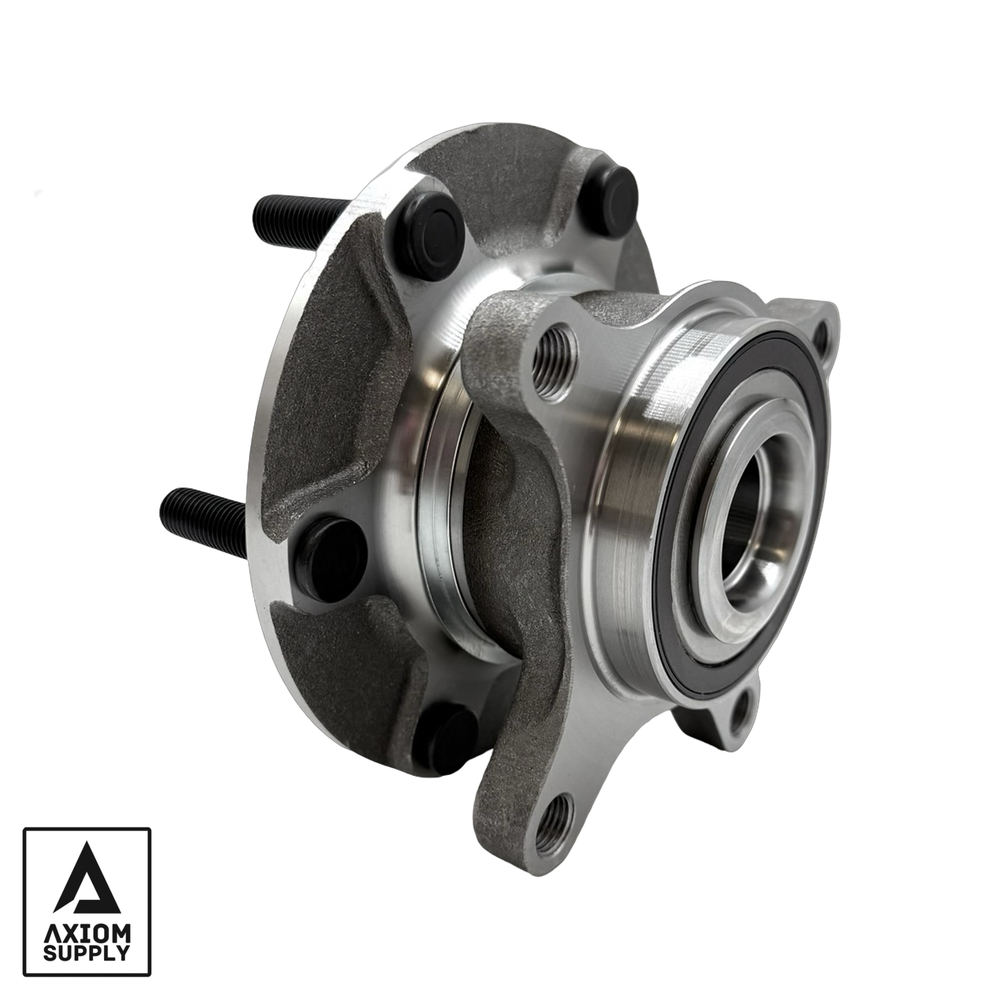

This premium front wheel hub and bearing assembly fits applicable 2024–2026 Ford Ranger 4WD models using Ford OE hub assembly MB3Z-1104-H / Motorcraft HUB-644.
2024 Ford Ranger 4WD — Built On or After 07/15/2024
2025 Ford Ranger 4WD
2026 Ford Ranger 4WD
Fits the front left or front right position.
Also fits applicable Ranger Raptor models where Ford OE MB3Z-1104-H / Motorcraft HUB-644 is specified.
Ford uses two different front hub assemblies during the 2024 Ranger model year.
Built through 07/15/2024: Ford OE MB3Z-1104-E / Motorcraft HUB-660
Built from 07/15/2024: Ford OE MB3Z-1104-H / Motorcraft HUB-644
This Axiom assembly replaces the MB3Z-1104-H / HUB-644 configuration.
For 2024 vehicles, verify the production date or original Ford part number before ordering.
4WD only.
Does not fit 2WD / RWD Ranger models.
Precision Tapered Roller Bearing Design – Engineered with Axiom Supply's high-performance grease and optimized bearing geometry for smooth operation, reduced friction, and increased durability under demanding loads.
Heavy-Duty Hub Construction – Designed to reduce hub-face deflection under braking, cornering, oversized tires, and off-road use.
Premium Hardware – High-strength, corrosion-resistant wheel studs engineered for dependable clamping force and long-term durability.
Direct-Fit Assembly – Complete bolt-in front wheel hub and bearing assembly designed for installation on either the driver or passenger side.
Wheel Configuration – 6×139.7mm (6×5.5") bolt pattern with M12×1.5 wheel studs.
Sealed, Maintenance-Free Design – Helps protect the bearing assembly from water, dirt, road debris, and other contaminants.
The Axiom Supply Lifetime Warranty Front Wheel Hub and Bearing Assembly is engineered for 2024–2026 Ford Ranger 4WD owners who demand increased strength, precision, and long-term reliability from their wheel-end components.
Developed with Axiom Supply's heavy-duty hub and bearing architecture, this assembly is designed to reduce unwanted hub-face movement under load while maintaining smooth, consistent bearing operation.
Reduced hub deflection helps provide tighter steering response, improved braking consistency, and increased wheel-end stability, particularly on trucks equipped with oversized tires, suspension modifications, or used regularly in demanding off-road conditions.
Each assembly is supplied as a complete bolt-in unit and can be installed on either the front driver or passenger side.
Whether your Ranger is used for daily driving, towing, work, or demanding off-road terrain, Axiom Supply wheel hub assemblies are designed to provide the strength and durability serious truck owners expect.
And like our other premium wheel-end components, this assembly is backed by Axiom Supply's True No-Nonsense Lifetime Replacement Warranty.
(1) Axiom Supply Front Wheel Hub & Bearing Assembly
Fits either:
Front Driver Side
or
Front Passenger Side
Quantity required for complete front axle replacement: (2)
Bolt Pattern: 6×139.7mm / 6×5.5"
Wheel Stud Thread: M12×1.5
Wheel Lug Nuts: 100 lb-ft (135 Nm)
For axle nut, hub mounting bolt, and brake fastener torque specifications, refer to the applicable Ford Workshop Manual for the exact vehicle VIN and production date.
Always replace any Ford-designated one-time-use fasteners during installation.
Ford OE: MB3Z-1104-H
Motorcraft: HUB-644
Axiom Supply: AX1104-H
This assembly is not the same hub as the previous-generation 2019–2023 Ford Ranger.
Do not interchange with:
KB3Z-1104-B
Motorcraft HUB-467
MOOG 515207
Those references apply to the earlier Ranger hub configuration.
2024 Ranger models built before the 07/15/2024 production change use a different front hub assembly and should be verified separately.
Our wheel hub, and suspension components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.
Push it to the limit—we don't care.
If the part lets you down, we will make it up to you!
