Fitment
This wheel bearing and hub assembly is designed to fit 2002-2005 Dodge Ram 1500 trucks equipped with 4-wheel ABS.
Dodge Ram 1500 4WD
2002-2005
Dodge Ram 1500 2WD
2002-2005, models equipped with 4-wheel ABS.
Designed for 4-wheel ABS applications.
Fits the front driver or passenger side.
Compatible with both 2WD and 4WD configurations where equipped with the corresponding 4-wheel ABS hub.
Does not replace the hub used on 2-wheel ABS applications.
Features
Precision Tapered Roller Bearings – Engineered with premium high-performance grease for smooth operation, controlled preload, and long-term durability.
Integrated ABS Sensor – Built-in wheel speed sensor provides accurate ABS signal transmission while standing up to heat, moisture, dirt, and demanding driving conditions.
33-Spline Hub Design – Precision-machined splines provide proper engagement with the factory front CV axle on 4WD applications.
Heavy-Duty Hub Construction – Engineered to maintain bearing preload and reduce hub-face movement under braking, cornering, towing, and off-road loads.
Premium Wheel Studs – Equipped with five factory-style 9/16"-18 wheel studs for direct compatibility with the original wheel and lug nut configuration.
Direct Bolt-In Design – Complete hub and bearing assembly installs directly into the factory steering knuckle with no modifications required.
Configuration – 5×5.5" (5×139.7 mm) bolt pattern, 9/16"-18 wheel studs, 33 splines, 3-bolt mounting flange, 4-wheel ABS.
Description

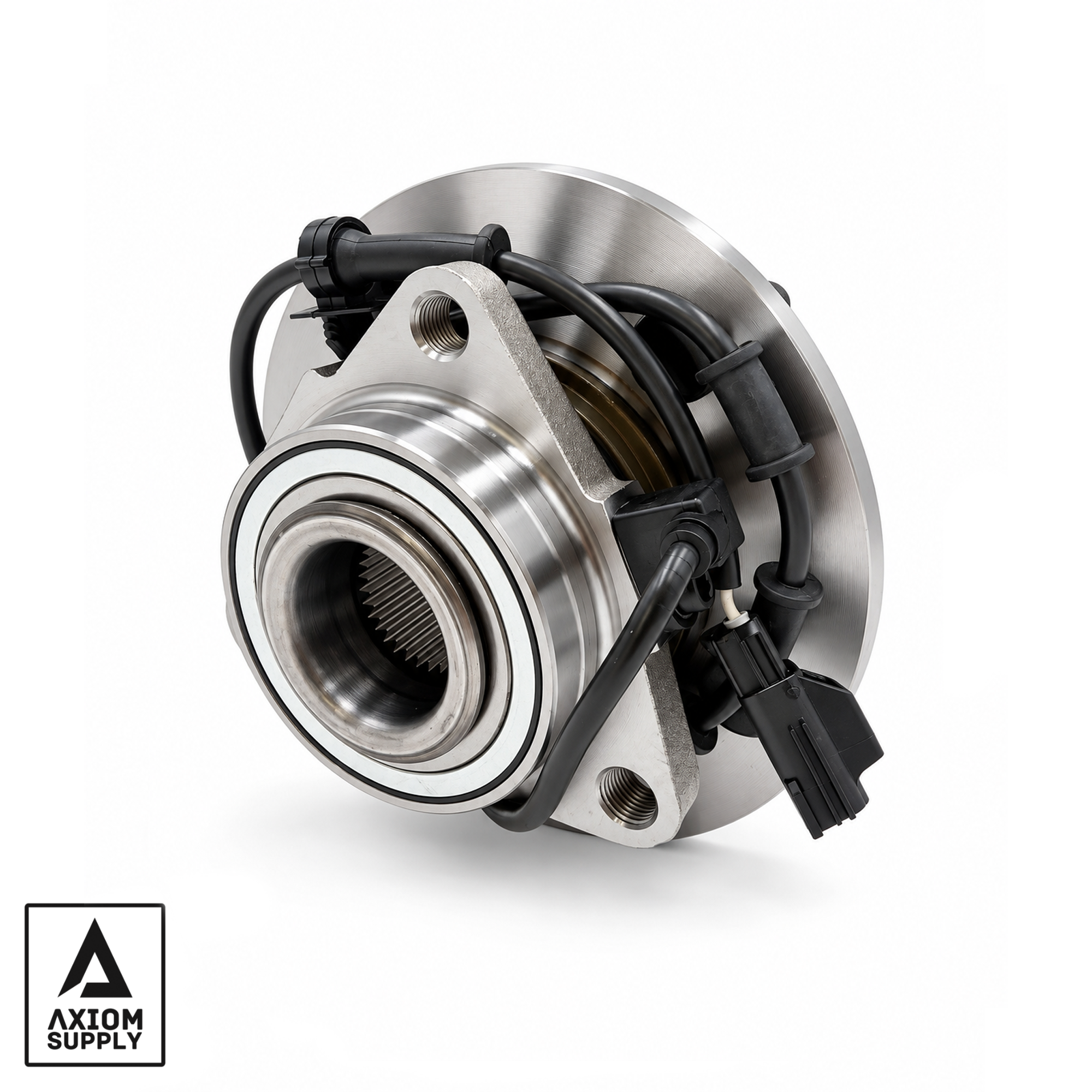

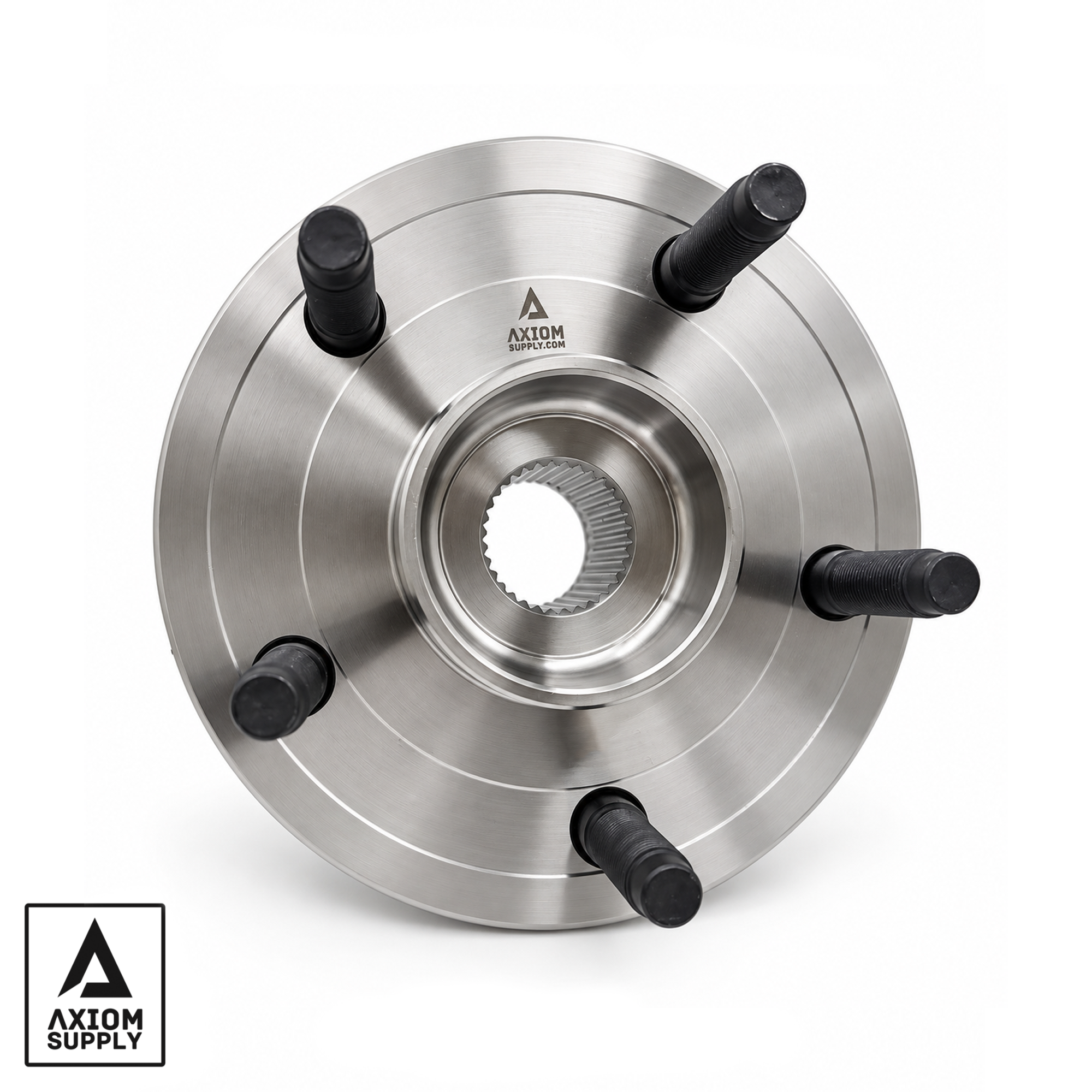

The Axiom Supply AX515073 Wheel Bearing & Hub Assembly is engineered for 2002-2005 Dodge Ram 1500 trucks requiring the 4-wheel ABS hub configuration.
Developed with Axiom Supply's premium bearing and hub construction, this assembly is designed to maintain proper bearing preload and minimize hub-face deflection under load—helping provide tighter steering response, consistent braking performance, and dependable wheel-end durability.
The AX515073 features a precision-machined 33-spline center, integrated ABS wheel speed sensor, heavy-duty tapered roller bearing design, and factory-style 5×5.5" wheel bolt pattern.
Each assembly comes as a complete direct-fit bolt-in unit and can be installed on either the front driver or passenger side.
Whether your Ram is a daily driver, work truck, tow vehicle, or spends its weekends off pavement, Axiom Supply bearing assemblies are built to deliver the strength, precision, and longevity serious truck owners expect.
Includes
One Axiom Supply AX515073 Front Wheel Bearing & Hub Assembly with integrated ABS sensor and wiring harness and factory-style 9/16"-18 wheel studs.
Torque Specifications
Axle / CV Shaft Nut (4WD): 185 lb·ft
Hub/Bearing-to-Knuckle Bolts: 120 lb·ft
Front Caliper Adapter-to-Knuckle Bolts: 130 lb·ft
Wheel Lug Nuts: 135 lb·ft
Always confirm torque specifications for the exact year, drivetrain, brake package, and vehicle configuration before installation.
Interchange
Mopar 52070323AA, Mopar 52070323AB, Mopar 68030387AA, Mopar 68030387AB, MOOG 515073, Timken SP500100, SKF BR930285, BCA WE61567, NTN WE61567, Mevotech H515073, Centric 402.67007, Centric 402.67007E, Dorman 930-613, Dorman 930613, GMB 799-0287, Raybestos 715073, DuraGo 295-15073, GSP 126073, Precision 515073, Axiom AX515073
