This wheel bearing and hub assembly is designed to fit 2006-2008 Dodge Ram 1500 trucks equipped with 5-lug wheels and 4-wheel ABS, plus certain early-production 2009 models.
Dodge Ram 1500 4WD
2006-2008
Early 2009 models built through December 7, 2008
Dodge Ram 1500 2WD
2006-2008 models equipped with 5-lug wheels and 4-wheel ABS
Early 2009 models built through December 7, 2008
Designed for 5-lug, 4-wheel ABS applications.
Fits the front driver or passenger side.
For 2006-2008 trucks with 2-wheel ABS and 5-lug wheels, a different hub assembly is required.
For 2006-2008 trucks equipped with 8-lug wheels, a different hub assembly is required.
For 2009 Ram 1500 models built December 8, 2008 and later, a different hub assembly is required.
Precision Tapered Roller Bearings – Engineered with premium high-performance grease for smooth operation, controlled preload, and long-term durability.
Integrated ABS Sensor – Built-in wheel speed sensor provides accurate ABS signal transmission while standing up to heat, moisture, dirt, and demanding driving conditions.
33-Spline Hub Design – Precision-machined splines provide proper engagement with the factory front drivetrain components.
Heavy-Duty Hub Construction – Engineered to maintain bearing preload and reduce hub-face movement under braking, cornering, towing, and off-road loads.
Premium Wheel Studs – Equipped with five factory-style 9/16"-18 wheel studs for direct compatibility with the original wheel and lug nut configuration.
Direct Bolt-In Design – Complete hub and bearing assembly installs directly into the factory steering knuckle with no modifications required.
Configuration – 5×5.5" (5×139.7 mm) bolt pattern, 9/16"-18 wheel studs, 33 splines, 3-bolt mounting flange, integrated ABS sensor. Timken's SP500101 interchange confirms the 5.5-inch bolt circle, five 9/16"-18 studs, 33 splines, tapered bearing construction, and ABS configuration.
The Axiom Supply AX515113 Wheel Bearing & Hub Assembly is engineered for 2006-2008 Dodge Ram 1500 trucks requiring the 5-lug, 4-wheel ABS hub configuration, as well as applicable early-production 2009 models.
Developed with Axiom Supply's premium bearing and hub construction, this assembly is designed to maintain proper bearing preload and minimize hub-face deflection under load—helping provide tighter steering response, consistent braking performance, and dependable wheel-end durability.

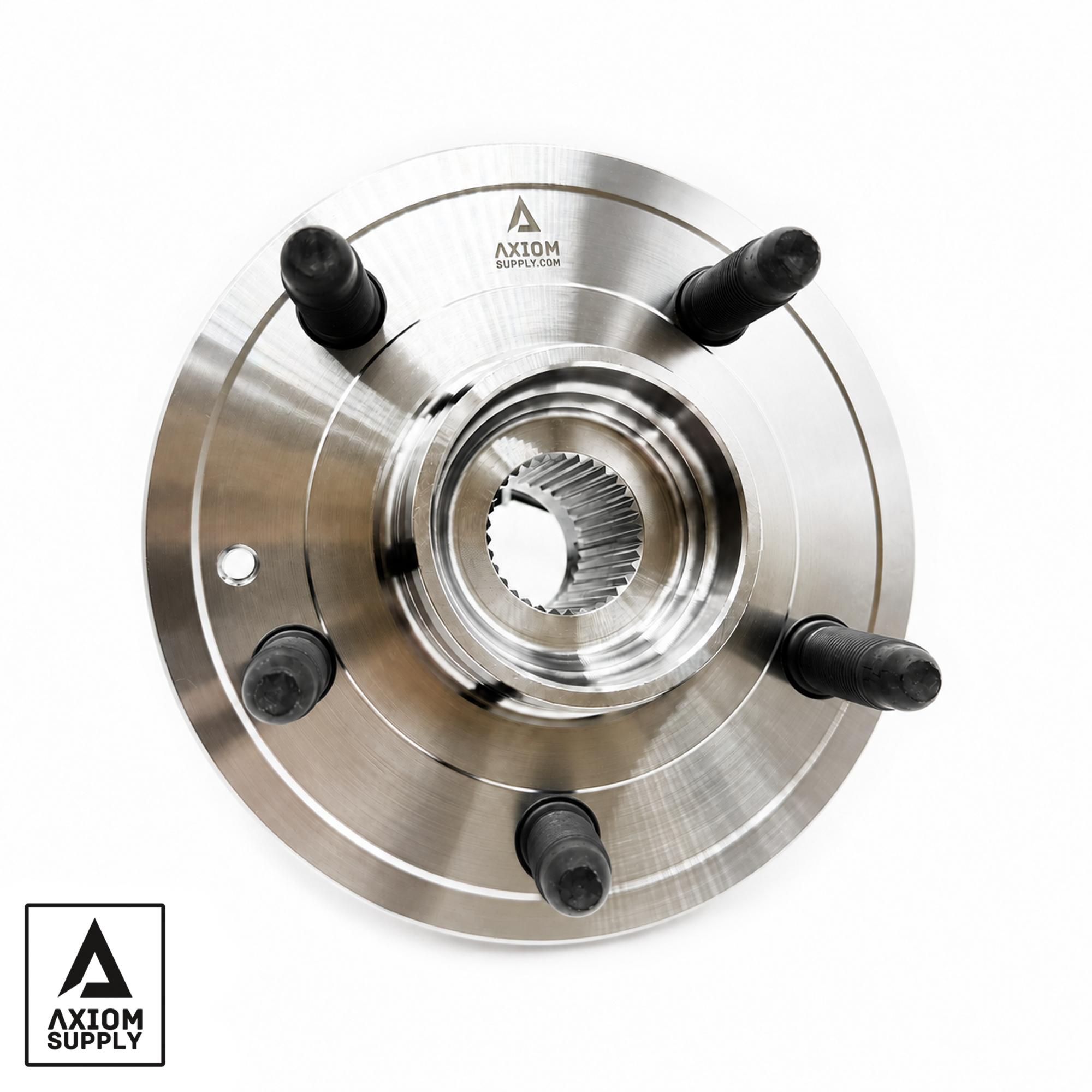

The AX515113 features a precision-machined 33-spline center, integrated ABS wheel speed sensor, heavy-duty tapered roller bearing design, and factory-style 5×5.5" wheel bolt pattern.
Each assembly comes as a complete direct-fit bolt-in unit and can be installed on either the front driver or passenger side.
Whether your Ram is a daily driver, work truck, tow vehicle, or spends its weekends off pavement, Axiom Supply bearing assemblies are built to deliver the strength, precision, and longevity serious truck owners expect.

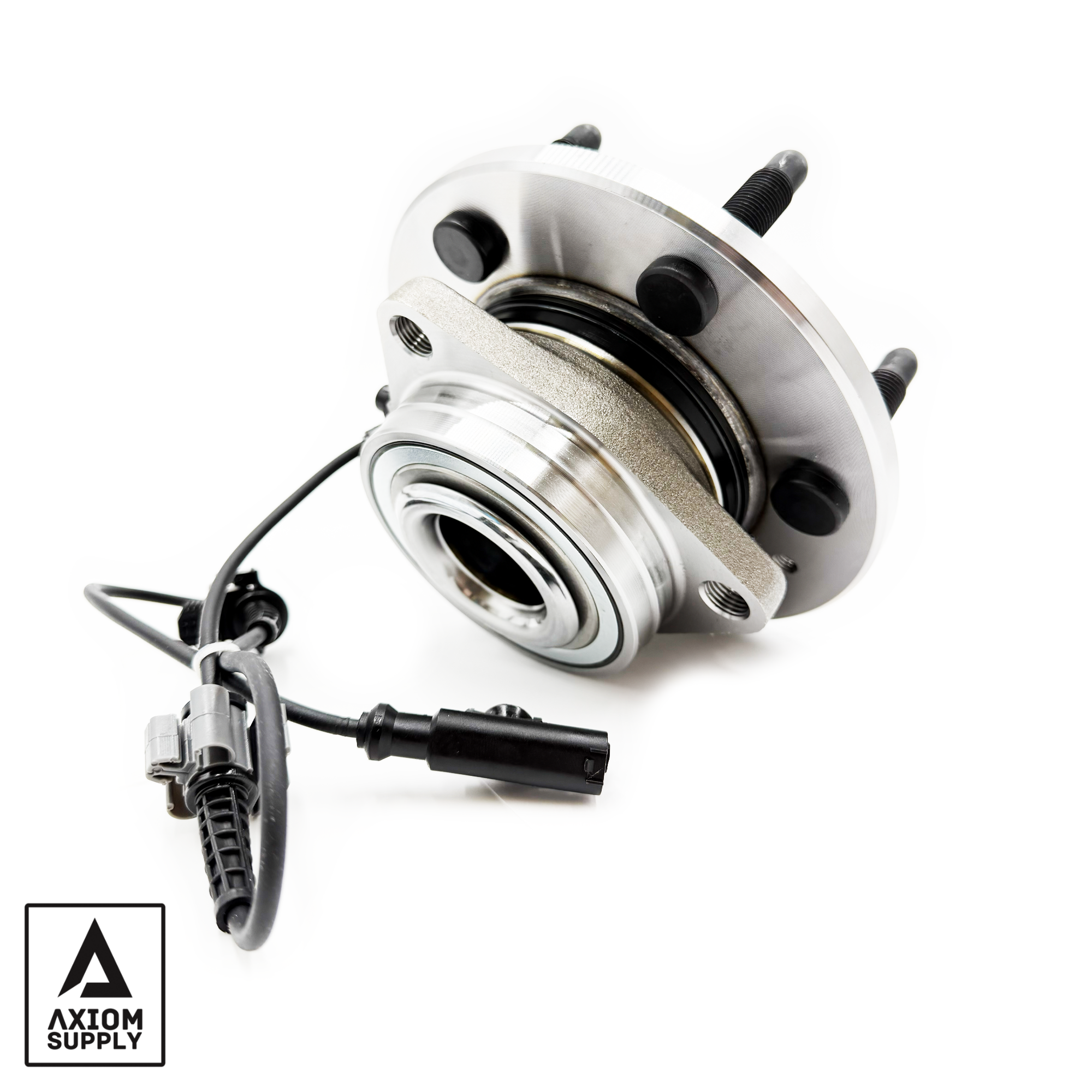

One Axiom Supply AX515113 Front Wheel Bearing & Hub Assembly with integrated ABS sensor and wiring harness and factory-style 9/16"-18 wheel studs.
Axle / CV Shaft Nut (4WD): 185 lb·ft
Hub/Bearing-to-Knuckle Bolts: 120 lb·ft
Front Caliper Adapter-to-Knuckle Bolts: 130 lb·ft
Wheel Lug Nuts: 130 lb·ft
These values are documented for the 2006 Ram 1500 4WD hub replacement procedure; the 2008 and 2009 service information also specifies 185 lb·ft for the halfshaft nut and 120 lb·ft for the hub mounting bolts. Always confirm specifications for the exact year and vehicle configuration before installation.
Chrysler / Mopar 52070323AE, 52070323AF, 52070323AG, 52070323AH, 68088025AA, MOOG 515113, Timken SP500101, SKF BR930690, BCA WE61654, NTN WE61654, Mevotech H515113, Mevotech G515113, Centric 402.67022, Centric 402.67022E, Dorman 930-618, GMB 720-3010, DuraGo 295-15113, GSP 126113, Axiom AX515113.
Our wheel bearing assemblies are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.
Push it to the limit—we don’t care.
If the part lets you down, we will make it up to you!
We ship throughout the United States. Most in-stock items leave our shop within 1–3 business days. Made-to-order, special-order, drop-shipped, freight, and oversized products may require additional processing or lead time. Any known special timing or availability information will be noted on the product page when applicable.
Orders placed outside of our normal business hours will be processed as soon as possible once our team returns during regular operating hours, Monday–Friday. Orders placed over the weekend or on a holiday will begin processing the next business day.
Eligible items may be considered for return within 30 days of delivery. All returns require prior authorization from PAD Overland. Return requests are subject to our return policy as well as any applicable manufacturer or supplier return requirements.
Approved customer-requested returns are subject to a 35% PAD Overland restocking fee, plus any additional return-related fees imposed by the manufacturer, supplier, or distributor.
Many products sold by PAD Overland include a manufacturer warranty. Warranty claims are subject to the individual manufacturer’s warranty terms and procedures. We are happy to help facilitate the process when possible. Please contact us with your order number, photos, and a description of the issue.
Questions about fitment, shipping, return eligibility, or a special-order product? Please contact us before placing your order. Our team is happy to help make sure you are ordering the correct product for your vehicle.
