Description

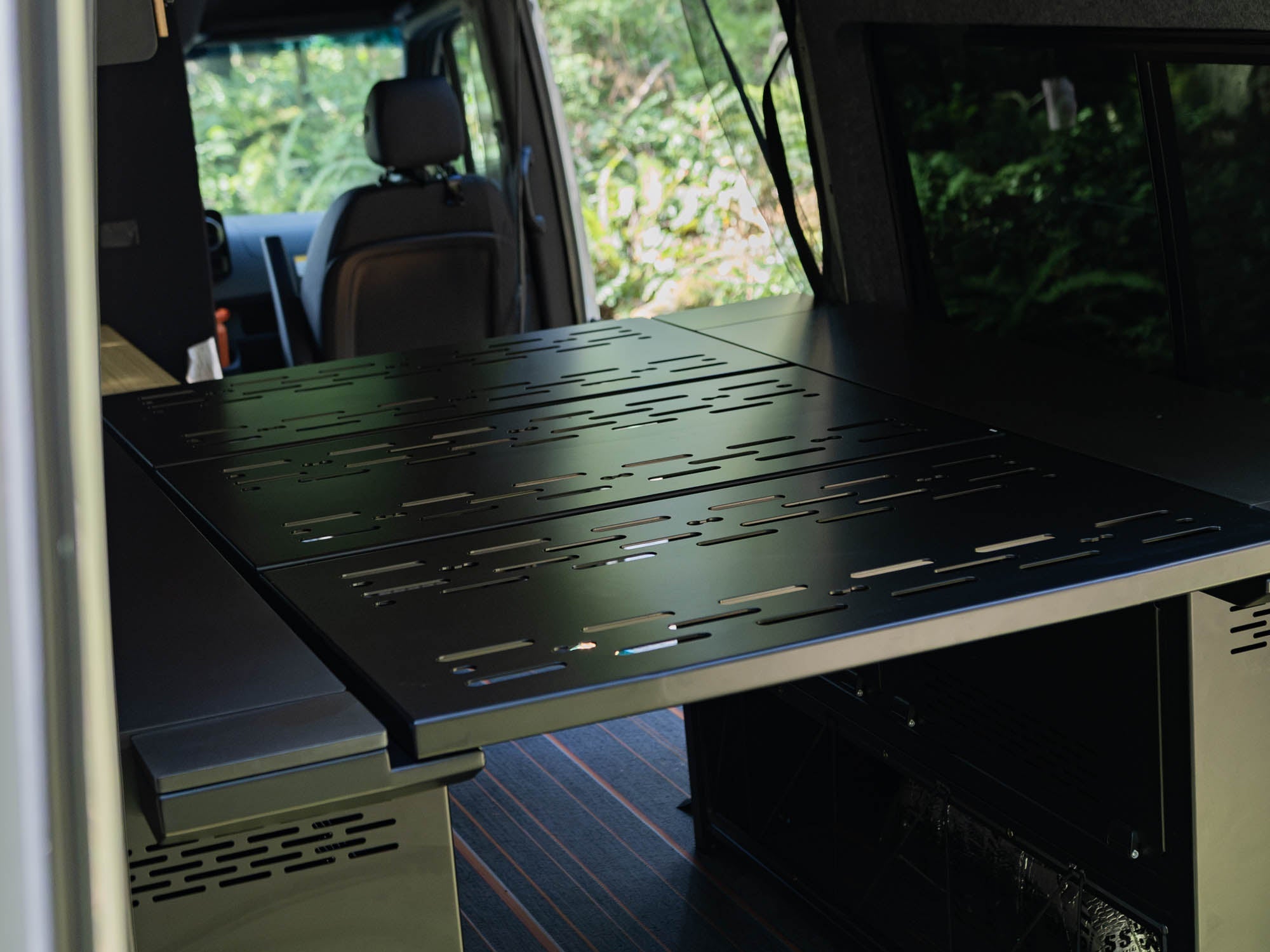

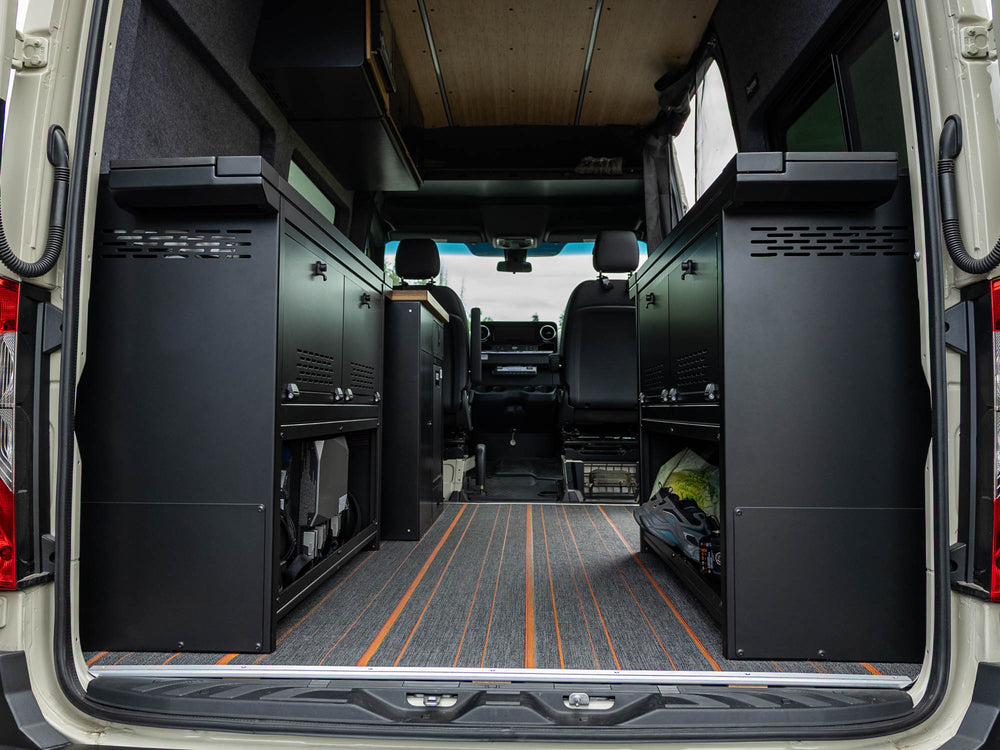

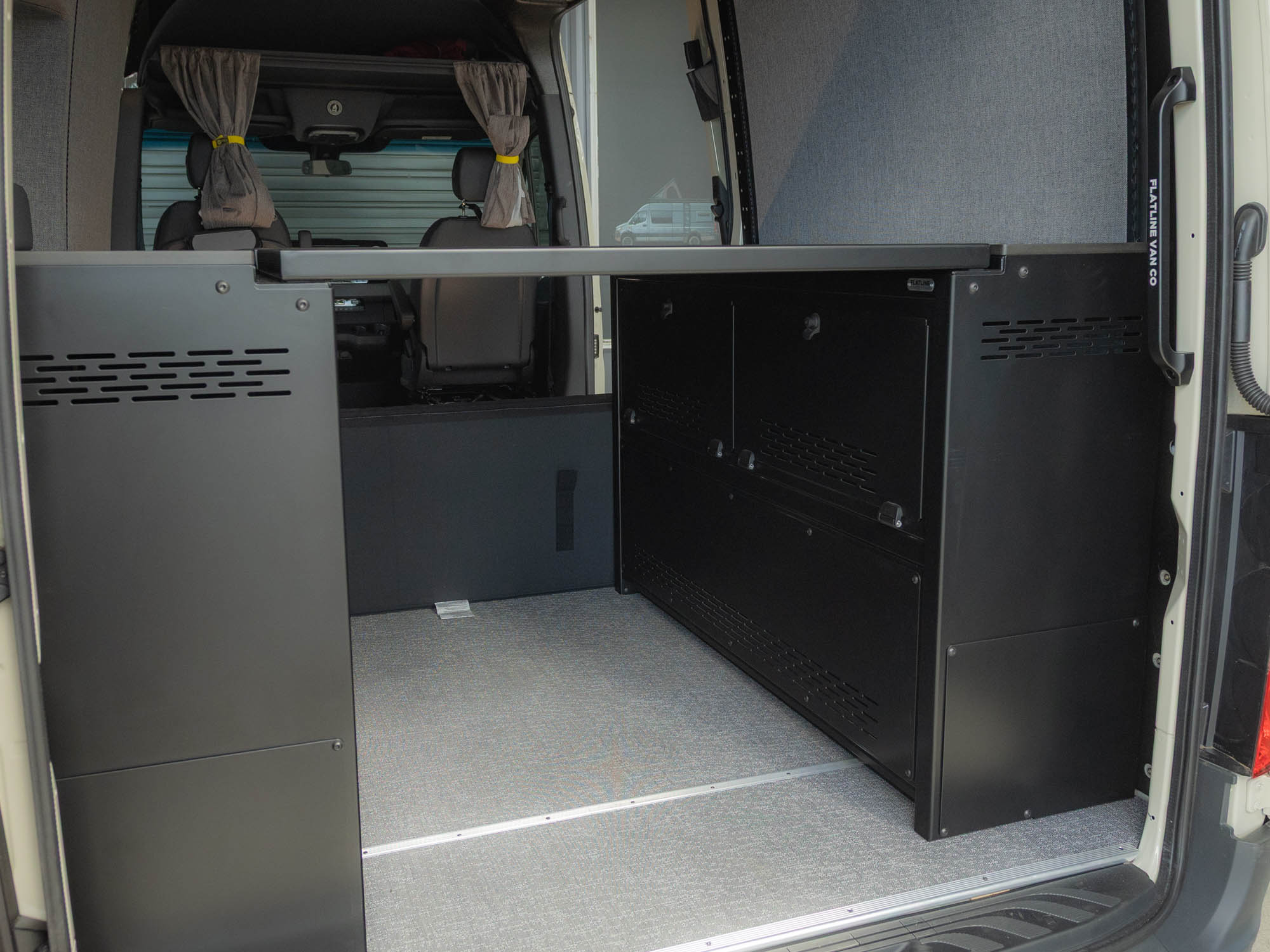

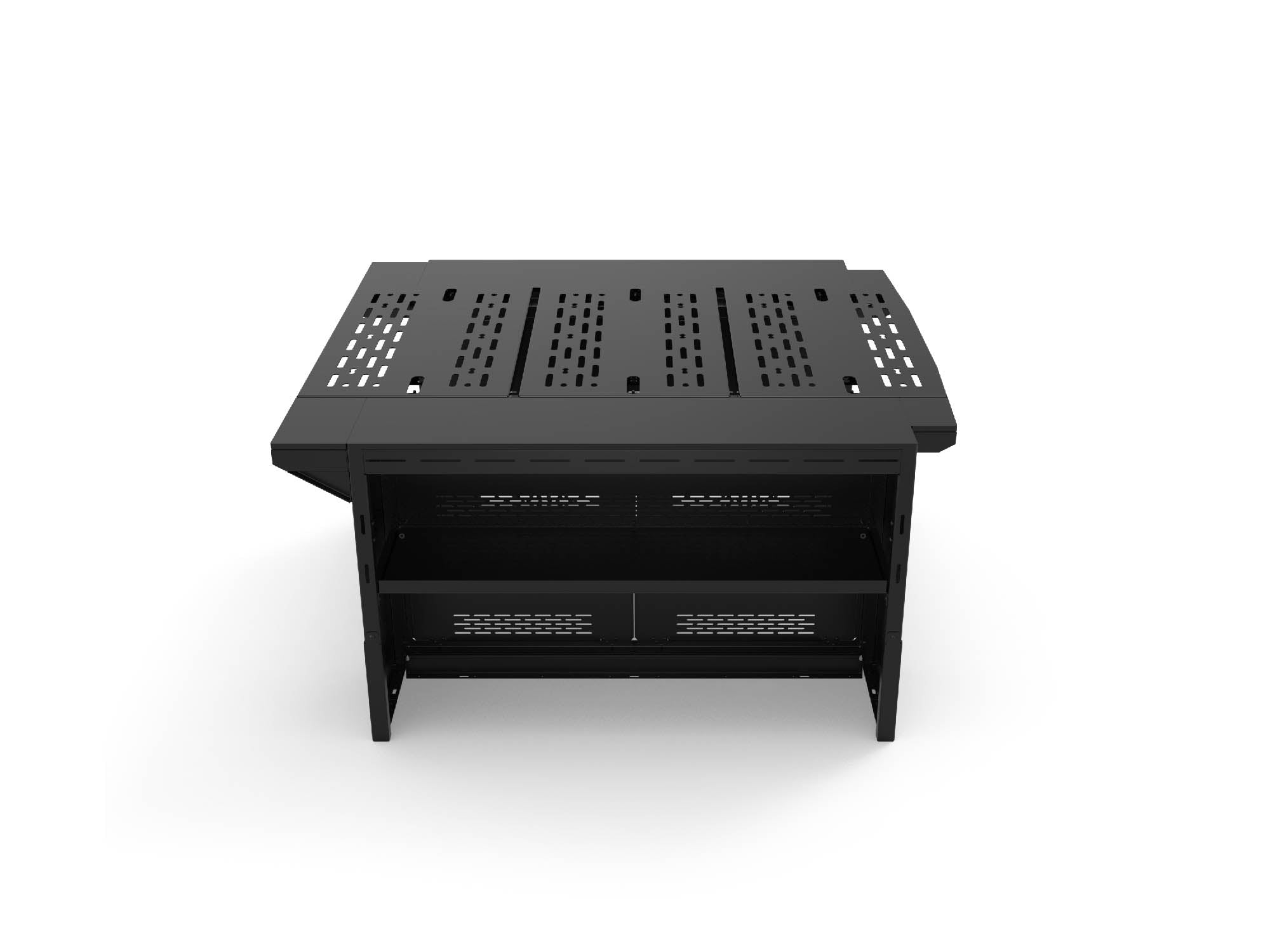

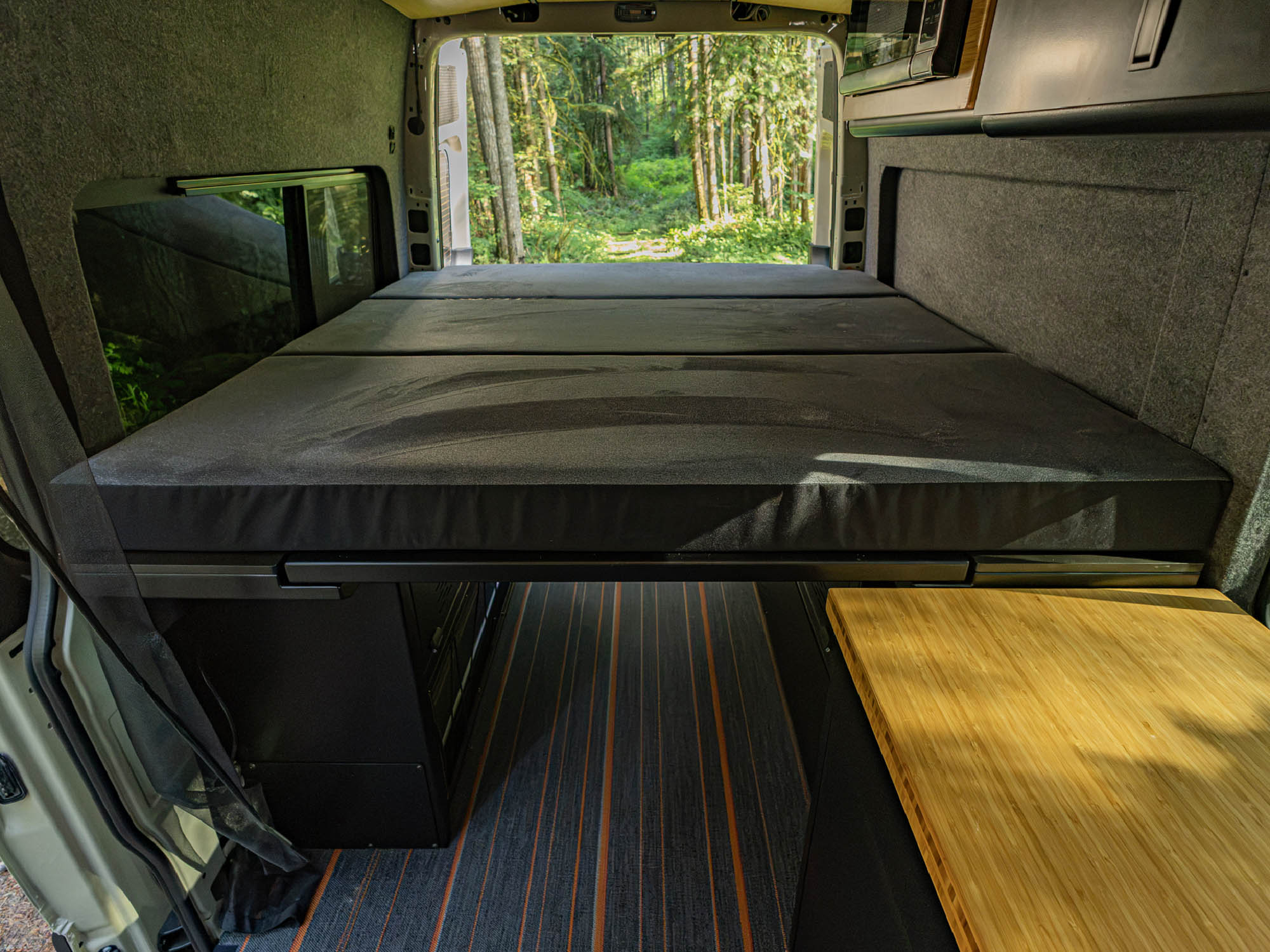

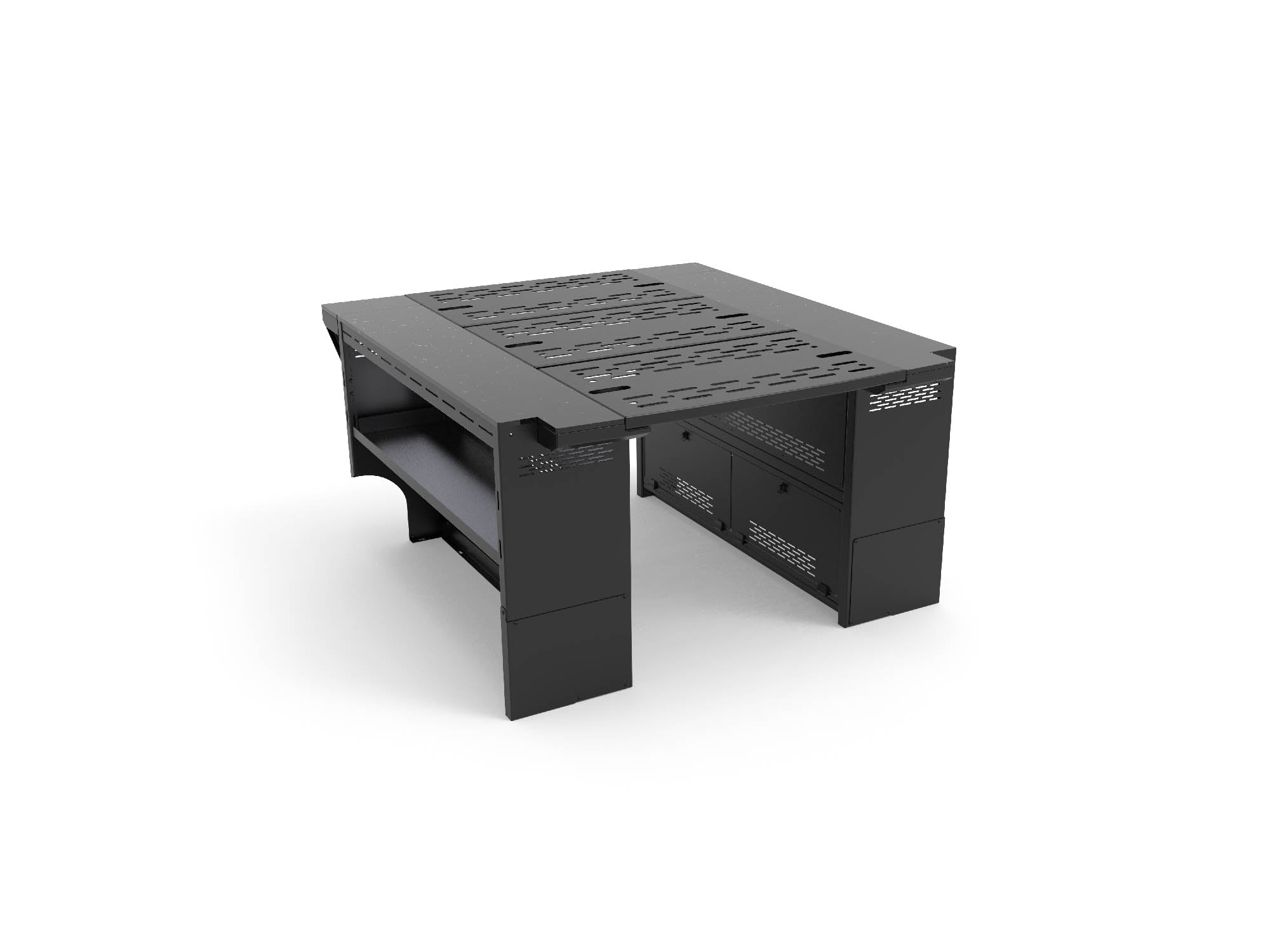

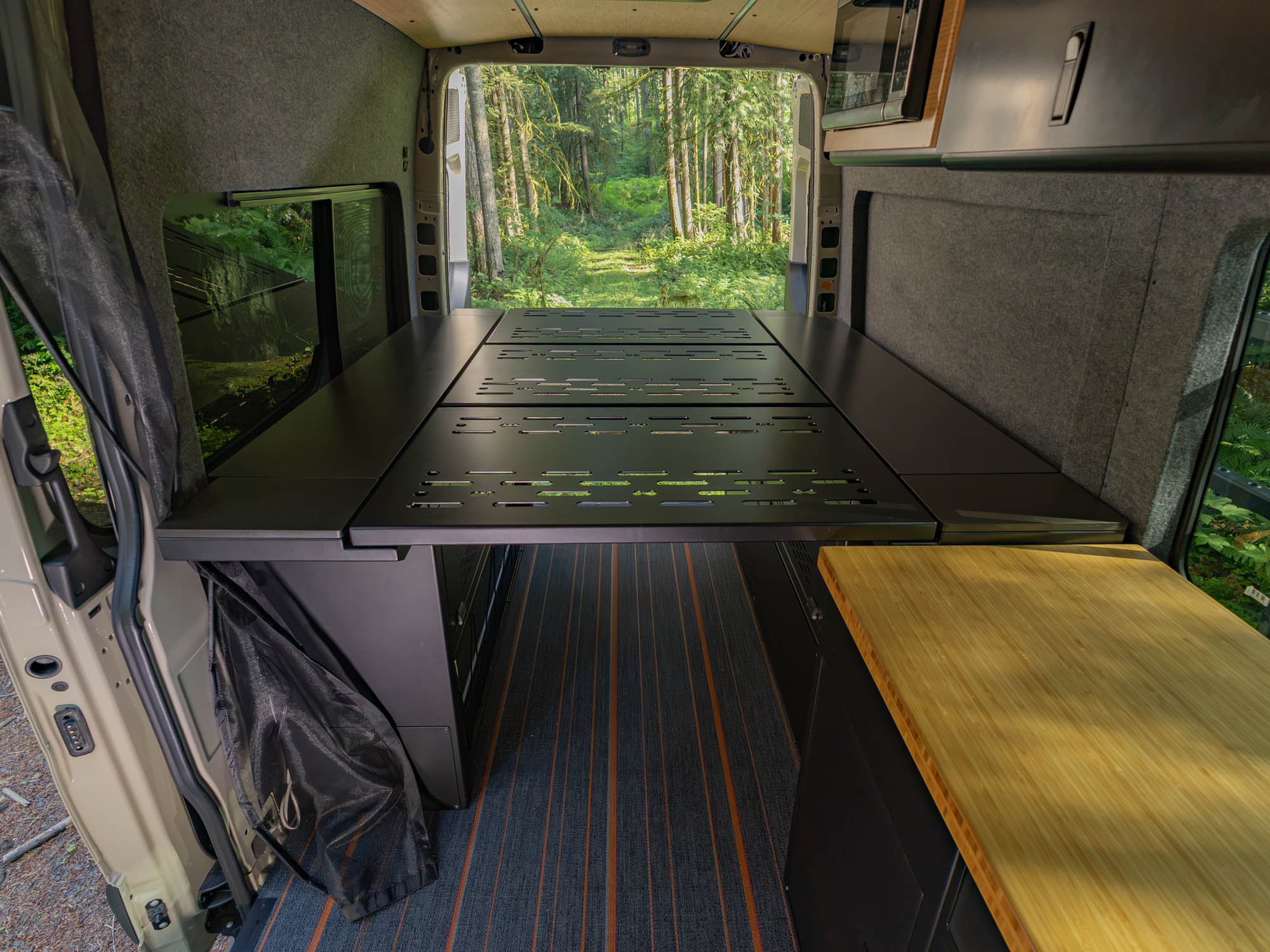

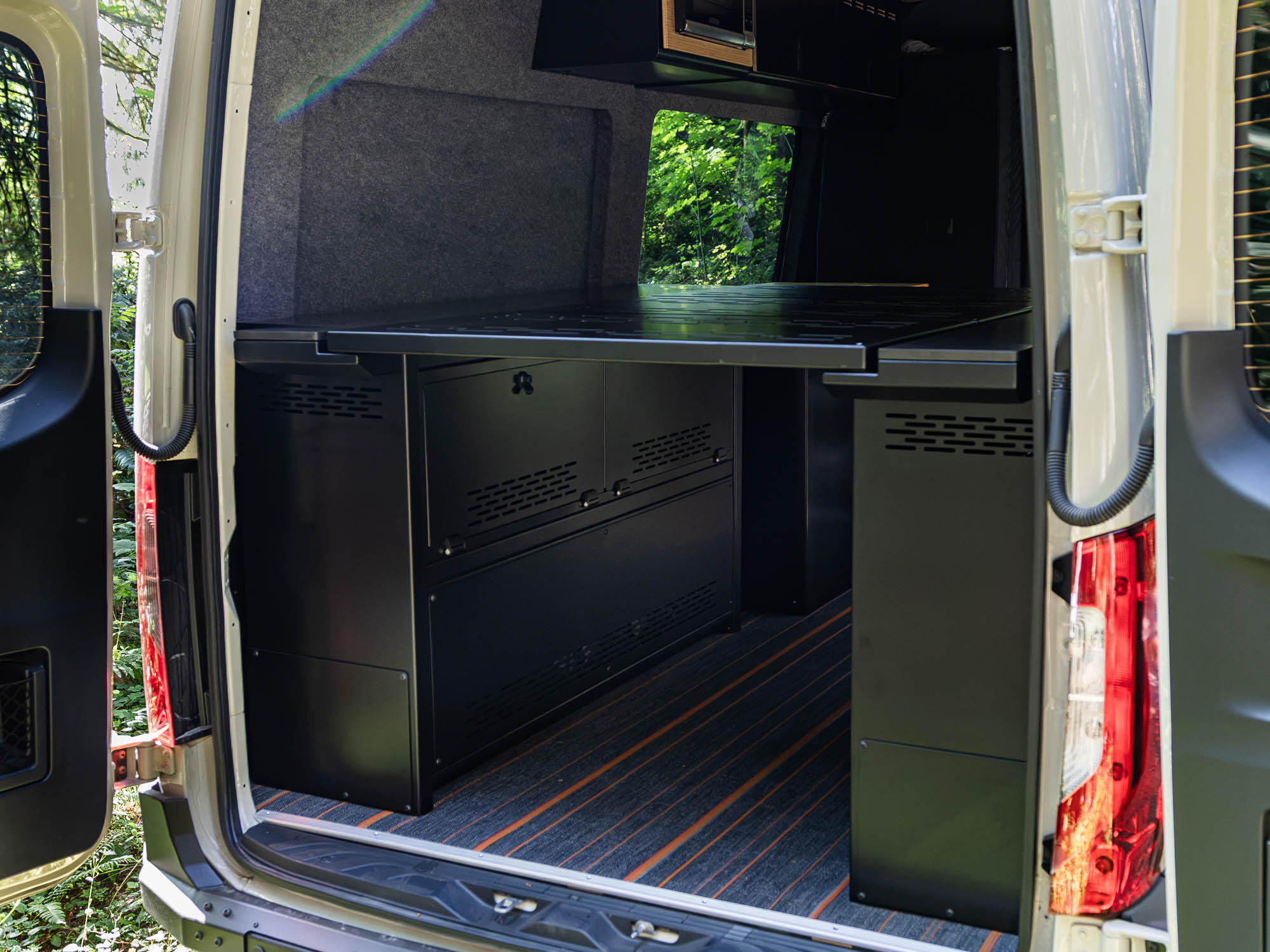

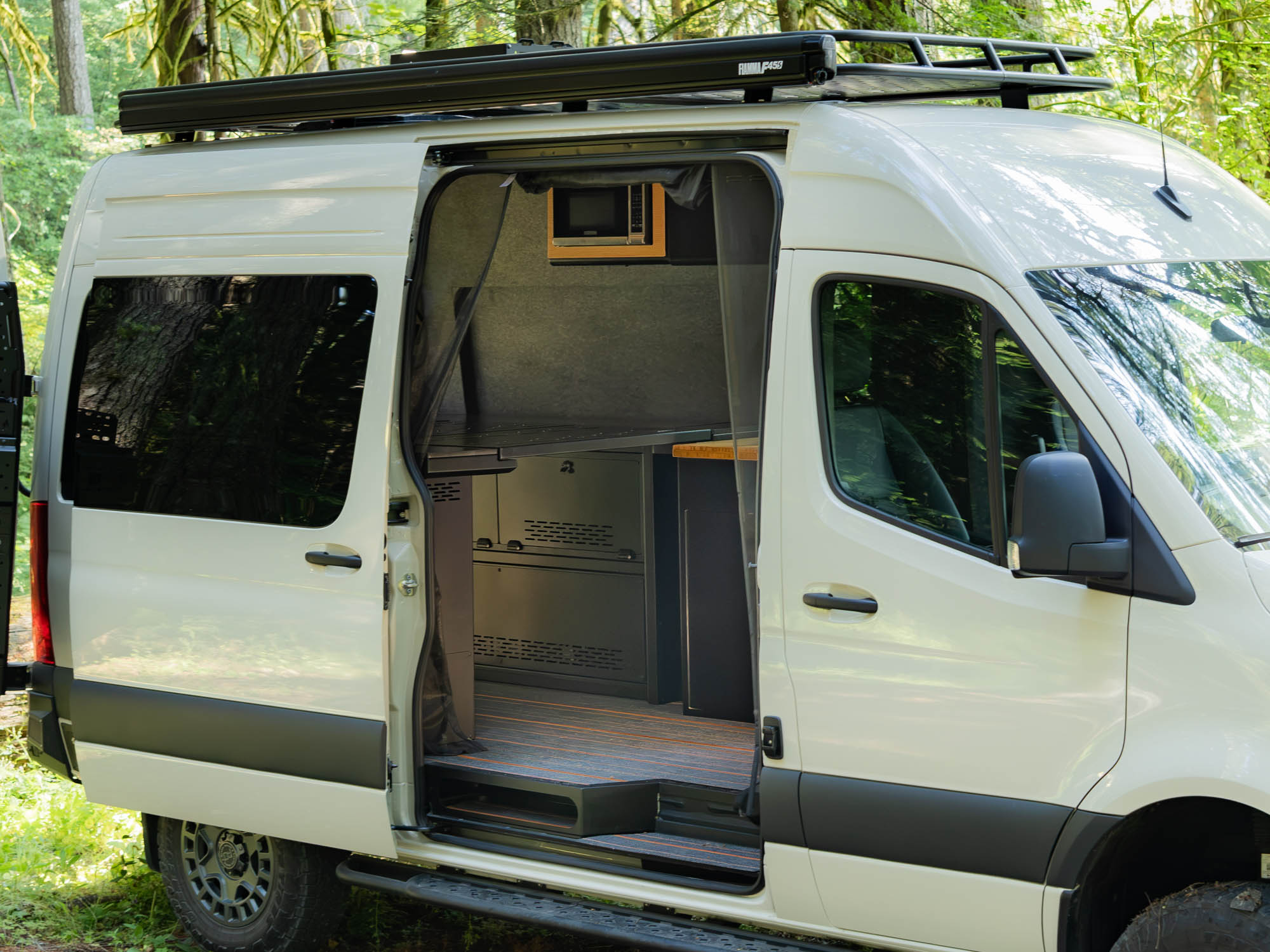

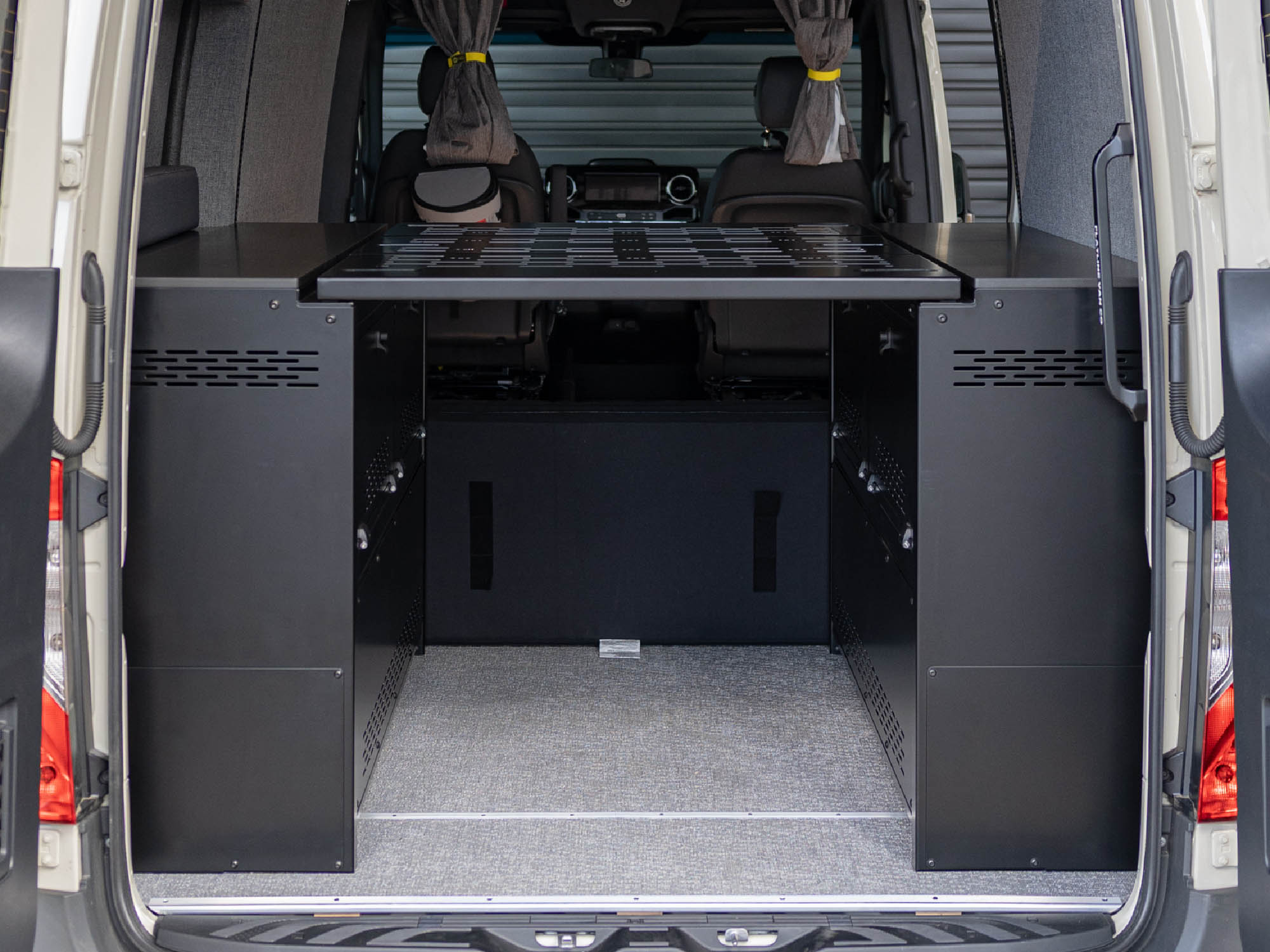

xA good night's sleep changes everything about life on the road, and the Modular Cabinet Bed System for Sprinter & Transit is built around that idea. This complete camper van bed and storage system for Mercedes-Benz Sprinter and Ford Transit vans is available in North/South and East/West orientations to suit your layout. The bed panels lift off without any tools, opening the whole rear of the van into walkable living space: ideal for van life, remote work, or hauling adventure gear. Sprinter van mattresses and custom-fit Transit mattresses are available as an add-on to complete your sleeping setup.

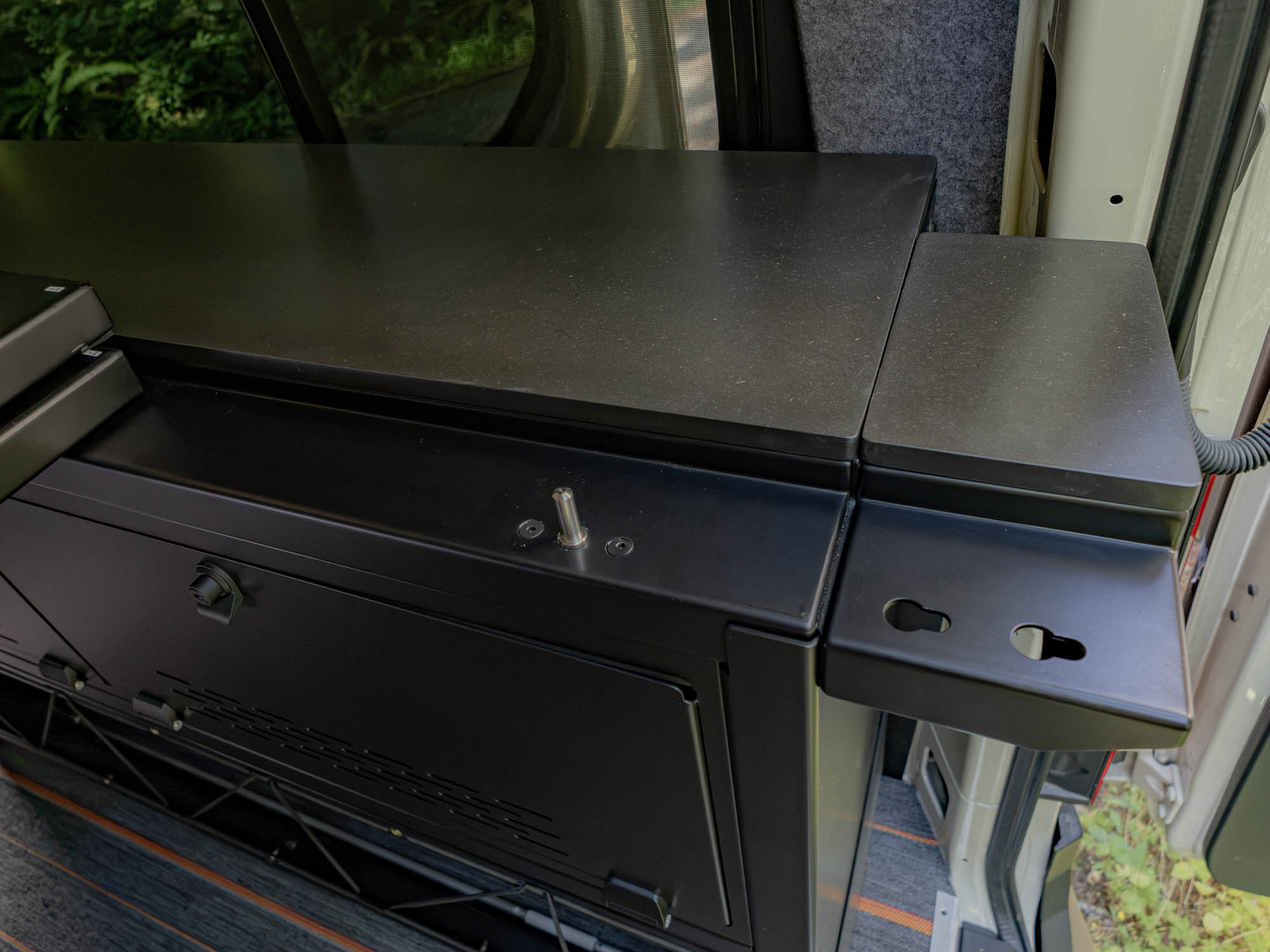

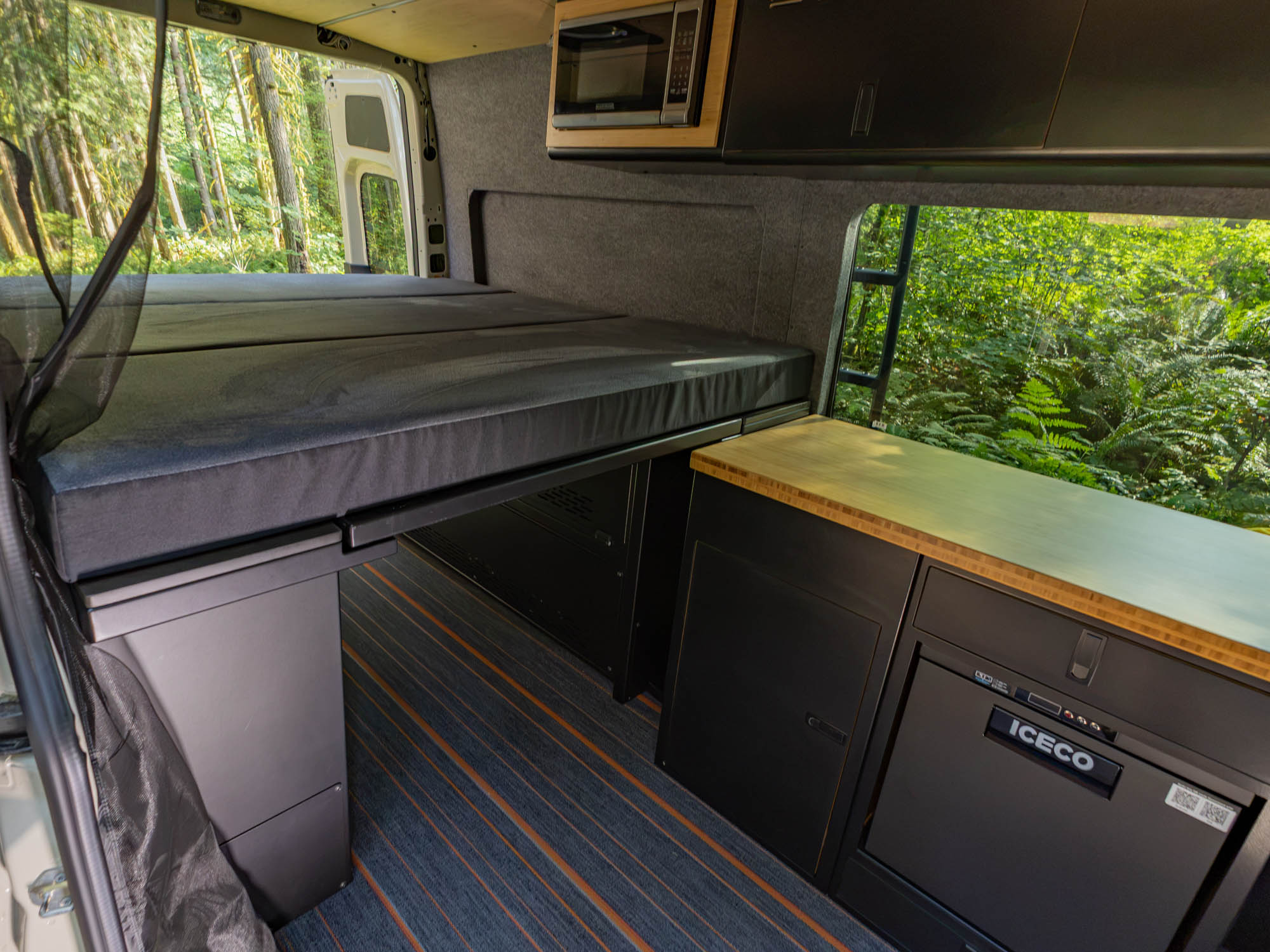

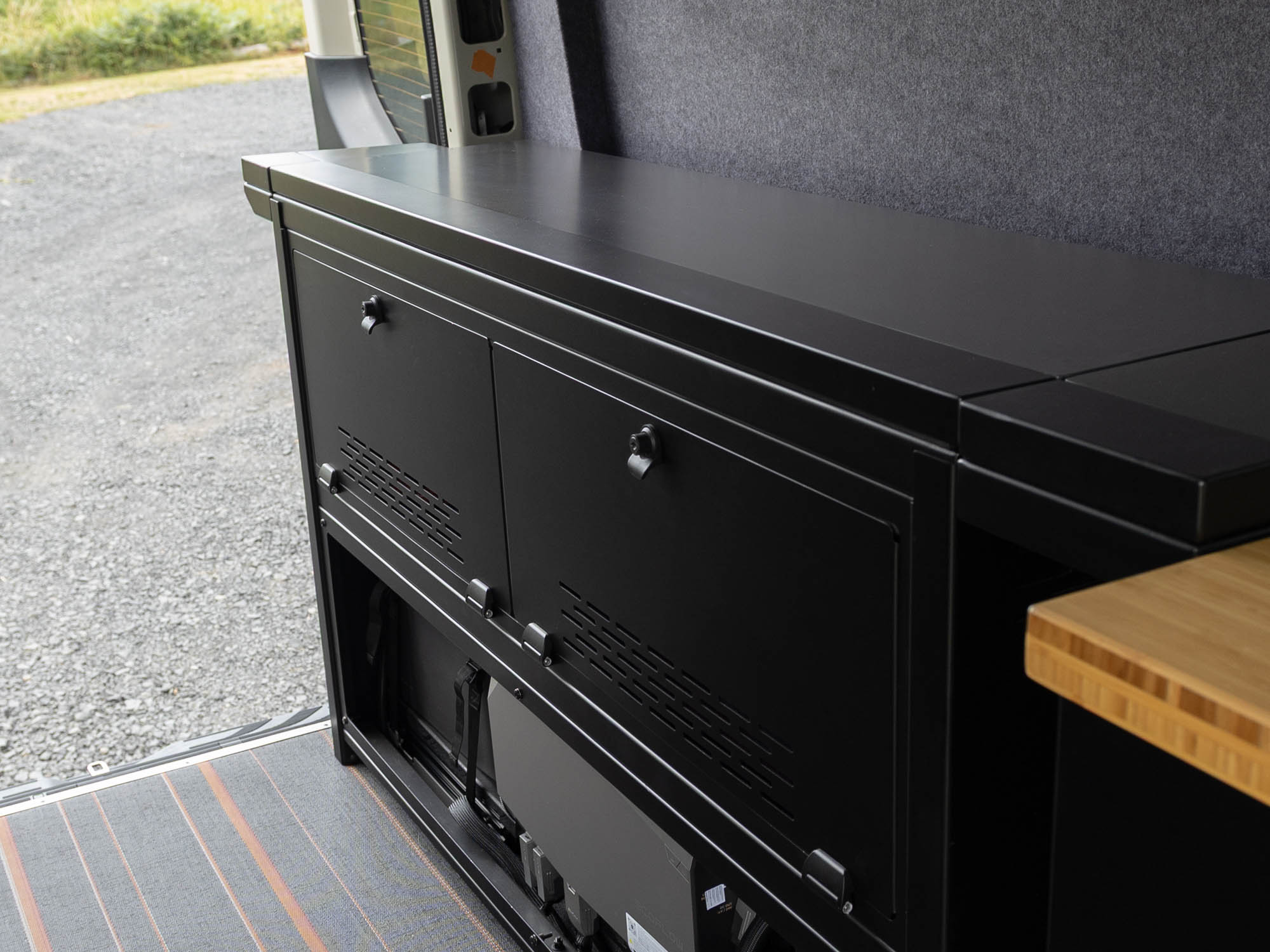

Included cover panels drop onto the same pins to provide a full 60-inch wide by 16-inch deep galley counter space on each side when the bed panels are removed, and the North/South layout extends the countertop to 73.43-inch long. Adjustable mounting hardware makes this a fully bolt-on van bed with DIY-friendly installation, adjusting 1.5-inch to fit tight against your interior walls, whether you're just getting started and have a bare van or you've completed your panelling and are ready for finishing touches.

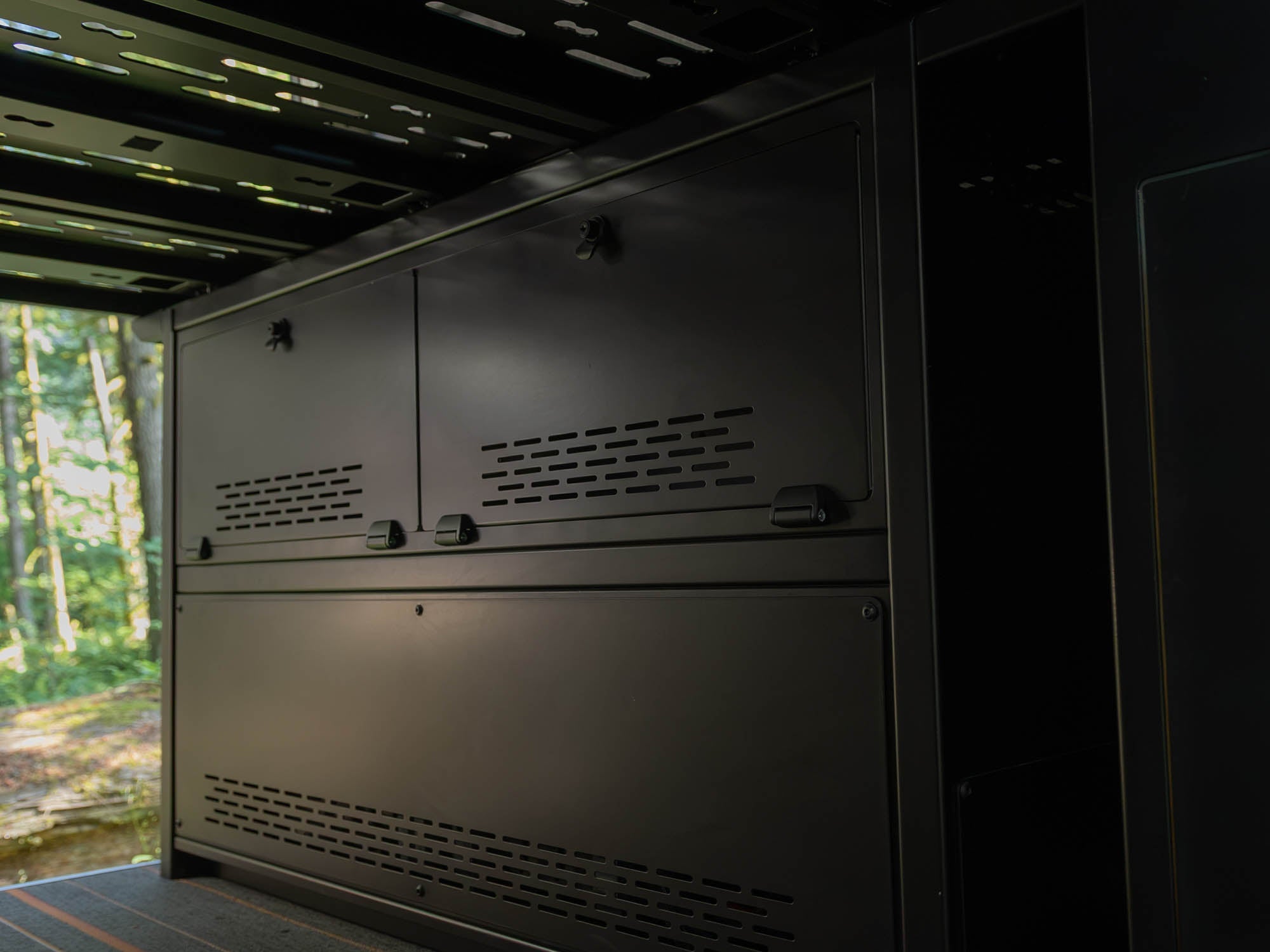

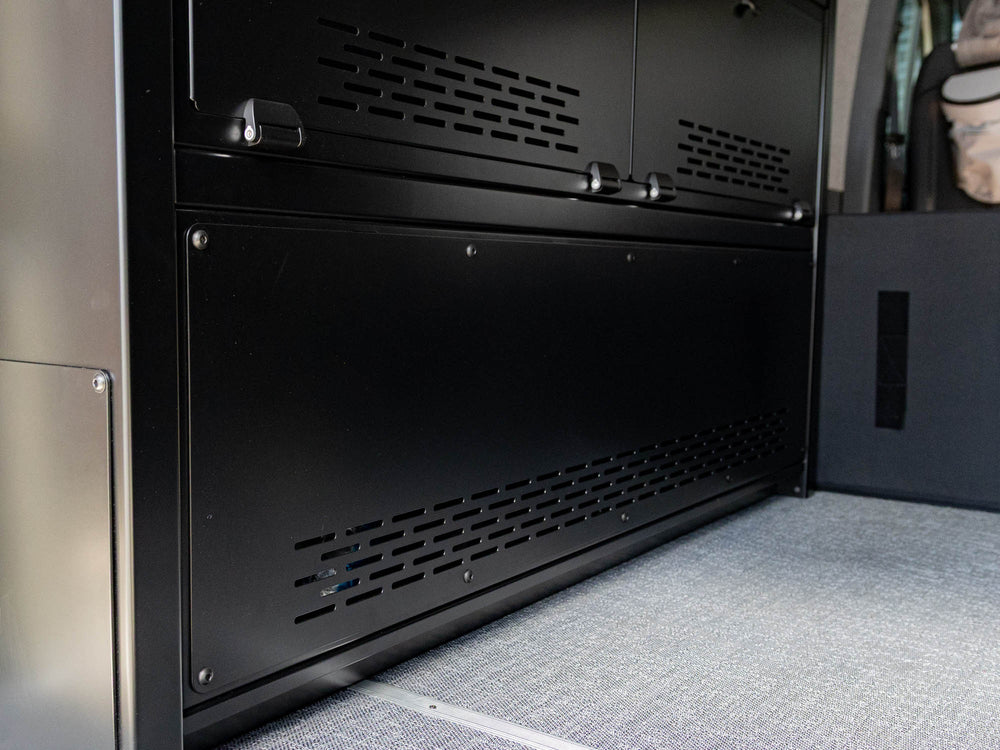

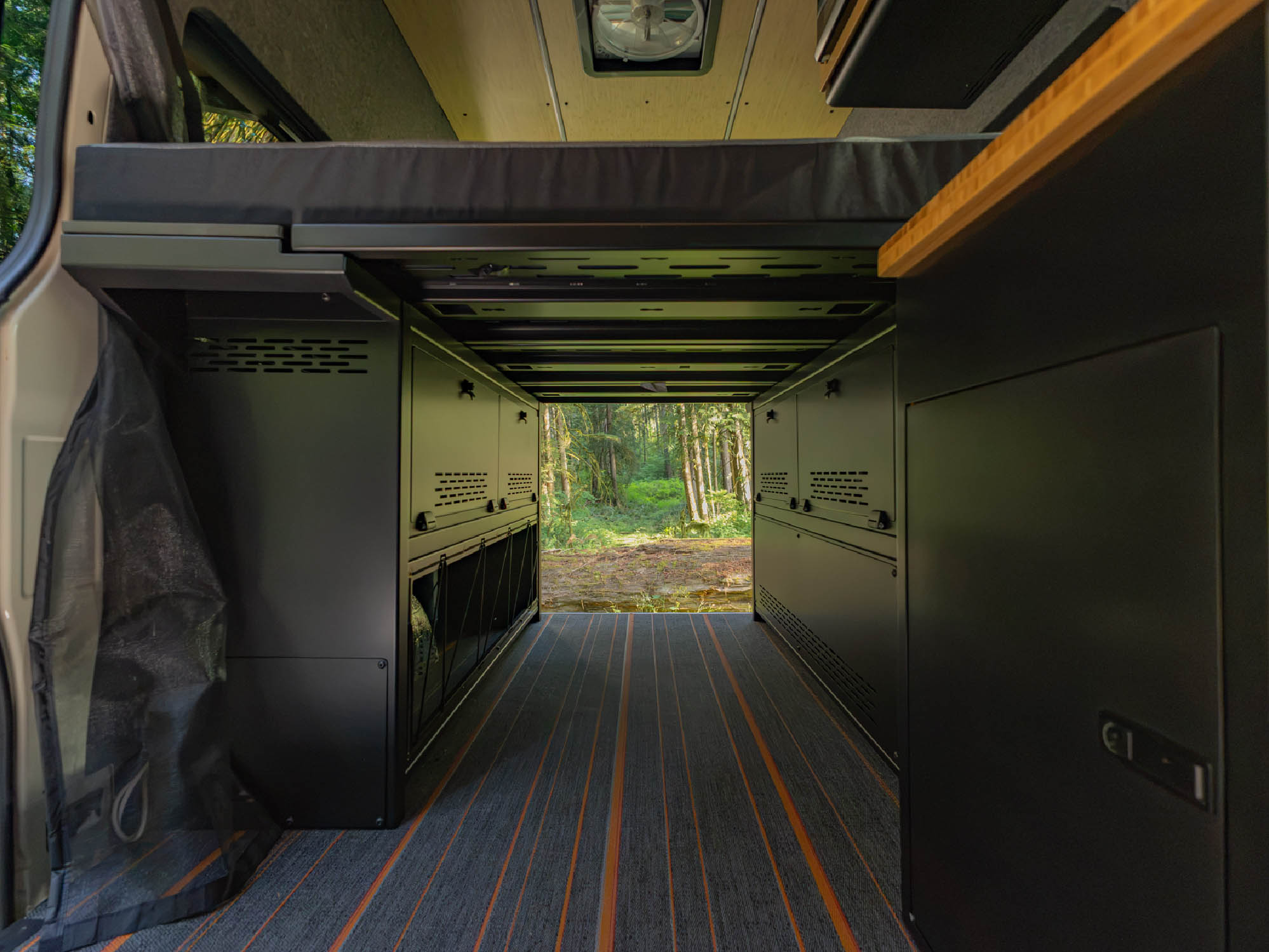

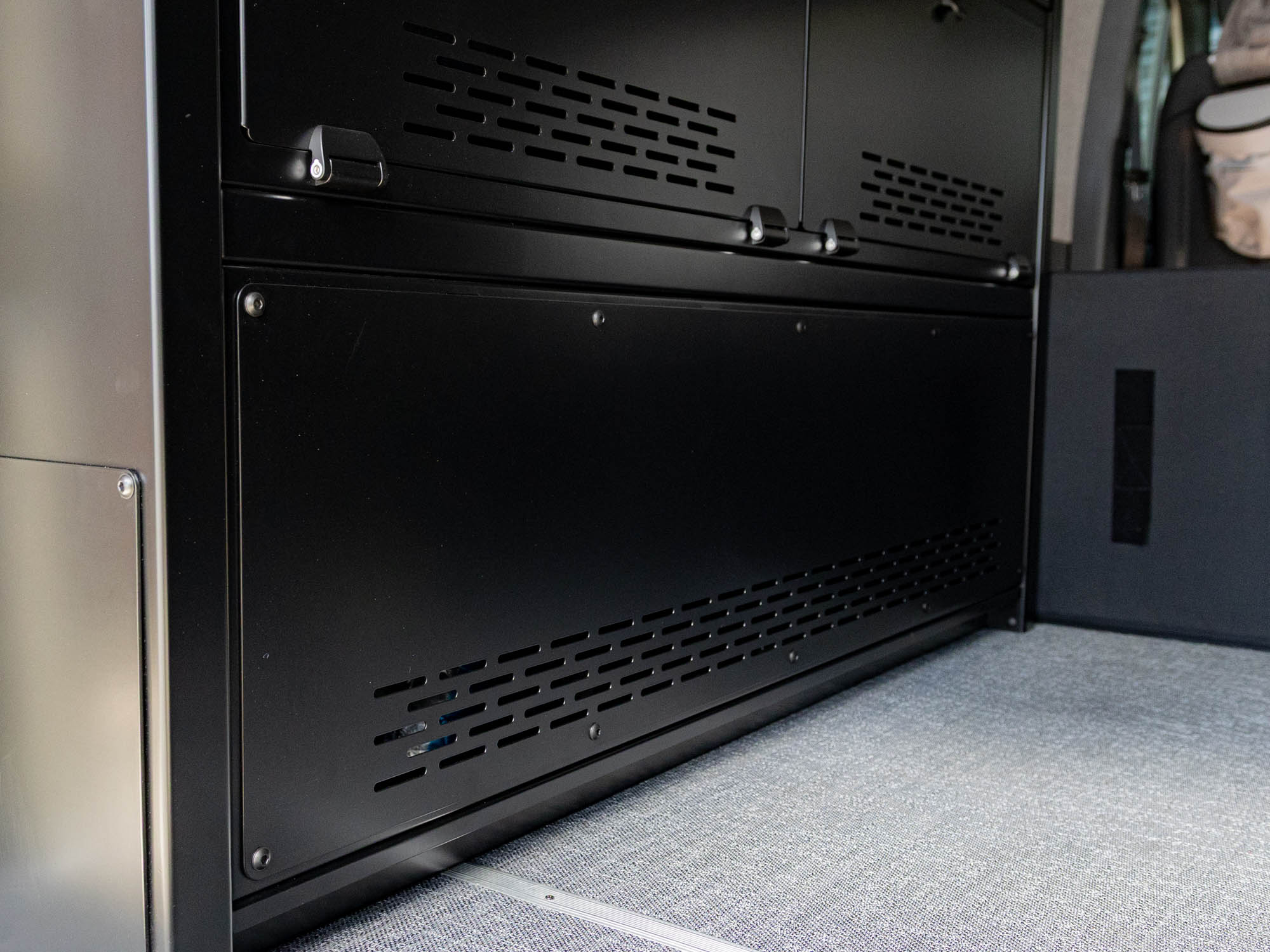

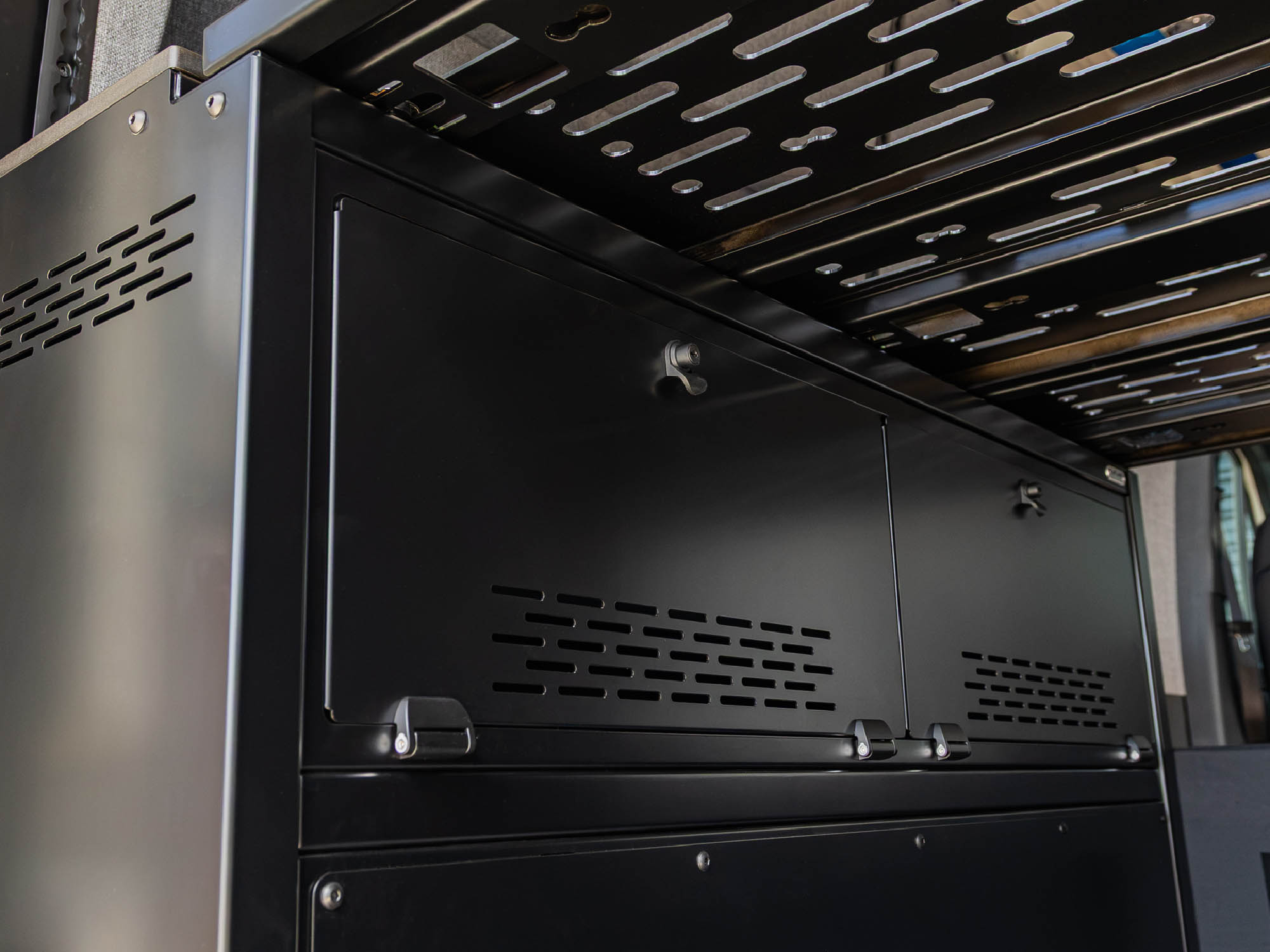

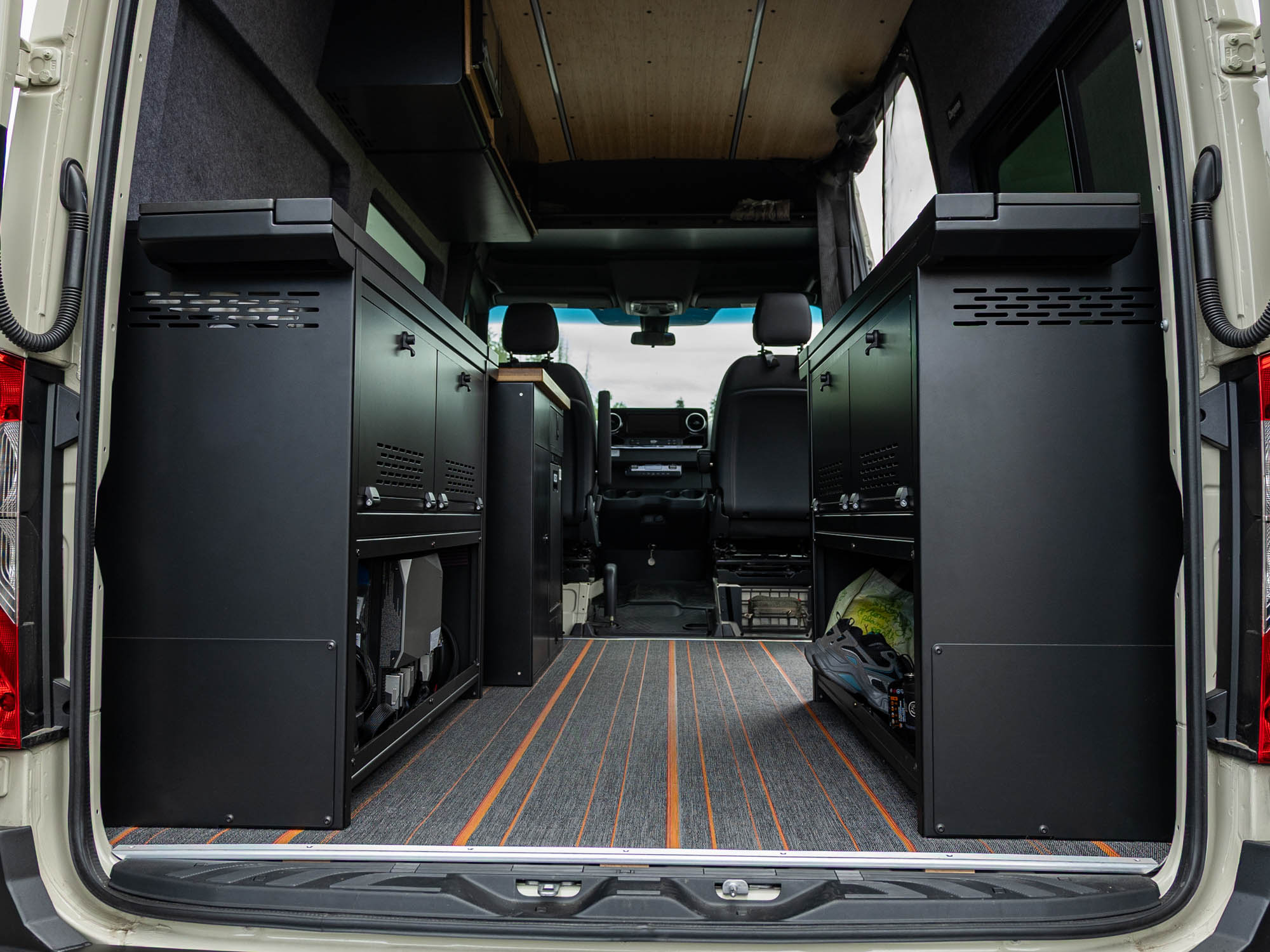

The base level of the cabinet does a lot more than supporting the bed, with large house systems compartments built to accommodate your van's water, power, and gear. The compartments are sized to fit NW Conversions wheel-well water tanks, 20-gallon for Sprinter (SP-L-20, SP-R-20, SP-C-20) and 24-gallon for Transit (TR-L-24, TR-R-24, TR-C-24), so a legitimate onboard water supply has a dedicated home without eating into your floor or undercarriage space. The cabinets are also deep enough to house a full electrical setup including a battery bank, inverter, charge controller, and wiring, kept organized and out of sight, and the aluminum side panels are easy to cut if you want to add 110 AC outlets, switches, control panels, or other components for a custom install. Removable front cabinet panels open up easy access to the storage inside, and an included bungee holds everything in place. With the bed panels on, 33-inch to 36-inch wide by 36-inch tall of open space underneath gives you serious storage capacity for gear, coolers, luggage, bikes with the front tire removed, and anything else that needs a home in the garage area. With the option to attach a Murphy bed ladder (drilling required), the whole platform makes a budget-friendly, modular alternative to a fixed Sprinter Van Murphy Bed.

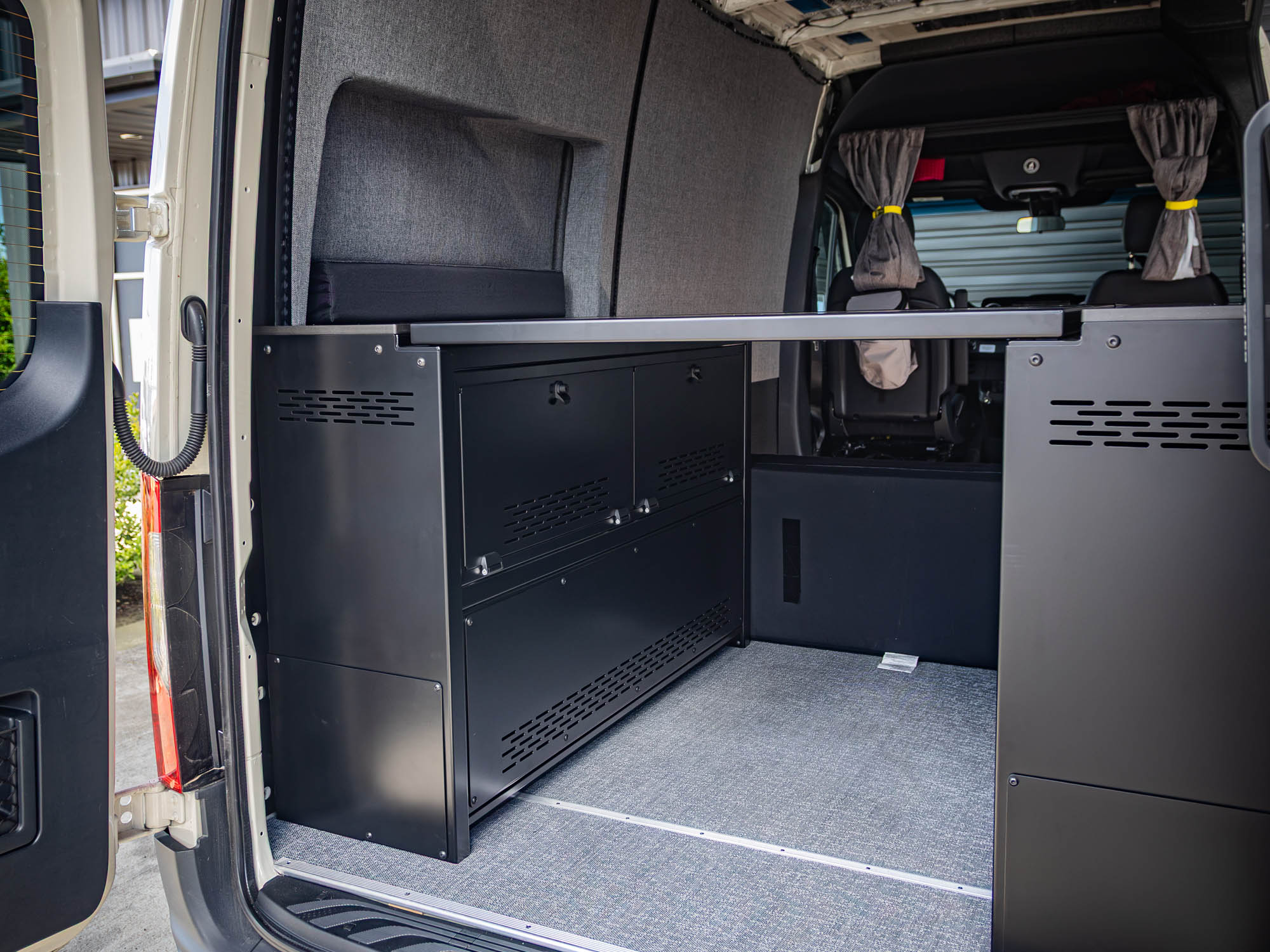

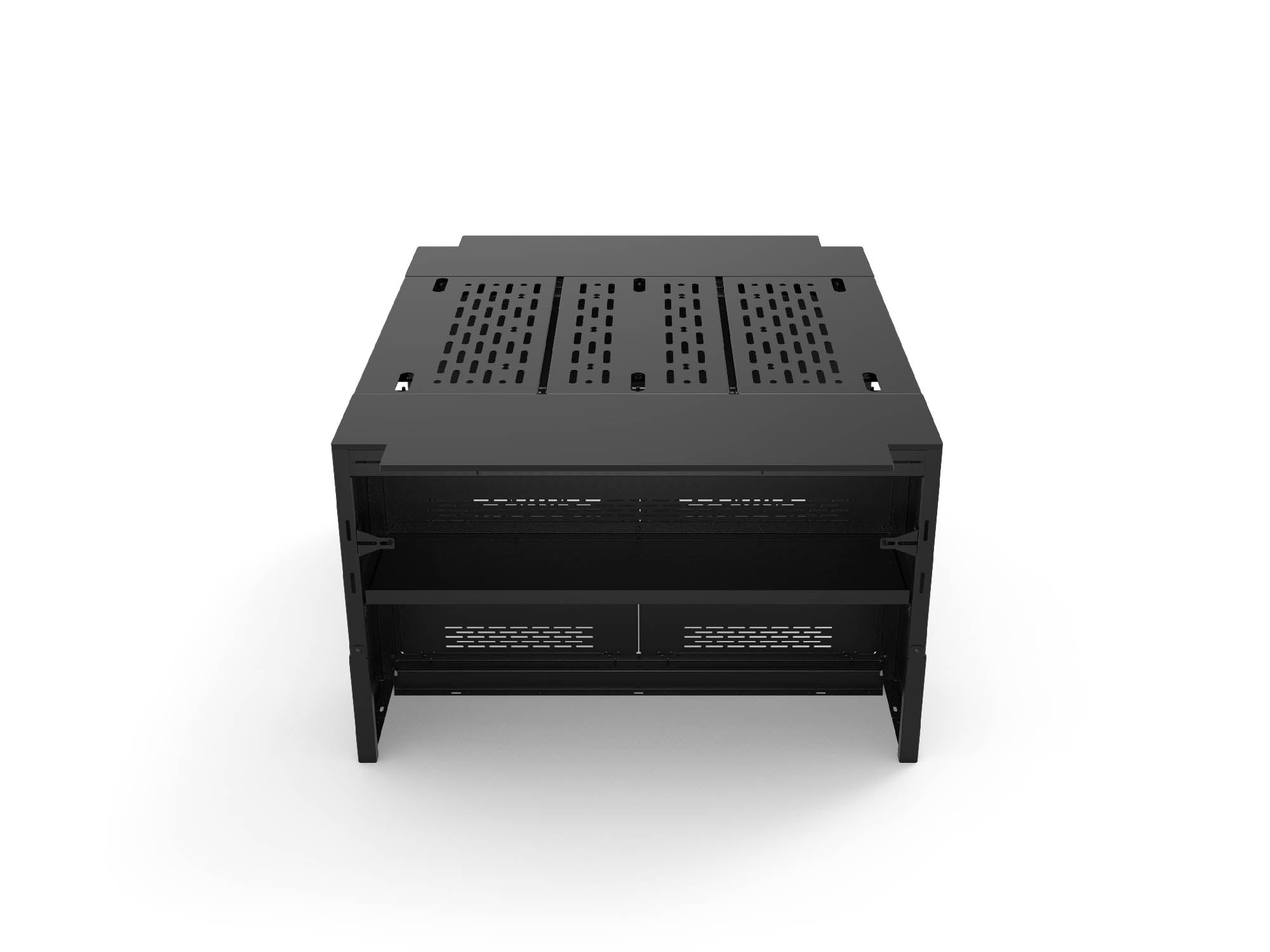

North/South beds measure 66-inch to 69-inch wide by 74-inch long, while East/West beds are 60-inch wide by 66-inch to 69-inch long plus a flare cavity, with 49-inch wide by 5-inch deep flare extensions included on East/West models to cover different flare sizes. Built from aluminum with stainless steel hardware and a black interior powder coat finish, the bed platform is rigid and stable and the base cabinets are built to the standard you'd expect from a permanent fixture in a professional van build. This is a complete solution for Sprinter and Transit owners who want the best aftermarket bed for their Sprinter or Transit, with sleeping, storage, water, and power organized into one setup.
DETAILS
- Modular bed system kit: base cabinets, bed panels, mounting hardware, cover panels, and flare extensions (East/West option only)

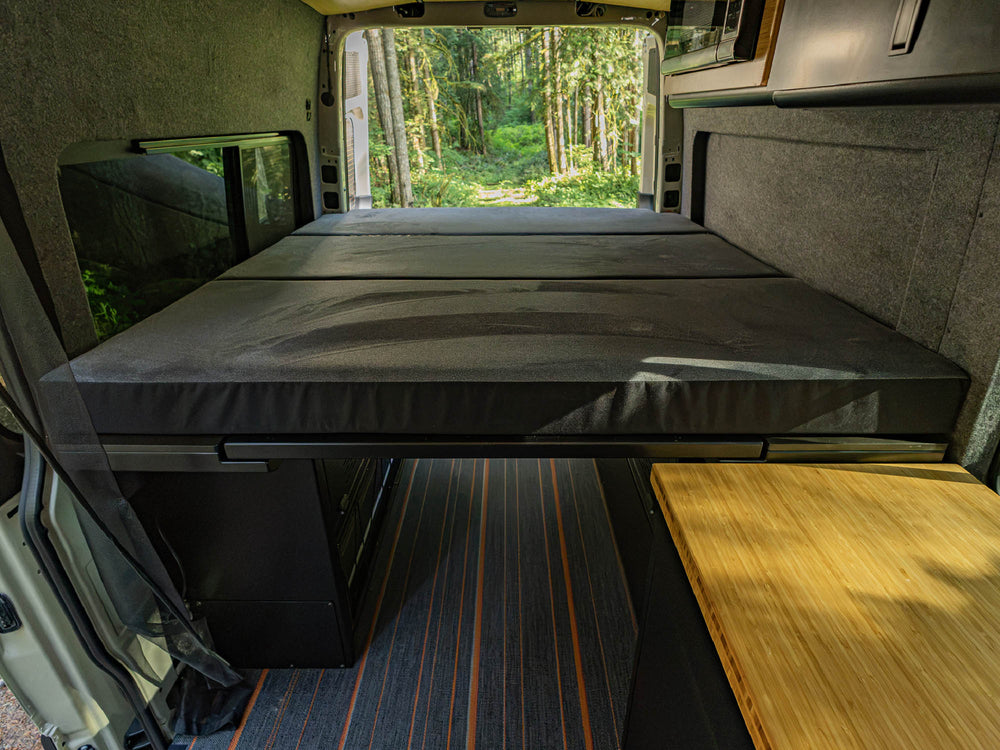

- Optional mattresses available for a perfect fit
- Fully bolt-on van bed with DIY-friendly, toolless bed panel removal for full walk-thru access and storage

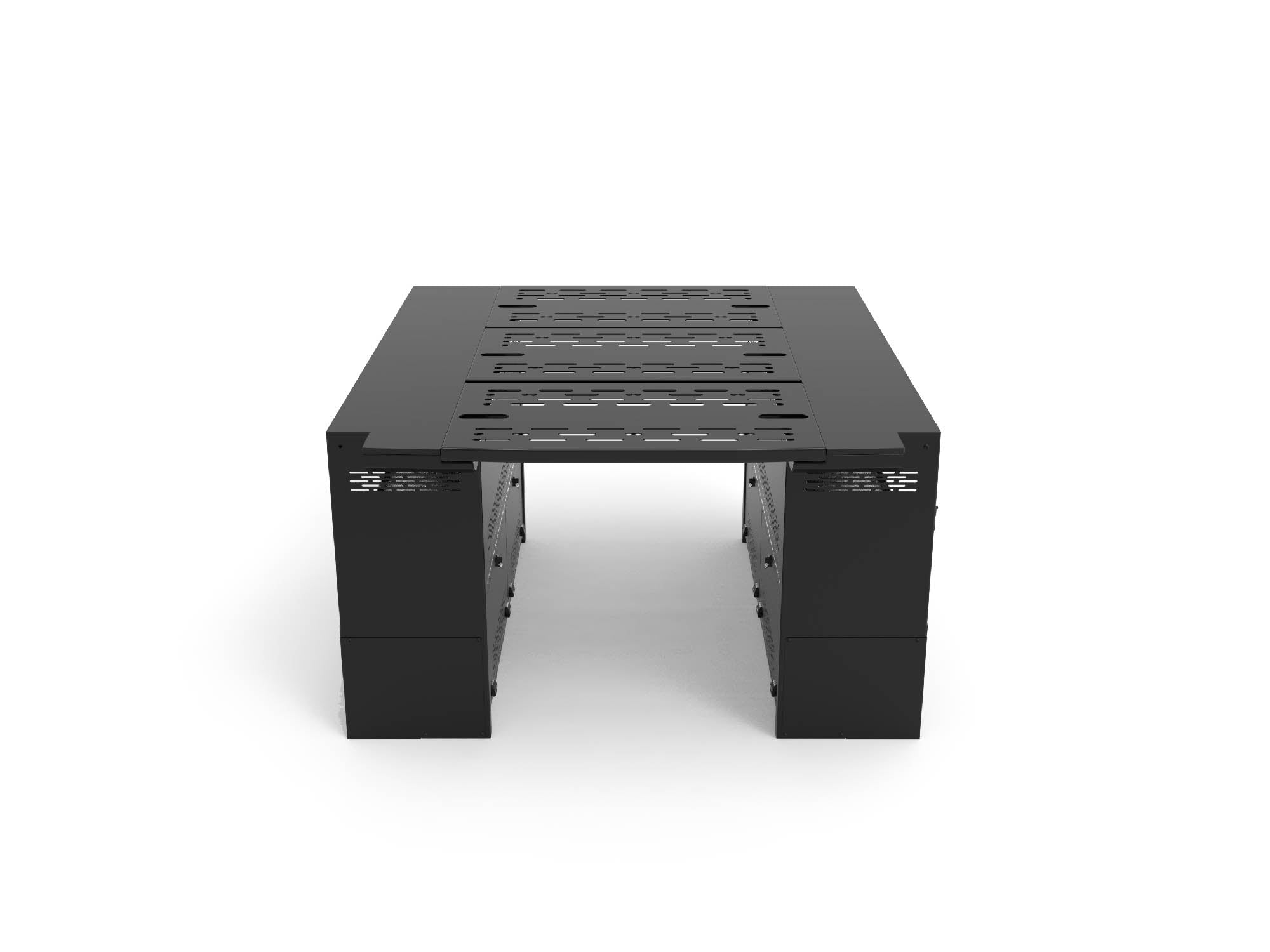

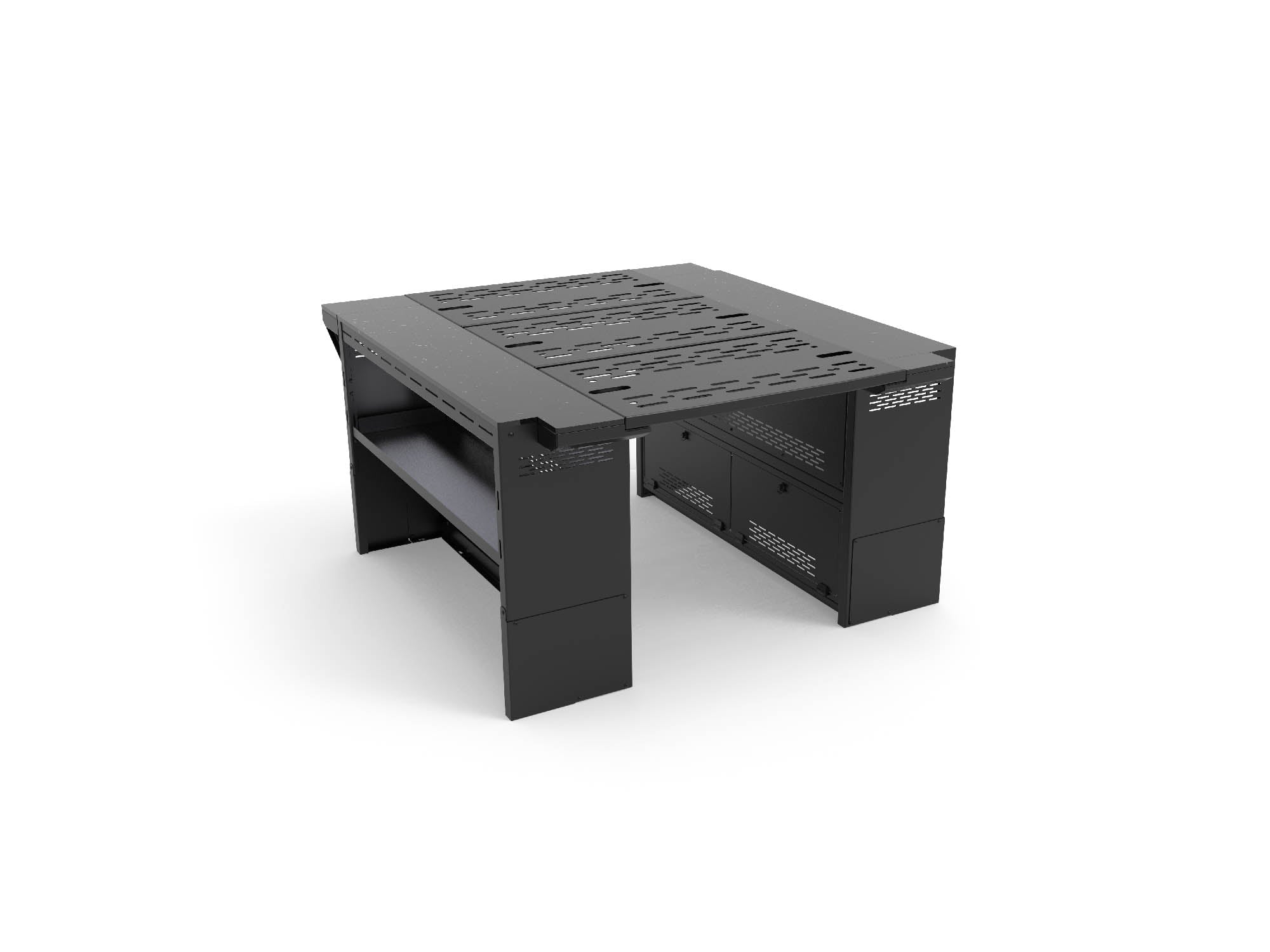

- North/South bed dimensions: 66" to 69" wide x 74" long

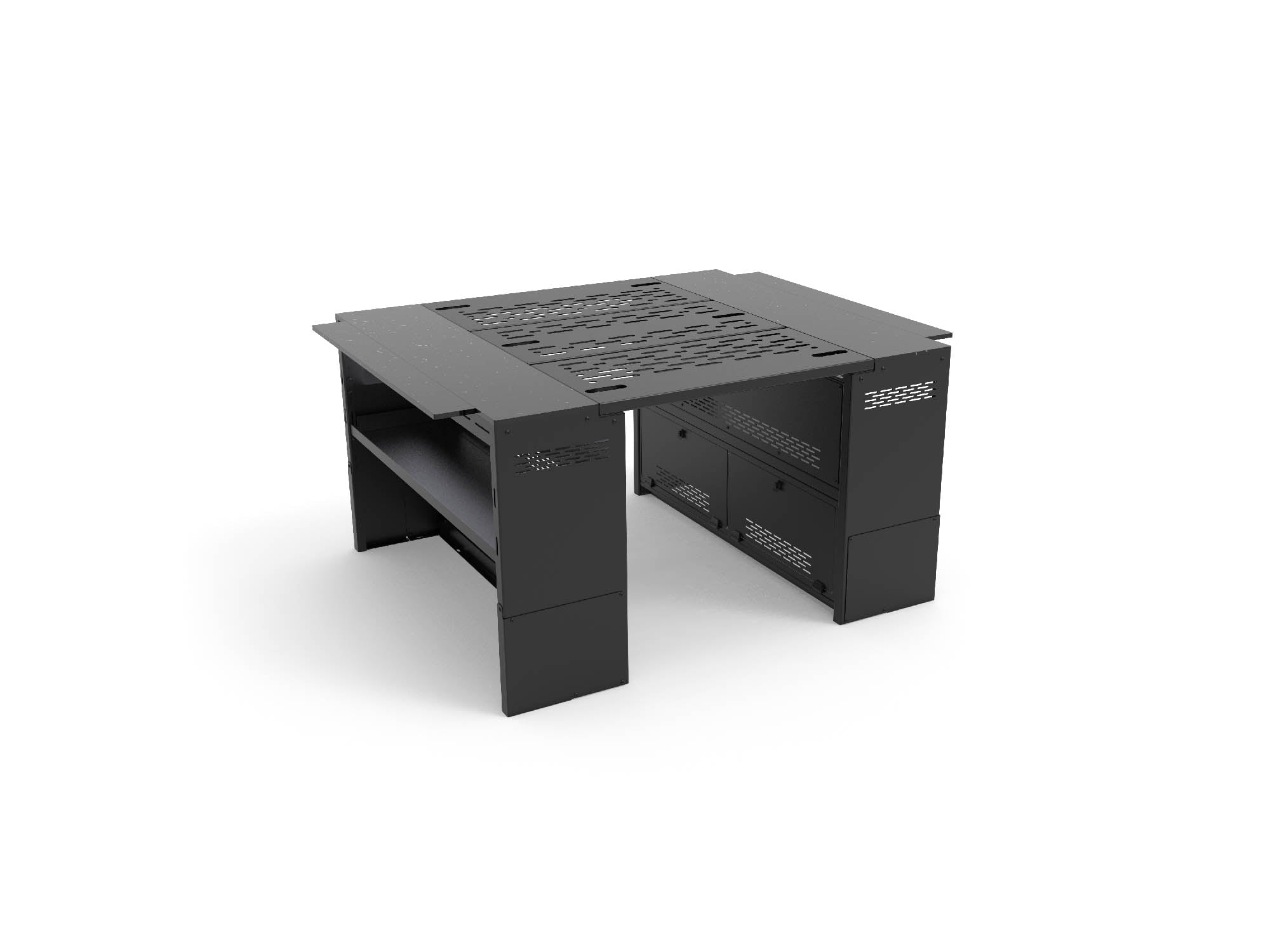

- East/West bed dimensions: 60" wide x 66" to 69" long plus flare cavity

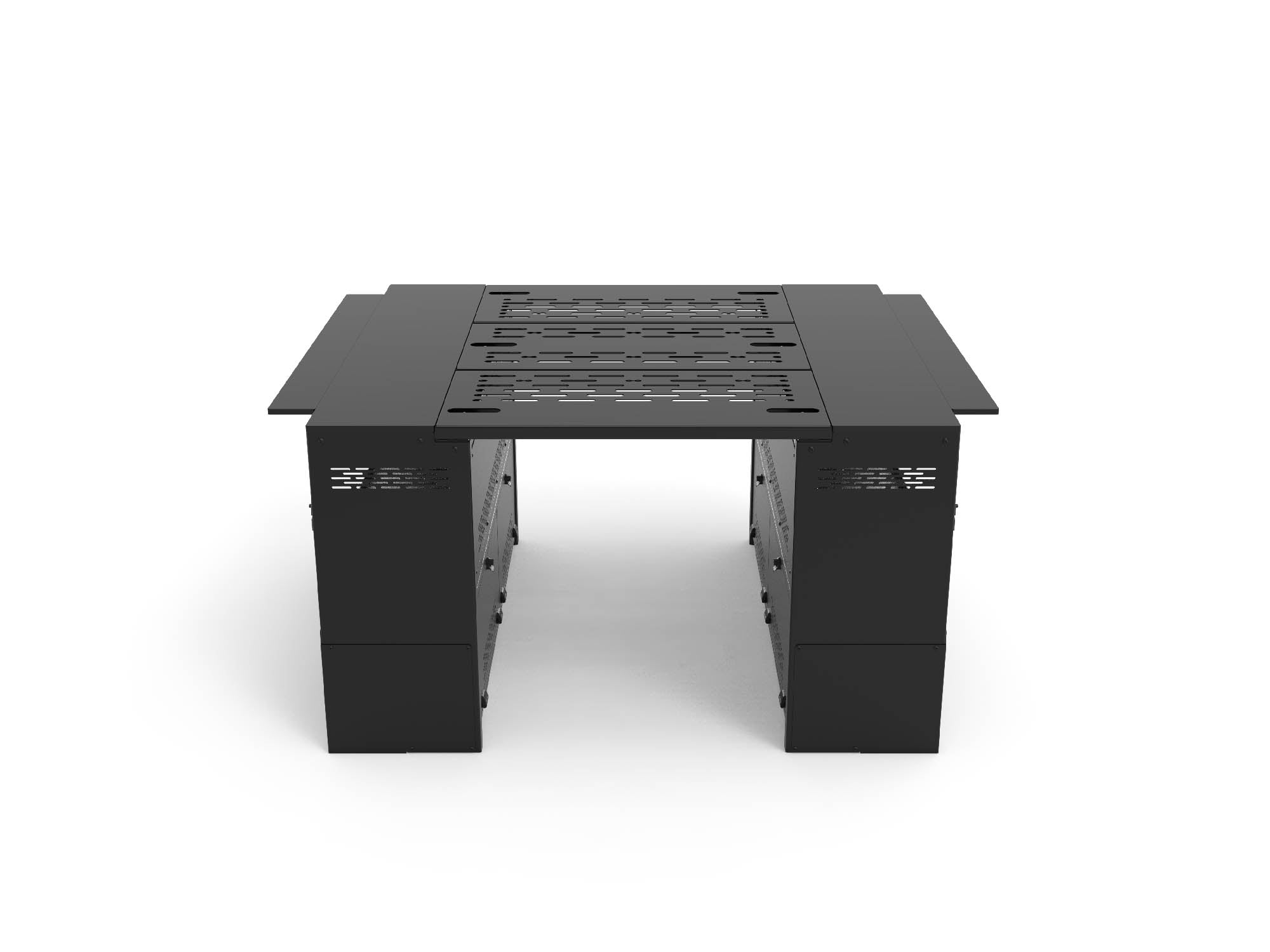

- East/West flare extensions included: 49" wide x 5" deep
- Cover panels included for a flush 60" wide x 16" deep countertop on each side when the bed is not in use (North/South extends to 73.43" long)
- Leaves 33" to 36" wide x 36" tall of open storage space beneath the bed panels
- Built to house a complete electrical system
- Compact-grade laminate countertops
- Adjustable mounting hardware with 1.5" of range for different wall setups
- Lightweight bed system made of all-aluminum 3mm construction with stainless steel hardware and black interior powder coat finish

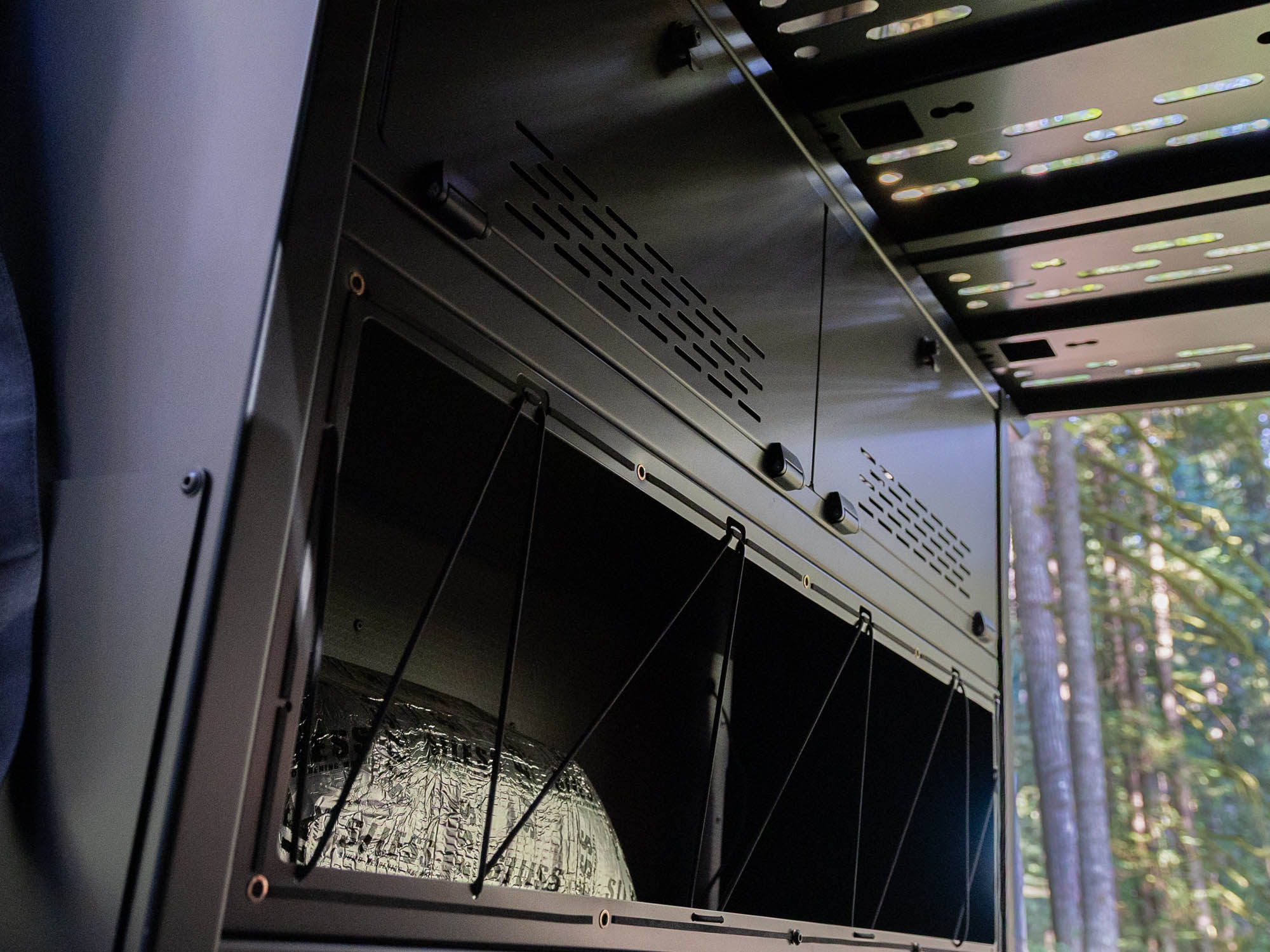

- Bungee included
- Sprinter compartments fit 20-gallon NW Conversions wheel-well water tanks: SP-L-20, SP-R-20, SP-C-20
- Transit compartments fit 24-gallon NW Conversions wheel-well water tanks: TR-L-24, TR-R-24, TR-C-24
- Compatible with the Murphy Bed Ladder with drilling
- EcoFlow Compatible
COMPATIBILITY
- 2007+ Sprinter 1500/2500/3500/3500XD | 144"/170"/170" EXT | Low/High Roof
- 2015+ Transit 150/250/350 | 148"/148" EXT | Low/Mid/High Roof
- Not compatible with Transit 130"
