Description
x

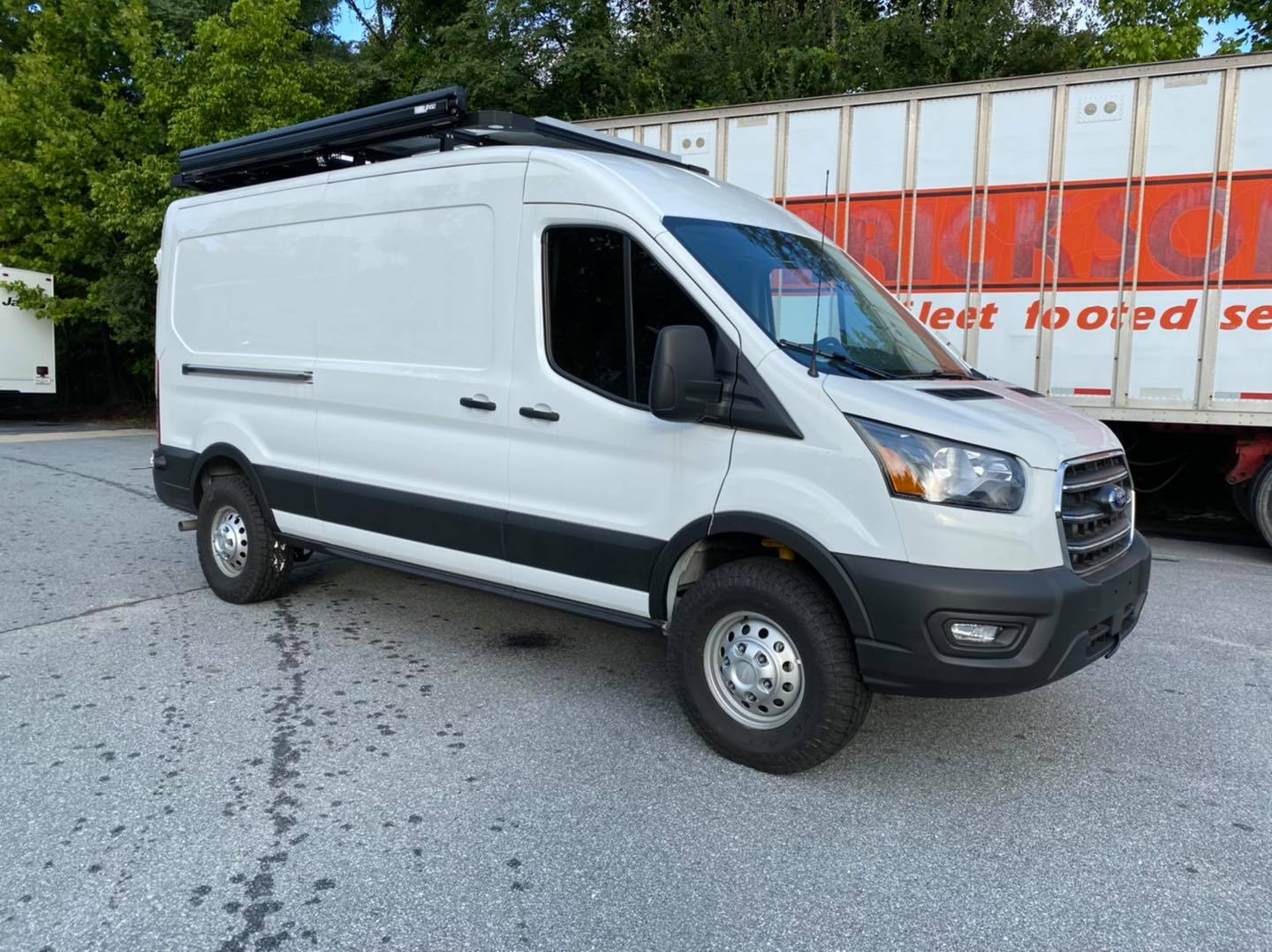

Upgrade the ride quality, handling, and stance of your 2018+ Ford Transit with the Van Compass Stage 1 Topo 2.0 Suspension System. This tuned suspension package delivers an aggressive 2-inch taller stance that improves ground clearance, increases approach and breakover angles, and allows larger tires to better smooth out rough roads and trail terrain.

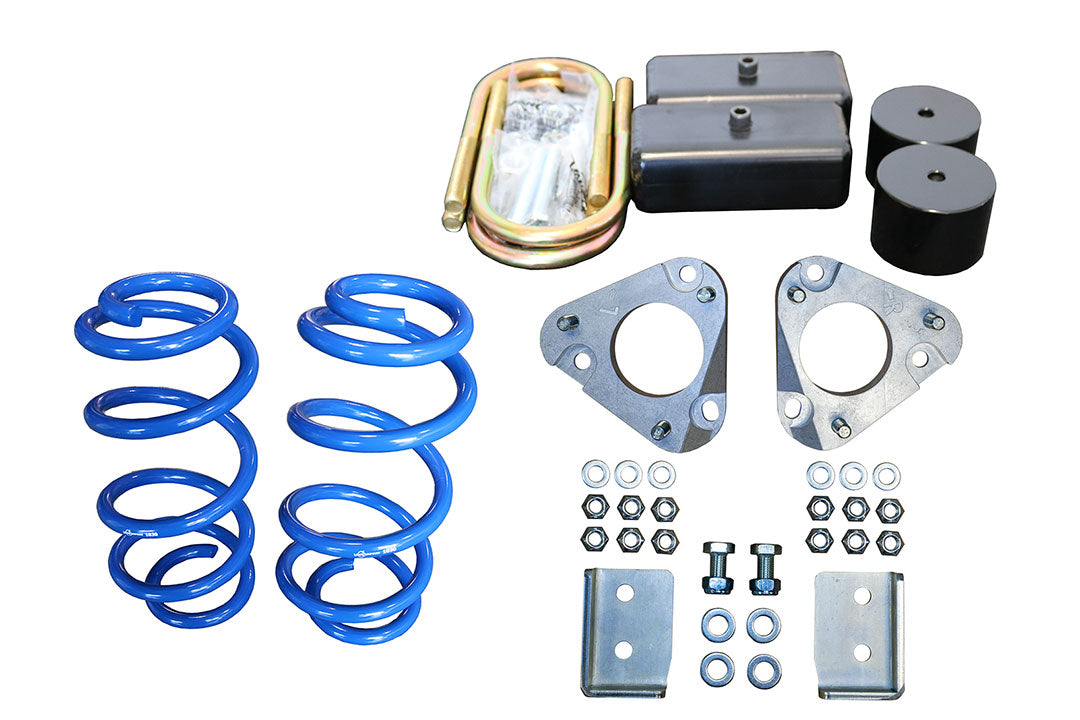

Stage 1 is built as an entry-level performance system for lighter vans that don’t have rear sag issues and for passenger vans that want a more capable, more confident feel on broken pavement, washboard roads, and uneven ruts. The kit combines a precision-engineered 0.75" camber correction plate with a tuned coil spring to achieve approximately 1.25" of front lift and increased compression travel. Rear lift is accomplished with a 2" billet aluminum block and matching bump stop spacers to preserve rear suspension geometry. Included rear shock relocation brackets allow trimming the low-hanging factory shock mounts for improved under-axle clearance.

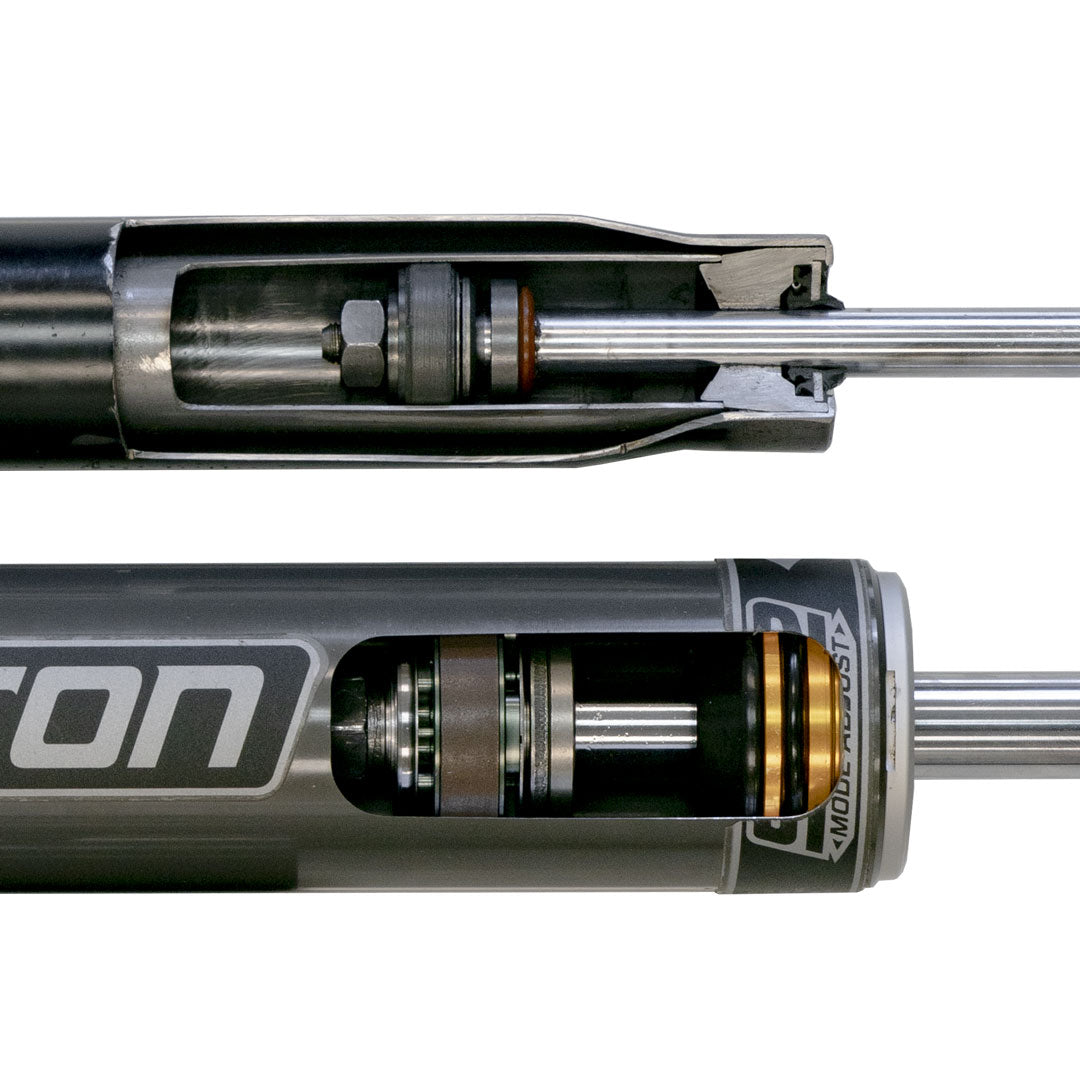

To complete the system, VC-tuned Falcon 2.1 Monotube shocks are included to dramatically improve damping control—reducing wind sway, body roll, and jarring impacts while improving stability and driver confidence.
Note: Bilstein B6 struts are not included with AWD systems because added strut length can contribute to CV boot failure.
Features
xKey Features

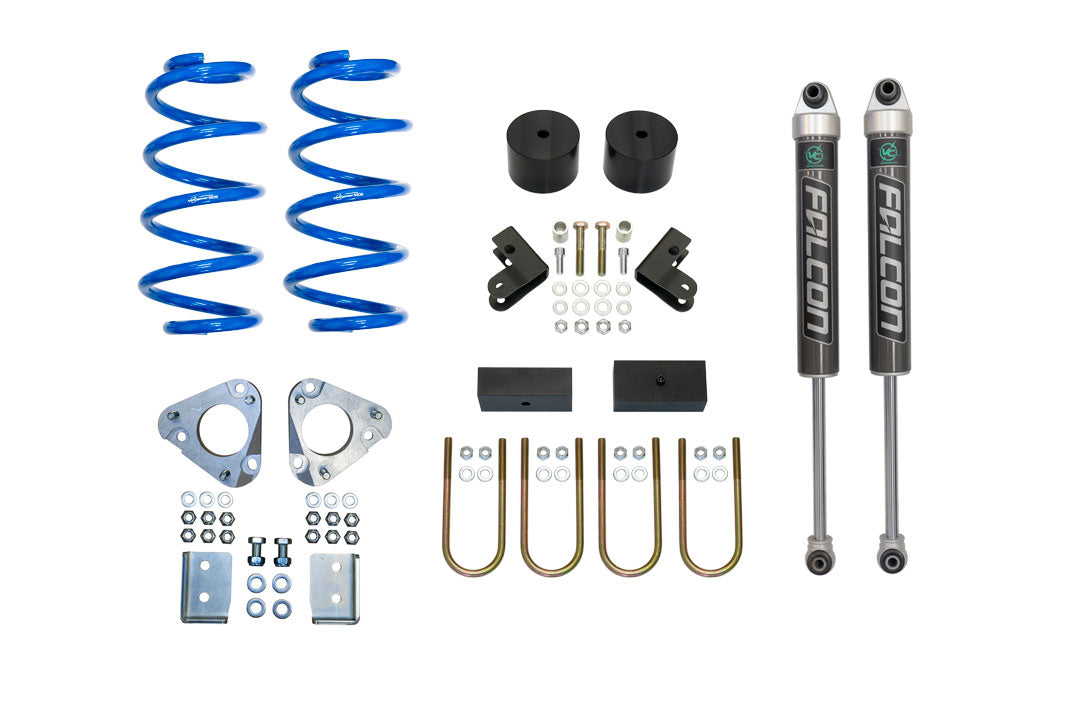

- Complete Stage 1 Topo 2.0 tuned suspension system for 2018+ Ford Transit
- Provides an aggressive ~2" taller stance for improved clearance and larger tire capability
- 0.75" camber correction plate to help maintain proper alignment geometry
- Custom tuned front coil spring delivering approximately ~1.25" front lift and increased compression travel
- 2" billet aluminum rear lift block with matching bump stop spacers to maintain rear geometry
- Rear shock relocation brackets allow trimming of low-hanging factory mounts for better under-axle clearance

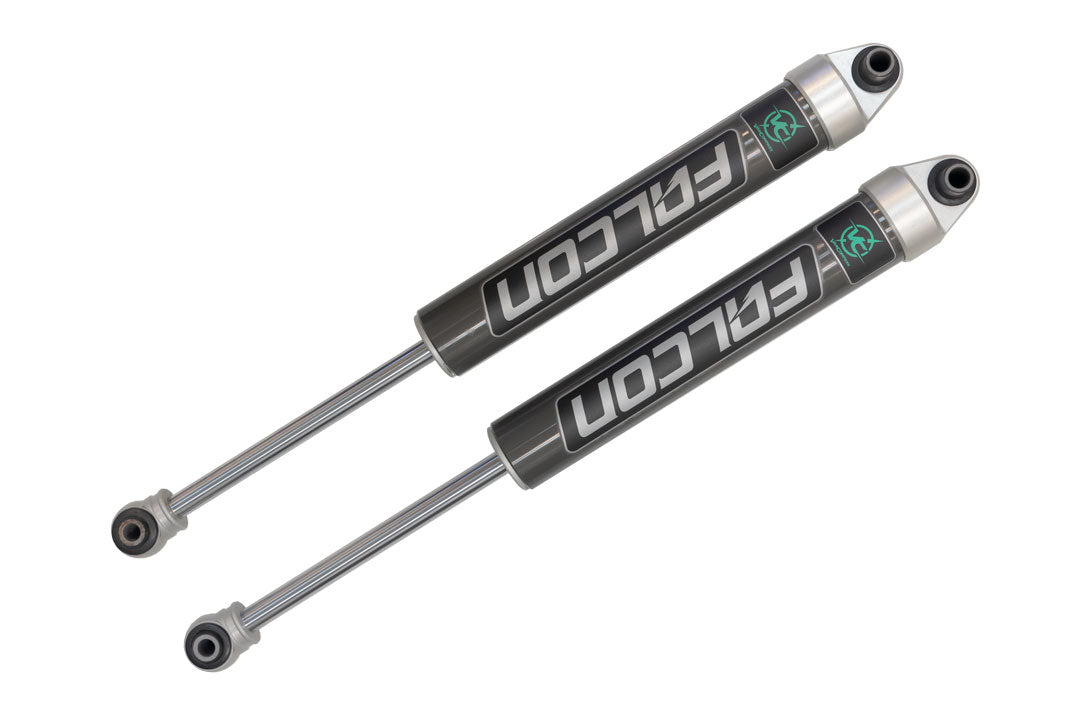

- Includes VC-tuned Falcon 2.1 Monotube shocks for improved control and stability

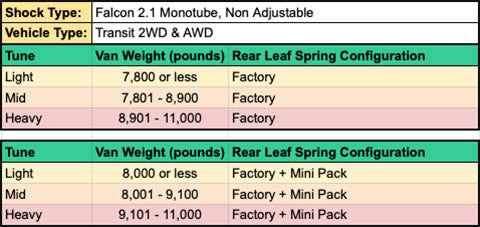

- Choose shock tune based on vehicle weight: MID or HEAVY
- AWD note: Bilstein B6 front struts are not included with AWD systems (added length may contribute to CV boot failure)
Fitment
xFitment
- Ford Transit 150 / 250 / 350 / 350HD (2018–Up)
- Drivetrain: AWD and RWD
- Rear Wheel Type: SRW (Single Rear Wheel) & DRW (Dual Rear Wheel)
- Shock Tune Options (select based on vehicle weight):
- MID – Under 8,900 lbs
- HEAVY – Over 8,900 lbs
