Description
xTransform the ride quality, stance, and off-road capability of your Ford Transit with the Topo 2.0 Front Leveling Kit, engineered for 2013–present Transit RWD and AWD models, including both single and dual rear wheel vans. Developed to meet the unique packaging, alignment, and CV-shaft constraints of the Transit platform—especially 2020+ AWD models—this kit delivers a true 2.0 inches of front suspension lift without compromising drivability or component longevity.

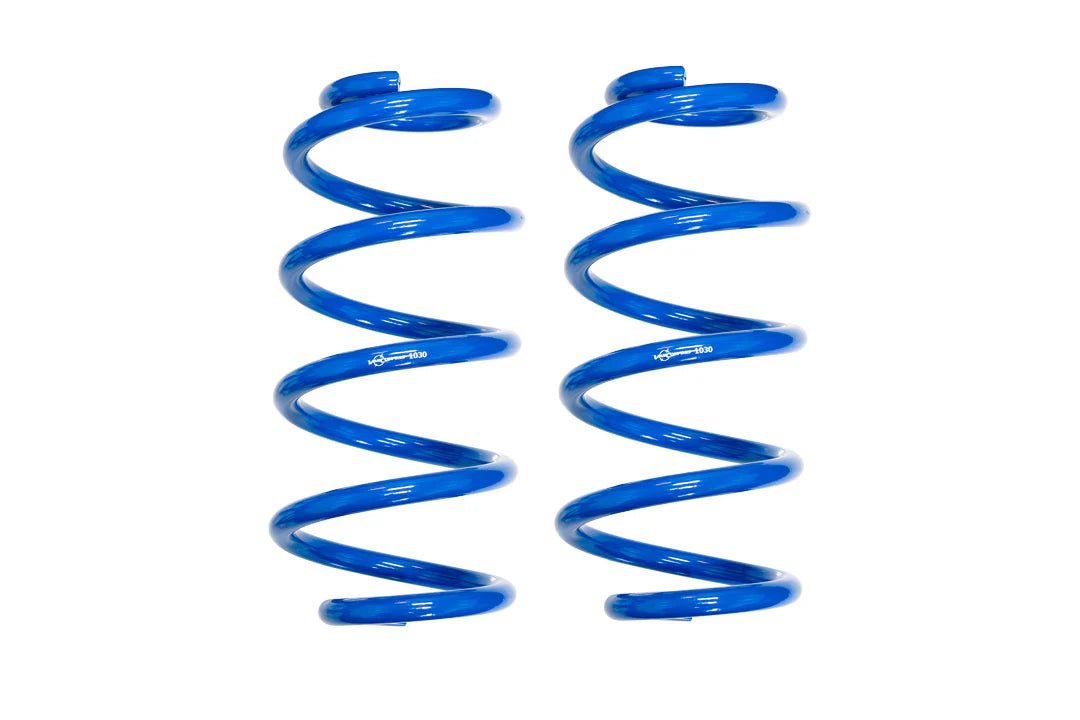

At the heart of the system is a 1" lift coil spring designed to retain factory spring rate for an OEM-like ride, while positioning the suspension higher in its travel for an increase in compression capability and improved front-end composure. Most vans experience approximately 1.25” of actual lift depending on weight distribution.

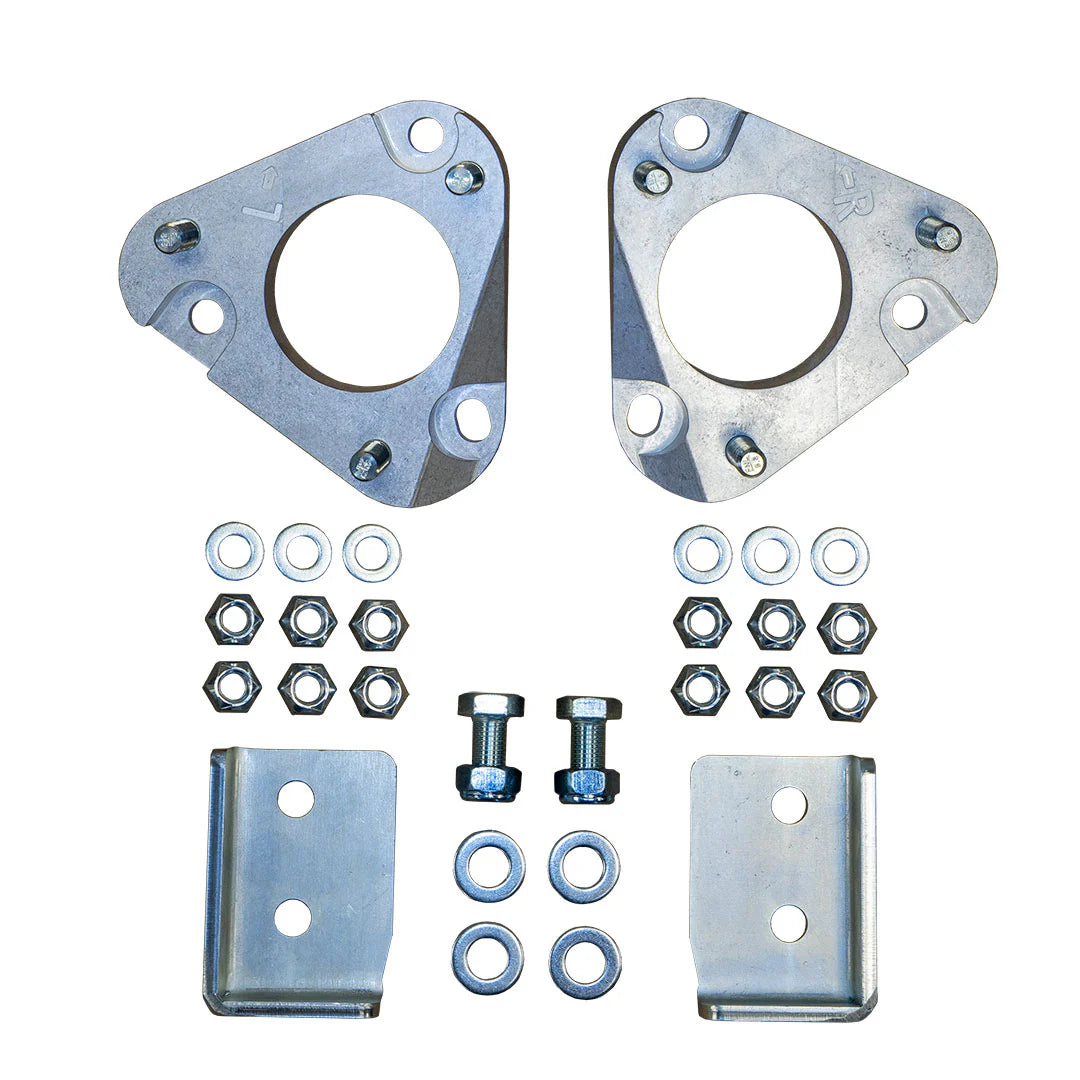

Lifting a Transit comes with challenges: minimal factory camber/caster adjustment and a short passenger-side CV shaft that cannot exceed more than 1" of added droop. To solve this, the Topo 2.0 kit includes a 3/4" strut spacer with built-in camber and caster correction, ensuring proper alignment and preventing CV binding on AWD models. The result is a properly engineered lift that enhances ground clearance, improves handling, and preserves suspension and steering component life. Sway bar relocation brackets are included to maintain correct geometry under lifted conditions.
For even greater control, this system pairs exceptionally well with Bilstein B6 struts on RWD models, providing an additional ~¾” of preload lift and a noticeable boost in damping performance. (Note: Due to increased droop length, Bilstein struts are not recommended for AWD models.)
With correct installation and alignment, the Topo 2.0 kit supports tire sizes up to 265/75R16, delivering major clearance gains. When equipped with Bilstein struts, ground clearance under the front crossmember can reach 12.75 inches.
Engineered, tested, and refined specifically for the Transit platform, the Topo 2.0 Front Leveling Kit is the ideal upgrade for improved ride quality, lifted stance, and real-world performance—whether your adventures are on the highway or far beyond it.
Features

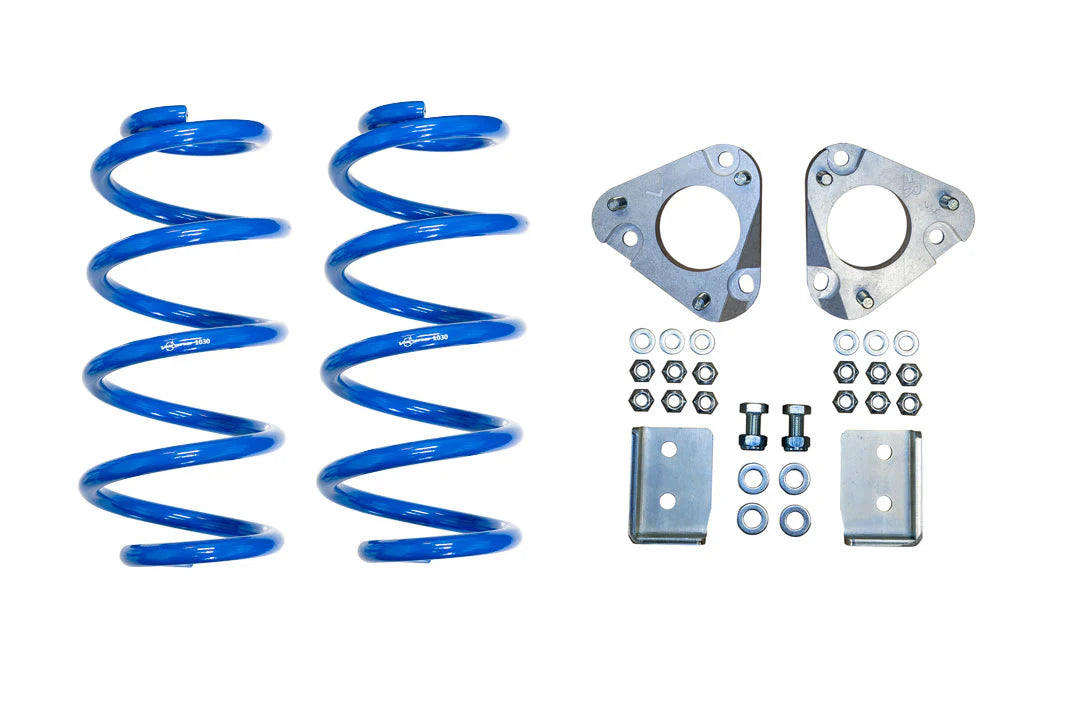

x- True 2.0" Front Suspension Lift: Combines a 1" lift coil and 3/4" strut spacer to achieve a functional and geometry-corrected 2" of lift.
- Maintains OEM Ride Quality: Lift coils retain factory spring rate for a plush, controlled feel while raising the van higher in its travel.
- Built-In Camber & Caster Correction: Strut spacer corrects alignment issues common after lifting, preventing premature tire and component wear.
- AWD-Compatible Engineering: Designed around the short AWD passenger-side CV shaft to prevent over-extension and CV binding.
- Improved Ground Clearance: Allows fitment of tires up to 265/75R16 and dramatically increases under-body clearance.
- Sway Bar Relocation Brackets: Included to maintain proper sway bar geometry with lifted suspension.
- Compatible With Bilstein B6 Struts (RWD Only): Provides enhanced damping and additional lift when used on RWD models (not recommended for AWD).
- Installer-Friendly System: Designed for straightforward installation when performed by a qualified technician.
Fitment
xFitment
| Model: | Ford Transit |
| Years: | 2013–Present |
| Drive Type: | RWD & AWD |
| Rear Wheel Configuration: | Compatible with Single & Dual Rear Wheel (SRW/DRW) |
| Recommended Max Tire Size: | 265/75R16 (some trimming required) |
| Important Notes: | Van must be professionally aligned after installation. Coil springs not included. CV bind risk if Bilstein struts are used on AWD models. |
Complete Wheel & Tire Fitment Guide
