Description

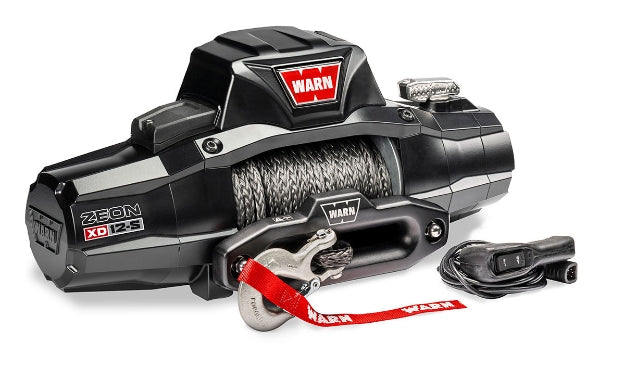

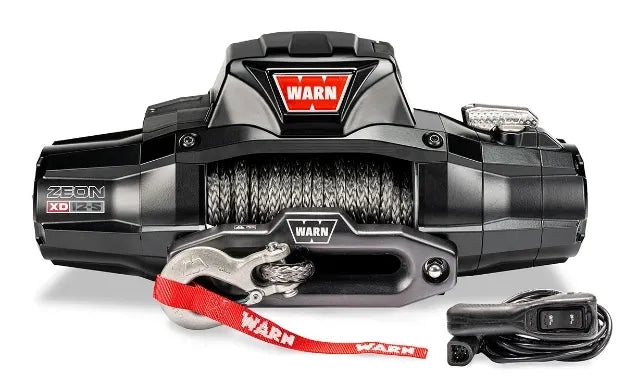

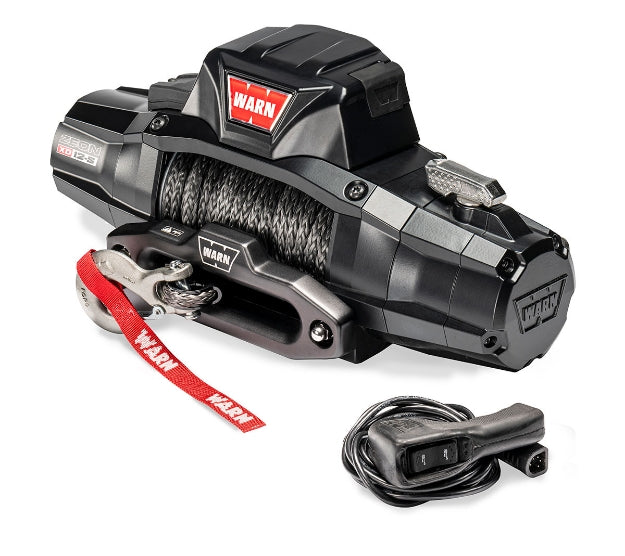

xThe WARN ZEON XD 12-S Winch is engineered for serious recovery demands—built from the ground up for unmatched performance, durability, and reliability. Designed, tested, and assembled in Clackamas, Oregon, USA, this winch represents the next generation of WARN’s legendary ZEON lineup.
With blazing-fast line speeds, advanced waterproofing, and an upgraded high-efficiency motor and geartrain, the ZEON XD 12-S delivers ultimate confidence when recovery is not optional. Rated for a 12,000 lb pull capacity, it features WARN’s Spydura Pro synthetic rope, a forged 6061-T6 aluminum fairlead, and a 3-stage planetary geartrain for smooth, powerful operation in all conditions.
The ZEON XD’s full-metal armor protects internal components from impact and the elements, while IP68/IP69K waterproof sealing ensures dependable operation through submersion and high-pressure spray. The included corded remote and HUB Wireless Receiver provide over 100 feet of control range through the WARN HUB app.

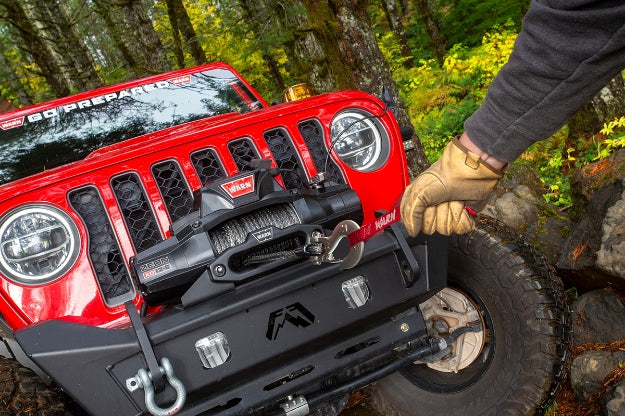

Whether you’re outfitting your adventure van, overland rig, or recovery vehicle, the WARN ZEON XD 12-S combines speed, strength, and innovation—ready for every challenge you face on the trail.
Features
x- 12,000 lb Rated Line Pull: Ideal for heavy-duty recovery of vans, trucks, and off-road vehicles.
- Fastest in Class: Up to 40 ft/min no-load line speed with new high-efficiency motor and geartrain.
- Premium Waterproof Construction: IP68K submersion and IP69K high-pressure spray rated with O-ring rubber sealing throughout.
- Full Metal Armor: Protects key components from trail impacts and debris.
- Spydura Pro Synthetic Rope: 3/8" x 80' high-strength rope with heat-resistant inner wraps and abrasion sleeve.
- Forged Aluminum Fairlead: Black anodized 6061-T6 billet aluminum for corrosion, salt, and UV resistance.
- Advanced Electrical System: Albright contactor, automotive OE-grade bus bars, and upgraded corrosion-resistant fasteners.
- Reliable Mechanical Components: 3-stage planetary geartrain and automatic six-segment mechanical cone brake.

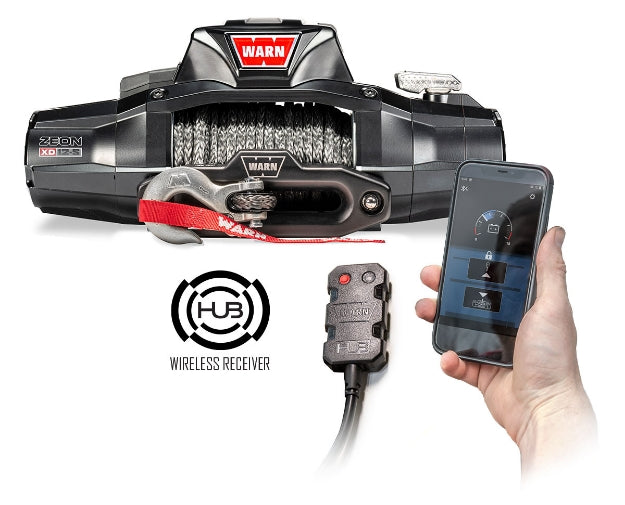

- Convenient Operation: Includes waterproof 12' corded remote and HUB Wireless Receiver for app-based control up to 100+ ft.
- Made in the USA: Engineered, tested, and assembled at WARN’s facility in Clackamas, Oregon.
- Industry-Leading Warranty: Limited lifetime mechanical and 7-year electrical coverage backed by WARN’s global service network.
Fitment
x| Model: | WARN ZEON XD 12-S Winch |
| Rated Line Pull (Single Line): | 12,000 lbs (5443 kg) |
| No Load Line Speed: | 31 ft/min (9.45 m/min) |
| Rated Load Line Speed: | 3 ft/min (0.91 m/min) |
| Motor: | 12V DC, series wound (exclusive WARN high-performance design) |
| Electrical Controls: | Albright contactor with automotive OE-grade bus bars |
| Geartrain: | 3-stage planetary, 176:1 gear ratio |
| Clutch: | Rotating ring gear with stainless steel lever (manual freespool) |
| Brake: | Automatic six-segment mechanical cone |

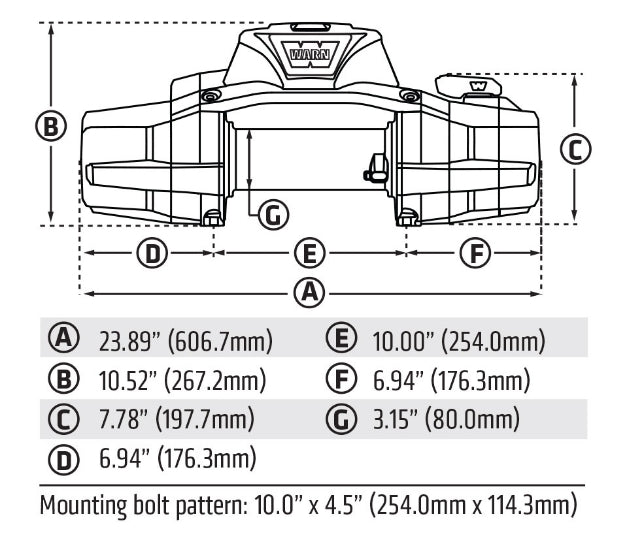

| Drum Diameter / Length: | 3.15" / 9.0" (80 mm / 229 mm) |
| Rope Type: | Spydura Pro Synthetic, 3/8" x 80' (9.52 mm x 24.38 m) |
| Fairlead: | Forged black anodized 6061-T6 aluminum hawse |
| Ingress Protection: | IP68 submersion & IP69K spray rated |
| Corrosion Resistance: | 408-hour salt spray tested |
| Recommended Battery: | 650 CCA minimum for winching |
| Battery Leads: | 2 gauge, 72" (1.83 m) |
| Remote: | Waterproof corded remote (12' lead) + HUB Wireless Receiver (100+ ft range) |
| Finish: | Satin-black powder coat |
| Weight: | 85 lbs (in box) |
| Assembly Location: | Clackamas, Oregon, USA |
| Warranty: | Limited lifetime mechanical / 7-year electrical |
Note: Compatible with most heavy-duty bumpers designed for standard winch mounts. Verify mounting pattern and electrical system capacity before installation.
