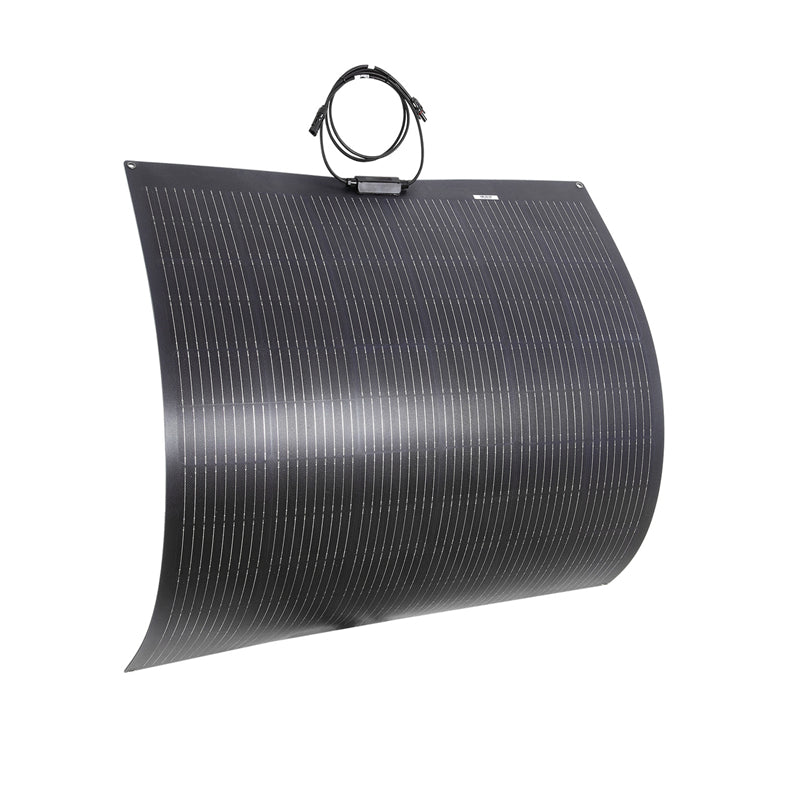

Lensun flexible solar panels feature a 9-layer monolithic lamination, including dual layers of aerospace-grade composite film—the same material used in commercial aircraft windows. This advanced architecture shields solar cells from vibration, impact, and thermal stress, delivering unmatched durability in off-road, overland, and harsh outdoor environments.

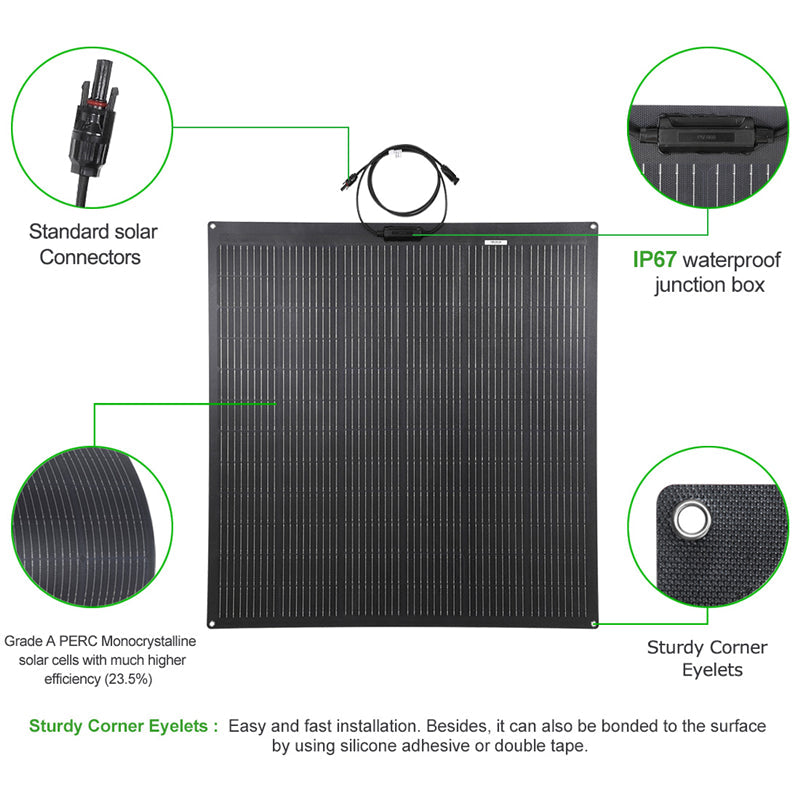

1. 9-Layer Monolithic Lamination: Seamless 9-material encapsulation delivers unmatched resilience against vibration, extreme temperatures, and harsh outdoor abuse—ideal for off-road and rugged environments.

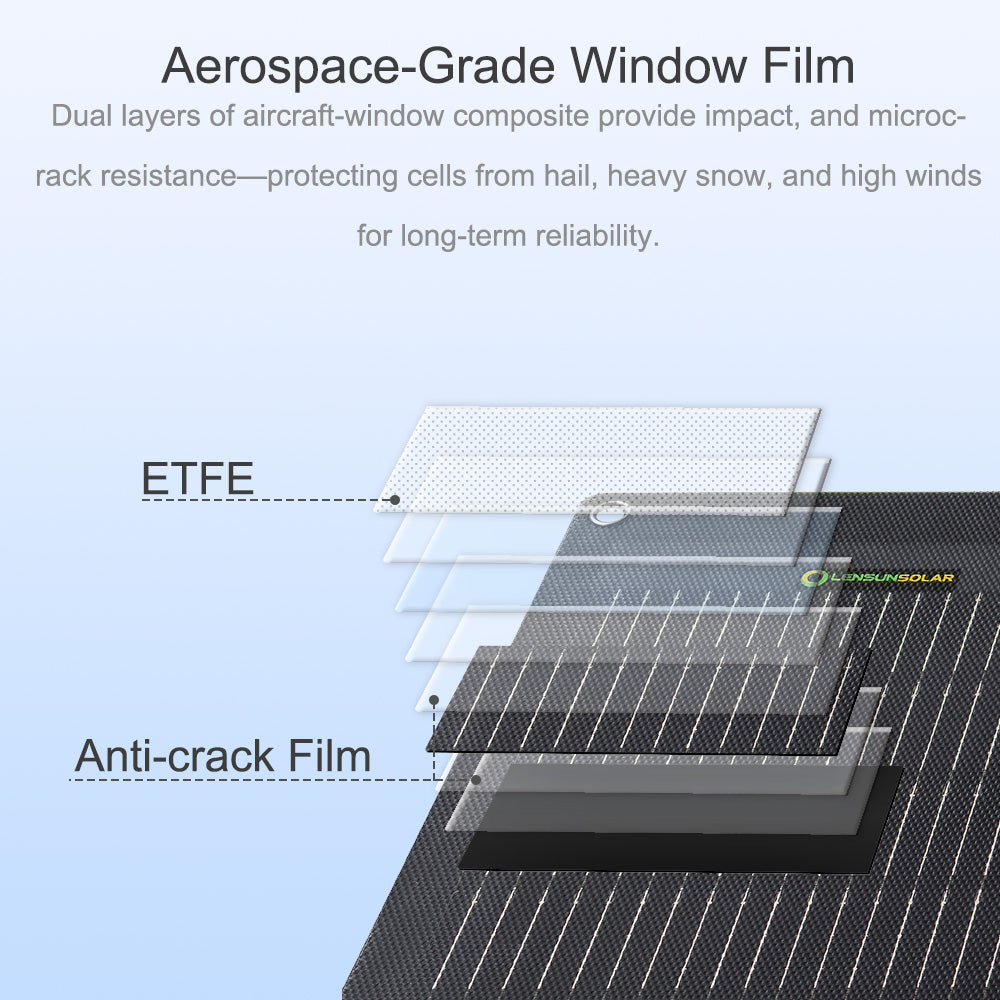

2. Aerospace-Grade Window Film: Dual layers of aircraft-window composite provide superior UV, impact, and microcrack resistance—protecting cells from hail, heavy snow, and high winds for long-term reliability.

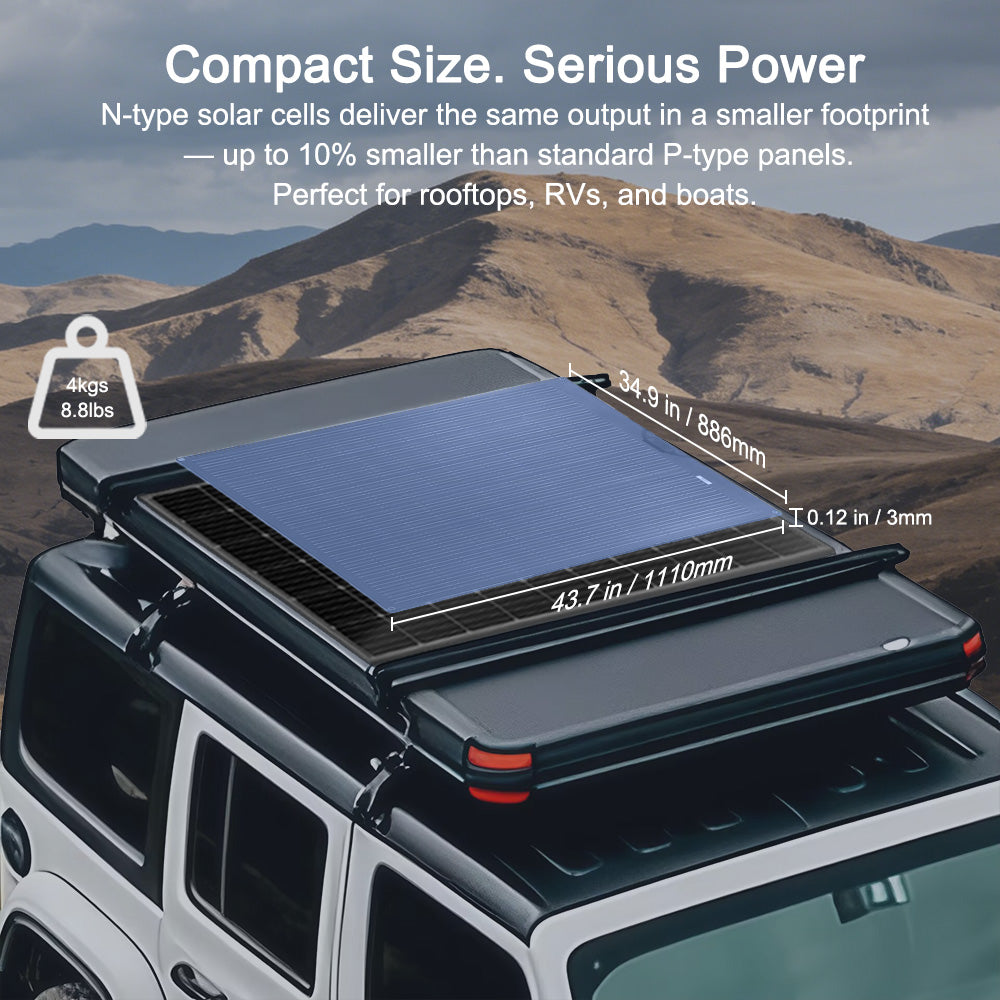

3. N-Type Solar cell: Advanced 18BB N-type cells (25% efficiency) deliver more power from the same size, and reduce hot spots and micro-cracks, ensuring longer lifespan and superior performance.

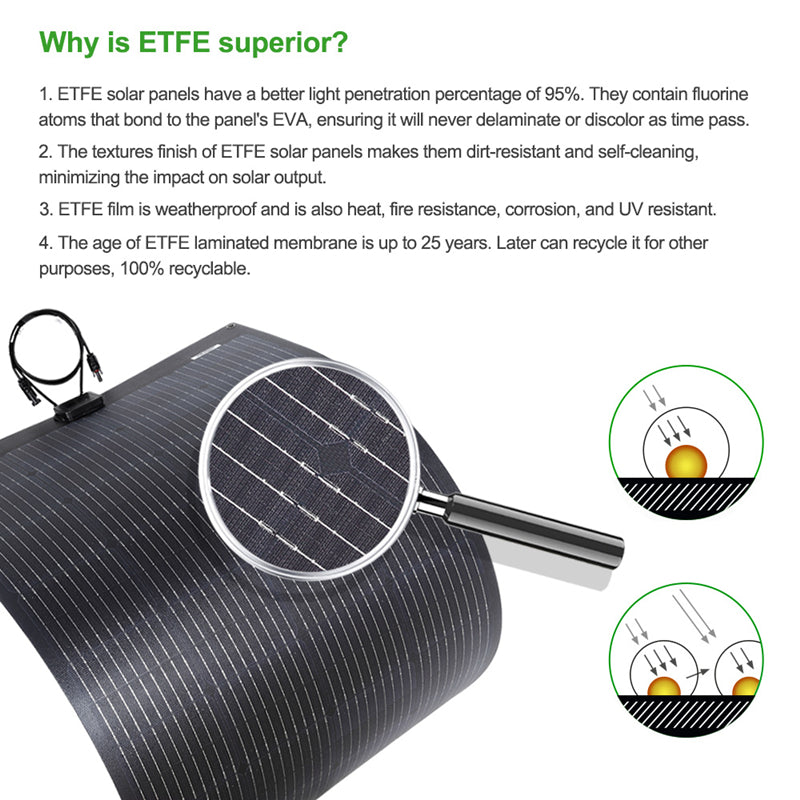

4. Premium ETFE Film: This film offers superior light transmittance and is heat, corrosion, and UV resistant. It also has self-cleaning abilities, ensuring optimal performance day after day.
5. Shade Tolerant: Twin array design allows continued performance even with shading by trees or debris.
6. Ultra-thin: At only 3mm/0.12 thick, our solar panel is powerful, waterproof, lightweight, durable, and highly resistant to the harsh operating conditions of a marine environment.

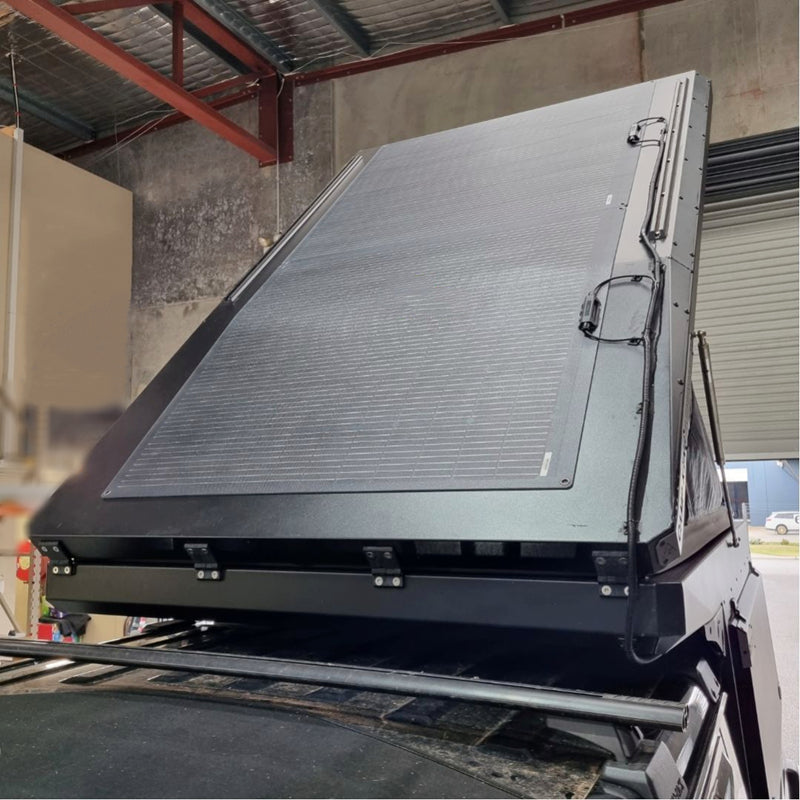

7. Lightweight: Weighs just ~30% of a glass-panel equivalent—ideal for maximizing power without hurting fuel economy or raising your vehicle's center of gravity.

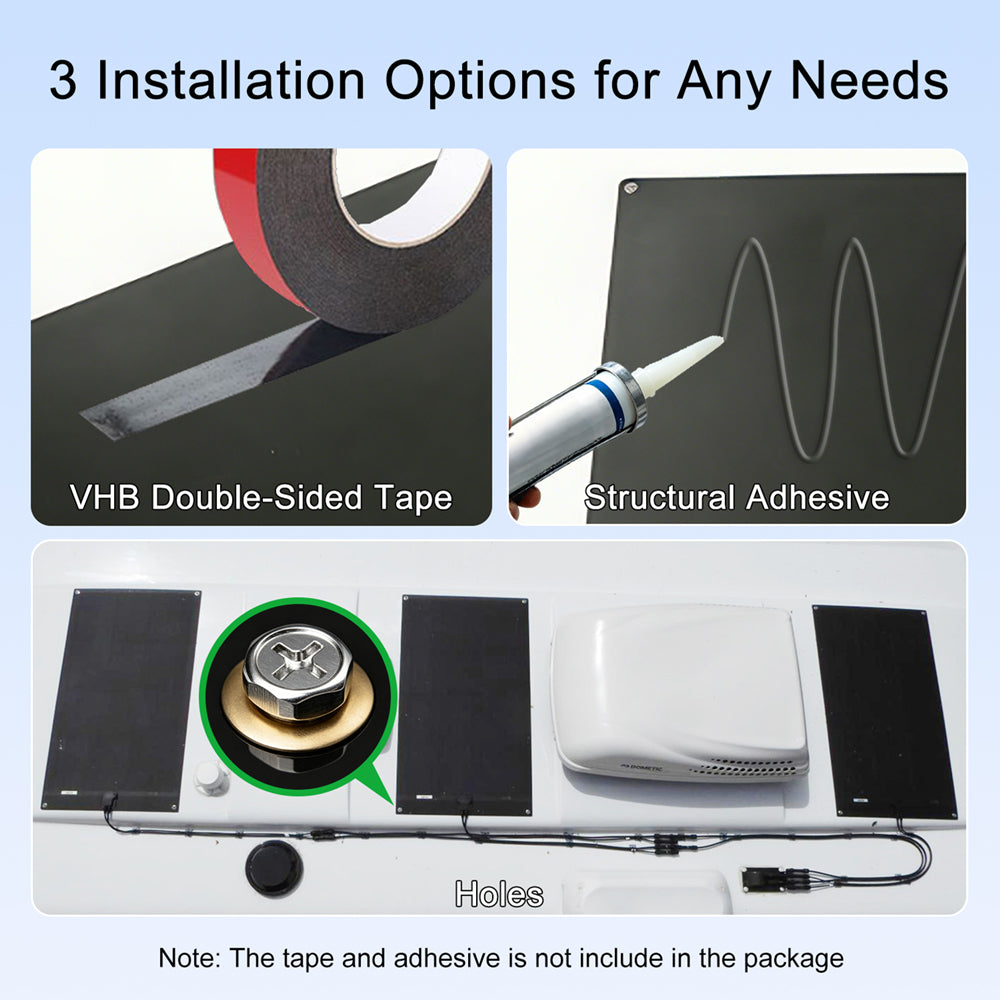

8. Installation: Easy installation using VHB double side tape (sold separately ) or automotive-grade structural adhesives such as Sikaflex 552, Sika 554, or Fix8...etc.
9. Fitting: 16ft/5m cable to connect two solar panels. Optional plug-and-play 40A waterproof MPPT controller—pre-wired with fuses and connectors, featuring smart protection (reverse polarity, overcharge) and compatibility with sealed, AGM, Gel, and lithium batteries.
Peak power: 200W
Solar cell efficiency: 25%
Maximum power voltage: 22V
Maximum power current: 9.09A
Open circuit voltage: 26V
Short circuit current: 10A
Power allowance range: +/-3%
Maximum system voltage: 500V
Cable: 3ft/1 meter

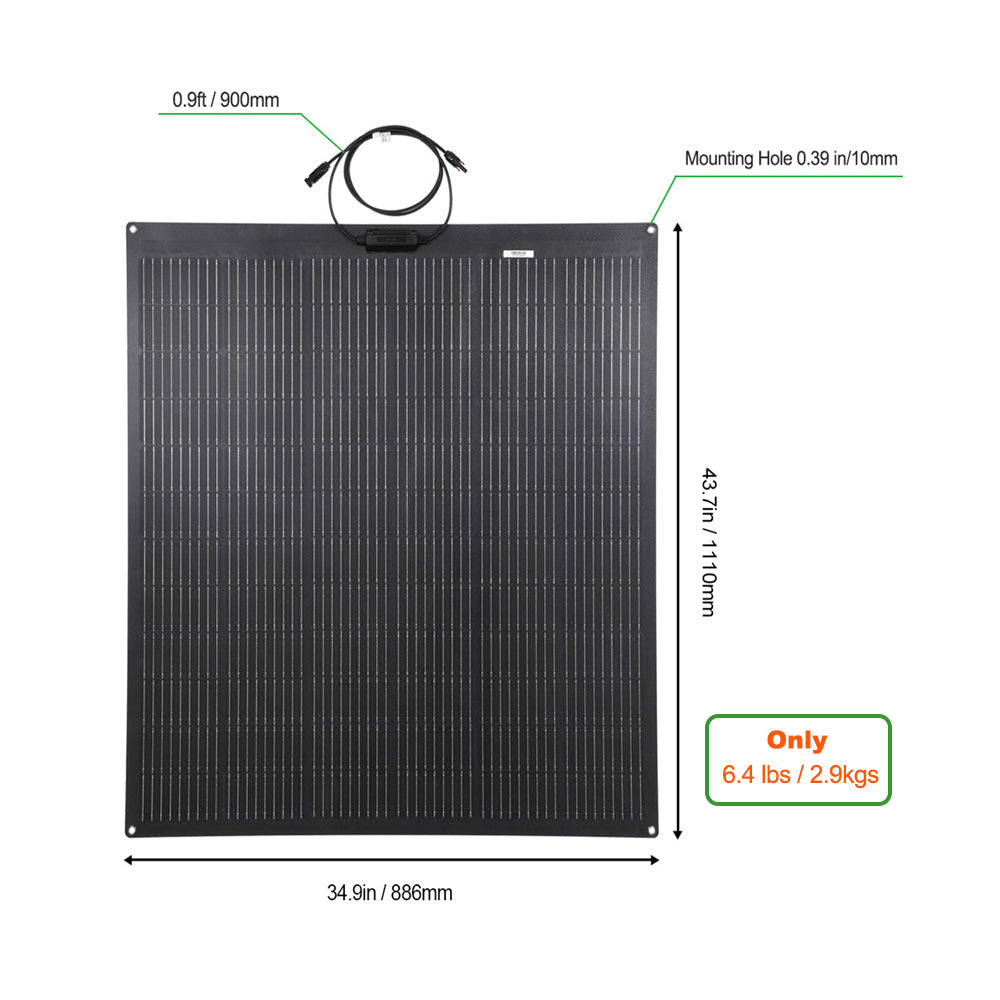

Dimensions: 1110mmx 886mmx2.5mm /43.7x34.9x0.1 inch
Net Weight: 2.9kgs/6.4 lbs
Values at standard test conditions: Air Mass - AM1.5, Irradiance - 1000W/m2, Cell Temperature - 25°C

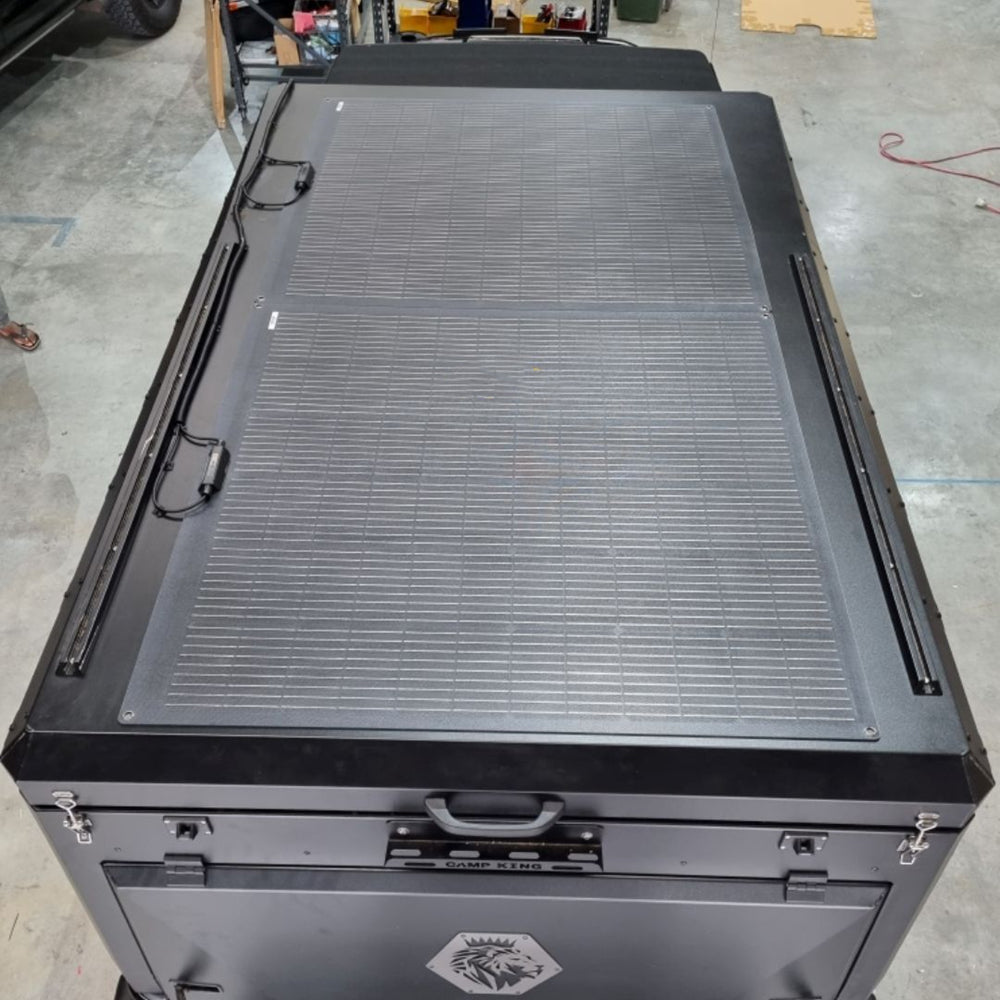

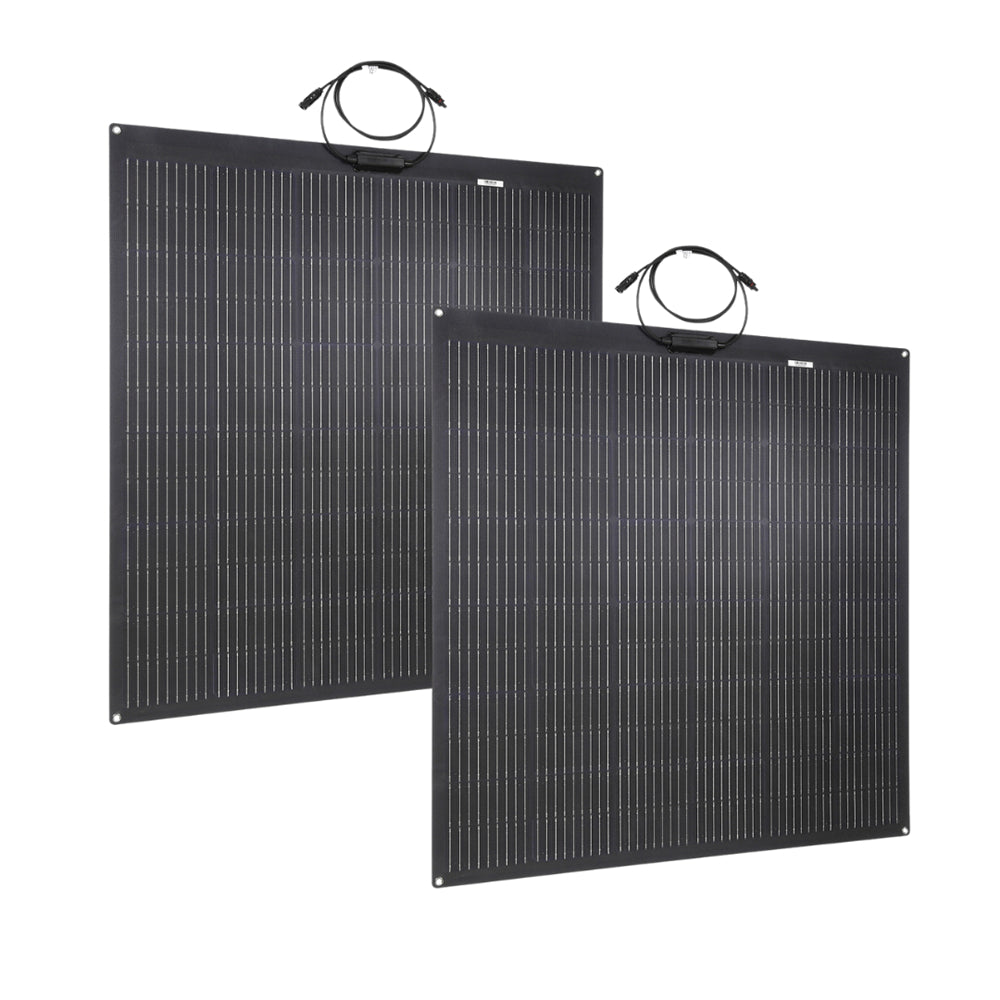

2 x Lensun 200W Flexible Solar Panel

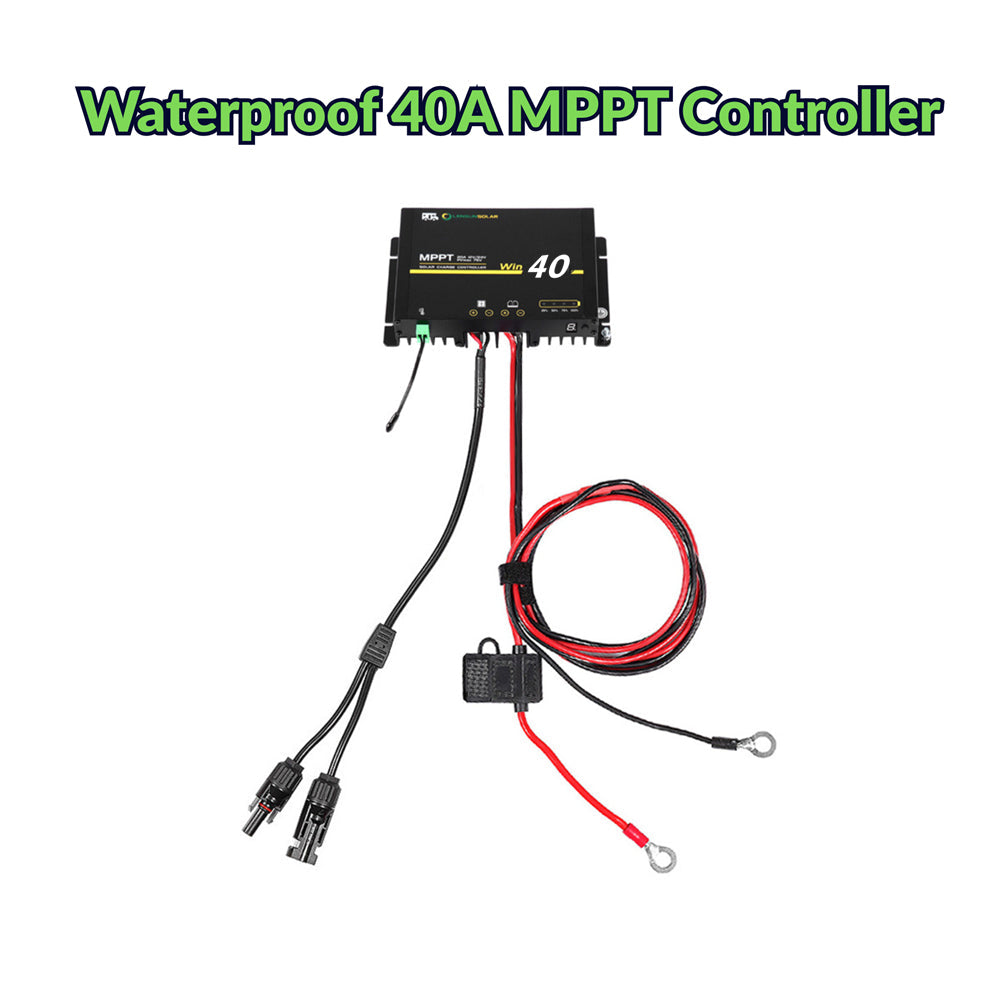

1 x 40A MPPT solar controller (at your option)

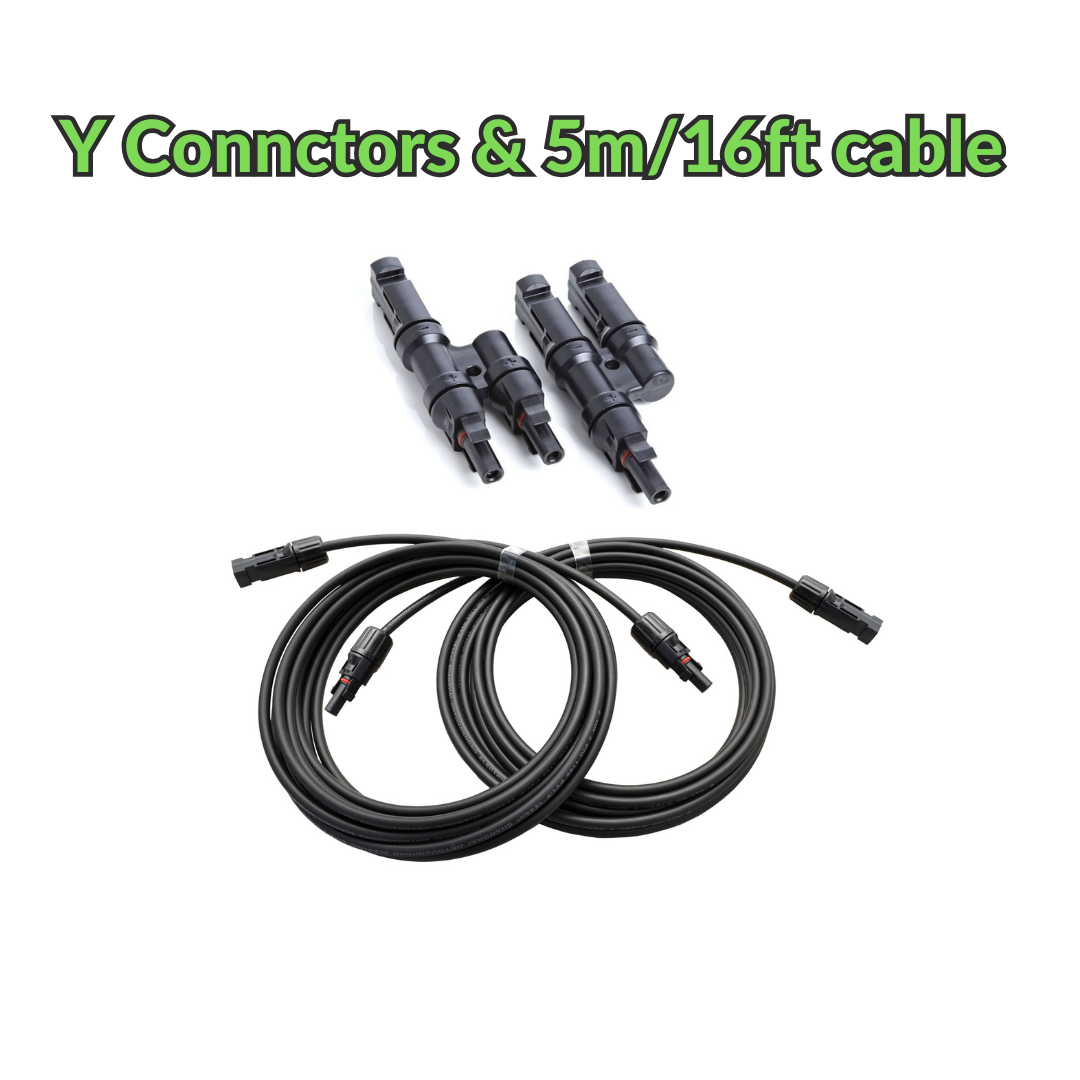

1x Y connectors & 16ft/5m extend cable (at your option)
