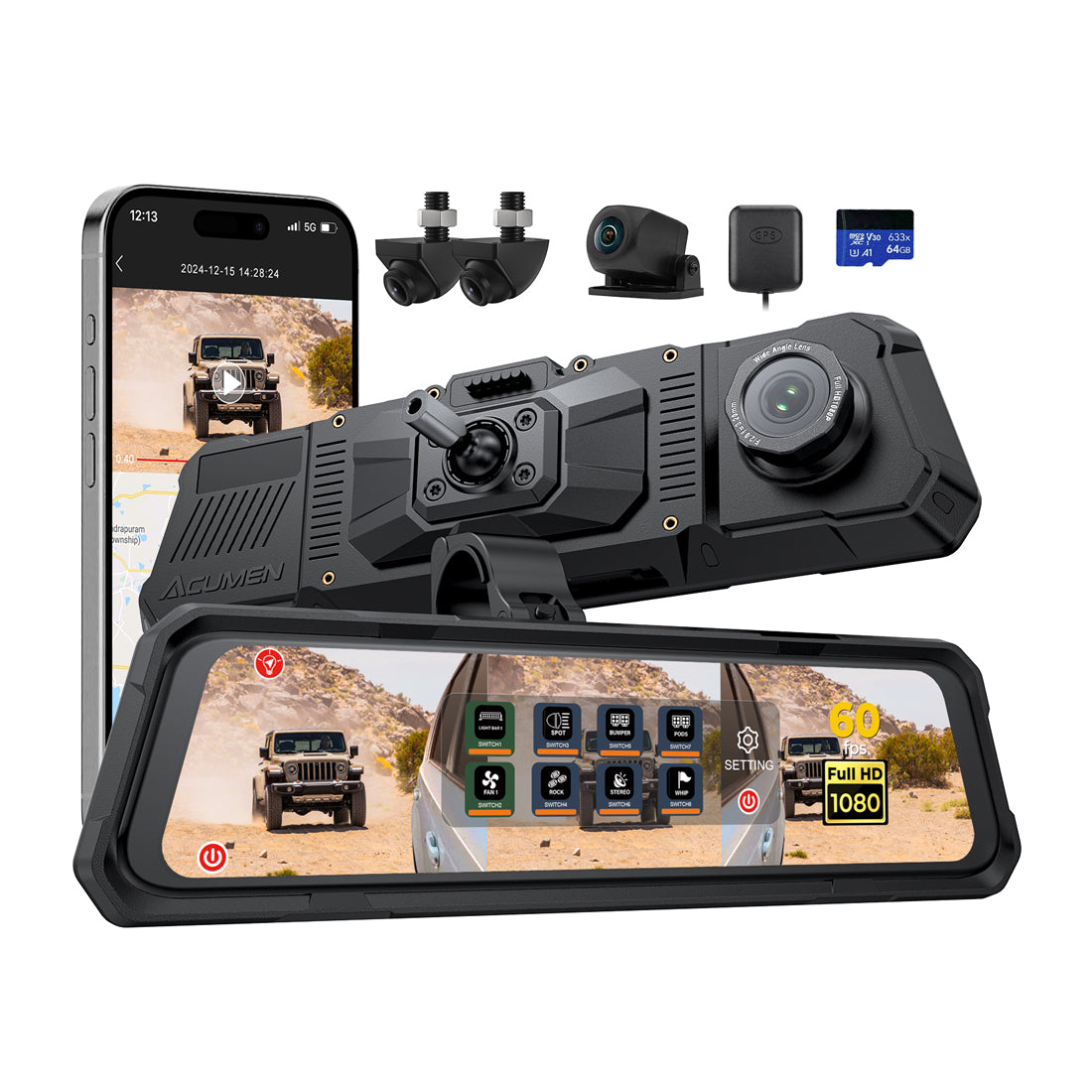

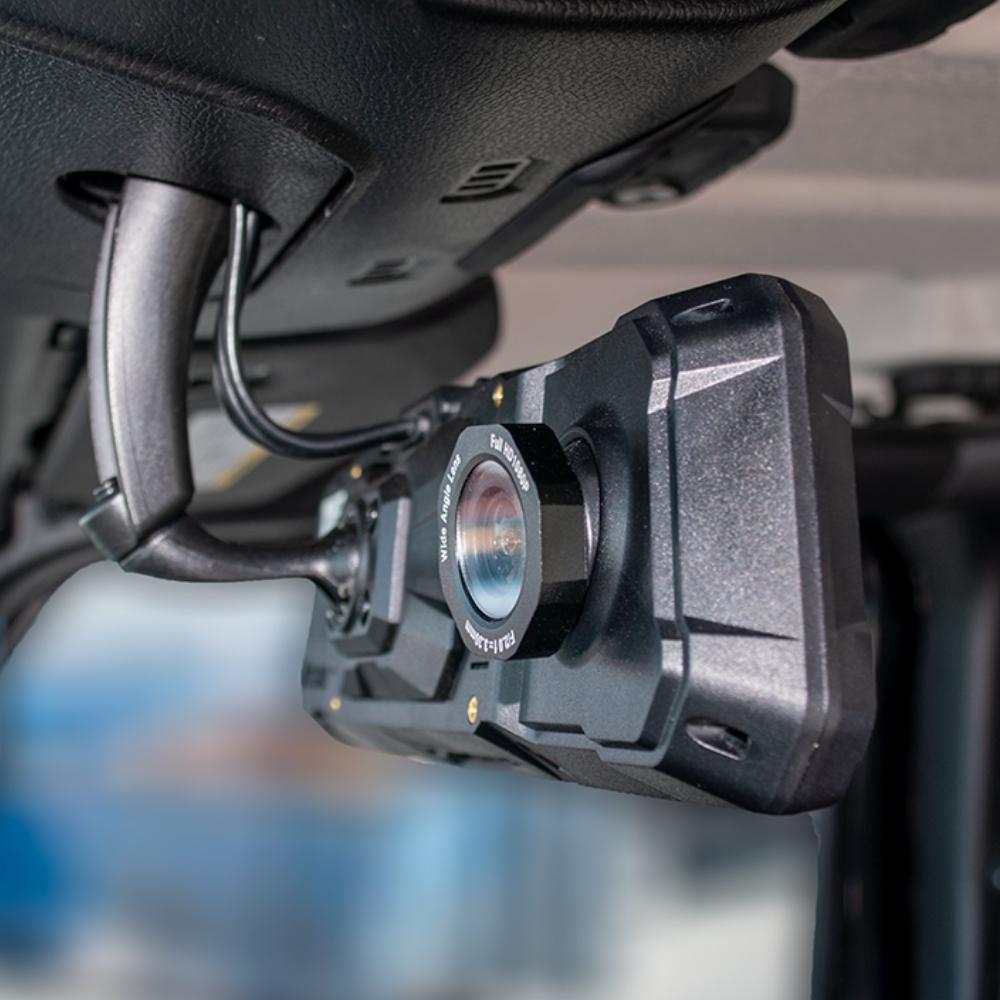

The Legend 4CH Mirror is a top-tier rearview mirror camera system engineered to deliver exceptional visibility, safety, and durability for both off-road enthusiasts and everyday drivers. Powered by a dual high-performance image processor, it enables true quad-FHD recording. The front camera features a starlight-grade CMOS sensor and a 6-layer glass wide-angle lens, capturing sharp 1080p video at 30fps.

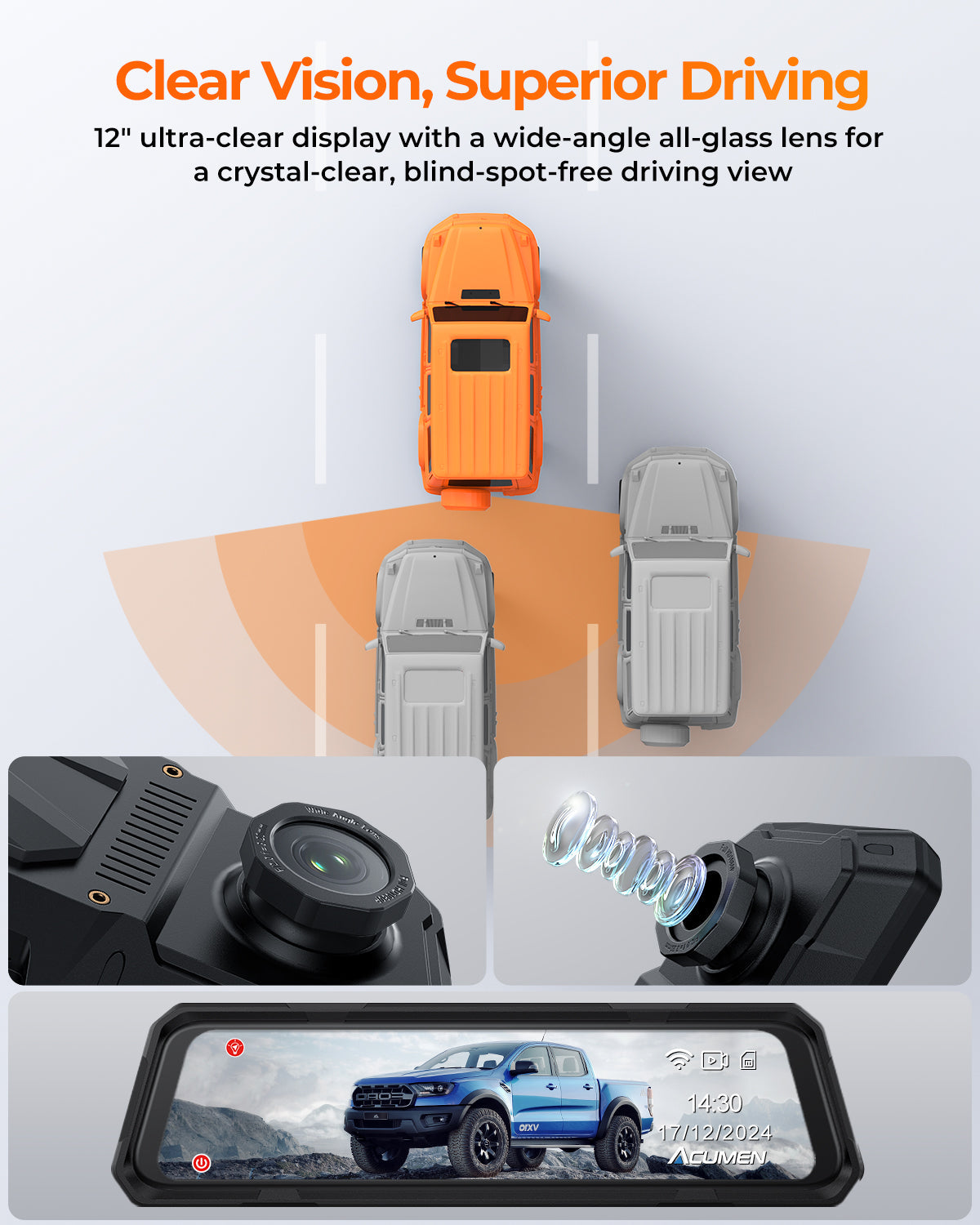

The rear and side cameras are equipped with Wide Dynamic Range (WDR) and 170° ultra-wide-angle lenses, offering a field of view up to 1.5× wider than conventional mirrors. This significantly reduces blind spots, while WDR and 3D noise reduction enhance clarity and night-time performance. With support for up to 256GB of storage, recording remains seamless and worry-free.
Built for extreme conditions, the Legend 4CH Mirror features a rugged IP67-rated design that resists high-pressure water, dust, and shock. Its integrated structure includes a vibration-absorbing buffer layer and an oversized heat sink, ensuring stable operation in harsh environments.

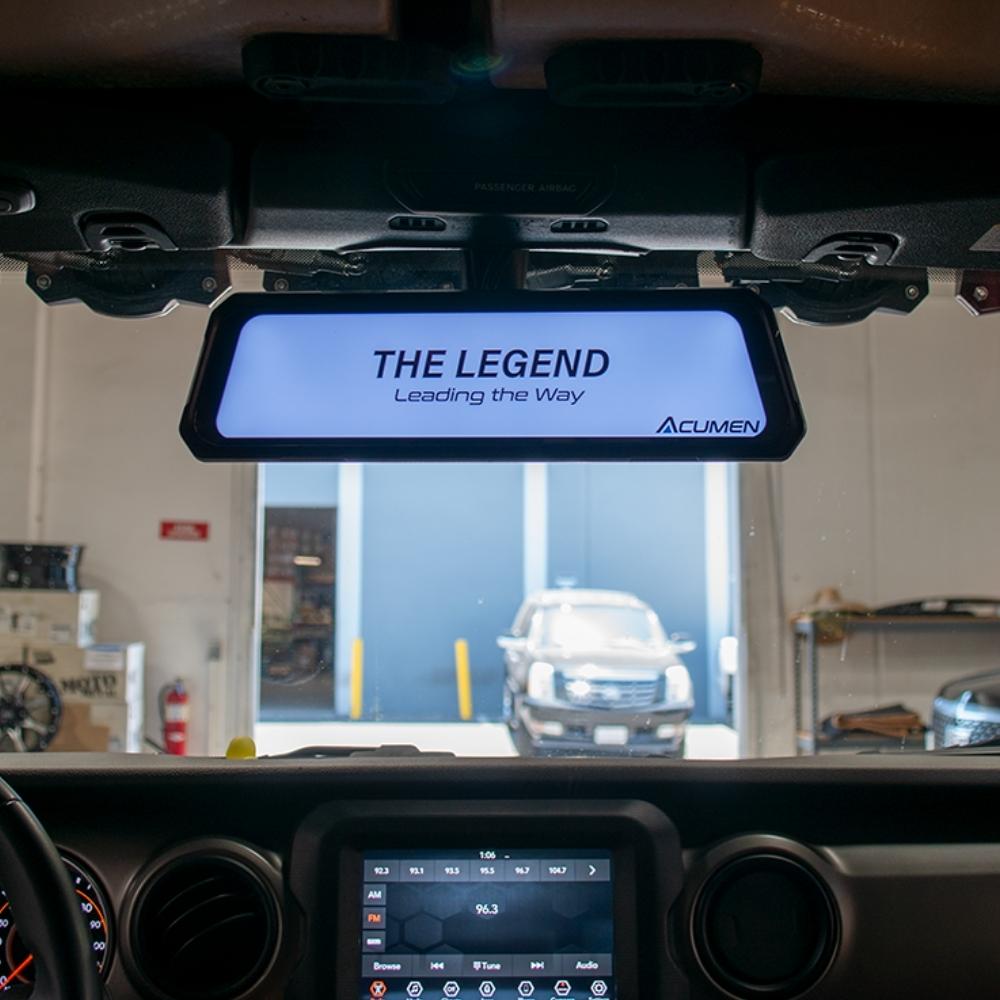

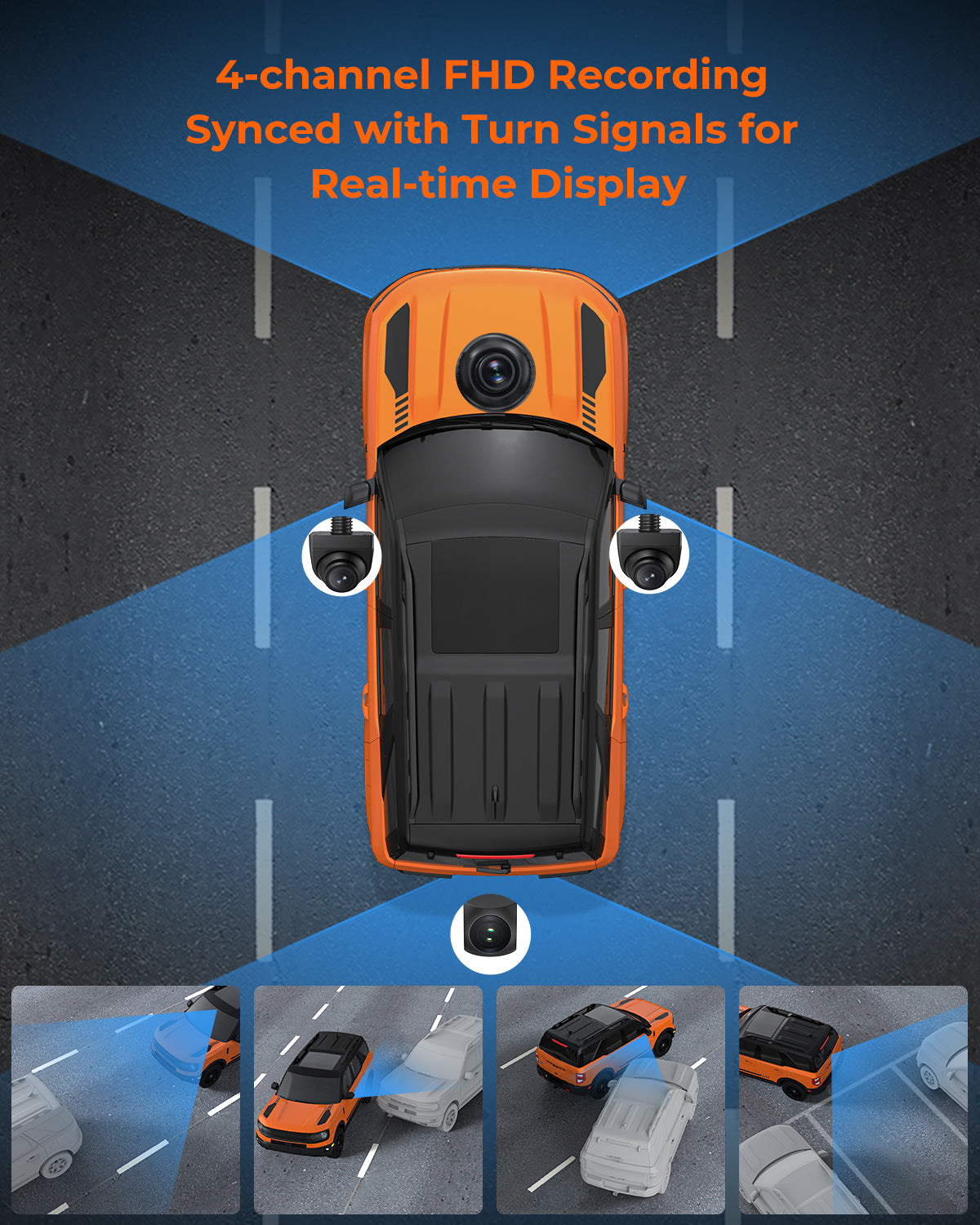

A 12-inch IPS HD display with a 2.5D curved touchscreen provides intuitive control, including power management and blind spot monitoring with turn signal synchronization. Built-in WiFi and GPS enable real-time video sharing and route tracking via a dedicated app.
Designed for cars, trucks, SUVs, and UTVs, the Legend 4CH Mirror also supports advanced safety features such as one-touch beam switching (requires Acumen Box), making it a powerful and reliable solution for modern driving.
| Screen Size: | 12" IPS Touch Screen |
| Dimensions: | L12.3" × W3.3" × H1.6" |
| Material: | Aluminum & ABS |
| Weight: | 1 lb |
| Number of Cameras: | 4 |
| Front Camera Resolution: | 3840 × 2160P |
| Rear Camera Resolution: | 1920 × 1080P |
| Recording Resolution: | 1080P Front + 1080P Rear × 3 |
| Footage Format: | .MP4 |
| Picture Format: | .JPG |
| Camera Angle of View: | Front: 148° FOV, Rear: 170° FOV |
| Camera Lens: | Front: 6-Glass, Rear: 6-Glass |
| Night Vision: | Super WDR |
| WiFi App Control: | Yes |
| Bluetooth App Control: | No |
| GPS Logger: | Yes |
| G-Sensor (Impact Sensor): | Yes |
| Loop Recording: | Yes |
| Included SD Card: | 64GB (Supports Up to 256GB) |
| Continuous Recording Time: | 6 hours |
| Parking Monitoring: | Time Lapse, Up to 24 Hours |
| Adjustable Parking Guide Line: | Yes |
| Extension Camera Cable: | 5-Pin XLR, 18 ft / 32 ft |
| Microphone: | Built-in |
| Speaker: | Built-in |
| Power Source: | Super Capacitor |
| Waterproof & Dustproof: | Yes |
| Operating Temperature: | -22°F to 176°F (-30°C to +80°C) |
| Power Voltage: | 5V |
| Amp Rating: | 3A |
| Built-in Programmable Switch Control: | Yes |
| Acumen Programmable Switch Box: | Optional |
