Description

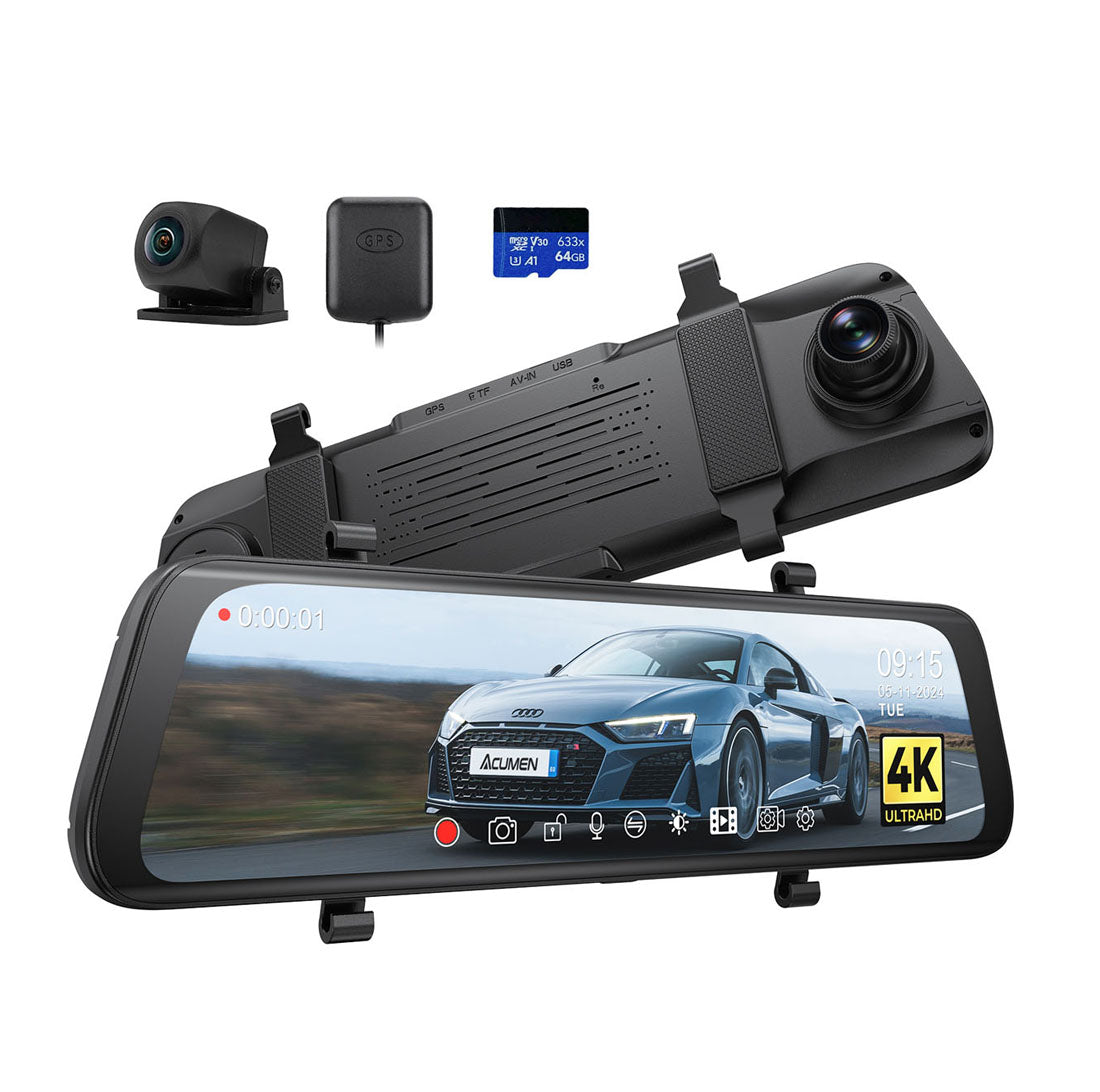

xThe Acumen XR10 Pro is a state-of-the-art rearview-mirror camera system crafted to provide exceptional visuals and safety for drivers in diverse conditions, from urban roads to light off-road trails. The XR10 Pro features a front camera with a STARVIS-grade CMOS sensor, a high-performance ISP processor, and a 6-layer full-glass wide-angle lens, delivering stunning 4K video (3840×2160 P @ 30 fps) for crystal-clear license plates and road signs. Its 2.5 K rear camera, equipped with Ultra HD WDR and a 170° wide-angle lens, offers a 1.5× larger view than traditional mirrors, reducing blind spots with glare-free night vision.
The XR10 Pro boasts a 10-inch 2.5 D curved LCD touchscreen, providing three times the viewing area of standard mirrors and responsive touch controls.
Wi-Fi Connectivity: Built-in Wi-Fi lets you pair the XR10 Pro directly with your smartphone via the Acumen mobile app for live-view streaming, instant video playback, and one-tap file downloads or sharing—no need to remove the memory card. The wireless link also makes firmware updates fast and seamless, so your device always stays up to date.
With 24 / 7 video protection, the XR10 Pro records continuously, overwriting old footage, while a G-sensor locks collision videos and time-lapse mode saves battery when parked. A built-in GPS tracks speed and location—fully reviewable through the app—and its super-capacitor ensures durability from -4 °F to 158 °F.
Compatible with cars, trucks, and SUVs, the XR10 Pro includes a 64 GB memory card and a 2-year warranty.
Features

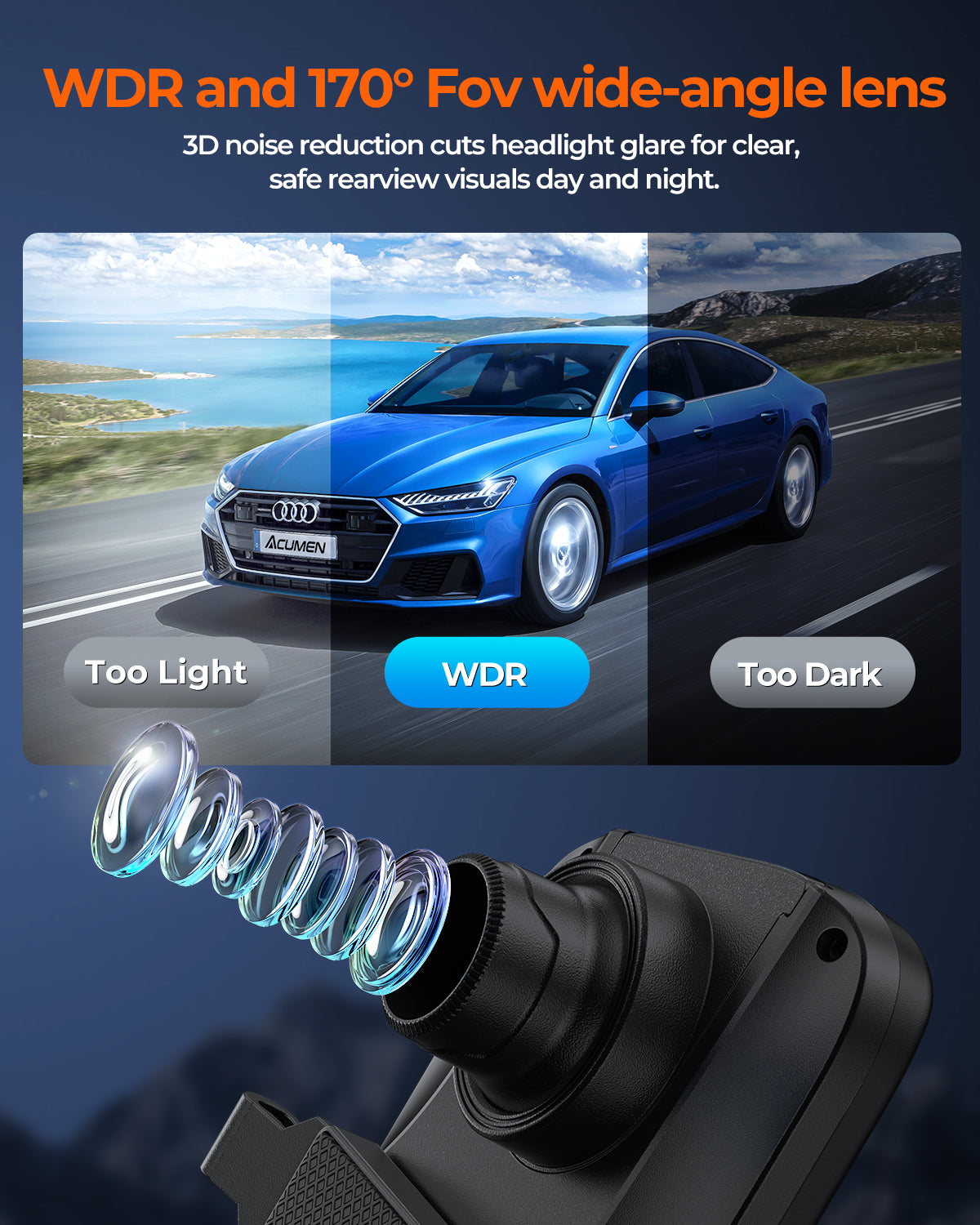

x- Outstanding Visual Experience: Equipped with a STARVIS-grade CMOS front camera and a 6-layer full-glass lens capturing stunning 4K Ultra HD video (3840×2160P @ 30fps). The 2.5K rear camera (2560×1440P) features WDR, a 170° wide-angle lens, and 3D noise reduction for a 1.5× wider viewing area with clear, glare-free night vision.
- High-Transparency 10-Inch Touchscreen: Features a 10-inch 2.5D curved LCD touchscreen offering three times the viewing area of standard mirrors, reducing glare while providing smooth, responsive touch controls.
- Seamless Wi-Fi Connectivity: Built-in Wi-Fi pairs directly with the Acumen mobile app for live-view streaming, instant playback, one-tap video downloads, and easy sharing—no SD card removal required. Supports wireless firmware updates for hassle-free upgrades.

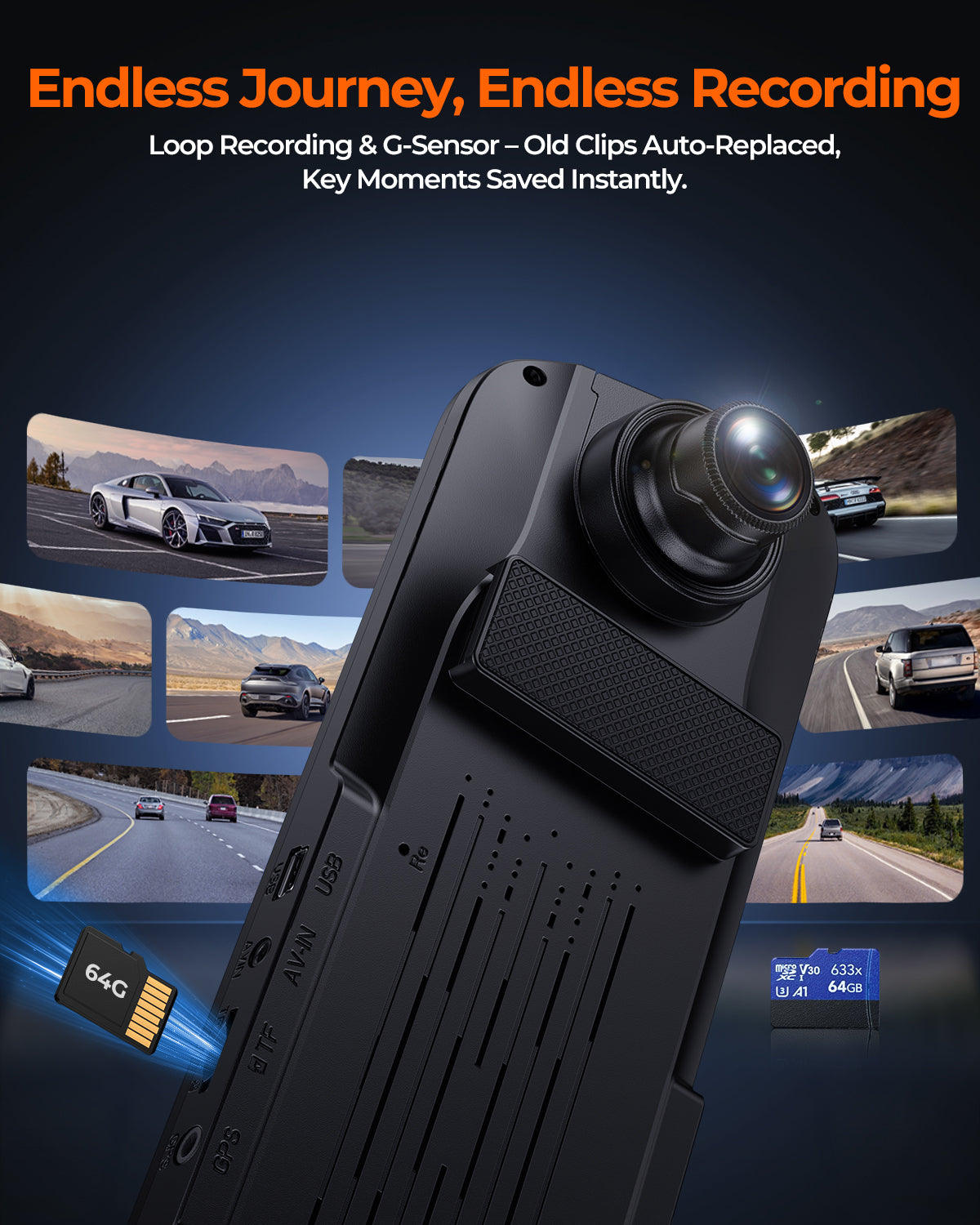

- 24/7 Video Protection: Continuously records in 4K and Full HD with automatic loop overwrite. The built-in G-sensor locks important footage during impacts, while optional time-lapse parking mode (with hardwire kit) adds power-saving 24/7 surveillance.
- Precise GPS Route Tracking: Built-in GPS with optional external antenna logs real-time speed and location. View routes, coordinates, and travel data directly through the mobile app for evidence or monitoring.
- Professional Power Design: Utilizes a long-life supercapacitor for dependable operation from –4°F to 158°F. Includes a 9V–30V to 5V step-down design compatible with a wide range of vehicles and delivering up to 100× more charge cycles than lithium batteries.
- Smart Features: Supports split-screen and full-screen display modes, adjustable viewing angles, horizontal rear-camera rotation, and customizable parking guidelines for optimized visibility and ease of use.
- Includes 64GB Memory Card & 2-Year Warranty: Comes with a 64GB memory card and is backed by a 2-year warranty with a 30-day replacement or full refund guarantee, supported by 24/7 customer service.
Fitment
xSpecifications
| Screen Size: | 10" IPS Touch Screen |
| Dimensions: | L10" × W2.7" × H0.5" |
| Material: | ABS |
| Weight: | 0.7 lbs |
| Number of Cameras: | 2 |
| Front Camera Resolution: | 3840 × 2160P |
| Rear Camera Resolution: | 2560 × 1440P |
| Recording Resolution: | 4K Front + 2.5K Rear |
| Footage Format: | .MP4 |
| Picture Format: | .JPG |
| Camera Angle of View: | Front: 123° FOV • Rear: 170° FOV |
| Camera Lens: | Front: 6-Glass • Rear: 6-Glass |
| Night Vision: | WDR Super Night Vision |
| WiFi App Control: | No |
| Bluetooth App Control: | Yes |
| GPS Logger: | Yes |
| G-Sensor (Impact Sensor): | Yes |
| Loop Recording: | True |
| Included SD Card: | 64GB (Supports Up to 256GB) |
| Continuous Recording Time: | 6 hours |
| Parking Monitoring: | Time Lapse, Up to 24 Hours |
| Adjustable Parking Guide Line: | Adjustable |
| Extension Camera Cable: | 5-Pin, 32 ft AUX |
| Microphone: | Built-in |
| Speaker: | Built-in |
| Power Source: | Super Capacitor |
| Waterproof & Dustproof: | No |
| Operating Temperature: | 32°F to 140°F (0°C to +60°C) |
| Power Voltage: | 5V |
| AMP Rating: | 3A |
| Built-in Programmable Switch Control: | No |
| Acumen Programmable Switches Box: | No |
